2U Wisenet WAVE Network Video Recorder with 4 Professional licenses, Wisenet WAVE pre-installed, 24TB raw (22TB usable after disk formatting & JBOD configuration), 470 Mbps recording B/W, 8 HDD Bay (3.5" with up to 7 hot plug storage drives), AMD EPYC, 8GB RAM, 480GB SSD OS drive, Windows 10 IoT Enterprise, Nvidia GPU, MiniDP output, VGA output, Dual GbE NICs, IPMI, 750W power supply, Keyboard and mouse included, Rail kit included
The WRR-Q-A200W offers an affordable and reliable 2U rackmount solution for any entry-level deployment. Up to 84TB of raw video-optimized storage is provided by 24/7 duty cycle SATA drives. The latestAMD EPYC Processor allowsfor high powered computingpower, and8GB ofDDR4 RAM provides the systemresourcesto scale as needed.
The solid state drive provides applications and operating system fast boot and load times. The three-year, on-site, Next Business Day, Keep Your Hard Drive warranty ensures peace of mind. Each server is pre-con gured with Wisenet WAVE VMS and preloaded with 4 Professional licenses to ensure quick and easy deployment with minimum setup time.
Features:
- Preloaded and configured with Wisenet WAVE video management system
- 470 Mbps of recording throughput
- Up to 84TB of Raw Storage
- SSD & 24/7 Duty Cycle SATA Drives
- Dedicated GPU for client application
- IPMI Management
- Includes USB mouse and keyboard
- Includes Sliding Rack Rail with Cable Management Arm
- 3-Year, On-site, Next Business Day, Keep Your Hard Drive Warranty
- Supports Wisenet and ONVIF conformant IP cameras
- Powered by Microsoft Windows 10 IoT Enterprise
| SYSTEM | ||
| Video Management Software | Wisenet WAVE | |
| Recording Bandwidth | Up to 470 Mbps | |
| OS Drive Bays | 1 x 480GB SSD | |

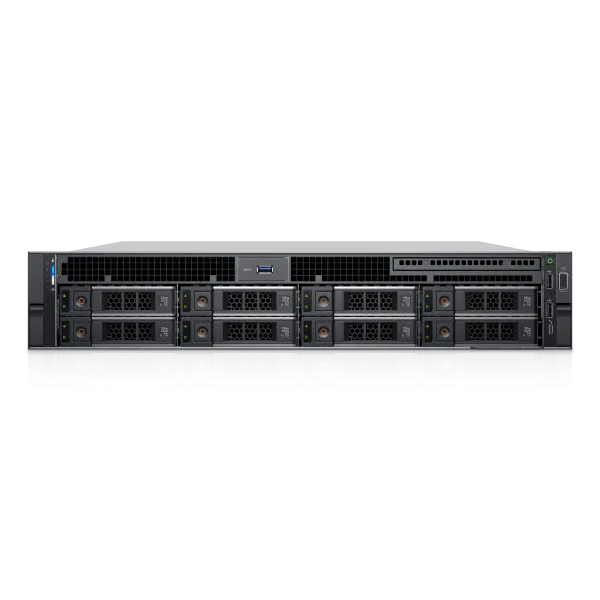

| OS / Data Drive Bays | 7 x 3.5" Hot Swappable Bays for Storage | |

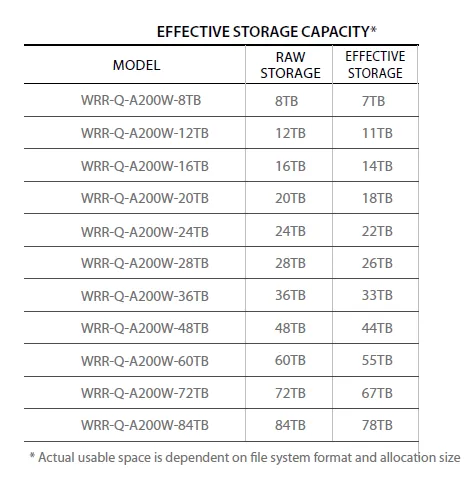

| Data Storage | Up to 84TB raw storage | |
| Pre-loaded Licenses | 4 x Wisenet WAVE Professional license | |
| Network Interface | 2 x RJ45 Gigabit Ethernet | |
| Processor | 1 x AMD® EPYC® Processor | |
| Memory | 8GB, 1 x 8GB DDR4 | |
| Operating System | Windows 10 IoT Enterprise | |
| Video Outputs | NVIDIA Quadro P400 3x MiniDisplay Port, 1 x VGA (Front), 1 x VGA (Rear) | |
| USB Ports | 2 x USB 3.0 (Rear), 2 x USB 2.0 (Front), 1 x USB 3.0 (Internal) | |
| Other Ports | Serial | |
| Keyboard & Mouse | Included | |
| Sliding Rail Kit | Included, with Cable Management Arm | |
| MECHANICAL / ELECTRICAL / ENVIRONMENTAL | ||
| Mechanical | Form Factor | 2U rack mount chassis |
| Color / Material | Black / Meta | |
| Dimensions (WxDxH) | 19" (482mm) x 28.25" (703mm) x 3.41" (86.8mm) | |
| Weight | 73 lb/33.1 Kg | |
| Electrical | Power Supply | 1 x 750W 80 Plus Platinum |
| Power Input | 100 ~ 240V AC | |
| Power Consumption | Maximum 788W | |
| Environmental | Operating Temperature | Standard: 50°F ~ 95°F (10°C ~ 35°C) at 10% to 80% RH with 84.2°F maximum dew point. Refer to manual for operating temperature derating. Extended: 40°F ~ 104°F (5°C ~ 40°C) at 5% to 85% RH with 84.2°F dew point |
| Storage Temperature | -40°F ~ 149°F (-40°C ~ 65°C ) | |
| Operating Humidity | 10% to 80% RH with 84.2°F maximum dew point | |
| Certi cation | UL, cUL, CB, FCC, 80 Plus Platinum | |
