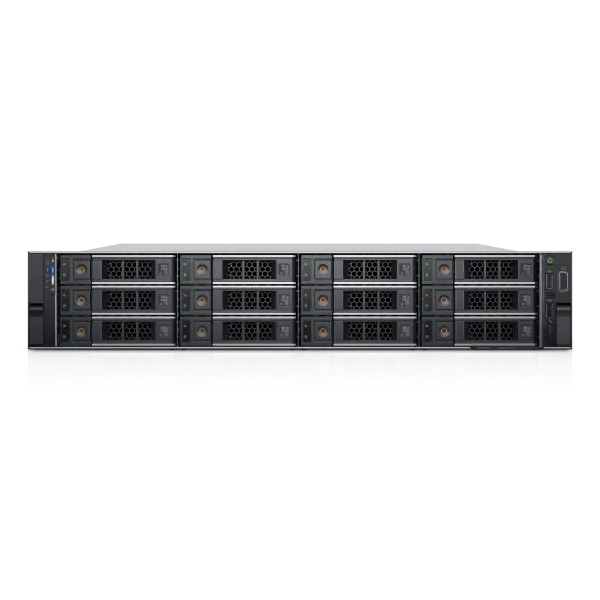

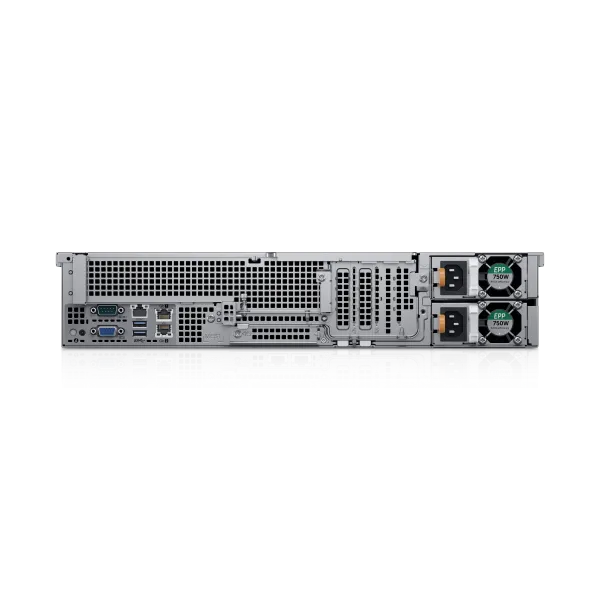

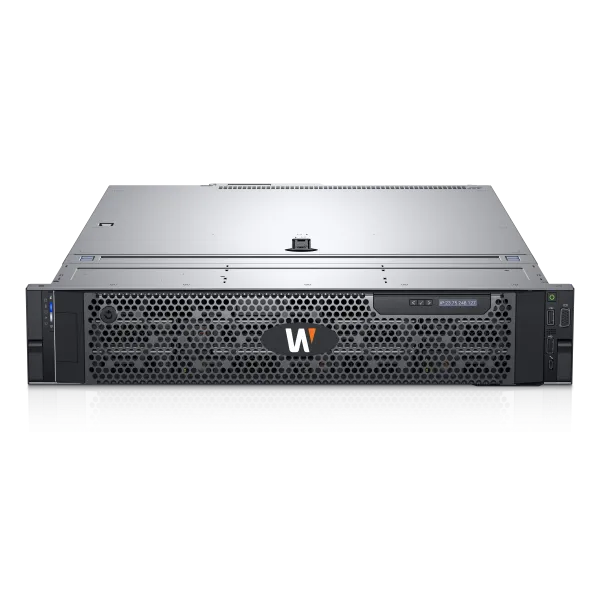

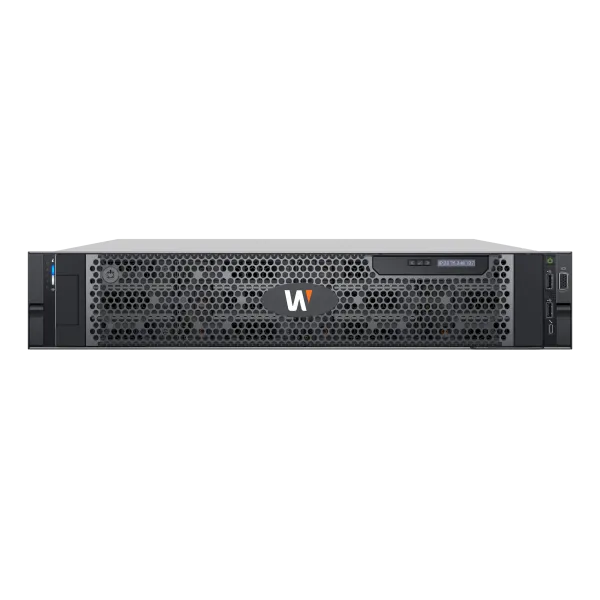

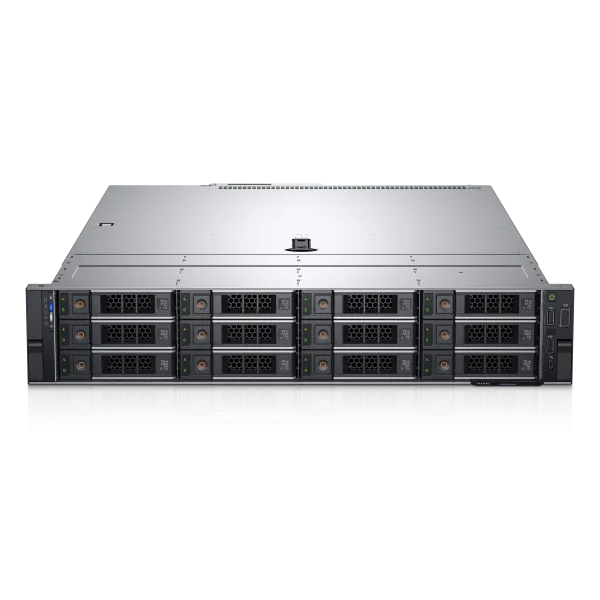

Hanwha - WRR-Q-A201W-80TB - Wisenet Wave NVR with 80TB HDD
Part number:
WRR-Q-A201W-80TB
Price:
2U Wisenet WAVE Network Video Recorder with 4 Professional licenses, Wisenet WAVE pre-installed, 80TB raw (67TB usable after disk formatting & RAID 5 configuration), 470 Mbps recording B/W, 12 HDD Bay (3.5" with up to 10 hot plug storage drives), AMD EPYC, 16GB RAM, Dual 480GB SSD OS drives (RAID 1), Windows 10 IoT Enterprise, Support RAID 0/1/5/6 + 2GB cache, Nvidia GPU, MiniDP output, VGA output, Dual GbE NICs, IPMI, Redundant 750W power supplies, Keyboard and mouse included, Rail kit included
Features:
- Preloaded and configured with Wisenet WAVE video management system
- 470 Mbps of recording throughput
- Up to 96TB of Raw Storage
- SSD & 24/7 Duty Cycle SATA Drives
- Dedicated GPU for client application
- IPMI Management
- Includes USB mouse and keyboard
- Includes Sliding Rack Rail with Cable Management Arm
- 3-Year, On-site, Next Business Day, Keep Your Hard Drive Warranty
- Supports Wisenet and ONVIF conformant IP cameras
- Powered by Microsoft Windows 10 IoT Enterprise
| SYSTEM | |
| Video Management Software | Wisenet WAVE |
| Recording Bandwidth | Up to 470 Mbps |
| OS Drive Bays | 2 x 480GB SSDs |
| OS / Data Drive Bays | 10 x 3.5" Hot Swappable Bays for Storage |
| Data Storage | Up to 96TB raw storage, Supports RAID 0, 1, 5, 6 (RAID5 Pre-configured) |
| Pre-loaded Licenses | 4 x Wisenet WAVE Professional license |
| Network Interface | 2 x RJ45 Gigabit Ethernet |
| Processor | 1 x AMD® EPYC® Processor |
| Memory | 16GB, 2 x 8GB DDR4 |
| Operating System | Windows 10 IoT Enterprise |
| Video Outputs | NVIDIA Quadro P400 3x MiniDisplay Port, 1 x VGA (Front), 1 x VGA (Rear) |
| USB Ports | 2 x USB 3.0 (Rear), 2 x USB 2.0 (Front), 1 x USB 3.0 (Internal) |
| Other Ports | Serial |
| Keyboard & Mouse | Included |
| Sliding Rail Kit | Included, with Cable Management Arm |
| MECHANICAL / ELECTRICAL / ENVIRONMENTAL | |
| Mechanical | Form Factor | 2U rack mount chassis |
| Color / Material | Black / Metal | |
Dimensions (WxDxH) | 19" (482mm) x 28.25" (703mm) x 3.41" (86.8mm) | |
| Weight | 73 lb/33.1 Kg | |
| Electrical | Power Supply | 2 x 750W 80 Plus Platinum |
| Power Input | 100 ~ 240V AC | |
| Power Consumption | Maximum 788W |
