Hanwha - WRT-P-3101W-8TB - Mini-Tower Form Factor WiseNet WAVE Recording Server with 8TB HDD
Part number:
WRT-P-3101W-8TB
Price:
Micro form factor Wisenet WAVE Network Video Recorder with 4 Professional licenses, Wisenet WAVE pre-installed, 8TB raw, 45 Mbps recording B/W, (1) 2.5" HDD, (10th Gen) Intel Core i3, 8GB RAM, 256 GB SSD OS Drive, Windows 10 IoT Enterprise, (1) HDMI, (1) DisplayPort output, , 1 GbE NIC, , Keyboard and mouse included
Features:
- Micro form factor Wisenet WAVE Network Video Recorder
- Includes 4 Professional licenses
- Wisenet WAVE pre-installed
- 45 Mbps recording B/W
- (1) 2.5" HDD
- (10th Gen) Intel Core i3, 8GB RAM
- 256 GB SSD OS Drive
- Windows 10 IoT Enterprise
- (1) HDMI, (1) DisplayPort output
- 1 GbE NIC
- Keyboard and mouse included
System
| Video Management Software | Wisenet WAVE |
| Recording Bandwidth | Up to 45Mbps |
| Pre-loaded licenses | 4 x Wisenet WAVE Professional License |
| OS Drive Bay | 1 x 256GB M2.5 SSD OS Drive |
| Data Drive Storage | 1x 2TB SATA for Video Storage |
| Network Interface | 1 x 1GbE RJ45 Ports |
| Processor | 1 x Intel® Core™ i3-10100T 3.0Ghz to 3.8Ghz (4 Cores, 8 Threads, 6MB) |
| Memory | 8GB DDR4 |
| Operating System | Windows 10 IoT Enterprise LTSC. |

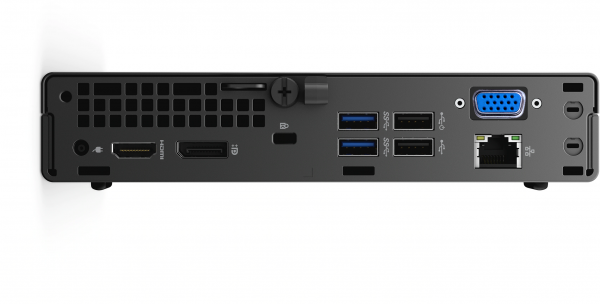

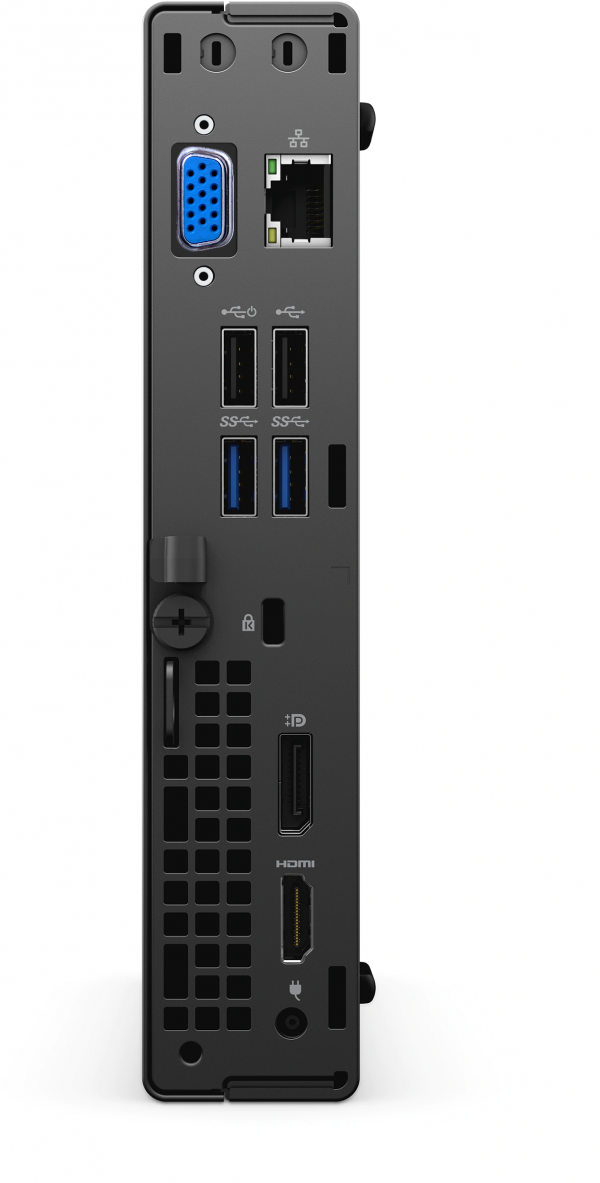

| Video Outputs | DisplayPort, HDMI |
| USB Ports | Rear: (2) USB 3.1 Gen 1, (2) USB 2.0; Front: (2) USB 3.1 Gen 1 |
| Other Ports | 2x 3.5mm audio headset output/input |
| Keyboard & Mouse | Included |
| Mechanical | Form Factor | Micro form factor server |
| Color / Material | Black / Metal & Plastic | |
| Dimensions (WxDxH) | 1.4” x 7.0” x 7.2” (36mm x 178mm x 182mm) | |
| Weight | 3.04 lbs (1.38 kg) | |
| Electrical | Power Input | 100 ~ 240V AC |
| Power Consumption | 65W | |
| Environmental | Operating Temperature | 41°F ~ 95°F (5°C ~ 35°C) |
| Storage Temperature | -40°F ~ 149°F (-40°C ~ 65°C ) | |
| Operating Humidity | 20% to 80% relative humidity (non-condensing) | |
| Certification | UL, cUL, CB, FCC, | |
