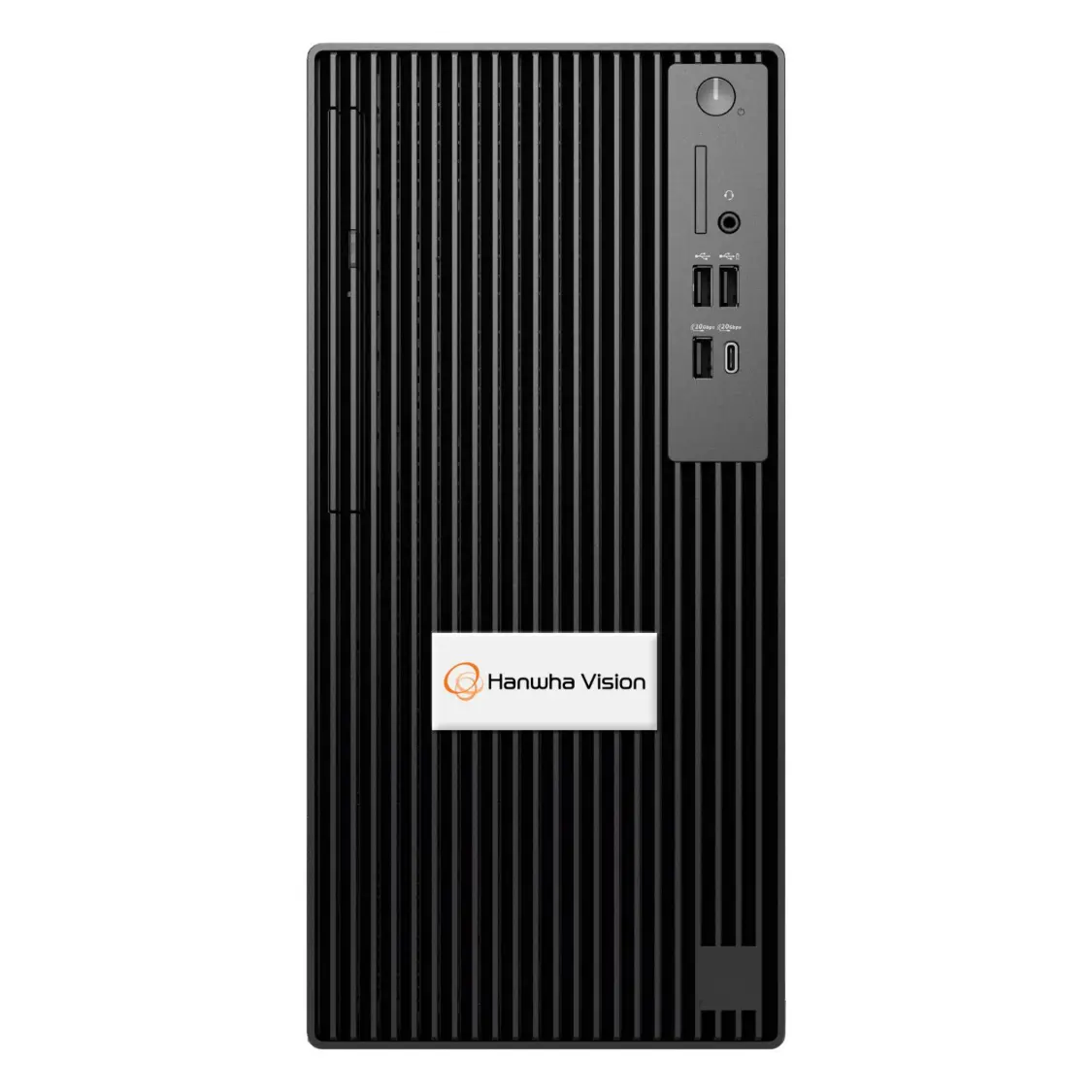

Hanwha - WRT-P-3104L1-8TB - Mini-tower form factor Wisenet WAVE Network Video Recorder
Part number:
Price:
The WRT-P-3104x1 series dual purpose Wisenet WAVE server and client is built into a compact mini-tower form running Windows 11 IoT Enterprise LTSC 2024 or Ubuntu Linux 22.04 LTS. This ready to deploy solution can manage up to 170 Mbps of recording throughput and up to 16TB of storage for a single site or as an addition to your existing Wisenet WAVE system. Each comes with Wisenet WAVE VMS and 4 Professional licenses to ensure quick an easy deployment with minimum setup time.
| Recording Bandwidth | Up to 170 Mbps * Bandwidth performance figures based on performance testing by Hanwha Vision using Wave VMS |
| OS Drive Bays | 1 x 512GB M.2 SSD (Internally Mounted) |
| Data Storage | Up to 16TB raw storage |
| Network Interface | 2x 1GbE RJ45 |
| Memory | 16GB |
| Other Ports | Front: 1x 3.5mm Universal Audio |
| Keyboard & Mouse | Included |
| USB Ports | Front: 2x USB 2.0, 1x USB 3.2 Gen2, 1x USB 3.2 Gen 2x2 Type-C Rear: 2x USB 2.0 + 2x USB 3.2 Gen1 |
| Operating System | Windows 11 IoT Enterprise LTSC 2024 / Ubuntu 22.04 LTS |
| Processor | 1 x Core i3 14th Gen |
| Data Drive Bays | 3 x 3.5" Front Hot Swappable Bays |
| Included Licenses | 4 x Wave Professional License |
| Video Management Software | Wave VMS |
| Mechanical | Form Factor: mini-tower Color / Material: Black/ Metal Dimensions (WxDxH): 6.06"(154mm) x 11.54"(293mm) x 12.77"(324.30mm) Weight: 14.95 lbs (6.78 kg) |
| Electrical | Power Supply: 360W 80 Plus Platinum Power Input: 100 - 240 VAC |
| Environmental | Operating Temperature: 50F - 95F (10C - 35C) Storage Temperature: -40F to 149F (-40C to 65C) Operating Humidity: 20% to 85% (non-condensing) |
| Certifications | UL, cUL, CB, FCC, 80 Plus Platinum |
Name
Description
Size
Downloads
File
DataSheet_WRT-P-3104x1-Series_EN.pdf
0.3mb
