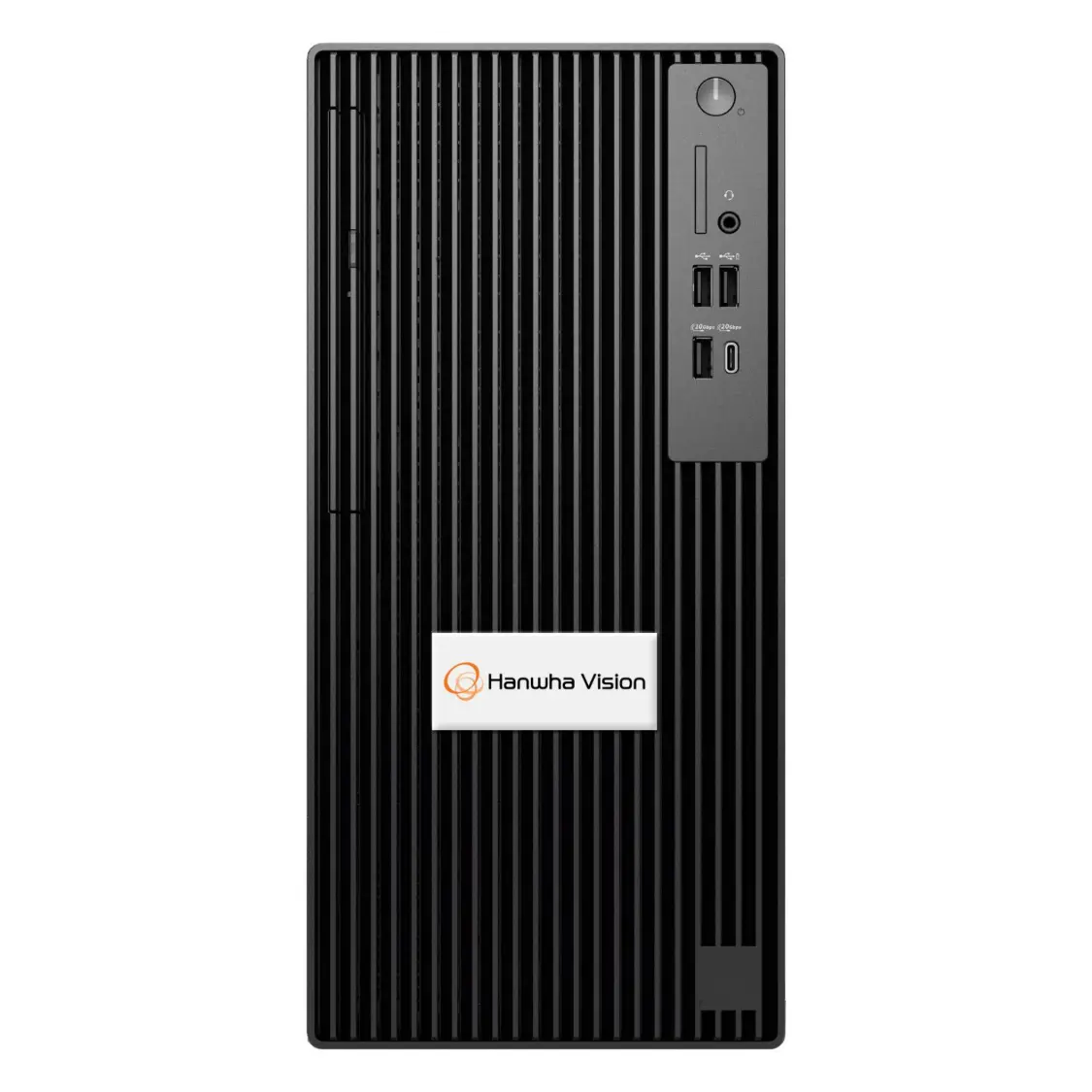

Hanwha - WRT-P-3104W1-16TB - Mini-tower form factor Wisenet WAVE Network Video Recorder with 4 Professional licenses, Wisenet WAVE pre-installed, 16TB raw, 170Mbps recording B/W, (1) 3.5" HDD, (14th Gen) Intel Core i3, 16GB RAM, 512 GB SSD OS Drive,
Part number:
Price:
The WRT-P-3104x1 series dual purpose Wisenet WAVE server and client is built into a compact mini-tower form running Windows 11 IoT Enterprise LTSC 2024 or Ubuntu Linux 22.04 LTS. This ready to deploy solution can manage up to 170 Mbps of recording throughput and up to 16TB of storage for a single site or as an addition to your existing Wisenet WAVE system. Each comes with Wisenet WAVE VMS and 4 Professional licenses to ensure quick an easy deployment with minimum setup time.
| Recording | |
|---|---|
| Bandwidth | Up to 170 Mbps * Bandwidth performance figures based on performance testing by Hanwha Vision using Wave VMS |
| Storage | |
| OS Drive Bays | 1 x 512GB M.2 SSD (Internally Mounted) |
| Data Storage | Up to 16TB raw storage |
| Data Drive Bays | 3 x 3.5" Front Hot Swappable Bays |
| Network & Connectivity | |
| Network Interface | 2x 1GbE RJ45 |

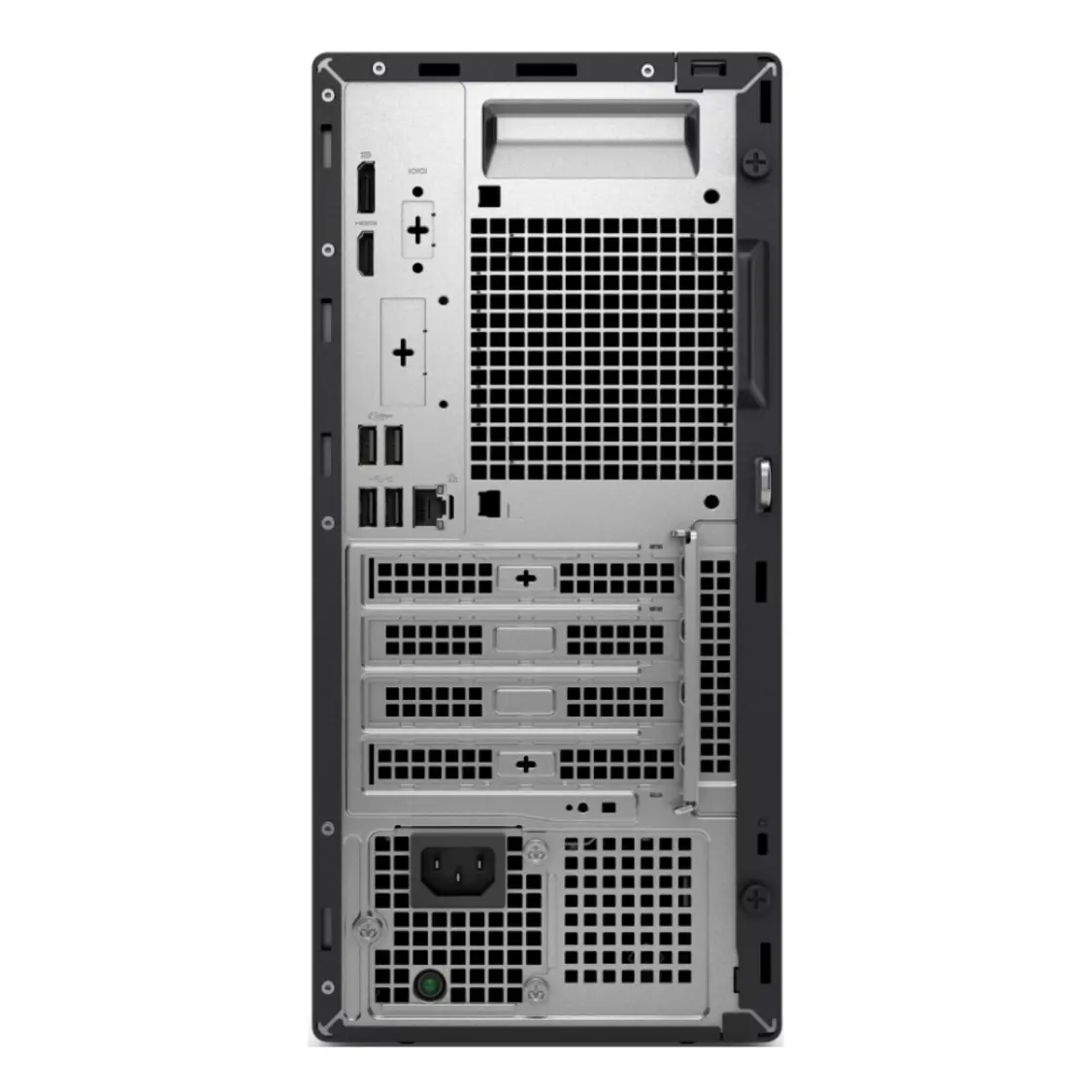

| USB Ports | Front: 2x USB 2.0, 1x USB 3.2 Gen2, 1x USB 3.2 Gen 2x2 Type-C Rear: 2x USB 2.0 + 2x USB 3.2 Gen1 |
| Video Outputs | 1 x DP, 1 x HDMI |
| Other Ports | Front: 1x 3.5mm Universal Audio |
| Keyboard & Mouse | Included |
| System | |
| Memory | 16GB |
| Operating System | Windows 11 IoT Enterprise LTSC 2024 / Ubuntu 22.04 LTS |
| Processor | 1 x Intel Core i3 14th Gen |
| Included Licenses | 4 x Wave Professional License |
| Mechanical | |
| Form Factor | mini-tower |
| Color/Material | Black/Metal |
| Dimensions (WxDxH) | 6.06"(154mm) x 11.54"(293mm) x 12.77"(324.30mm) |
| Weight | 14.95 lbs (6.78 kg) |
| Electrical | |
| Power Supply | 360W 80 Plus Platinum |
| Power Input | 100 - 240 VAC |
| Environmental | |
| Operating Temperature | 50F - 95F (10C - 35C) |
| Storage Temperature | -40F to 149F (-40C to 65C) |
| Operating Humidity | 20% to 85% (non-condensing) |
| Certifications | |
| Certifications | UL, cUL, CB, FCC, 80 Plus Platinum |
Name
Description
Size
Downloads
File
DataSheet_WRT-P-3104x1-Series_EN.pdf
0.3mb
