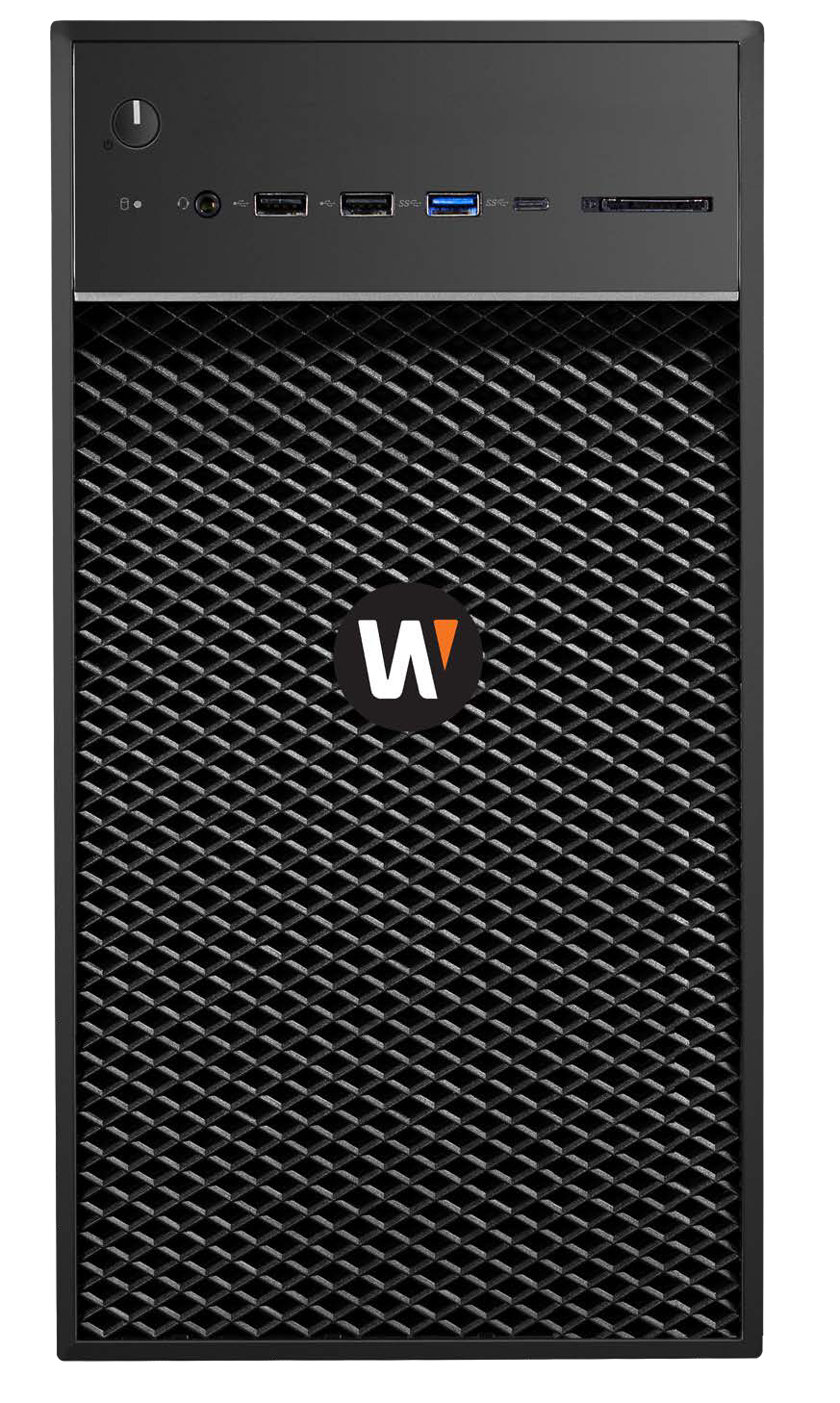

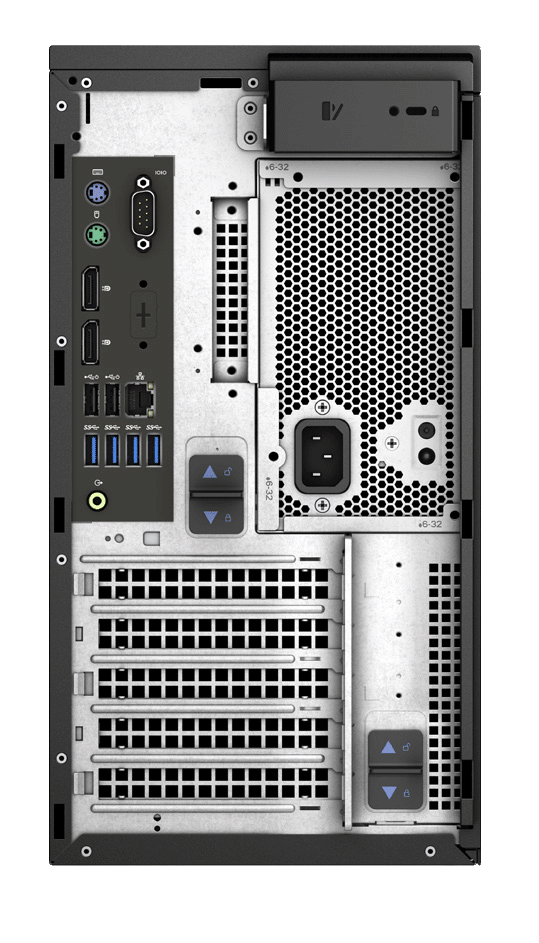

Hanwha - WRT-P-5200W-12TB - Dual-purpose Wisenet WAVE Network Video Recorder-12TB
Part number:
WRT-P-5200W-12TB
Price:
The WRT-P-5200W is a dual purpose Wisenet WAVE server and client built into a compact mini-tower form factor. This ready to deploy solution can manage up to 470 Mbps of recording throughput on up to 30TB of storage for a single site, or as an addition to your existing Wisenet WAVE system.
Features:
- Preloaded and configured with Wisenet WAVE video management system
- Includes (4) four Wisenet WAVE Professional licenses
- 470 Mbps of recording throughput
- Up to 30TB internal storage
- Supports Wisenet and ONVIF conformant IP cameras
- Dual DisplayPort monitor outputs
- Dual GbE NICs
- Includes USB mouse and keyboard
- 5-Year, On-site, Next Business Day, Keep Your Hard Drive Warranty
- Powered by the Microsoft Windows 10 Professional Operating System
SYSTEM
| Video Management Software | Wisenet WAVE |
| Recording Bandwidth | Up to 470 Mbps |
| Pre-loaded Licenses | 4 x Wisenet WAVE Professional license |
| OS Drive Bays | 1 x 256GB SSD (internally mounted) |
| Data Drive Bays | 3x 3.5" SATA HDDs |
| Data Storage | Up to 30TB raw storage |
| Network Interface | 2 x RJ-45, Gigabit Ethernet |
| Processor | 1 x Intel® Core® i5-9500, 3Ghz to 4.40Ghz (6 Core, 6 Thread, 9MB, 16Mb) |
| Memory | 16GB DDR4 |
| Operating System | Windows 10 Professional / Ubuntu Linux 18.04 LTS |
| Video Outputs | 2x DisplayPort with 1 x DisplayPort to HDMI adapter |
| USB Ports | Rear (4) USB 3.0, (2) USB 2.0; Front (1) USB 3.0, (2) USB 2.0, (1) USB 3.0 Type-C |
| Other Ports | 3.5mm audio output, PS2 Keyboard & Mouse, Serial |
| Keyboard & Mouse | Included |
MECHANICAL / ELECTRICAL / ENVIRONMENTAL
| Form Factor | Tower |
| Color / Material | Black / Metal |
| Dimensions (HxWxD) | 13.19” x 6.95” x 13.58” (33.5cm x 17.7cm x 34.5cm) |
| Weight | 24 lbs (10.8 kg) |
| Power Supply | 460W 80 Plus Gold |
| Power Input | 100 ~ 240V AC |
| Power Consumption | Maximum 460W |
| Operating Temperature | 32°F ~ 95°F (0°C ~ 35°C) |
| Storage Temperature | -40°F ~ 149°F (-40°C ~ 65°C) |
| Operating Humidity | 10% to 80% RH non-condensing |
| Certification | UL, cUL, CB, FCC, 80 Plus Gold |
Name
Description
Size
Downloads
File
Specifications
0.8mb
File
WAVE Server Quick Start Guide
1.7mb
