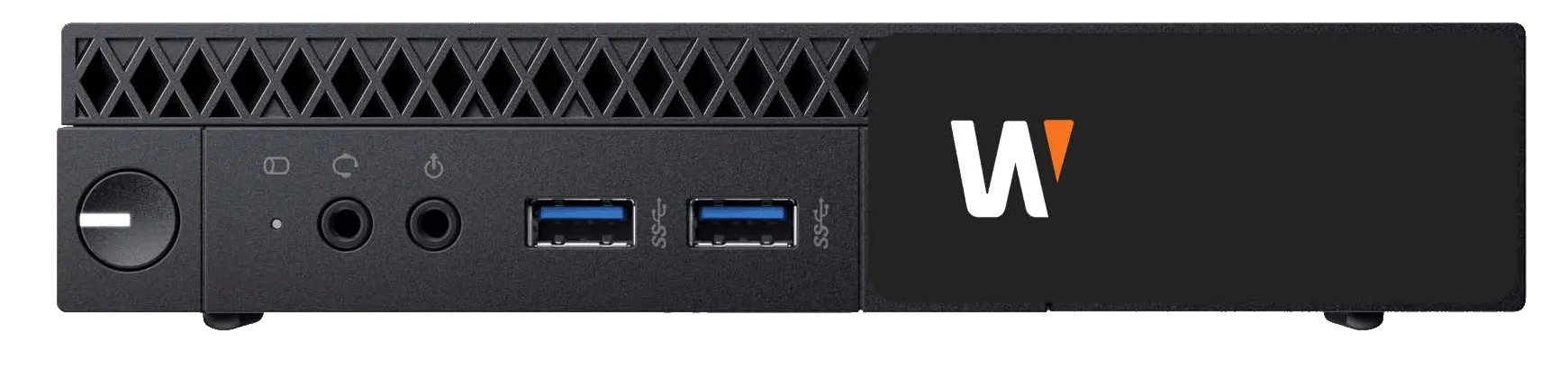

Hanwha - WWT-P-7203MW - Micro Form Factor Wisenet WAVE Client Workstation
Part number:
WWT-P-7203MW
Price:
The WWT-P-7203MW client workstation is a micro form factor, easy-to-deploy solution that can be used on-site or remotely to access your Wisenet WAVE video recorder. The workstation has a 256GB solid-state drive for the Windows 10 IoT Enterprise LTSC operating system to provide fast boot and load times. This micro workstation offers unrivaled deployment flexibility, allowing for its small chassis to be deployed in any small business environment. An optional VESA mount allows the workstation to be inconspicuously mounted behind a monitor.
Features:
- (13th Gen) Intel Core i7, 8GB RAM
- 256 GB SSD OS Drive
- Windows 10 IoT Enterprise
- (1) HDMI, (1) DisplayPort, (1) VGA
- 1 GbE NIC
- Keyboard and mouse included
| SYSTEM | |
| Video Management Software | Wisenet WAVE |
| OS Drive Bay | 1 x 256GB M2.5" SSD |
| Network Interface | 1 x 1GbE RJ45 Ports |
| Processor | 1 x Intel® Core™ i7 13th Generation |
| Memory | 16GB DDR4 |
| Operating System | Windows 10 IoT Enterprise / Ubuntu Linux 20.04 LTS |
| Video Outputs | 1x HDMI, 1x DP, 1x VGA, 1x DP to HDMI adapter included |
| USB Ports | Rear: (4) USB 3.2 Gen 1; Front: (1) USB 3.2 Gen 1, (1) USB 3.2 Gen 2 |
| Other Ports | 2x 3.5mm audio headset output/input |
| Keyboard & Mouse | Included |
| MECHANICAL / ELECTRICAL / ENVIRONMENTAL |
| Mechanical | Form Factor | Micro form factor client |
| Color / Material | Black / Metal & Plastic | |
Dimensions (WxDxH) | 1.4” x 7.0” x 7.2” (36mm x 178mm x 182mm) | |
| Weight | 2.95 lbs (1.34 kg) | |
| Electrical | Power Input | 100 ~ 240V AC |
| Power Consumption | 90W | |
Environmental | Operating Temperature | 50°F to 95°F (10°C to 35°C) |
Storage Temperature | -40°F ~ 149°F (-40°C ~ 65°C ) | |
| Operating Humidity | 20% to 80% relative humidity (non-condensing) | |
| Certification | UL, cUL, CB, FCC, | |
