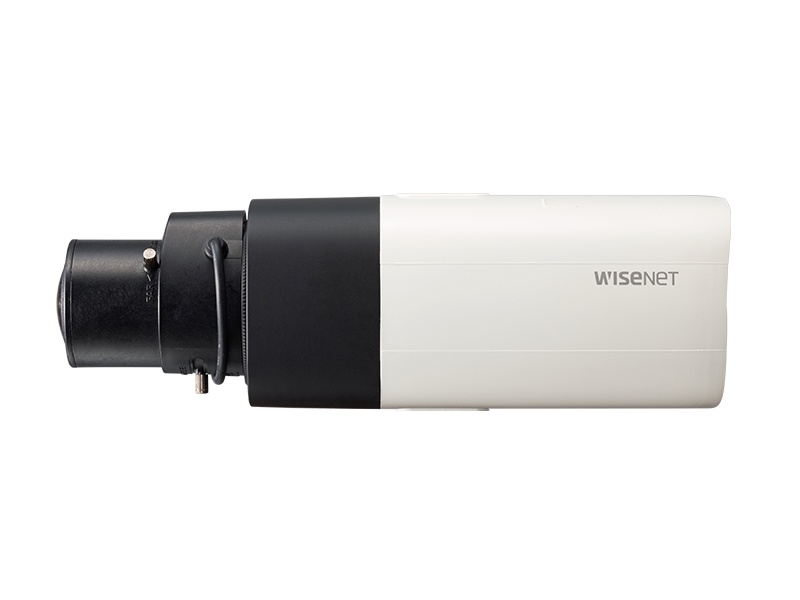

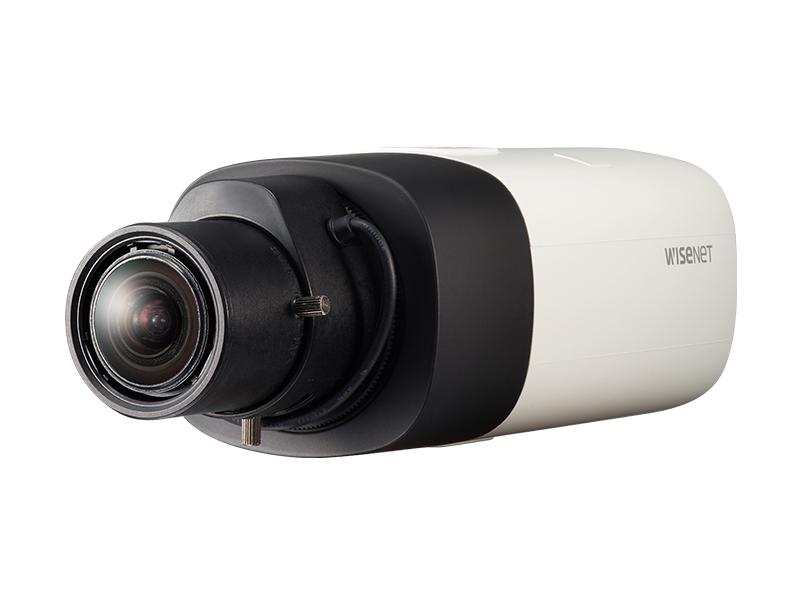

Hanwha - XNB-6005 - Wisenet X powered by Wisenet 5 network box camera, eXtraLUX features 1/2" sensor, 2MP, Full HD(1080p) @60fps, triple codec H.265/H.264/MJPEG with WiseStream II technology, 150dB WDR, USB port for easy installation, advanced video
Part number:
XNB-6005
Price:
Wisenet X powered by Wisenet 5 network box camera, eXtraLUX features 1/2" sensor, 2MP, Full HD(1080p) @60fps, triple codec H.265/H.264/MJPEG with WiseStream II technology, 150dB WDR, USB port for easy installation, advanced video analytics and sound classification and business analytics, true D/N, dual SD card, hallway view, HLC, defog detection, DIS (Gyro), 12VDC/24VAC/PoE
Faetures:
- Max 2MP @ 60fps
- ½” CMOS sensor
- Support i-CS/ DC auto Iris / P-Iris
- Triple Codec: H.265, H.264 and MJPEG multiple streaming
- WiseStream II compression technology
- WDR 150dB @30fps, 120dB @60fps
- Loitering, directional detection, fog detection, tampering, Motion detection, object enter or exit an area
- Hallway view, sound classification
- Dual SD cards
- Gyro sensor for digital image stabilization
- Power: PoE or 12VDC/24VAC
| Video | |
| Imaging Device | 1/2" 2.17M CMOS |
| Effective Pixels | 1,945(H) X 1,097(V) 2.13M |
| Minimum Illumination | Color : 0.006 Lux (1/30sec, F1.2), B/W : 0.0006 Lux (1/30sec, F1.2) |
| Video Out | CVBS : 1.0 Vpp / 75Ω composite, 720 x 480(N), 720 x 576(P), for Installation USB : Micro USB Type B, 1280 x 720 for Installation |
| Lens |
| Focus Control | Simple focus/ Manual, Remote control via network, Button control (Simple focus) |
| Lens/Mount Type | Manual, DC Auto Iris, P-Iris, i-CS |
| Operational |
| Camera Title | Off / On (Displayed up to 85 characters) · W/W : English / Numeric / Special characters · China : English / Numeric / Special / Chinese characters · Common : Multi-line (Max 5), Color (Gray / Green / Red / Blue / Black / White), Transparency, Auto scale by resolution |
| Day & Night | Auto (ICR)/ Color/ B/W / External / Schedule |
| Backlight Compensation | Off / BLC / HLC / WDR |
| Wide Dynamic Range | 150dB |
| Digital Noise Reduction | SSNRV (2D+3D noise filter) (Off / On) |
| Digital Image Stabilization | Off / On |
| Defog | Off / Auto / Manual |
| Motion Detection | Off / On (8ea, 8point polygonal zones), Handover |
| Privacy Masking | Off / On (32ea, Polygonal) - Color : Grey / Green / Red / Blue / Black / White, Mosaic |
| Gain Control | Low / Middle / High |
| White Balance | ATW / AWC / Manual / Indoor / Outdoor |
| LDC | Off / On (5 levels with min / max) |
| Electronic Shutter Speed | Minimum / Maximum / Anti flicker (2 ~ 1/12,000sec) |
| Digital PTZ | 24x, Digital PTZ (Preset, Group) |
| Flip / Mirror | Off / On, Hallway view : 90˚/270˚ |
| Alarm I/O | Input 1ea / Output 1ea |
| Alarm Triggers | Alarm Triggers Motion detection, Video & Audio analytics, Network disconnect |
| Alarm events | File upload Via FTP, E-Mail, Notification via e-mail, Local storage (SD / SDHC / SDXC) or NAS recording at event triggers, External output, DPTZ preset |
| MECHANICAL | |
| Color/ Material | Black, Ivory / Plastic |
| Dimensions(WxHxD) | 73.1 x 66.6 x 147.8mm (2.88" x 2.62" x 5.82") |
| Weight | 420g (0.93 lb) |
