Hanwha - XNB-H6461H - 2MP Pinhole Height Strip Camera Kit
Part number:
XNB-H6461H
Price:
Wisenet X powered by Wisenet 5 network pinhole camera with height strip housing, 2MP, Full HD(1080p) 60fps, 4.6mm fixed lens (73°), triple codec H.265/H.264/MJPEG with WiseStream II technology, 120dB WDR, micro SD/SDHC/SDXC, USB port for easy installation, advanced video analytics and sound classification and business analytics, hallway view, HLC, defog detection, DIS, 12VDC/PoE, +14°F ~ 131°F, cable Length is 8m (26 feet).
Features:
- Designed for easy installation
- Fits most standard door frames
- Durable aluminum construction

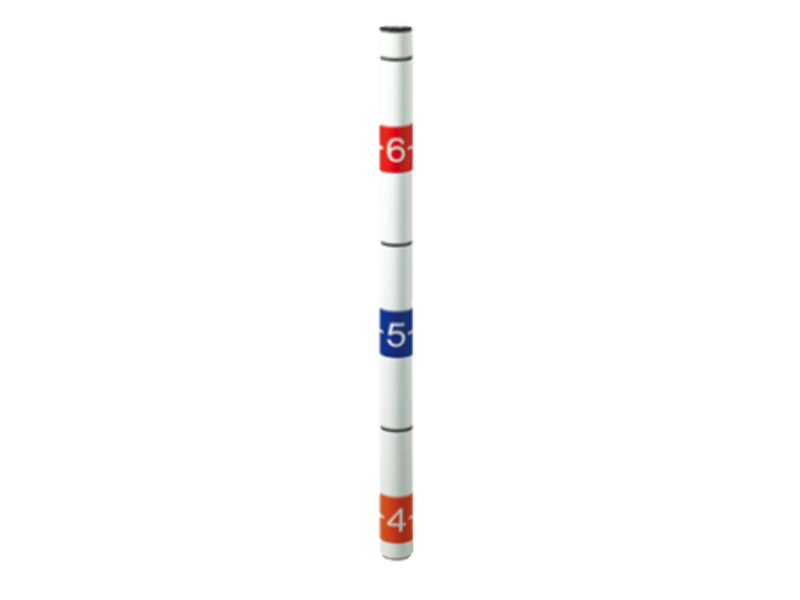

- Highly visible color-coded height levels
- Capture a person's face and approximate height
- 3 lens mounting positions
- Curved surface w/180º HFOV camera adjustment
- Wrap-around labels visible from side
- Includes XNB-6001 main unit, lens, & housing
Video
| Imaging Device | 1/2.8" 2MP CMOS |
| Effective Pixels | 1,945(H) X 1,097(V) 2.13M |
| Minimum Illumination | Color : 0.06Lux (F2.5) B/W : 0.06Lux (F2.5 |
| Video Out | CVBS : 1.0 Vp-p / 75Ω composite, 720 x 480(N), 720 x 576(P) for installation USB : Micro USB type B, 1280 x 720 for installation |
Lens
| Focal Length (Zoom Ratio) | 4.6mm Fixed focal |
| Maximum Aperture Ratio | F2.5 |
| Angular Field of View | H : 73° / V : 39° / D : 85° |
| Minimum Object Distance | 0.3m (0.98ft) |
| Focus Control | Manual |
| Lens/Mount Type | RJ-12 connected with main unit |
Operational
| Camera Title | Displayed up to 85 characters, 5 lines, English / Numeric / Special & International characters, 6 colors, Transparency, Auto scale by resolution |
| Day & Night | Auto (Electrical) / Color / B/W |
| Backlight Compensation | Off / BLC / HLC / WDR |
| Wide Dynamic Range | 120dB |
| Digital Noise Reduction | SSNRV (2D+3D noise filter) (Off / On) |
| Digital Image Stabilization | Off / On |
| Defog | Off / Auto (Input from fog detection) / Manual |
| Motion Detection | Off / On (8ea, 8point polygonal zones), Handover |
| Privacy Masking | Off / On (32ea, Polygonal) - Color : Grey / Green / Red / Blue / Black / White, Mosaic |
| Gain Control | Low / Middle / High |
| White Balance | ATW / AWC / Manual / Indoor / Outdoor |
| LDC | Off / On (5 levels with min / max) |
| Electronic Shutter Speed | Minimum / Maximum / Anti flicker (2 ~ 1/12,000sec) |
| Digital PTZ | 24x, Digital PTZ (Preset, Group) |
| Flip / Mirror | Off / On, Hallway view : 90˚/270˚ |
| Alarm I/O | Input 1ea / Output 1ea |
| Alarm Triggers | Alarm Triggers Motion detection, Video & Audio analytics, Network disconnect |
| Alarm events | File upload Via FTP, E-Mail, Notification via e-mail, Local storage (SD / SDHC / SDXC) or NAS recording at event triggers, External output, DPTZ preset |
