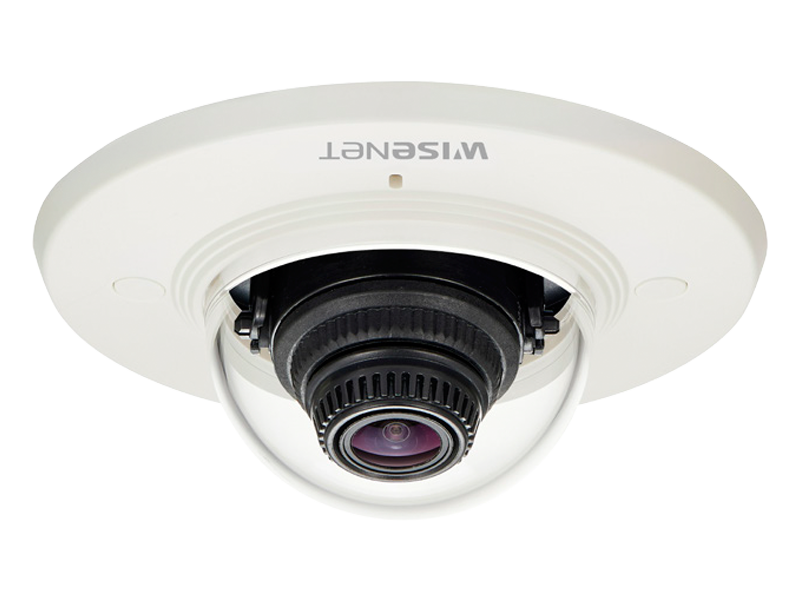

Hanwha - XND-6011F - 2MP Flush Mount
Part number:
XND-6011F
Price:
Wisenet X powered by Wisenet 5 network flush mount dome camera, 2MP, Full HD(1080p) @ 60fps WDR off/on(120dB) or @30fps WDR on(150dB), 2.8mm fixed lens (112°), H.265/H.264/MJPEG, WiseStream II compression technology, 150dB WDR, USB port for easy installation, advanced video analytics, business analytics and sound classification, built-in Mic, magnetic cover, electronic D/N, SD card, hallway view, HLC, Defog detection, DIS, PoE.
Features:
- 2MP @ 60fps
- Triple codecH.265/H.264/MJPEG
- 2.8mm fixed lens
- Wide dynamic range 150dB
- On-board analytics (business/audio and video)
- Digital image stabilization
- Magnetic cover and a built-in mic
- Built-in retail business intelligence analytics
- USB for easy installation
| VIDEO | |
| Imaging Device | 1/2.8" 2M CMOS |
| Total Pixels | 1,945(H) x 1,109(V) 2.16M |
| Effective Pixels | 1,945(H) x 1,097(V) 2.13M |
| Scanning System | Progressive Scan |
| Min. Illumination | Color : 0.055 Lux (F2.0, 1/30sec), B/W : 0.055 Lux (F2.0, 1/30sec) |
| S / N Ratio | 50dB |
| Video Out | USB : Micro USB Type B, 1280 x 720, for Installation |
| LENS | |
| Focal Length (Zoom Ratio) | 2.8mm fixed |
| Max. Aperture Ratio | F2.0 |
| Angular Field of View | H : 112˚ / V : 62˚ / D : 130˚ |
| Min. Object Distance | 0.2m (0.66ft) |
| Focus Control | Manual |
| Lens / Mount Type | Fixed / Board-in Type |
| PAN / TILT / ROTATE | |
| Pan / Tilt / Rotate Range | 0˚ ~ 355˚ / 0˚ ~ 47˚ / 0˚ ~ 353˚ |
| OPERATIONAL | |
| Camera Title | Off / On (Displayed up to 85 Characters) - W/W : English / Numeric / Special Characters - China : English / Numeric / Special / Chinese Characters - Common : Multi-line (Max 5), Color (Gray / Green / Red / Blue / Black / White), Transparency, Auto Scale by Resolution |
| Day & Night | Auto (Electrical) / Color / B/W / Schedule |
| Backlight Compensation | Off / BLC / HLC (Masking / Dimming) / WDR |
| Wide Dynamic Range | 150dB |
| Contrast Enhancement | SSDR (Off / On) |
| Digital Noise Reduction | SSNRV (2D + 3D Noise filter) (Off / On) |
| Digital Image Stabilization | Off / On |
| Defog | Off / Auto (input from fog detection) / Manual |
| Motion Detection | Off / On (8ea, 8Point polygonal zones), Handover |
| Privacy Masking | Off / On (32ea, polygonal zones) - Color : Gray / Green / Red / Blue / Black / White - Mosaic |
| Gain Control | Off / Low / Middle / High |
| White Balance | ATW / AWC / Manual / Indoor / Outdoor (Included Mercury & Sodium) |
| Contrast | Level Adjusment |
| LDC (Lens Distortion Correction) | Off / On (5 levels with min / max) |
| Electronic Shutter Speed | Minimum / Maximum / Anti Flicker (2 ~ 1/12,000sec) |
| Digital PTZ | 24X, Digital PTZ (Preset, Group) |
| Flip / Mirror | Off / On, Hallway : 90° /270° |
| Video & Audio Analytics | Tampering, Loitering, Directional detection, Defocus detection, Fog detection, Virtual line, Enter / Exit, (Dis) Appear, Audio detection, Face detection, Motion detection, Digital auto tracking, Sound classification, People counting, Heatmap, Queue management |
| Alarm Triggers | Motion detection, Video & Audio Analytics, Network disconnect |
| Alarm Events | File Upload Via FTP, E-mail, Notification via e-mail, Local Storage (SD / SDHC / SDXC) or NAS recording at event triggers, External output, DPTZ preset |
| Pixel Counter | Support |
| NETWORK | |
| Ethernet | RJ-45 (10/100 BASE-T) |
| Video Compression Format | H.265 / H.264 (MPEG-4 Part 10 / AVC) : Main / Baseline / High, MJPEG |
| Resolution | 1920 x 1080, 1280 x 1024, 1280 x 960, 1280 x 720, 1024 x 768, 800 x 600, 800 x 448, 720 x 576, 720 x 480, 640 x 480, 640 x 360, 320 x 240 |
| Max. Framerate | H.265 / H.264 : Max. 60fps at all resolutions, MJPEG : Max. 30fps |
| Smart Codec | Manual Mode (Area-based : 5ea) |
| WiseStreamII | Support |
| Video Quality Adjustment | H.265 / H.264 / MJPEG : Target bitrate level control |
| Bitrate Control Method | H.265 / H.264 : CBR or VBR, MJPEG : VBR |
| Streaming Capability | Multiple streaming (Up to 10 Profiles) |
| Audio In | Built-in MIC. |
| Audio Compression Format | G.711 u-law / G.726 Selectable G.726 (ADPCM) 8KHz, G.711 8KHz G.726 : 16Kbps, 24Kbps, 32Kbps, 40Kbps, AAC-LC : 48Kbps at 8 / 16 / 32 / 48KHz |
| Audio Communication | Uni-directional |
| IP | IPv4, IPv6 |
| Protocol | TCP/IP, UDP/IP, RTP (UDP), RTP (TCP), RTCP,RTSP, NTP, HTTP, HTTPS, SSL/TLS, DHCP, PPPoE, FTP, SMTP, ICMP, IGMP, SNMPv1/v2c/v3 (MIB-2), ARP, DNS, DDNS, QoS, PIM-SM, UPnP, Bonjour |
| Security | HTTPS (SSL) Login Authentication, Digest Login Authentication, IP address filtering, User access Log, 802.1X Authentication (EAP-TLS, EAP-LEAP) |
| Streaming Method | Unicast / Multicast |
| Max. User Access | 20 Users at Unicast Mode |
| Edge Storage | SD/SDHC/SDXC 1slot (up to 256GB) - Motion Images recorded in the SD/SDHC/SDXC memory card can be downloaded. NAS(Network Attached Storage), Local PC for Instant Recording |
| Application Programming Interface | ONVIF Profile S/G, SUNAPI (HTTP API), Open Platform |
| Webpage Language | English, Korean, Chinese, French, Italian, Spanish, German, Japanese, Russian, Swedish, Portuguese, Czech, Polish, Turkish, Dutch, Hungarian, Greek |
| Web Viewer | Supported OS : Windows 7, 8.1, 10, Mac OS X 10.10, 10.11, 10.12 Non-plugin Webviewer - Supported Browser: Google Chrome, MS Edge, Mozilla Firefox (Window 64bit only), Apple Safari 10 (Mac OS X only) Plug-in Webviewer - Supported Browser : MS Explore 11, Apple Safari (Mac OS X only) |
| Central Management Software | SmartViewer, SSM |
| MECHANICAL | |
| Color / Material | Module : Black / Metal, Housing : Black / Plastic, Cover : Ivory / Plastic |
| Dimensions (WxH) | Ø98.9 x 129.1mm (Ø3.89" x 5.08") Use a 83 ~ 86mm (3.25" ~ 3.4") diameter hole saw |
| Weight | 275g (0.61 lb) |
