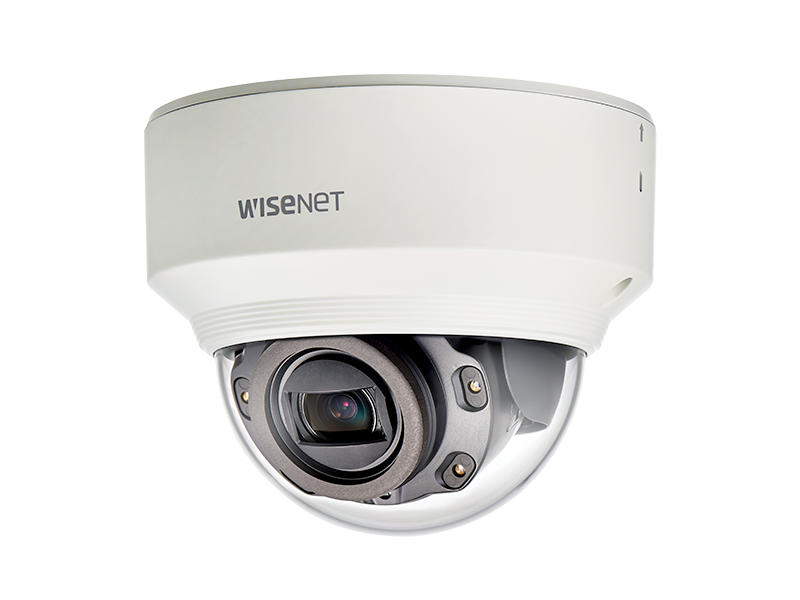

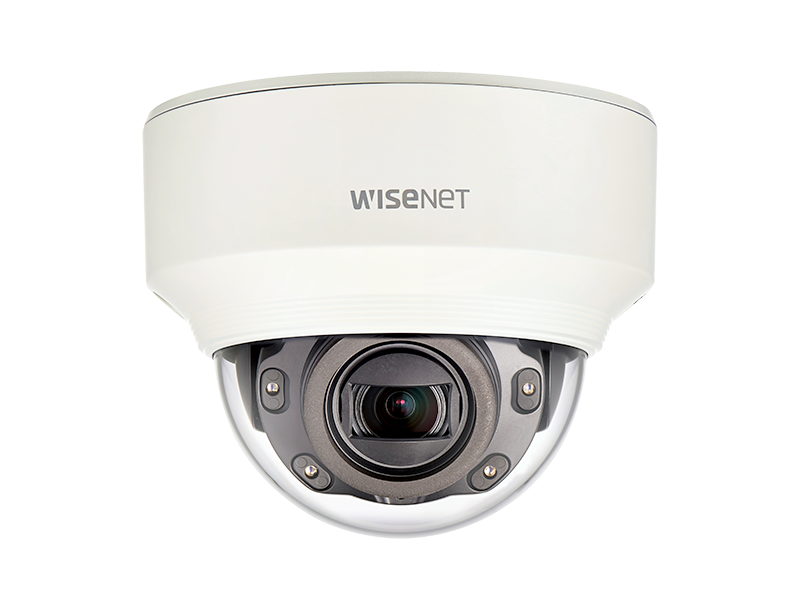

Hanwha - XND-6080RV - 2MP Indoor IR Vandal Dome
Part number:
XND-6080RV
Price:
Wisenet X powered by Wisenet 5 network IR indoor vandal dome camera, 2MP, Full HD(1080p) @60fps WDR off or @30fps WDR on, Motorized Vari-Focal Lens 4.3x (2.8~12mm) (119.5°~27.9°), H.265/H.264/MJPEG, WiseStream II compression technology, 150dB WDR, USB port for easy installation, Advanced video analytics and sound classification, High powered IR LEDs range of 164', True D/N, Dual SD card, Hallway view, HLC, Defog detection with simple focus, DIS , 12VDC/PoE, IK08
Features:
- 2 megapixel (1920 x 1080) resolution
- 2.8 ~ 12mm (4.3x) motorized varifocal lens
- 60fps@all resolutions (H.265/H.264)
- H.265, H.264, MJPEG codec supported, multiple streaming
- Day & Night (ICR), WDR (150dB), Defog
- Loitering, directional detection, fog detection, audio detection, digital auto tracking, sound classification, tampering
- Motion detection, Handover
- SD/SDHC/SDXC memory slot (Max. 512GB)
- Hallway view, WiseStream II support, IK08
- LDC support (Lens Distortion Correction)
- PoE / 12V DC, Bi-directional audio support, built-in microphone
Video
| Imaging Device | 1/2.8" 2MP CMOS |
| Effective Pixels | 1,945(H) X 1,097(V) |
| Minimum Illumination | Color : 0.015Lux (F1.4, 1/30sec), B/W : 0Lux (IR LED on) |
| Video Out | CVBS : 1.0 Vp-p / 75Ω composite, 720 x 480 for installation USB : Micro USBType B, 1280 x 720 for installation |
Lens
| Focal Length (Zoom Ratio) | 2.8~12mm(4.3x) motorized varifocal |
| Maximum Aperture Ratio | F1.4(Wide) ~ F3.6(Tele) |
| Angular Field of View | H : 119.5°(Wide)~27.9°(Tele) V : 62.8°(Wide)~15.7°(Tele) D : 142.1°(Wide)~32.0°(Tele) |
| Minimum Object Distance | 0.5m(1.64ft) |
| Focus Control | Simple focus (Motorized V/F) / Manual, Remote control via network (Manual, Simple focus) |
| Lens/Mount Type | DC auto iris / Board-in type |
Operational
| IR Viewable Length | 30m (98.4ft) |
| Camera Title | Displayed up to 85 characters, 5 lines, English / Numeric / Special & International characters, 6 colors, Transparency, Auto scale by resolution |
| Day & Night | Auto (ICR) / Color / B/W / External / Schedule |
| Backlight Compensation | Off / BLC / HLC (Masking / Dimming), WDR |
| Wide Dynamic Range | 150dB |
| Digital Noise Reduction | SSNRV (2D+3D noise filter) (Off / On) |
| Digital Image Stabilization | Off / On |
| Defog | Off / Auto (Input from fog detection) / Manual |
| Motion Detection | Off / On (8ea, 8point polygonal zones), Handover |
| Privacy Masking | Off / On (32ea, Polygonal) - Color : Grey / Green / Red / Blue / Black / White, Mosaic |
| Gain Control | Low / Middle / High |
| White Balance | ATW / AWC / Manual / Indoor / Outdoor |
| LDC | Off / On (5 levels with min / max) |
| Electronic Shutter Speed | Flip, Mirror, Hallway view (90˚/270˚) |
| Digital PTZ | 24x, Digital PTZ (Preset, Group) |
| Flip / Mirror | Off / On, Hallway view : 90˚/270˚ |
| Alarm I/O | Input 1ea / Output 1ea |
| Alarm Triggers | Alarm input, Motion detection, Video & Audio analytics, Network disconnect |
| Alarm events | File upload via FTP, E-mail, Notification via E-mail, Local storage (SD/SDHC/ SDXC) or NAS recording at event triggers, External output, DPTZ preset |
