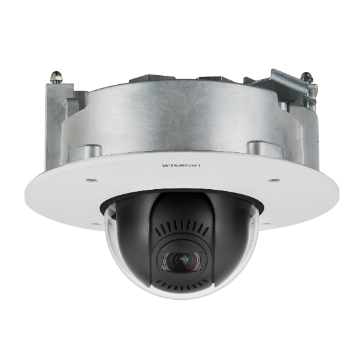

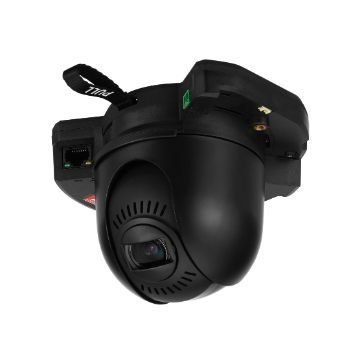

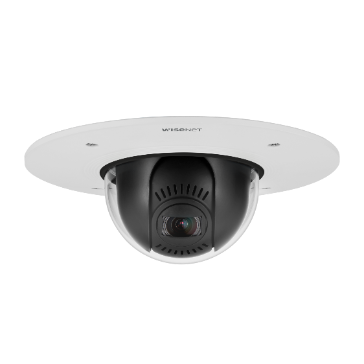

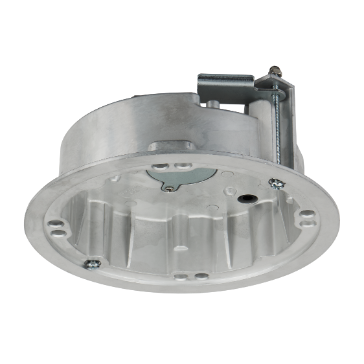

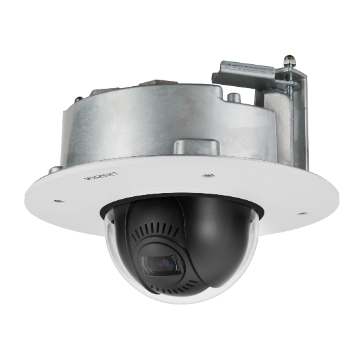

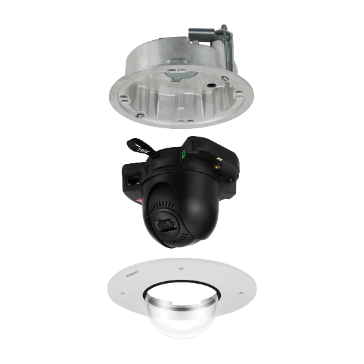

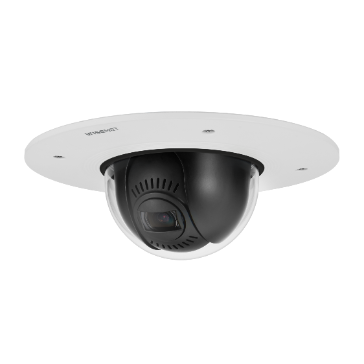

The Wisenet X series PLUS powered by Wisenet 5 network indoor flush mount dome camera features a modular structure, 2MP, Full HD(1080p) @ 60fps, motorized vari-focal lens 4.3x (2.8~12mm) (119.5°~27.9°), and PTRZ capability for easy installation. Triple codec H.265/H.264/MJPEG with WiseStream II technology reduces bandwidth and storage requirements. Additional features include 150dB WDR, USB port for easy installation, advanced video analytics, sound classification and business analytics, shock detection, audio playback, true D/N, dual SD card, hallway view, HLC, fog detection, DIS (Gyro), 12VDC/PoE, IP52, plenum-rated, white color. The modular design allows for easy installation of the camera case separately from the camera module. In addition, the camera module box includes a cutout for easy configuration without disassembling the camera/case.
Features:
- 2 megapixel (1920 x 1080) resolution
- 2.8 ~ 12mm (4.3x) motorized varifocal lens with PTRZ
- 60fps@all resolutions (H.265/H.264)
- H.265, H.264, MJPEG codec supported, multiple streaming
- Day & Night (ICR), WDR (150dB), Defog
- Shock detection, Loitering, Directional detection, Fog detection, Audio detection, Digital auto tracking, Sound classification, Tampering
- Motion detection, Handover, Audio event playback
- Dual SD/SDHC/SDXC memory slots (Max. 512GB)
- Hallway view, WiseStream II support, IP52, plenum-rated
- LDC support (Lens Distortion Correction)
- PoE / 12V DC, Bi-directional audio support

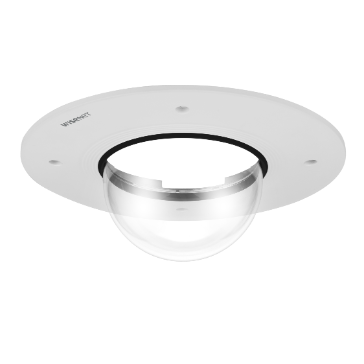

- White camera cover to blend in with ceiling
- Weathercap included
Video
| Imaging Device | 1/2.8" 2MP CMOS |
| Effective Pixels | 1,945(H) X 1,097(V) |
| Minimum Illumination | Color : 0.015Lux (F1.4, 1/30sec) BW : 0.0015Lux (F1.4, 1/30sec) |
| Video Out | USB : Micro USB type B, 1280x720 for installation |
Lens
| Focal Length (Zoom Ratio) | 2.8~12mm(4.3x) motorized varifocal |
| Maximum Aperture Ratio | F1.4(Wide) ~ F3.6(Tele) |
| Angular Field of View | H : 119.5°(Wide)~27.9°(Tele) V : 62.8°(Wide)~15.7°(Tele) D : 142.1°(Wide)~32.0°(Tele) |
| Minimum Object Distance | 0.5m(1.64ft) |
| Focus Control | Simple focus |
| Lens/Mount Type | DC auto iris / Board-in type |
Operational
| Camera Title | Displayed up to 85 characters, 5 lines, English / Numeric / Special & International characters, 6 colors, Transparency, Auto scale by resolution |
| Day & Night | Auto (ICR) |
| Backlight Compensation | BLC, HLC, WDR, SSDR |
| Wide Dynamic Range | 150dB |
| Digital Noise Reduction | SSNRV |
| Digital Image Stabilization | Support (built-in gyro sensor) |
| Defog | Support |
| Motion Detection | 8ea, 8point polygonal zones |
| Privacy Masking | 32ea, polygonal zones - Color : Grey/Green/Red/Blue/Black/White - Mosaic |
| Gain Control | Low / Middle / High |
| White Balance | ATW / AWC / Manual / Indoor / Outdoor |
| LDC | Support |
| Electronic Shutter Speed | Flip, Mirror, Hallway view (90˚/270˚) |
| Digital PTZ | Support (Preset, Group) |
| Video Rotation | Flip, Mirror, Hallway view (90˚/270˚) |
| Alarm I/O | Input 1ea / Output 1ea |
| Alarm Triggers | Analytics, Network disconnect, Alarm input |
| Alarm events | File upload via FTP and e-mail Notification via e-mail SD/SDHC/SDXC or NAS recording at event triggers Alarm output Handover Audio playback |
