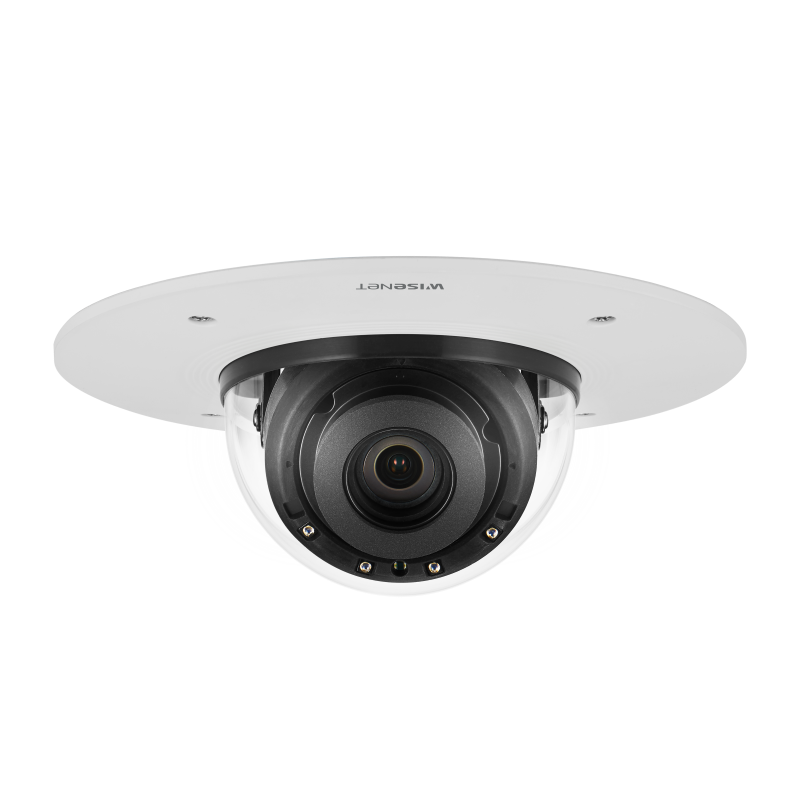

The Wisenet X series PLUS powered by Wisenet 5 network indoor flush mount dome camera features a modular structure, 5MP @ 30fps, motorized vari-focal lens 2.6x (3.6~9.4mm) (102.5°~38.7°). 164 foot IR viewable range for low light/no light monitoring. Triple codec H.265/H.264/MJPEG with WiseStream II technology reduces bandwidth and storage requirements. Additional features include 120dB WDR, USB port for easy installation, advanced video analytics, sound classification and business analytics, shock detection, audio playback, true D/N, dual SD card, hallway view, HLC, fog detection, DIS (Gyro), 12VDC/PoE, IP52, plenum-rated, white color. The modular design allows for easy installation of the camera case separately from the camera module. In addition, the camera module box includes a cutout for easy configuration without disassembling the camera/case.
Features:
- 5 megapixel resolution
- 3.6~9.4mm (2.6x) motorized varifocal lens
- 164 foot IR viewable range for low light/no light monitoring
- 30fps@all resolutions (H.265/H.264)
- H.265, H.264, MJPEG codec supported, multiple streaming
- Day & Night (ICR), WDR (120dB), Defog
- Shock detection, Loitering, Directional detection, Fog detection, Audio detection, Digital auto tracking, Sound classification, Tampering
- Motion detection, Handover, Audio event playback
- Dual SD/SDHC/SDXC memory slots (Max. 512GB)
- Hallway view, WiseStream II support, IP52, plenum-rated
- LDC support (Lens Distortion Correction)
- PoE / 12V DC, Bi-directional audio support
- White camera cover to blend in with the ceiling
- Weathercap included
VIDEO
| Imaging Device | 1/2.8" 2 MP CMOS | 1/1.8" 6 MP CMOS |
| Effective Pixels | 1945(H) x 1097(V) | 2616(H) x 1976(V) |
| Minimum Illumination | Color : 0.015Lux (F1.4, 1./30sec) BW : 0Lux (IR LED on) | Color : 0.07Lux (F1.2, 1/30sec) BW : 0Lux (IR LED on) |
| Video Out | CVBS : 1.0 Vp-p / 75Ω composite, 720 x 480 for installation USB : Micro USB Type B, 1280 x 720 for installation | |
LENS
| Focal Length (Zoom Ratio) | 2.8~12mm(4.3x) motorized varifocal | 3.6~9.4mm(2.6x) motorized varifocal |
| Maximum Aperture Ratio | F1.4(Wide) ~ F3.6(Tele) | F1.2(Wide) ~ F2.4(Tele) |
| Angular Field of View | H : 119.5°(Wide)~27.9°(Tele) V : 62.8°(Wide)~15.7°(Tele) D : 142.1°(Wide)~32.0°(Tele) | H : 92.1˚(Wide)~38.7˚(Tele) / V : 67.2˚(Wide)~29.0˚(Tele) / D : 119.9˚(Wide)~48.6˚(Tele) |
| Minimum Object Distance | 0.5m (1.64ft) | |
| Focus Control | Simple focus | |
| Lens Type | DC auto iris, P iris |
PAN / TILT / ROTATE
Pan / Tilt / Rotate Range 0˚~360˚ / -45˚~85˚ / 0˚~355˚ OPERATIONAL
| IR Viewable Length | 50m(164.04ft) | |
| Camera Title | Displayed up to 85 characters | |
| Day & Night | Auto (ICR) | |
| Backlight Compensation | BLC, HLC, WDR, SSDR | |
| Wide Dynamic Range | 150dB | 120dB |
| Digital Noise Reduction | SSNR V | |
| Digital Image Stabilization | Support (built-in gyro sensor) | |
| Defog | Support | |
| Motion Detection | 8ea, 8 point polygonal zones | |
| Privacy Masking | 32ea, polygonal zones - Color : Grey /Green / Red / Blue / Black / White - Mosaic | |
| Gain Control | Low / Middle / High | |
| White Balance | ATW / AWC / Manual / Indoor / Outdoor | |
| LDC | Support | |
| Electronic Shutter Speed | Minimum / Maximum / Anti flicker (2~1/12,000sec) | |
| Digital PTZ | Support (Preset, Group) | |
| Video Rotation | Flip, Mirror, Hallway view (90˚/270˚) | |
| Analytics | Defocus detection, Directional detection, Fog detection, Face detection, Motion detection, Digital Auto Tracking, Appear/Disappear, Enter/Exit, Loitering, Tampering, Virtual line, Audio detection, Sound classification, Shock detection | |
| Business Intelligence | People counting, Queue management, Heatmap | |
| Alarm I / O | Input 1ea / Output 1ea | |
| Alarm Triggers | Analytics, Network disconnect, Alarm input | |
| Alarm Events | File upload via FTP and e-mail Notification via e-mail SD/SDHC/SDXC or NAS recording at event triggers Alarm output Handover Audio playback | |
| Audio In | Selectable (microphone in/line in), Supply voltage : 2.5VDC (4mA), Input impedance : 2K Ohm | |
| Audio Out | Line out, Maximum output level : 1Vrms | |
FIRST EDITION 0 Hanwha Techwin Co., Ltd. All rights reserved.
NETWORK
| Ethernet | RJ-45 (10/100BASE-T) | |
| Video Compression | H.265/H.264 : Main / Baseline / High, MJPEG | |
| Resolution | 1920 x 1080, 1280 x 1024, 1280 x 960, 1280 x 720, 1024 x 768, 800 x 600, 800 x 448, 720 x 576, 720 x 480, 640 x 480, 640 x 360, 320 x 240 | 2560 x 1920, 2560 x 1440, 1920 x 1080, 1600 x 1200, 1280 x 1024, 1280 x 960, 1280 x 720, 1024 x 768, 800 x 600, 800 x 448, 720 x 576, 720 x 480, 640 x 480, 640 x 360, 320 x 240 |
| Maximum Framerate | H.265/H.264 : Maximum 60fps MJPEG : Maximum 30fps | H.265/H.264 : Maximum 30fps MJPEG : Maximum 30fps |
| Smart Codec | Manual (5ea area), WiseStream II | |
| Video Quality Adjustment | H.264/H.265 : Target bitrate level control MJPEG : Target bitrate level control | |
| Bitrate Control | H.264/H.265 : CBR or VBR MJPEG : VBR | |
| Streaming | Unicast (20 users) / Multicast Multiple streaming (Up to 10 profiles) | |
| Audio Compression | G.711 u-law / G.726 Selectable G.726 (ADPCM) 8KHz, G.711 8KHz G.726 : 16Kbps, 24Kbps, 32Kbps, 40Kbps AAC-LC : 48Kbps at 16KHz | |
| Protocol | IPv4, IPv6, TCP/IP, UDP/IP, RTP(UDP), RTP(TCP), RTCP,RTSP, NTP, HTTP, HTTPS, SSL/TLS, DHCP, FTP, SMTP, ICMP, IGMP, SNMPv1/v2c/v3(MIB-2), ARP, DNS, DDNS, QoS, PIM-SM, UPnP, Bonjour, LLDP | |
| Security | HTTPS (SSL) login authentication Digest login authentication IP address filtering User access log 802.1X authentication (EAP-TLS, EAP-LEAP) | |
| Edge Storage | Micro SD/SDHC/SDXC 2 slots total maximum capacity 512GB | |
| Application Programming Interface | ONVIF Profile S/G SUNAPI (HTTP API) Wisenet open platform | |
| Webpage Language | English, Korean, Chinese, French, Italian, Spanish, German, Japanese, Russian, Swedish, Portuguese, Czech, Polish, Turkish, Dutch, Hungarian, Greek | |
| Web Viewer | Supported OS : Windows 7, 8.1, 10, Mac OS X 10.10, 10.11, 10.12 Recommended Browser : Google Chrome Supported Browser: MS Internet Explorer 11, MS Edge, Mozilla Firefox (Windows 64-bit only), Apple Safari (Mac OS X only) | |
| Memory | 1024MB RAM, 256MB Flash | |
ENVIRONMENTAL
| Operating Temperature / Humidity | -25°C ~ +60°C (-13°F ~ +140°F) / Less than 90% RH |
| Storage Temperature / Humidity | -50°C ~ +60°C (-58°F ~ +140°F) / Less than 90% RH |
| Certification | IP52 |
ELECTRICAL
| Input Voltage | PoE (IEEE802.3af, Class3), 12VDC | |
| Power Consumption | PoE : Maximum 12.95W, typical 9.40W 12VDC : Maximum 10.8W, typical 7.60W | PoE : Maximum 12.95W, typical 10.10W 12VDC : Maximum 11.7W, typical 7.90W |
MECHANICAL
| Color / Material | White / Aluminum, Plenum rated |
| RAL Code | RAL9003 |
| Product dimensions / weight | Ø205x155mm(8.07x6.10"), 1.80kg(3.97 lb) |
