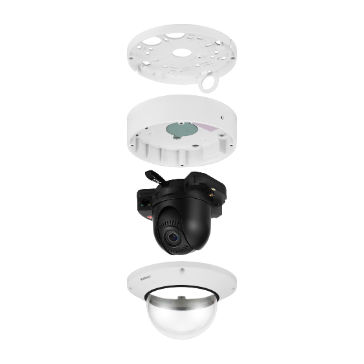

The Wisenet X series PLUS powered by Wisenet 5 network indoor vandal dome camera features a modular structure, 5MP, Full HD(1080p) @ 60fps, motorized vari-focal lens 2.6x (3.6~9.4mm) (102.5°~38.7°), and PTRZ capability for easy installation. Triple codec H.265/H.264/MJPEG with WiseStream II technology reduces bandwidth and storage requirements. Additional features include 120dB WDR, USB port for easy installation, advanced video analytics, sound classification and business analytics, shock detection, audio playback, true D/N, dual SD card, hallway view, HLC, fog detection, DIS (Gyro), 12VDC/PoE, IP52, IK10, white color, ivory skin included, optional black skin cover. The modular design allows for easy installation of the camera case separately from the camera module. In addition, the camera module box includes a cutout for easy configuration without disassembling the camera/case.
Features:
- 2 megapixel (1920 x 1080) resolution
- 3.6~9.4mm 2.6x motorized varifocal lens with PTRZ
- 30fps@all resolutions (H.265/H.264)
- H.265, H.264, MJPEG codec supported, multiple streaming
- Day & Night (ICR), WDR (120dB), Defog
- Shock detection, Loitering, Directional detection, Fog detection, Audio detection, Digital auto tracking, Sound classification, Tampering
- Motion detection, Handover, Audio event playback
- Dual SD/SDHC/SDXC memory slots (Max. 512GB)
- Hallway view, WiseStream II support, IP52, IK10,
- LDC support (Lens Distortion Correction)
- PoE / 12V DC, Bi-directional audio support
- White camera with ivory skin included
Video
| Imaging Device | 1/1.8" 6MP CMOS |
| Effective Pixels | 2616(H) x 1976(V) |
| Minimum Illumination | Color : 0.07Lux (F1.2, 1/30sec) BW : 0.007Lux (F1.2, 1/30sec |
| Video Out | CVBS : 1.0 Vpp / 75Ω Composite, 714 x 480(N), 702 x 576(P) for Installation, DIP Connector Type, USB |
Lens
| Focal Length (Zoom Ratio) | 3.6~9.4mm(2.6x) motorized varifocal |
| Angular Field of View | H : 102.5°(Wide)~38.7°(Tele) V : 74.2°(Wide)~29.0°(Tele) D : 135.5°(Wide)~48.6°(Tele) |
| Minimum Object Distance | 0.5m(1.64ft) |
| Focus Control | Simple focus |
| Lens / Mount Type | DC auto iris, P-iris |
Operational
| Camera Title | Displayed up to 85 characters |
| Day & Night | Auto(ICR) |
| Backlight Compensation | BLC, HLC, WDR, SSDR |
| Wide Dynamic Range | 150dB |
| Digital Noise Reduction | SSNR V |
| Digital Image Stabilization | Support |
| Defog | Support |
| Motion Detection | 8ea, 8point polygonal zones |
| Privacy Masking | 32ea, polygonal zones - Color : Grey/Green/Red/Blue/Black/White - Mosaic |
| Gain Control | Low / Middle / High |
| White Balance | ATW / AWC / Manual / Indoor / Outdoor |
| LDC | Support |
| Electronic Shutter Speed | Minimum / Maximum / Anti Flicker(2 ~ 1/12,000sec) |
| Digital PTZ | Support (Preset, Group) |
| Alarm I/O | Input 1ea / Output 1ea |
| Alarm Triggers | Alarm input, Motion detection, Video & Audio analytics, Network disconnect |
| Alarm events | File upload via FTP, E-mail, Notification via E-mail, Localstorage (SD/SDHC/ SDXC) or NAS recording at event triggers, External output, DPTZ preset |
| Audio In | Selectable (Mic in / Line in), Supply voltage : 2.5V DC (4mA), Input impedance : approx. 2K Ohm |
| Audio Out | Line out (3.5mm mono jack), Max output level : 1 Vrms |
