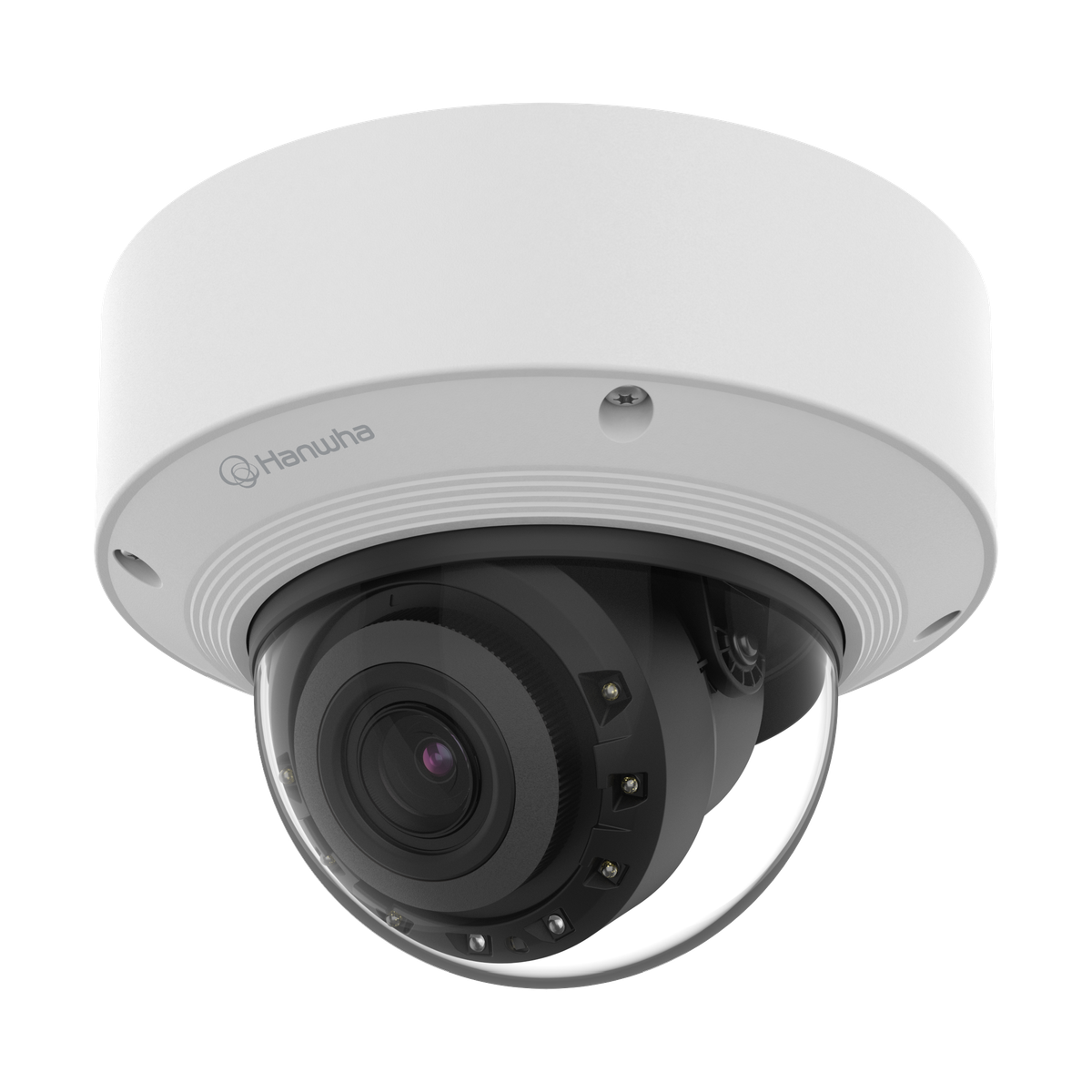

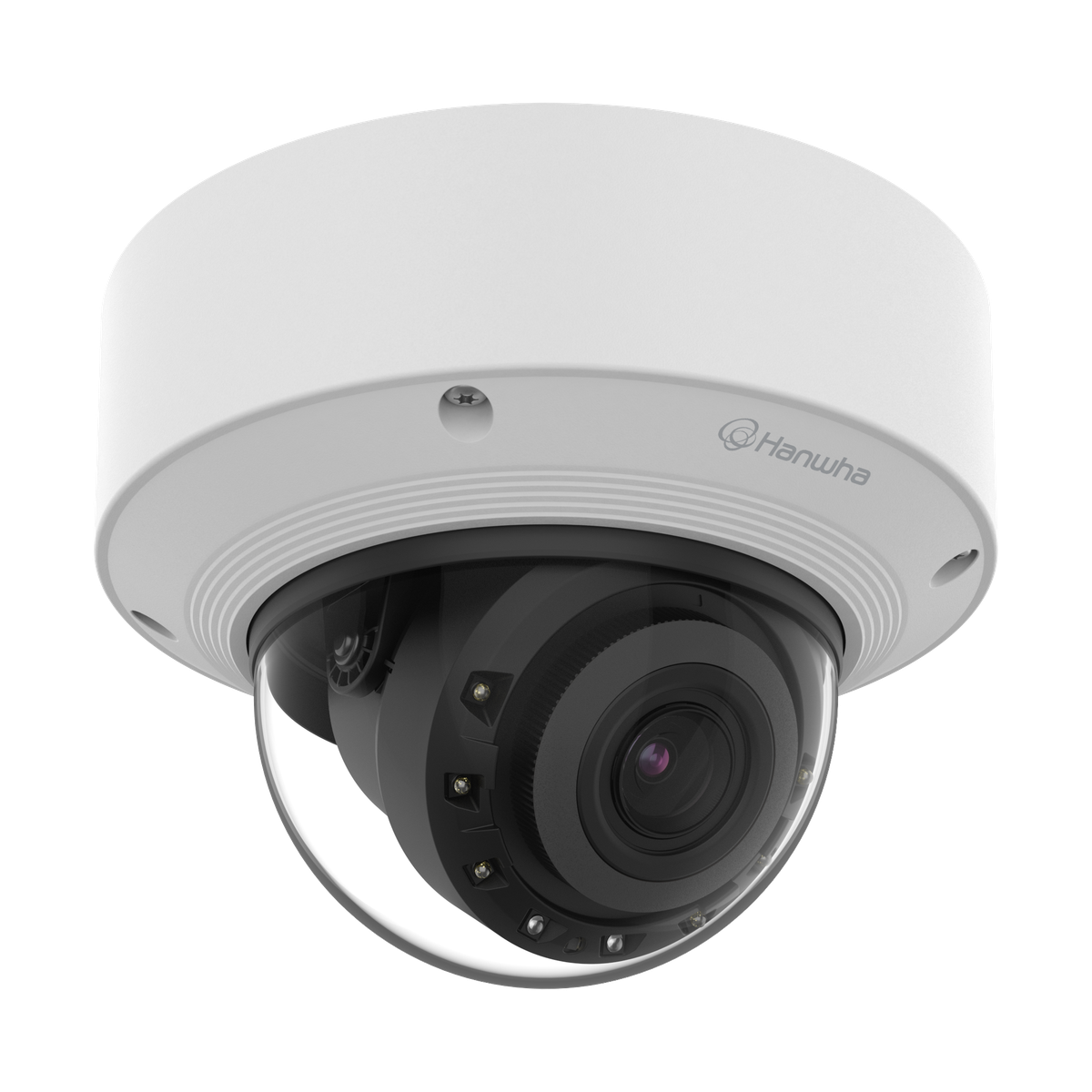

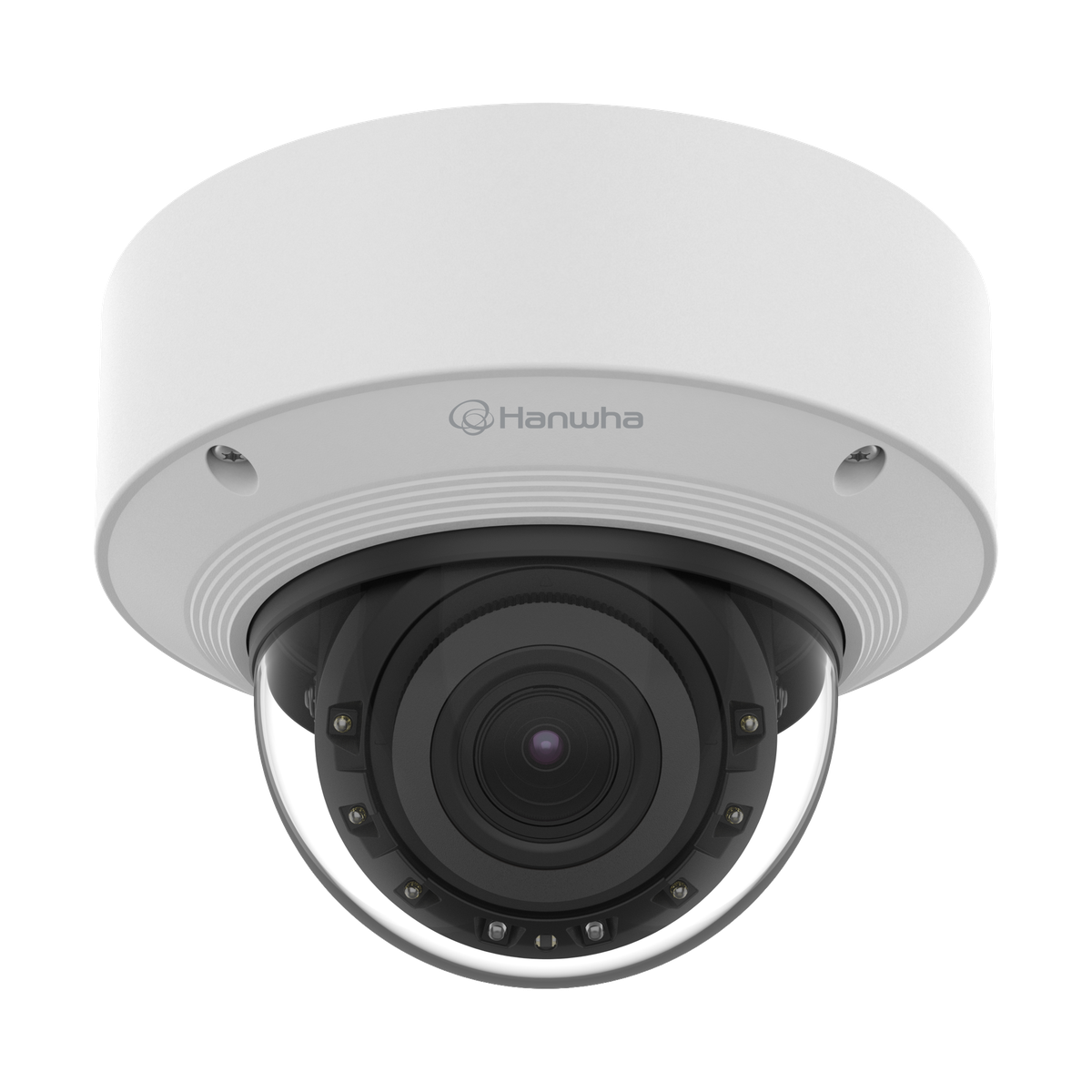

Hanwha - XND-A8084RV - 5MP Indoor Network AI IR Dome Camera, 3.3~9.3mm
Part number:
Price:
• 3.3~9.3mm (2.8x) motorized varifocal
• Dual NPU for AI-based Image enhancement
• Analytics events based on AI engine: Object detection (Person/Face/Vehicle/License plate), IVA (Virtual line/Area, Enter/Exit, Loitering, Direction, Intrusion), Slip&Fall detection, Face mask detection, Social distancing detection, Motion detection
• Business intelligence based on an AI engine: People/Vehicle/Crowd counting, Queue management, Heatmap
• Support BestShot and full attributes
• Support Dynamic Privacy Masking
• extremeWDR, WiseNRⅡ(Based on AI engine), WiseStream(Based on AI engine)
• WiseIR: IR viewable length 40 m (131.23 ft)
• IP52, IK10
• Support Wisepower(Power monitoring, ECO mode)
• Use recycled plastic
• Device certificate(Hanwha Vision Root CA), Secure storage (Secure element with FIPS 140-3 level3/CC EAL6+ certified), SBOM
| Video | |
|---|---|
| Imaging Device Size | 1/2.8" |
| Imaging Device Type | CMOS |
| Resolution | 2560x1920, 2560x1440, 1920x1080, 1600x1200, 1280x960, 1280x720, 1024x768, 800x600, 640x480, 640x360, 320x240, 320x180 |
| Max. Framerate H.265/H.264 | 30fps/25fps(60Hz/50Hz) |
| Max. Framerate MJPEG | 30fps(@5MP Max. 5fps) |
| Min. Illumination (Lux) Color(1/30sec, 30IRE) | 0.04 |
| Min. Illumination (Lux) BW(1/30sec, 30IRE) | 0.004 |
| Video Out | USB: Micro USB Type C |
| Lens | |
| Focal Length (mm) | 3.3~9.3 |
| Zoom Ratio Optical | 2.8x |
| Max Aperture Ratio (F number) Wide | 1.3 |
| Max Aperture Ratio (F number) Tele | 2.3 |
| Angular Field of View Horizontal | 99°~31° |
| Angular Field of View Vertical | 71°~23° |
| Angular Field of View Diagonal | 133°~39° |
| Min. Object Distance | 0.5m(1.64ft) |
| Focus Control | Simple focus, Manual |
| Lens Type | P iris(IR corrected) |
| Pan / Tilt / Rotate | |
| Pan / Tilt / Rotate Range Pan | 0°~360° |
| Pan / Tilt / Rotate Range Tilt | 0°~75° |
| Pan / Tilt / Rotate Range Rotate | 0°~355° |
| Operational | |
| Day & Night | Auto(ICR) |
| Backlight Compensation | BLC, HLC, WDR, SSDR |
| Wide Dynamic Range (dB) | 120 |
| Digital Noise Reduction | WiseNRⅡ(Based on AI engine), SSNRⅤ |
| Digital Image Stabilization | Support |
| Defog | Support |
| Motion Detection Quantity | 8ea |
| Motion Detection Shape | 8point Polygonal zones |
| Privacy Masking Quantity | 32ea |
| Privacy Masking Shape | 8point Polygonal zones |
| Color / Option | Gray, Green, Red, Blue, Black, White, Mosaic, Purple, Yellow |
| Dynamic Privacy Masking: Color / Option | Gray, Green, Red, Blue, Black, White, Mosaic, Purple, Yellow |
| Gain Control | Off, Max gain, Manual |
| White Balance | ATW, NarrowATW, AWC, Manual, Indoor, Outdoor |
| LDC | Support(Fill/stretch mode) |
| Electronic Shutter Mode | Minimum, Maximum, Anti flicker, Prefer shutter control(Based on AI engine) |
| Electronic Shutter Speed Range | 2~1/30,000sec |
| Video Rotation | Flip, Mirror, Hallway view(90°/270°) |
| Alarm Interface In/Out | 2 configurable I/O ports |
| Others | Support extra alarm I/O via optional I/O box |
| Alarm Triggers | Analytics, Network disconnect, Alarm input, Time schedule, MQTT subscription, Day/Night, Storage disruption |
| Alarm Events When Alarm Trigger Occurred | File upload(image): e-mail/FTP/SFTP, File upload(video clip): FTP/SFTP, Notification: e-mail, Recording: SD/SDHC/SDXC or NAS recording at event triggers, Alarm output, Handover: PTZ preset, send message by HTTP/HTTPS/TCP, Audio clip playback, MQTT: publication |
| Audio In | Selectable(mic in/line in) |
| Audio Out | Line out |
| Light Type | IR LED |
| Light Viewable Length IR | WiseIR 40m(131.23ft) |
| IR Wavelength | 850nm |
| Analytics | |
| Classified Object Type | Person, Face, Vehicle, License plate |
| Attributes Person | Upper/Lower clothes color, Gender, Bag |
| Attributes Vehicle | Type(car, bus, truck, motorcycle, bicycle), Color |
| Attributes Face | Age, Gender, Face mask, Glasses |
| Thumbnail | BestShot |
| Analytics Events Based on AI Engine | Object detection, Virtual line(Crossing/Direction), Motion detection, Face mask detection, Social distancing detection, Slip & fall detection, Virtual area(Loitering/Intrusion/Enter/Exit/Appear/Disappear) |
| Analytics Events Normal | Defocus detection, Tampering, Audio detection, Shock detection |
| Business Intelligence Based on AI Engine | People counting, Queue management, Heatmap, Vehicle counting, Crowd counting |
| Network | |
| Ethernet | Metal shielded RJ-45(10/100BASE-T) |
| Video Compression | H.265/H.264: Main/Baseline/High, MJPEG |
| Audio Compression | G.711(PCM): 8kHz(64kbps), G.726(ADPCM): 8kHz(16/24/32/40kbps), AAC-LC: 16kHz(48kbps), OPUS: 16kHz(64kbps) |
| Smart Codec | WiseStream(Based on AI engine) |
| Bitrate Control | H.265/H.264: CBR or VBR, MJPEG: VBR |
| Streaming Unicast | Up to 20 users |
| Streaming Multicast | Support |
| Multiple Streaming | Up to 5 profiles, 3 virtual channel support |
| Protocol | IPv4, IPv6, TCP/IP, UDP/IP, RTP(UDP), RTP(TCP), RTCP, RTSP, NTP, HTTP, HTTPS, SSL/TLS, DHCP, FTP, SFTP, ICMP, IGMP, SNMPv1/v2c/v3(MIB-2), ARP, DNS, DDNS, QoS, UPnP, Bonjour, LLDP, CDP, SRTP(TCP, UDP Unicast), MQTT, SMTP(StartTLS), Syslog |
| Application Programming Interface ONVIF | S, G, T, M |
| Application Programming Interface Others | SUNAPI(HTTP API), Hanwha Vision Open Platform |
| Direct Cloud Connection | Support |
| Security | |
| OS / Firmware Protect | Encrypted firmware, Secure boot, Signed firmware |
| User authentication | Digest authentication, Prevent brute-force attack |
| Network authentication | IEEE 802.1X(EAP-TLS, EAP-LEAP, EAP-PEAP, MSCHAPv2) |
| Secure Communication | HTTPS, WSS(WebSocket Secure), SRTP |
| Access Control | IP-based access control, MAC-based access control, Auto logout |
| Data Protect | Encryption credentials, Encrypt compress for live recording file export |
| Audit | Access / System / Event Log management |
| Device ID | Device certificate(Hanwha Vision Root CA) |
| Secure Storage | SDcard partition encrypt(AES-256), Secure element |
| Supply Chain Security | SBOM |
| Security Certificate | Secure element(FIPS 140-3 level3, CC EAL6+), Consumer IoT Security Standard (ETSI EN 303 645), Security Built-in Process Certification (IEC 62443-4-1) |
| General | |
| Memory RAM | 4GB |
| Memory Flash | 8GB eMMC |
| Edge Storage Micro SD/SDHC/SDXC | Max. 1TB x 1slot |
| Edge Storage(OnCloud) Micro SD/SDHC/SDXC | Max. 1TB x 1slot *Hanwha Vision branded microSD cards have been certified and recommended for OnCloud edge recording. |
| Environmental & Electrical | |
| Operating Condition Temperature | -10°C~+50°C(+14°F~+122°F) |
| Operating Condition Humidity | 0~100% RH(condensing) |
| Others | Humidity control with AIR vent |
| Storage Condition Temperature | -50°C~+60°C(-58°F~+140°F) |
| Storage Condition Humidity | 0~90% RH(non-condensing) |
| EPA(Effective Projected Area) | 0.02㎡ |
| Input Voltage | PoE(IEEE802.3af, Class3) |
| Power Consumption PoE | Max. 9.4W, typical 7.0W |
| Wisepower | Power monitoring, ECO mode |
| Mechanical | |
| Color | White |
| Material | Aluminum, PC(Polycarbonate), Hard-coated dome |
| Material Management Declaration | RoHS(EU RoHS directive 2011/65/EU and IEC/EN 63000:2018), REACH(Regulation (EC) No. 1907/2006), Conflict mineral policy(Section 1502 of US Dodd Frank Act) |
| Recycle Rate | Recycled plastic: 10.72% |
| RAL Code | RAL9003 |
| Product Dimensions | ø160x118mm(6.30x4.65") |
| Product Weight | 1,010g(2.23lb) |
| Compatible Conduit Hole | 12.7mm(1/2")(M20) |
| Compatible Gang Box | Single, Double, 4" Octagon, Square |
| Certifications & Standards | |
| EMC | FCC 47 CFR 15 Subpart B Class A, ICES-3(A)/NMB-3(A), CE/UKCA - EN55032 Class A, EN 50130-4, EN 61000-3-2, EN 61000-3-3, VCCI CISPR 32 Class A, RCM AS-NZS CISPR 32 Class A, KS C 9832 Class A, KS C 9835 |
| Safety | UL 62368-1, CAN/CSA C22.2 NO. 62368-1, IEC 62471 |
| Environment | IEC/EN 63000, IEC 60529 IP52, IEC 62262 IK10, IEC 60068-2-1, IEC 60068-2-2, IEC 60068-2-6, IEC 60068-2-14, IEC 60068-2-27, IEC 60068-2-78 |
| DORI (EN62676-4 standard) | |
| Detect (25PPM/ 8PPF) Wide | 43.7m(143.47ft) |
| Detect (25PPM/ 8PPF) Tele | 184.6m(605.71ft) |
| Observe (63PPM/ 19PPF) Wide | 17.5m(57.39ft) |
| Observe (63PPM/ 19PPF) Tele | 73.8m(242.29ft) |
| Recognize (125PPM/ 38PPF) Wide | 8.7m(28.69ft) |
| Recognize (125PPM/ 38PPF) Tele | 36.9m(121.14ft) |
| Identify (250PPM/ 76PPF) Wide | 4.4m(14.35ft) |
| Identify (250PPM/ 76PPF) Tele | 18.5m(60.57ft) |
