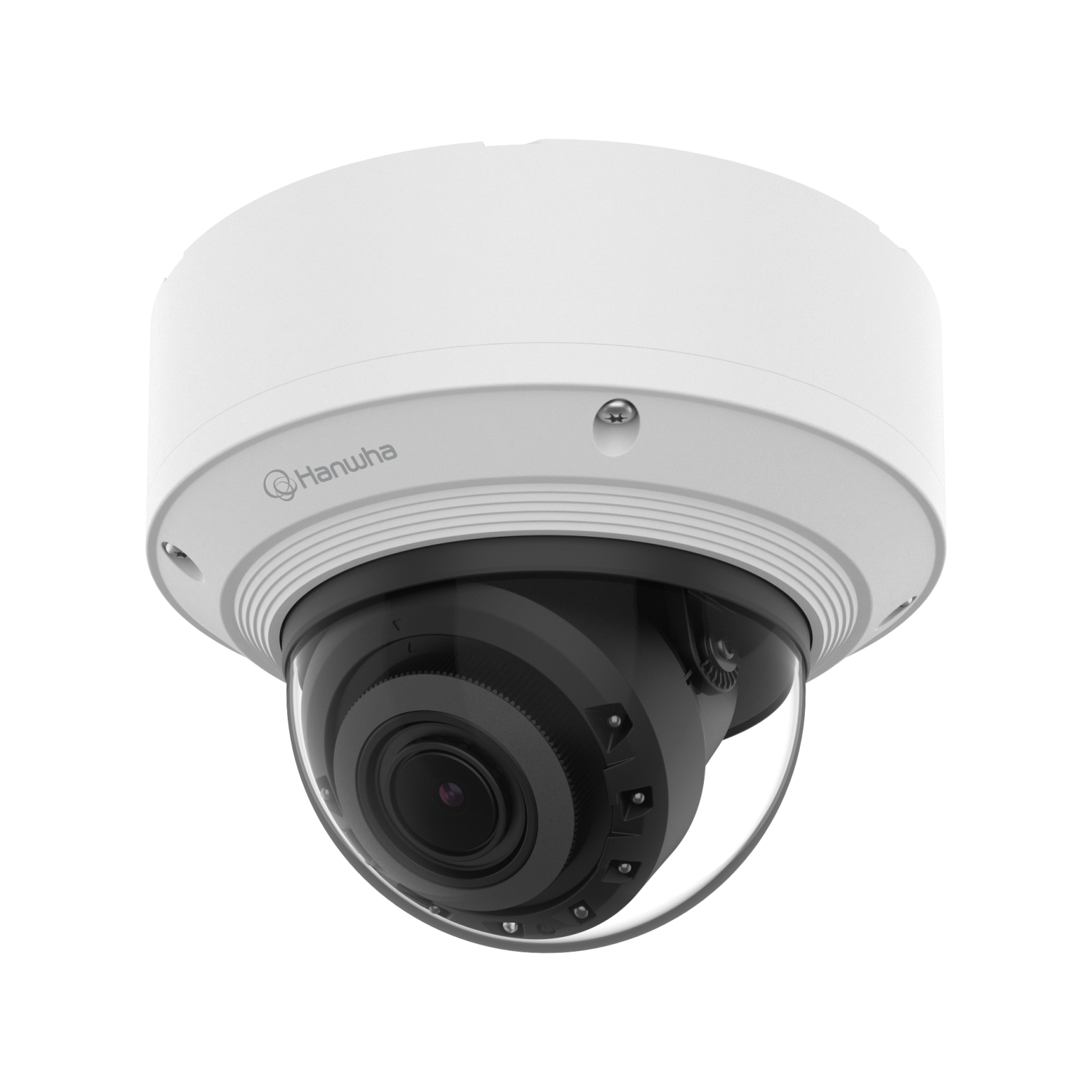

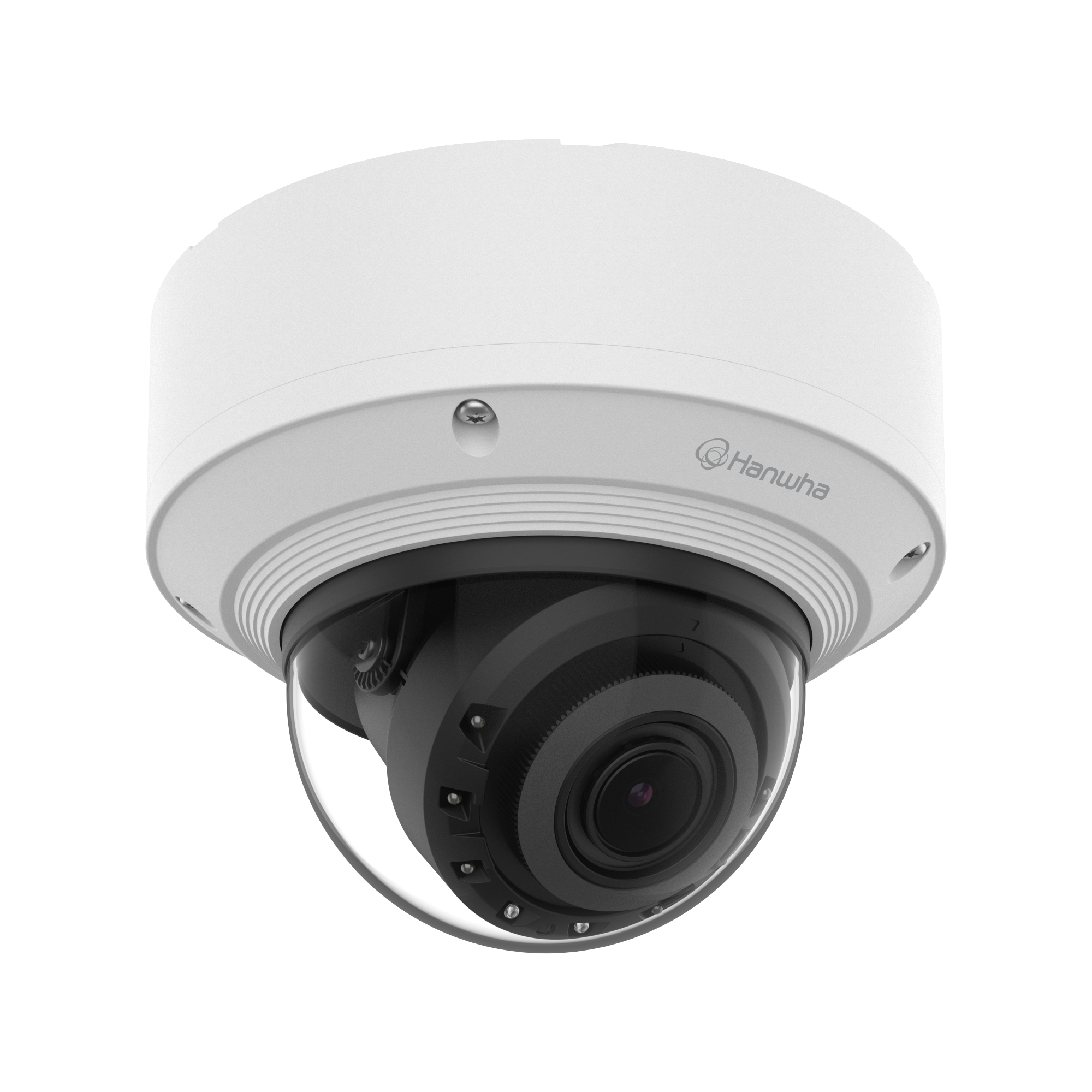

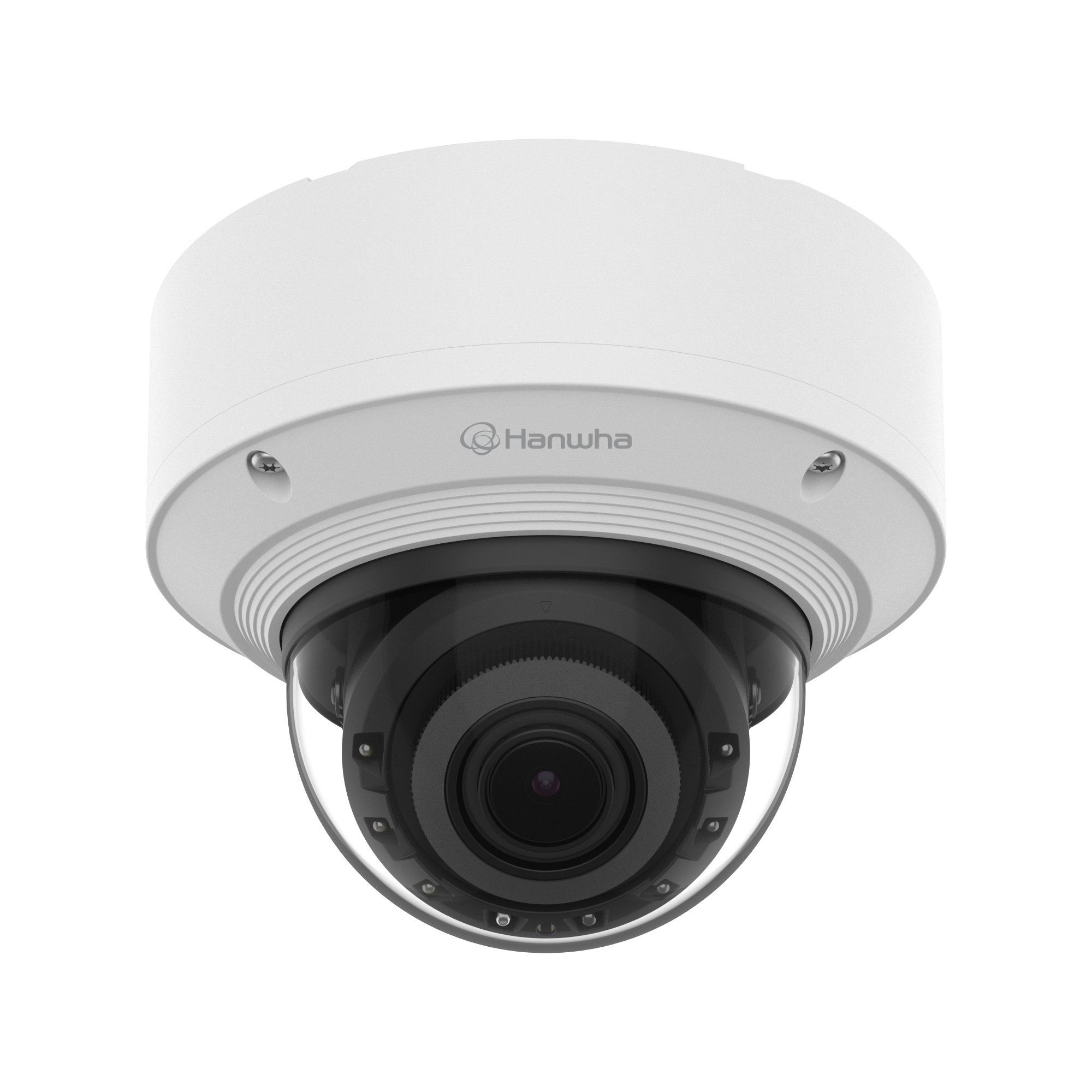

Hanwha - XND-A8085RV - 5MP IR Indoor Dome AI Camera
Part number:
Price:
• 5MP resolution (1/2.8” sensor)
• 3.3~9.3mm, motorized 2.8x varifocal
• Long-range WiseIR distance up to 50m, PoE+ mode
• Support BestShot and full attributes
• Support Dynamic Privacy Masking
• extremeWDR, WiseNRⅡ, WiseStream (Based on AI engine)
• Support Wisepower (Power monitoring)
• 2 SD slots edge storage
• IP52, IK10
• Dual NPU for AI-based Image enhancement
• Business intelligence based on an AI engine: People, Vehicle, Crowd counting, Queue management, Heatmap
• Analytics events based on AI engine: Object detection, IVA, Slip&Fall detection, Face mask detection, Social distancing
detection
• Device certificate Hanwha Vision Root CA, Secure storage Secure element with FIPS 140-3 level3, CC EAL6+ certified, SBOM
| Video | |
|---|---|
| Imaging Device Size | 1/2.8" |
| Type | CMOS |
| Resolution | 2560x1920, 2560x1440, 1920x1080, 1600x1200, 1280x960, 1280x720, 1024x768, 800x600, 640x480, 640x360, 320x240, 320x180 |
| Max. Framerate | H.265/H.264: 30fps/25fps (60Hz/50Hz) MJPEG: 30fps (@5MP Max. 5fps) |
| Min. Illumination (Lux) | Color (1/30sec, 30IRE): 0.04 BW (1/30sec, 30IRE): 0.004 |
| Video Out | USB: USB Type C. Preview and installation ONLY. Requires WiFi dongle. |
| Lens | |
| Focal Length (mm) | 3.3~9.3 |
| Zoom Ratio | Optical 2.8x |
| Max Aperture Ratio (F number) | Wide: 1.3 / Tele: 2.3 |
| Angular Field of View | Horizontal: 99°~31° Vertical: 71°~23° Diagonal: 133°~39° |
| Min. Object Distance | 0.5m (1.64ft) |
| Focus Control | Simple focus, Manual |
| Lens Type | P iris (IR corrected) |
| Pan / Tilt / Rotate | |
| Pan / Tilt / Rotate Range | Pan: 0°~360° Tilt: -45°~85° Rotate: 0°~355° |
| Operational | |
| Day & Night | Auto (ICR) |
| Backlight Compensation | BLC, HLC, WDR, SSDR |
| Wide Dynamic Range (dB) | 120 |
| Digital Noise Reduction | WiseNRⅡ (Based on AI engine), SSNRⅤ |
| Digital Image Stabilization | Support |
| Defog | Support |
| Motion Detection | Quantity: 8ea, Shape: 8point Polygonal zones |
| Privacy Masking | Quantity: 32ea, Shape: 8point Polygonal zones Color: Gray, Green, Red, Blue, Black, White, Mosaic, Purple, Yellow |
| Dynamic Privacy Masking Color | Gray, Green, Red, Blue, Black, White, Mosaic, Purple, Yellow |
| Gain Control | Off, Max gain, Manual |
| White Balance | ATW, NarrowATW, AWC, Manual, Indoor, Outdoor |
| LDC | Support (Fill/stretch mode) |
| Electronic Shutter | Mode: Minimum, Maximum, Anti flicker, Prefer shutter control (Based on AI engine) Speed Range: 2~1/30,000 sec |
| Video Rotation | Flip, Mirror, Hallway view (90°/270°) |
| Alarm Interface | In/Out: 2 configurable I/O ports Support extra alarm I/O via optional I/O box |
| Alarm Triggers | Analytics, Network disconnect, Alarm input, Time schedule, MQTT subscription, Day/Night, Storage disruption |
| Alarm Events | File upload (image): e-mail/FTP/SFTP, File upload (video clip): FTP/SFTP, Notification: e-mail, Recording: SD/SDHC/SDXC or NAS recording at event triggers, Alarm output, Handover: PTZ preset, send message by HTTP/HTTPS/TCP, Audio clip playback, MQTT: publication |
| Audio In | Selectable (mic in/line in) |
| Audio Out | Line out |
| Light Type | IR LED |
| Light Viewable Length | IR WiseIR PoE+: 50m (164.04ft) / PoE: 30m (98.43ft) |
| IR Wavelength | 850nm |
| Analytics | |
| Classified Object Type | Person, Face, Vehicle, License plate |
| Attributes | Person: Upper/Lower clothes color, Gender, Bag Vehicle: Type (car, bus, truck, motorcycle, bicycle), Color Face: Age, Gender, Face mask, Glasses |
| Thumbnail | BestShot |
| Analytics Events (Based on AI Engine) | Object detection, Virtual line (Crossing/Direction), Motion detection, Face mask detection, Social distancing detection, Slip & fall detection, Virtual area (Loitering/Intrusion/Enter/Exit/Appear/Disappear) |
| Normal Analytics Events | Defocus detection, Tampering, Audio detection, Shock detection |
| Business Intelligence (Based on AI Engine) | People counting, Queue management, Heatmap, Vehicle counting, Crowd counting |
| Network | |
| Ethernet | Metal shielded RJ-45 (10/100/1000BASE-T) |
| Video Compression | H.265/H.264: Main/Baseline/High, MJPEG |
| Audio Compression | G.711(PCM): 8kHz(64kbps), G.726(ADPCM): 8kHz(16/24/32/40kbps), AAC-LC: 16kHz(48kbps), OPUS: 48kHz(64kbps) |
| Smart Codec | WiseStream (Based on AI engine) |
| Bitrate Control | H.265/H.264: CBR or VBR, MJPEG: VBR |
| Streaming | Unicast: Up to 20 users, Multicast: Support |
| Multiple Streaming | Up to 5 profiles, 3 virtual channel support |
| Protocol | IPv4, IPv6, TCP/IP, UDP/IP, RTP(UDP), RTP(TCP), RTCP, RTSP, NTP, HTTP, HTTPS, SSL/TLS, DHCP, FTP, SFTP, ICMP, IGMP, SNMPv1/v2c/v3(MIB-2), ARP, DNS, DDNS, QoS, UPnP, Bonjour, LLDP, CDP, SRTP(TCP, UDP Unicast), MQTT, SMTP(StartTLS), Syslog |
| Application Programming Interface | |
| API | ONVIF S, G, T, M, SUNAPI (HTTP API), Hanwha Vision Open Platform, Direct Cloud Connection Support |
| Security | |
| OS / Firmware Protect | Encrypted firmware, Secure boot, Signed firmware |
| User authentication | Digest authentication, Prevent brute-force attack |
| Network authentication | IEEE 802.1X (EAP-TLS, EAP-LEAP, EAP-PEAP, MSCHAPv2) |
| Secure Communication | HTTPS, WSS (WebSocket Secure), SRTP |
| Access Control | IP-based access control, MAC-based access control, Auto logout |
| Data Protect | Encryption credentials, Encrypt compress for live recording file export |
| Audit | Access / System / Event Log management |
| Device ID | Device certificate (Hanwha Vision Root CA) |
| Secure Storage | SDcard partition encrypt (AES-256), Secure element |
| Supply Chain Security | SBOM |
| Security Certificate | Secure element (FIPS 140-3 level3, CC EAL6+), Consumer IoT Security Standard (ETSI EN 303 645) |
| General | |
| SoC Type | Wisenet 9 (Dual NPU Support) |
| Memory | RAM: 4GB, Flash: 8GB eMMC |
| Edge Storage | Micro SD/SDHC/SDXC Max. 1TB x 2 slots (Total 2TB) *Hanwha Vision branded microSD cards have been certified and recommended for OnCloud edge recording. |
| Environmental & Electrical | |
| Operating Condition | Temperature: -25°C~+50°C (-13°F~+122°F) Humidity: 0~100% RH (condensing) Humidity control with AIR vent |
| Storage Condition | Temperature: -50°C~+60°C (-58°F~+140°F) Humidity: 0~90% RH (non-condensing) |
| EPA (Effective Projected Area) | 0.0148㎡ |
| Input Voltage | PoE (IEEE802.3af, Class3), PoE+ (IEEE802.3at, Class4), 12VDC |
| Power Consumption | PoE+: Max. 14.2W, typical 9.4W PoE: Max. 12.9W, typical 8.3W 12VDC: Max. 14.5W, typical 9.5W |
| WisePower | Power monitoring |
| Mechanical | |
| Color | White |
| Material | Aluminum, PC (Polycarbonate), Hard-coated dome |
| Material Management Declaration | RoHS (EU RoHS directive 2011/65/EU and IEC/EN 63000:2018), REACH (Regulation (EC) No. 1907/2006), Conflict mineral policy (Section 1502 of US Dodd Frank Act) |
| RAL Code | RAL9003 |
| Product Dimensions | ø160x125mm (ø6.30x4.92") |
| Product Weight | 1,560g (3.44 lb) |
| Compatible Conduit Hole | 19.1mm (3/4") (M25) |
| Compatible Gang Box | Single, Double, 4" Octagon, Square |
| Certifications & Standards | |
| EMC | FCC 47 CFR 15 Subpart B Class A, ICES-3(A)/NMB-3(A), CE/UKCA - EN55032 Class A, EN 50130-4, EN 61000-3-2, EN 61000-3-3, VCCI CISPR 32 Class A, RCM AS-NZS CISPR 32 Class A, KS C 9832 Class A, KS C 9835 |
| Safety | UL 62368-1, CAN/CSA C22.2 NO. 62368-1, IEC 62471 |
| Environment | IEC/EN 63000, IEC 60529 IP52, IEC 62262 IK10, IEC 60068-2-1, IEC 60068-2-2, IEC 60068-2-6, IEC 60068-2-14, IEC 60068-2-27, IEC 60068-2-78 |
| DORI (EN62676-4 standard) | |
| Detect (25PPM / 8PPF) | Wide: 43.7m (143.47ft) / Tele: 184.6m (605.71ft) |
| Observe (63PPM / 19PPF) | Wide: 17.5m (57.39ft) / Tele: 73.8m (242.29ft) |
| Recognize (125PPM / 38PPF) | Wide: 8.7m (28.69ft) / Tele: 36.9m (121.14ft) |
| Identify (250PPM / 76PPF) | Wide: 4.4m (14.35ft) / Tele: 18.5m (60.57ft) |
Name
Description
Size
Downloads
File
Datasheet
0.8mb
File
A&E Specification
0mb
The Hanwha Vision XND-A8085RV is a 5MP indoor dome AI camera powered by the Wisenet 9 platform, featuring a 1/2.8" CMOS sensor delivering 2560x1920 resolution at 30fps. It includes a 3.3~9.3mm, motorized 2.8x varifocal lens with a 99° to 31° horizontal FOV. WiseIR provides up to 50m of night vision PoE+ with 0.004 Lux B/W sensitivity. Video enhancements include WiseNR II, 120dB WDR, DIS, and defog. AI analytics include object detection of person, face, vehicle, license plate, virtual line/area, face mask, and social distancing detection, slip & fall, plus business intelligence of people, vehicle, crowd counting, queue management, and heatmap. The camera is rated IP52 and IK10, operating from -25°C to +50°C. It features dual microSD slots up to 2TB total, a FIPS 140-3 Level 3 secure element, and is powered by PoE-PoE+ or 12VDC.
