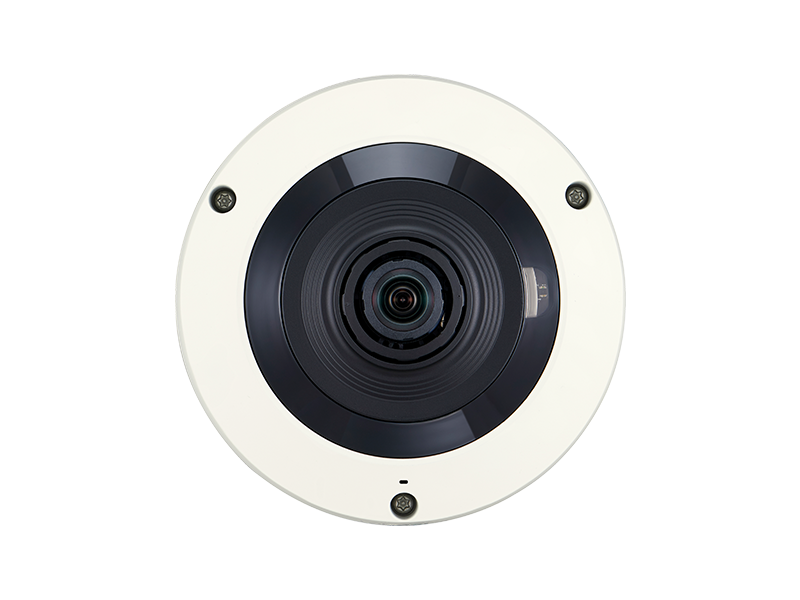

Hanwha - XNF-8010R - X-Series Indoor IR Fisheye
Part number:
XNF-8010R
Price:
Wisenet X powered by Wisenet 5 network indoor fisheye, 6 MP CMOS sensor, 2048x2048 @ 30fps with WDR off/on(120dB), 1.6mm fixed lens (192°), H.265/H.264/MJPEG, WiseStream II compression technology, true WDR, USB port for easy installation, advanced video/audio and business analytics, simple focus, dual SD card, HLC, Defog detection, DIS , 12VDC/PoE
Features:
- 2048 x 2048 resolution, 30fps
- Fisheye lens 1.6mm (192°X192°) W/ simple focus
- Built-in IR for up to 49’ or 15m
- Triple Codec: H.265, H.264 and MJPEG multiple streaming
- WiseStream II compression technology
- WDR 120dB @30fps
- Loitering, directional detection, fog detection, tampering, motion detection, object enter or exit an area
- Sound classification, heatmap, people counting and queue line management
- Dual SD cards
- Power: PoE or 12VDC
| VIDEO | |
| Imaging Device | 1/1.8" 6M CMOS |
| Total Pixels / Effective Pixels | 3,096(H) x 2,094(V) / 2,048(H) x 2,048(V) |
| Scanning System | Progressive |
| Min. Illumination | Color : 0.1 Lux (F1.6), B/W : 0 Lux (IR LED On) |
| S/N Ratio | 50dB |
| Video Output | CVBS : 1.0 Vpp / 75Ω Composite, 714 x 480(N), 702 x 576(P) for Installation, DIP Connector Type, USB |
| LENS |
| Focal Length / Max. Aperture Ratio | 1.6mm / F1.6 |
| Angular Field of View | H : 192˚ / V : 192˚ / D : 192˚ |
| Min. Object Distance | 0.3m (0.98ft) |
| Focus Control | Simple focus / Manual, Remote control Via network |
| Lens Type / Mount Type | Fixed / Board-in Type |
| OPERATIONAL |
| Viewable Length | 15m (49.21ft) |
| Camera Title | Off / On (Displayed up to 85 characters) - W/W : English / Numeric / Special characters - China : English / Numeric / Special / Chinese characters - Common : Multi-line (Max. 5), Color (Gray / Green / Red / Blue / Black / White), Transparency, Auto scale by resolution |
| Day & Night | Auto (ICR) / Color / B/W / External / Schedule |
| Backlight Compensation | Off / BLC / HLC / WDR |
| Wide Dynamic Range | 120dB |
| Contrast Enhancement | SSDR (Off / On) |
| Digital Noise Reduction | SSNRV (2D + 3D Noise filter) (Off / On) |
| Digital Image Stabilization | Off / On |
| Defog | Off / Auto (input from fog detection) / Manual |
| Motion Detection | Off / On (8ea, 8point polygonal zones), Handover |
| Privacy Masking | Off / On (32ea, polygonal) - Color : Gray, Green, Red, Blue, Black, White - Mosaic |
| Gain Control | Off / Low / Middle / High |
| White Balance | ATW / AWC / Manual / Indoor / Outdoor (Included mercury & Sodium) |
| Electronic Shutter Speed | Minimum / Maximum / Anti flicker (2 ~ 1/12,000sec) |
| Digital Zoom | 8x, Digital PTZ (Preset, Group) |
| Flip / Mirror | Off / On |
| Intelligent Video Analytics | Tampering, Loitering, Directional detection, Virtual line, Enter/Exit, (Dis)Appear, Audio detection, Sound classification, People counting, Heatmap, Queue management |
| Alarm I/O | Input 1ea / Output 1ea |
| Alarm Triggers | Alarm Input, Motion detection, Video & Audio analytics, Network disconnect |
| Alarm Events | File upload Via FTP and E-Mail, Notification Via E-Mail, Local storage (SD/SDHC/ SDXC) or NAS recording at event triggers, External output |
| Viewing Composition | Camera Side : Fisheye, Single panorama, Double panorama, Fisheye + 4 PTZ Quad View, Fisheye + 8 PTZ |
| Pixel Counter | Support |
| NETWORK |
| Ethernet | RJ-45 (10/100 BASE-T) |
| Video Compression Format | H.265 / H.264 / MJPEG |
| Resolution | Original view : 2048 x 2048, 1280 x 1280, 1080 x 1080, 960 x 960, 768 x 768, 720 x 720, 640 x 640, 480 x 480 Single panorama : 2048 x 512, 1920 x 480, 1280 x 320, 640 x 160, 704 x 176 Double panorama : 2048 x 1024, 1920 x 960, 1280 x 640, 640 x 320, 704 x 352 Quad View : 2048 x 1536, 1600 x 1200, 1280 x 960, 1024 x 768, 800 x 600, 640 x 480, 704 x 576 [Q1 / 2 / 3 / 4] 1024 x 768, 800 x 600, 640 x 480 |
| Max. Framerate | H.265 / H.264 : 30fps@2,048 x 2,048, MJPEG : Max. 15fps |
| Smart Codec / WiseStreamII | Manual mode (area-based : 5ea) / support |
| Video Quality Adjustment | H.265 / H.264 : Target bitrate level control, MJPEG : Quality level control |
| Bitrate Control Method | H.265 / H.264 : CBR or VBR, MJPEG : VBR |
| Streaming Capability | Multiple streaming (Up to 10 profiles) |
| Audio In | Selectable (Mic in / Line in / Built-in mic) Supply voltage : 2.5V DC (4mA), Input impedance: Approx. 2K Ohm |
| Audio Out | Line out (3.5mm mono jack), Max output level : 1 Vrms |
| Audio Compression Format | G.711 u-law/G.726 Selectable, G.726 (ADPCM) 8KHz, G.711 8KHz G.726 : 16Kbps, 24Kbps, 32Kbps, 40Kbps, AAC-LC : 48Kbps at 16KHz (XNF-8010R) (at 8 / 16 / 32 / 48KHz : XNF-8010RV/8010RVM) |
| Audio Communication | Bi-directional (2way) |
| IP | IPv4, IPv6 |
| Protocol | TCP/IP, UDP/IP, RTP (UDP), RTP (TCP), RTCP,RTSP, NTP, HTTP, HTTPS, SSL/TLS, DHCP, PPPoE, FTP, SMTP, ICMP, IGMP, SNMPv1/v2c/v3 (MIB-2), ARP, DNS, DDNS, QoS, PIM-SM, UPnP, Bonjour, SIP |
| Security | HTTPS (SSL) login authentication, Digest login authentication IP address filtering, User access log, 802.1x Authentication (EAP-TLS, EAP-LEAP) |
| Streaming Method | Unicast / Multicast |
| Max. User Access | 20 users at unicast mode |
| Edge Storage | SD/SDHC/SDXC 2slot (up to 512GB) - Continuous recording (1st slot to 2nd slot) - Motion images recorded in the SD/SDHC/SDXC memory card can be downloaded. - Camera can detect automatically when the memory is connected - Memory status display (Normal / Error / Active / Formatting / Lock) NAS (Network Attached Storage), Local PC for instant recording (Plug-in Viewer only) |
| Application Programming Interface | ONVIF Profile S/G, SUNAPI, Wisenet open platform |
| Webpage Language | English, French, German, Spanish, Italian, Chinese, Korean, Russian, Japanese, Swedish, Portuguese, Turkish, Polish, Czech, Dutch, Hungary, Greek |
| Web Viewer | Supported OS : Windows 7, 8.1, 10, Mac OS X 10.10, 10.11, 10.12 [Plug-in Free Webviewer] Supported Browser : Google Chrome 60, MS Edge 40, Mozilla Firefox 55 (Windows 64bit only), Apple Safari 10 (Max OS X only) [Plug-in Webviewer] Supported Browser : MS Explorer 11, Apple Safari 10 (Mac OS X only) |
| Central Management Software | SmartViewer, SSM |
| ENVIRONMENTAL |
| Operating Temperature / Humidity | -10°C ~ +55°C (+14°F ~ +131°F) / Less than 90% RH (XNF-8010R) -40°C ~ +55°C (-40°F ~ +131°F) / Less than 90% RH (XNF-8010RV/8010RVM) |
| Storage Temperature / Humidity | -50°C ~ +60°C (-58°F ~ +140°F) / Less than 90% RH |
| Ingress Protection / Vandal Resistance | IP66 / IK10 (XNF-8010RV/8010RVM) |
| Vibration Resistance | EN55011:2009+A1:2010, EN50581:2012,EN50121-3-2:2015, EN61000-4-2:2009, EN61000-4-3:2006+A2:2010, EN61000-4-4:2012, EN61000-4-5:2014 EN61000-4-6:2009, EN50155:2007 |
| ELECTRICAL |
| Input Voltage / Current | 12V DC ±10%, PoE (IEEE802.3af, Class3) |
| Power Consumption | Max. 11W (12V DC), Max. 12W (PoE) (XNF-8010R) Max. 12W (12V DC), Max. 12.95W (PoE) (XNF-8010RV/8010RVM) |
| MECHANICAL |
| Color / Material | Ivory / Aluminum |
| Dimension (WxHxD) | Ø146 x 54.8mm (Ø5.75" x 2.16") (XNF-8010R) Ø146 x 65.8mm (Ø5.75" x 2.59") (XNF-8010RV/8010RVM) |
| Weight | 730g (1.61 lb) (XNF-8010R) / 785g (1.73 lb) (XNF-8010RV) / 790g (1.74 lb) (XNF-8010RVM) |
