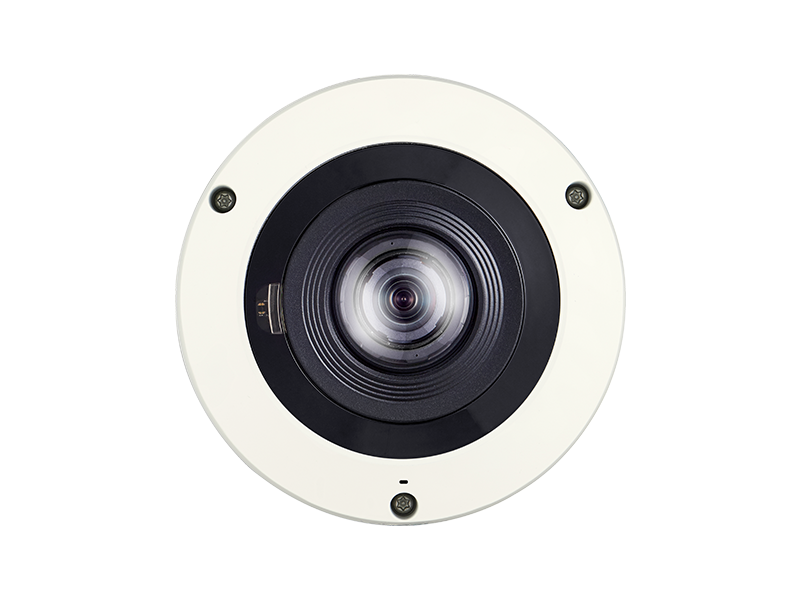

Hanwha - XNF-8010RV - X-Series Outdoor IR Fisheye
Part number:
XNF-8010RV
Price:
Wisenet X powered by Wisenet 5 network outdoor vandal fisheye, 6 MP CMOS sensor, 2048x2048 @ 30fps with WDR off/on(120dB), 1.6mm fixed lens (192°), H.265/H.264/MJPEG, WiseStream II compression technology, true WDR, USB port for easy installation, advanced video/audio and business analytics, simple focus, dual SD card, HLC, Defog detection, DIS , 12VDC/PoE, IP66, IK10
Features:
- 2048 x 2048 resolution, 30fps
- Fisheye lens 1.6mm (192°X192°) W/ simple focus
- Built-in IR for up to 49’ or 15m
- Triple Codec: H.265, H.264 and MJPEG multiple streaming
- WiseStream II compression technology
- WDR 120dB @30fps
- Loitering, directional detection, fog detection, tampering, Motion detection, object enter or exit an area
- Sound Classification, heatmap, people counting and queue line management
- Dual SD cards
- Power: PoE or 12VDC
- IP66 / IK10
Video
| Imaging Device | 1/1.8" 6M CMOS |
| Effective Pixels | 3,096(H) x 2,094(V) / 2,048(H) x 2,048(V) |
| Minimum Illumination | Color : 0.1 Lux (F1.6), B/W : 0 Lux (IR LED On) |
| Video Out | CVBS : 1.0 Vpp / 75Ω Composite, 714 x 480(N), 702 x 576(P) for Installation, DIP Connector Type, USB |
Lens
| Focal Length (Zoom Ratio) | 1.6mm / F1.6 |
| Angular Field of View | H : 192˚ / V : 192˚ / D : 192˚ |
| Minimum Object Distance | 0.3m (0.98ft) |
| Focus Control | Simple focus / Manual, Remote control Via network |
| Lens / Mount Type | Fixed / Board-in Type |
Operational
| Viewable Length | 15m (49.21ft |
| Camera Title | Off / On (Displayed up to 85 characters) - W/W : English / Numeric / Special characters - China : English / Numeric / Special / Chinese characters - Common : Multi-line (Max. 5), Color (Gray / Green / Red / Blue / Black / White), Transparency, Auto scale by resolution |
| Day & Night | Auto (ICR) / Color / B/W / External / Schedule |
| Backlight Compensation | Off / BLC / HLC / WDR |
| Wide Dynamic Range | 120dB |
| Digital Noise Reduction | SSNRV (2D + 3D Noise filter) (Off / On) |
| Digital Image Stabilization | Off / On |
| Defog | Off / Auto (input from fog detection) / Manual |
| Motion Detection | Off / On (8ea, 8point polygonal zones), Handover |
| Privacy Masking | Off / On (32ea, polygonal zones) - Color : Gray / Green / Red / Blue / Black / White - Mosaic |
| Gain Control | Off / Low / Middle / High |
| White Balance | ATW / AWC / Manual/Indoor / Outdoor (Included mercury & Sodium) |
| LDC | Off / On (5 levels with min / max) |
| Electronic Shutter Speed | Minimum / Maximum / Anti Flicker(2 ~ 1/12,000sec) |
| Digital PTZ | 8x, Digital PTZ (Preset, Group) |
| Flip / Mirror | Off / On |
| Alarm I/O | Input 1ea / Output 1ea |
| Alarm Triggers | Alarm input, Motion detection, Video & Audio analytics, Network disconnect |
| Alarm events | File upload via FTP, E-mail, Notification via E-mail, Localstorage (SD/SDHC/ SDXC) or NAS recording at event triggers, External output, DPTZ preset |
| Audio In | Selectable (Mic in / Line in), Supply voltage : 2.5V DC (4mA), Input impedance : approx. 2K Ohm |
| Audio Out | Line out (3.5mm mono jack), Max output level : 1 Vrms |
