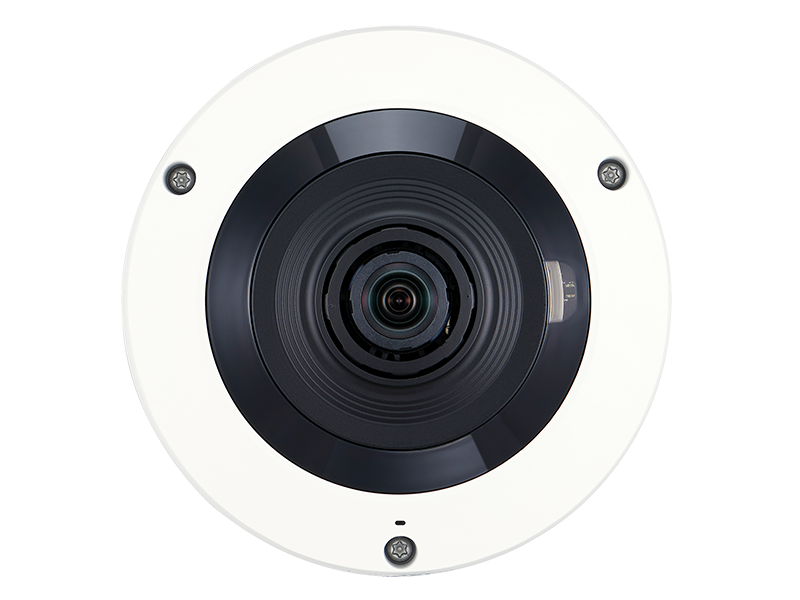

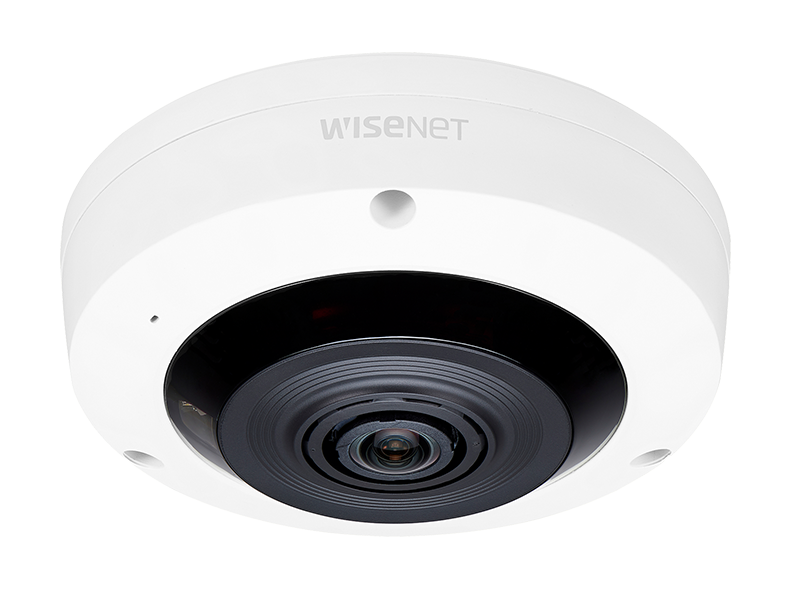

Hanwha - XNF-8010RW - X-Series Indoor IR Fisheye
(White Color)
Part number:
XNF-8010RW
Price:
Wisenet X powered by Wisenet 5 network indoor fisheye (white color), 6 MP CMOS sensor, 2048x2048 @ 30fps, 1.6mm fixed lens (192°), triple codec H.265/H.264/MJPEG with WiseStream II technology, 120dB WDR, USB port for easy installation, advanced video, sound classification and business analytics, high powered IR LEDs range of 49', simple focus, dual SD card, HLC, defog detection, DIS, 12VDC/PoE
Features:
- 2048 x 2048 resolution, 30fps
- H.265, H.264, MJPEG codec supported
- Variable view mode (Fisheye, Single panorama, Double panorama, Quad view)
- On board dewarping, Digital PTZ (8x), Bi-directional audio
- True WDR (120dB), WiseStream Ⅱ support
- Tampering, Loitering, Directional detection, Audio detection, Sound classification, Heatmap, People counting, Queue management
- Motion deteciton, Handover
- SD / SDHC / SDXC dual memory slot (Max. 512GB), 12V DC / PoE
- IR viewable length 15m (49.21ft)
| VIDEO | |
| Imaging Device | 1/1.8" 6M CMOS |
| Total Pixels / Effective Pixels | 3,096(H) x 2,094(V) / 2,048(H) x 2,048(V) |
| Scanning System | Progressive |
| Min. Illumination | Color : 0.1 Lux (F1.6), B/W : 0 Lux (IR LED On) |
| S/N Ratio | 50dB |
| Video Output | CVBS : 1.0 Vpp / 75Ω Composite, 714 x 480(N), 702 x 576(P) for Installation, DIP Connector Type, USB |
| LENS |
| Focal Length / Max. Aperture Ratio | 1.6mm / F1.6 |
| Angular Field of View | H : 192˚ / V : 192˚ / D : 192˚ |
| Min. Object Distance | 0.3m (0.98ft) |
| Focus Control | Simple focus / Manual, Remote control Via network |
| Lens Type / Mount Type | Fixed / Board-in Type |
| OPERATIONAL |
| Viewable Length | 15m (49.21ft) |
| Camera Title | Off / On (Displayed up to 85 characters) - W/W : English / Numeric / Special characters - China : English / Numeric / Special / Chinese characters - Common : Multi-line (Max. 5), Color (Gray / Green / Red / Blue / Black / White), Transparency, Auto scale by resolution |
| Day & Night | Auto (ICR) / Color / B/W / External / Schedule |
| Backlight Compensation | Off / BLC / HLC / WDR |
| Wide Dynamic Range | 120dB |
| Contrast Enhancement | SSDR (Off / On) |
| Digital Noise Reduction | SSNRV (2D + 3D Noise filter) (Off / On) |
| Digital Image Stabilization | Off / On |
| Defog | Off / Auto (input from fog detection) / Manual |
| Motion Detection | Off / On (8ea, 8point polygonal zones), Handover |
| Privacy Masking | Off / On (32ea, polygonal) - Color : Gray, Green, Red, Blue, Black, White - Mosaic |
| Gain Control | Off / Low / Middle / High |
| White Balance | ATW / AWC / Manual / Indoor / Outdoor (Included mercury & Sodium) |
| Electronic Shutter Speed | Minimum / Maximum / Anti flicker (2 ~ 1/12,000sec) |
| Digital Zoom | 8x, Digital PTZ (Preset, Group) |
| Flip / Mirror | Off / On |
| Intelligent Video Analytics | Tampering, Loitering, Directional detection, Virtual line, Enter/Exit, (Dis)Appear, Audio detection, Sound classification, People counting, Heatmap, Queue management |
| Alarm I/O | Input 1ea / Output 1ea |
| Alarm Triggers | Alarm Input, Motion detection, Video & Audio analytics, Network disconnect |
| Alarm Events | File upload Via FTP and E-Mail, Notification Via E-Mail, Local storage (SD/SDHC/ SDXC) or NAS recording at event triggers, External output |
| Viewing Composition | Camera Side : Fisheye, Single panorama, Double panorama, Fisheye + 4 PTZ Quad View, Fisheye + 8 PTZ |
| Pixel Counter | Support |
| NETWORK |
| Ethernet | RJ-45 (10/100 BASE-T) |
| Video Compression Format | H.265 / H.264 / MJPEG |
| Resolution | Original view : 2048 x 2048, 1280 x 1280, 1080 x 1080, 960 x 960, 768 x 768, 720 x 720, 640 x 640, 480 x 480 Single panorama : 2048 x 512, 1920 x 480, 1280 x 320, 640 x 160, 704 x 176 Double panorama : 2048 x 1024, 1920 x 960, 1280 x 640, 640 x 320, 704 x 352 Quad View : 2048 x 1536, 1600 x 1200, 1280 x 960, 1024 x 768, 800 x 600, 640 x 480, 704 x 576 [Q1 / 2 / 3 / 4] 1024 x 768, 800 x 600, 640 x 480 |
| Max. Framerate | H.265 / H.264 : 30fps@2,048 x 2,048, MJPEG : Max. 15fps |
| Smart Codec / WiseStreamII | Manual mode (area-based : 5ea) / support |
| Video Quality Adjustment | H.265 / H.264 : Target bitrate level control, MJPEG : Quality level control |
| Bitrate Control Method | H.265 / H.264 : CBR or VBR, MJPEG : VBR |
| Streaming Capability | Multiple streaming (Up to 10 profiles) |
| Audio In | Selectable (Mic in / Line in / Built-in mic) Supply voltage : 2.5V DC (4mA), Input impedance: Approx. 2K Ohm |
| Audio Out | Line out (3.5mm mono jack), Max output level : 1 Vrms |
| Audio Compression Format | G.711 u-law/G.726 Selectable, G.726 (ADPCM) 8KHz, G.711 8KHz G.726 : 16Kbps, 24Kbps, 32Kbps, 40Kbps, AAC-LC : 48Kbps at 16KHz (XNF-8010R) (at 8 / 16 / 32 / 48KHz : XNF-8010RV/8010RVM) |
| Audio Communication | Bi-directional (2way) |
| IP | IPv4, IPv6 |
| Protocol | TCP/IP, UDP/IP, RTP (UDP), RTP (TCP), RTCP,RTSP, NTP, HTTP, HTTPS, SSL/TLS, DHCP, PPPoE, FTP, SMTP, ICMP, IGMP, SNMPv1/v2c/v3 (MIB-2), ARP, DNS, DDNS, QoS, PIM-SM, UPnP, Bonjour, SIP |
| Security | HTTPS (SSL) login authentication, Digest login authentication IP address filtering, User access log, 802.1x Authentication (EAP-TLS, EAP-LEAP) |
| Streaming Method | Unicast / Multicast |
| Max. User Access | 20 users at unicast mode |
| Edge Storage | SD/SDHC/SDXC 2slot (up to 512GB) - Continuous recording (1st slot to 2nd slot) - Motion images recorded in the SD/SDHC/SDXC memory card can be downloaded. - Camera can detect automatically when the memory is connected - Memory status display (Normal / Error / Active / Formatting / Lock) NAS (Network Attached Storage), Local PC for instant recording (Plug-in Viewer only) |
| Application Programming Interface | ONVIF Profile S/G, SUNAPI, Wisenet open platform |
| Webpage Language | English, French, German, Spanish, Italian, Chinese, Korean, Russian, Japanese, Swedish, Portuguese, Turkish, Polish, Czech, Dutch, Hungary, Greek |
| Web Viewer | Supported OS : Windows 7, 8.1, 10, Mac OS X 10.10, 10.11, 10.12 [Plug-in Free Webviewer] Supported Browser : Google Chrome 60, MS Edge 40, Mozilla Firefox 55 (Windows 64bit only), Apple Safari 10 (Max OS X only) [Plug-in Webviewer] Supported Browser : MS Explorer 11, Apple Safari 10 (Mac OS X only) |
| Central Management Software | SmartViewer, SSM |
| ENVIRONMENTAL |
| Operating Temperature / Humidity | -10°C ~ +55°C (+14°F ~ +131°F) / Less than 90% RH (XNF-8010R) -40°C ~ +55°C (-40°F ~ +131°F) / Less than 90% RH (XNF-8010RV/8010RVM) |
| Storage Temperature / Humidity | -50°C ~ +60°C (-58°F ~ +140°F) / Less than 90% RH |
| Ingress Protection / Vandal Resistance | IP66 / IK10 (XNF-8010RV/8010RVM) |
| Vibration Resistance | EN55011:2009+A1:2010, EN50581:2012,EN50121-3-2:2015, EN61000-4-2:2009, EN61000-4-3:2006+A2:2010, EN61000-4-4:2012, EN61000-4-5:2014 EN61000-4-6:2009, EN50155:2007 |
| ELECTRICAL |
| Input Voltage / Current | 12V DC ±10%, PoE (IEEE802.3af, Class3) |
| Power Consumption | Max. 11W (12V DC), Max. 12W (PoE) (XNF-8010R) Max. 12W (12V DC), Max. 12.95W (PoE) (XNF-8010RV/8010RVM) |
| MECHANICAL |
| Color / Material | Ivory / Aluminum |
| Dimension (WxHxD) | Ø146 x 54.8mm (Ø5.75" x 2.16") (XNF-8010R) Ø146 x 65.8mm (Ø5.75" x 2.59") (XNF-8010RV/8010RVM) |
| Weight | 730g (1.61 lb) (XNF-8010R) / 785g (1.73 lb) (XNF-8010RV) / 790g (1.74 lb) (XNF-8010RVM) |
