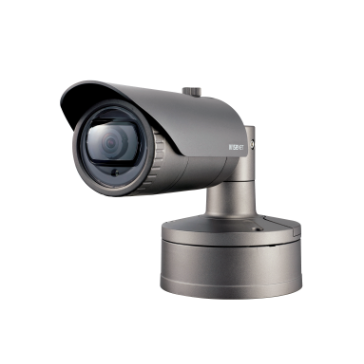

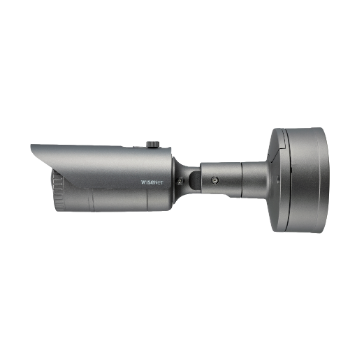

Hanwha - XNO-6010R - 2MP IR Bullet
Part number:
XNO-6010R
Price:
WiseNet X powered by WiseNet 5 network IR outdoor vandal bullet camera, Back box, Easy access to all ports, 2MP, Full HD(1080p) @60fps WDR off or @30fps WDR on,2.4mm fixed focal lens (139°), H.265/H.264/MJPEG, WiseStream II compression technology, 150dB WDR, USB port for easy installation, advanced video analytics and sound classification, High powered IR LEDs range of 98', True D/N, dual SD card, hallway view, HLC, defog detection with simple focus, DIS , 12VDC/24VAC/PoE, IP67, IK10, Nema 4X.
Features:
- Built-in 2.4mm fixed lens
- Max. 60fps@all resolutions (H.265/H.264)
- Day & Night (ICR), WDR(150dB)
- Loitering, Directional detection, Fog detection, Digital auto tracking, Sound classification, Heatmap, People counting, Queue management, Tampering, Motion detection, Handover
- Dual SD slots(Max. 512GB), WiseStream II support
- IP67/IP66, NEMA 4X, IK10
Video
| Imaging Device | 1/2.8" 2M CMOS |
| Effective Pixels | 1,945(H) x 1,097(V) 2.13M |
| Minimum Illumination | Color : 0.055Lux (F2.0, 1/30sec), B/W : 0Lux (IR LED on) (XNO-6010R) |
| Video Out | CVBS : 1.0 Vpp / 75Ω composite, 720 x 480(N), 720 x 576(P), for installation USB : micro USB type B, 1280 x 720 for installation |
Lens
| Focal Length (Zoom Ratio) | 2.4mm Fixed (XNO-6010R), 4mm Fixed (XNO-6020R |
| Maximum Aperture Ratio | F2.0 (XNO-6010R) |
| Angular Field of View | H : 139.0˚/ V : 73.0˚ / D : 167.0˚ (XNO-6010R) |
| Minimum Object Distance | 0.4m (1.31ft) |
| Focus Control | Manual |
| Lens/Mount Type | Fixed / Board-in type |
Operational
| IRViewable Length | 15m(49.21ft) (XNO-6010R) |
| Camera Title | Off / On (Displayed up to 85 characters) - W/W : English / Numeric / Special characters - China : English / Numeric / Special / Chinese characters - Common : Multi-line (Max. 5), Color (Grey / Green / Red / Blue / Black / White), Transparency, Auto scale by resolution |
| Day & Night | Auto (ICR)/ Color/ B/W / External / Schedule |
| Backlight Compensation | Off / BLC / HLC (Masking / Dimming), WDR |
| Wide Dynamic Range | 150dB |
| Digital Noise Reduction | SSNRV (2D+3D noise filter) (Off / On) |
| Digital Image Stabilization | Off / On |
| Defog | Off / Auto (Input from fog detection)/ Manual |
| Motion Detection | Off / On (8ea, 8point polygonal zones), Handover |
| Privacy Masking | Off / On (32ea, Polygonal) - Color : Grey / Green / Red / Blue / Black / White, Mosaic |
| Gain Control | Off / Low / Middle / High |
| White Balance | ATW / AWC / Manual / Indoor/ Outdoor (Included Mercury & Sodium) |
| LDC | Off / On (5 Levels with Min / Max) |
| Electronic Shutter Speed | Minimum / Maximum / Anti Flicker (2 ~ 1/12,000sec) |
| Digital PTZ | 24x, Digital PTZ (Preset, Group) |
| Flip / Mirror | Off / On, Hallway view : 90˚/270˚ |
| Alarm I/O | Input 1ea / Output 1ea |
| Alarm Triggers | Alarm Input, Motion detection, Video & Audio Analytics, Network disconnect |
| Alarm events | File Upload Via FTP, E-mail, Noti cation via e-mail, Local Storage (SD / SDHC / SDXC) or NAS recording at event triggers, External output, Preset |
| Audio In | Selectable (Mic in / Line in), Max output level : 1Vrms Supply voltage : 2.5V DC (4mA), Input impedance : approx. 2K Ohm |
| Audio Out | Line out, Max output level : 1Vrms |
