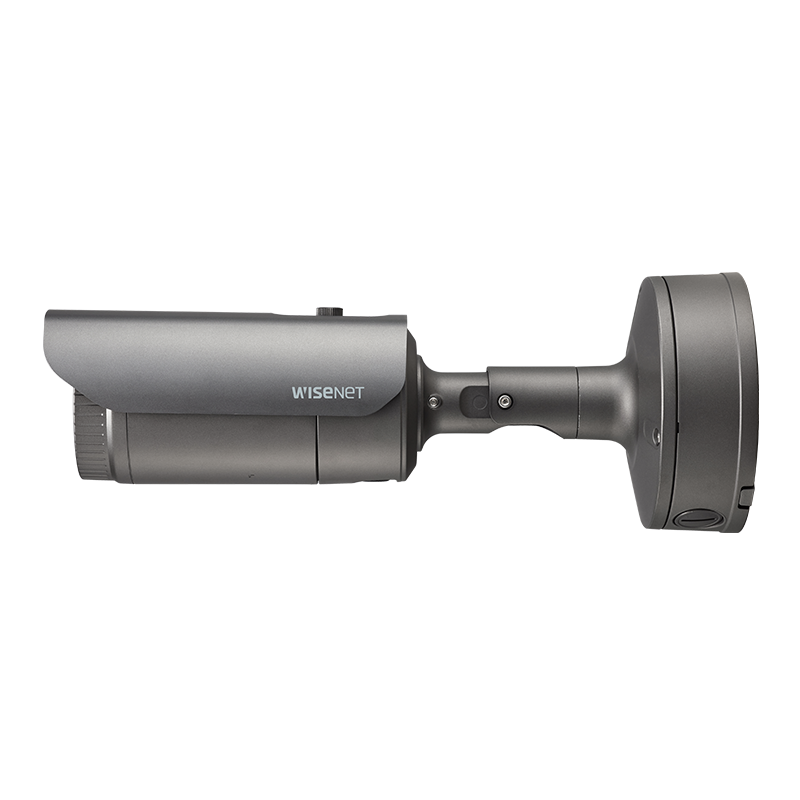

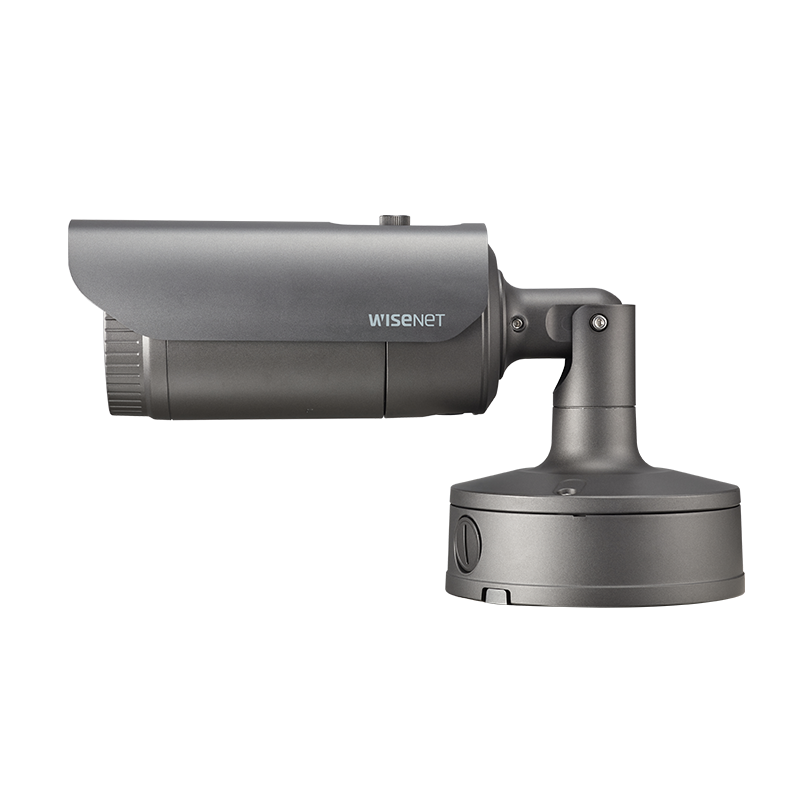

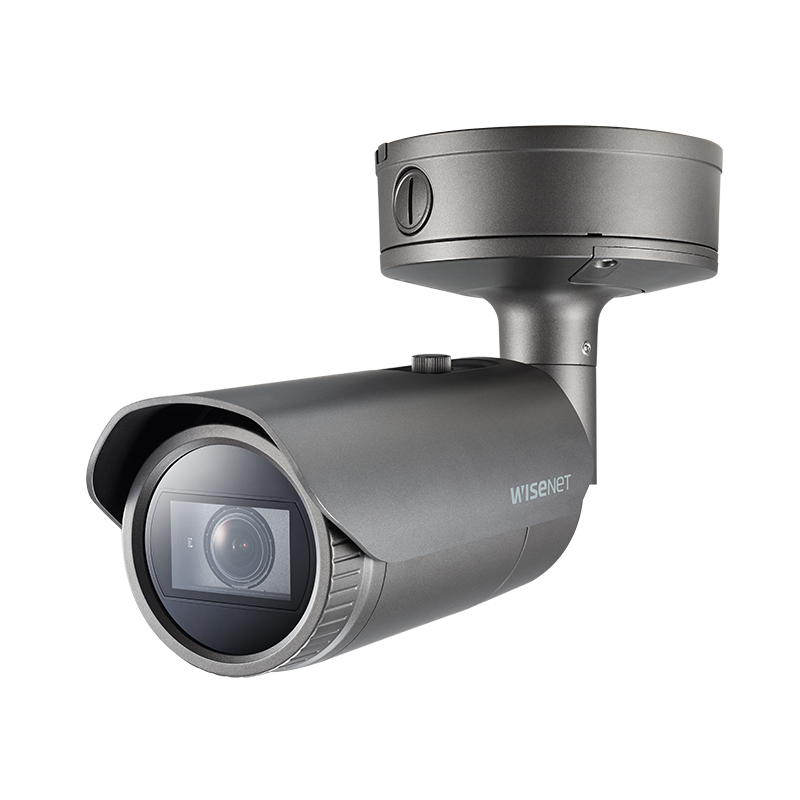

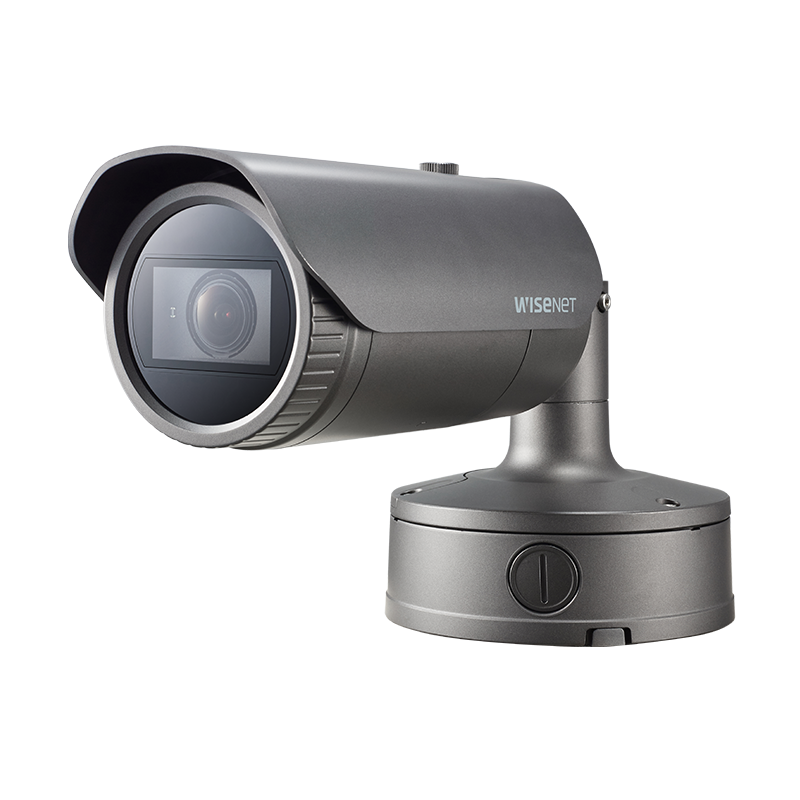

Hanwha - XNO-6080R - 2MP IR Bullet
Part number:
XNO-6080R
Price:
Wisenet X series network IR outdoor bullet camera, Back box, features our Wisenet 5 chipset, 2MP resolution, full HD(1080p) @60fps WDR off or @30fps WDR on, motorized vari-focal Lens 4.3x (2.8~12mm) (119.5°~27.9°), H.265/H.264/MJPEG, WiseStream II compression technology, 150dB WDR, USB port for easy installation, advanced video analytics and sound classification, high powered IR LEDs range of 164', True D/N, dual SD card, hallway view, HLC, defog detection with simple focus, DIS, 12VDC/24VAC/PoE, IP67, IK10, NEMA 4X, built-in -40°F heater.
Features:
- 2 megapixel (1920 x 1080) resolution
- 2.8 ~ 12mm (4.3x) motorized varifocal lens
- 60fps@all resolutions (H.265/H.264)
- H.265, H.264, MJPEG codec supported, multiple streaming
- Day & Night (ICR), WDR (150dB), Defog
- Loitering, directional detection, fog detection, audio detection, digital auto tracking, sound classification, tampering
- Motion detection, Handover
- SD/SDHC/SDXC memory slot (Max. 512GB)
- Hallway view, WiseStream II support
- IR viewable length 50m, IP67/IP66, NEMA 4X, IK10
- LDC support (Lens Distortion Correction)
- PoE / 24V AC, 12V DC, Bi-directional audio support
Video
| Imaging Device | 1/2.8" 2M CMOS |
| Effective Pixels | 1,945(H) x 1,097(V) 2.13M |
| Minimum Illumination | Color : 0.015Lux (F1.4, 1/30sec), B/W : 0Lux (IR LED on) |
| Video Out | CVBS : 1.0 Vpp / 75Ω composite, 720 x 480(N), 720 x 576(P), for installation USB : micro USB type B, 1280 x 720 for installation |
Lens
| Focal Length (Zoom Ratio) | 2.8 ~ 12mm (4.3x) motorized varifocal |
| Maximum Aperture Ratio | F1.4(Wide) ~ F3.6(Tele) |
| Angular Field of View | H : 119.5˚ ~ 27.9˚/ V : 62.8˚ ~ 15.7˚ / D : 142.1˚ ~ 32.0˚ |
| Minimum Object Distance | 0.5m (1.64ft) |
| Focus Control | Simple focus(Motorized V/F)/ Manual, Remote control via network (Manual, Simple focus) |
| Lens Type | DC auto iris, P-Iris/ Board-in type |
Operational
| IRViewable Length | 50m (164.04ft) |
| Camera Title | O / On (Displayed up to 85 characters) - W/W : English / Numeric / Special characters - China : English / Numeric / Special / Chinese characters - Common : Multi-line (Max. 5), Color (Grey / Green / Red / Blue / Black / White), Transparency, Auto scale by resolution |
| Day & Night | Auto (ICR)/ Color/ B/W / External / Schedule |
| Backlight Compensation | Off / BLC / HLC (Masking / Dimming), WDR |
| Wide Dynamic Range | 150dB |
| Digital Noise Reduction | SSNRV (2D+3D noise filter) (Off / On) |
| Digital Image Stabilization | Off / On |
| Defog | Off / Auto (Input from fog detection)/ Manual |
| Motion Detection | Off / On (8ea, 8point polygonal zones), Handover |
| Privacy Masking | O / On (32ea, Polygonal) - Color : Grey / Green / Red / Blue / Black / White, Mosaic |
| Gain Control | O / Low / Middle / High |
| White Balance | ATW / AWC / Manual / Indoor/ Outdoor (Included Mercury & Sodium) |
| LDC | Off / On (5 Levels with Min / Max) |
| Electronic Shutter Speed | Minimum / Maximum / Anti Flicker (2 ~ 1/12,000sec) |
| Digital PTZ | 24x, Digital PTZ (Preset, Group) |
| Flip / Mirror | O / On, Hallway view : 90˚/270˚ |
| Alarm I/O | Input 1ea / Output 1ea |
| Alarm Triggers | Alarm Input, Motion detection, Video & Audio Analytics, Network disconnect |
| Alarm events | File Upload Via FTP, E-mail, Noti cation via e-mail, Local Storage (SD / SDHC / SDXC) or NAS recording at event triggers, External output, Preset |
| Audio In | Selectable (Mic in / Line in), Supply voltage : 2.5V DC (4mA), Input impedance : approx. 2K Ohm |
| Audio Out | Line out, Max output level : 1Vrms |
Name
Description
Size
Downloads
File
Datasheet
0.7mb
File
NDAA Compliant
0.4mb
