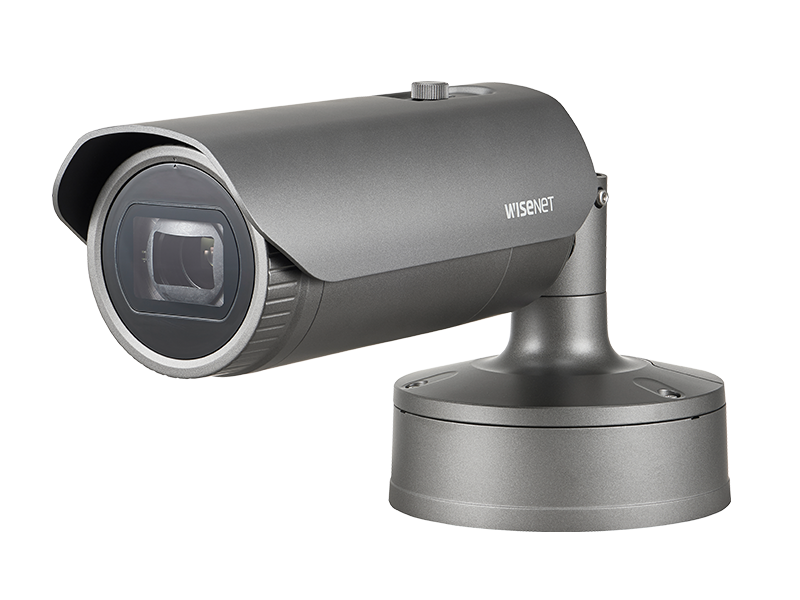

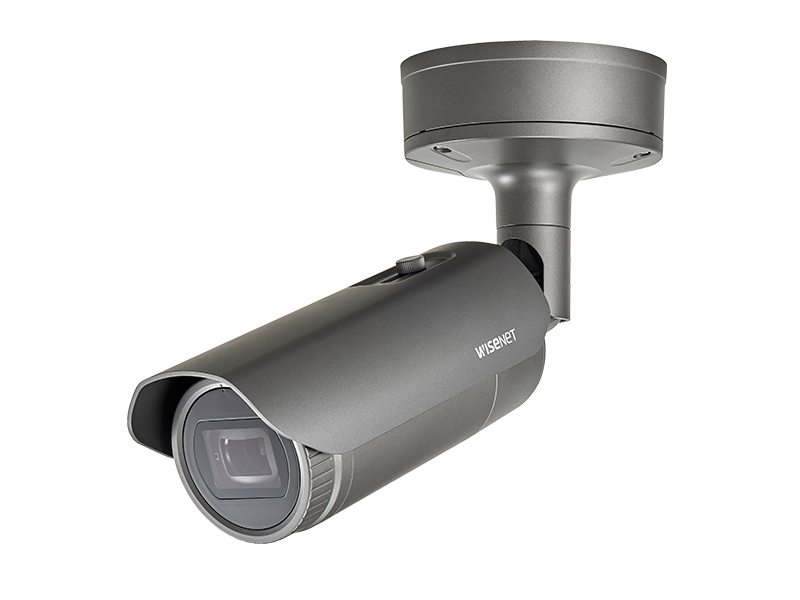

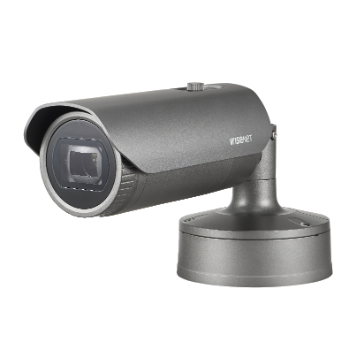

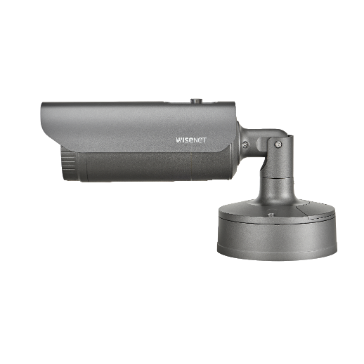

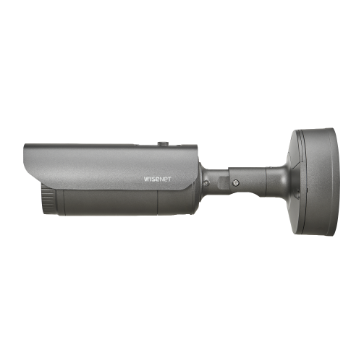

Hanwha - XNO-6085R - eXtraLUX IR Bullet
Part number:
XNO-6085R
Price:
Wisenet X powered by Wisenet 5 network IR outdoor bullet camera, eXtraLUX features 1/2" sensor with F0.94 lens, Back box, easy access to all ports, 2MP, full HD(1080p) @60fps WDR off/on(120dB) or @30fps WDR on(150dB), motorized vari-focal lens 4.0x (4.1~16.4mm) (100°~26.2.9°), H.265/H.264/MJPEG, WiseStream II compression technology, 150dB WDR, USB port for easy installation, advanced video analytics and sound classification, high powered IR LEDs range of 229', true D/N, dual SD card, hallway view, HLC, Defog detection, DIS , 12VDC/24VAC/PoE, IP67, IK10, NEMA 4X, built-in -40°F heater.
Features:
- Max 2MP @ 60fps
- Motorized vari-focal 4.1~ 16.4mm (FOV: 100°~26.2°)
- ½” CMOS sensor with F0.94 Lens (wide)
- Built-in IR with 229’ range or 70m
- Triple codec: H.265, H.264 and MJPEG multiple streaming
- WiseStream II compression technology
- WDR 150dB @30fps, 120dB @60fps
- Loitering, directional detection, fog detection, tampering, Motion detection, object enter or exit an area
- Hallway view, sound classification
- Dual SD cards
- Gyro sensor for digital image stabilization
- IP66/67 NEMA 4X, IK10
- Power: PoE or 12VDC/24VAC
| Video | |
| Imaging Device | 1/2" 2.17M CMOS |
| Effective Pixels | 1,945(H) X 1,097(V) approx 2.13M pixels |
| Minimum Illumination | Color : 0.004 Lux (1/30sec, F0.94), B/W : 0 Lux (IR LED on) |
| Video Out | CVBS : 1.0 Vpp / 75Ω composite, 720 x 480(N), 720 x 576(P), for installation USB : micro USB type B, 1280 x 720 for installation |
| Lens |
| Focal Length (Zoom Ratio) | 4.1 ~ 16.4mm (Optical 4X) motorized varifocal |
| Maximum Aperture Ratio | F0.94(Wide) ~ F2.4(Tele) |
| Angular Field of View | H : 100˚(Wide) ~ 26.2˚(Tele)/ V : 54˚(Wide) ~ 14.8˚(Tele)/ D : 116˚(Wide) ~ 30.0˚(Tele) |
| Minimum Object Distance | 0.7m (2.30ft) |
| Focus Control | Simple focus(motorized V/F)/ Manual |
| Lens / Mount Type | DC auto iris/ Board-in type |
| Operational |
| IRViewable Length | 70m (229.66ft) |
| Camera Title | Off / On (Displayed up to 85 Characters) - English / Numeric / International / Special Characters - Common : Multi-line (Max. 5), Color (Gray / Green / Red / Blue / Black / White), Transparency, Auto scale by Resolution |
| Day & Night | Auto (ICR)/ Color/ B/W / External / Schedule |
| Backlight Compensation | Off / BLC / HLC / WDR |
| Wide Dynamic Range | 150dB |
| Digital Noise Reduction | SSNRV (2D + 3D Noise filter) (Off / On) |
| Digital Image Stabilization | Off / On (Built-in Gyro sensor |
| Defog | Off / Auto / Manual |
| Motion Detection | Off / On (8ea, 8point polygonal zones), Handover |
| Privacy Masking | Off / On (32ea, polygonal zones) - Color : Gray / Green / Red / Blue / Black / White - Mosaic |
| Gain Control | Off / Low / Middle / High |
| White Balance | ATW / AWC / Manual/Indoor / Outdoor (Included mercury & Sodium) |
| LDC | Off / On (5 levels with min / max) |
| Electronic Shutter Speed | Minimum / Maximum / Anti Flicker(2 ~ 1/12,000sec) |
| Digital PTZ | 24x, Digital PTZ (Preset, Group) |
| Flip / Mirror | Off / On, Hallway view : 90˚/270˚ |
| Alarm I/O | Input 1ea / Output 1ea |
| Alarm Triggers | Alarm input, Motion detection, Video & Audio analytics, Network disconnect |
| Alarm events | File upload via FTP, E-mail, Notification via E-mail, Localstorage (SD/SDHC/ SDXC) or NAS recording at event triggers, External output, DPTZ preset |
| Audio In | Selectable (Mic in / Line in), Supply voltage : 2.5V DC (4mA), Input impedance : approx. 2K Ohm |
| Audio Out | Line out (3.5mm mono jack), Max output level : 1 Vrms |
