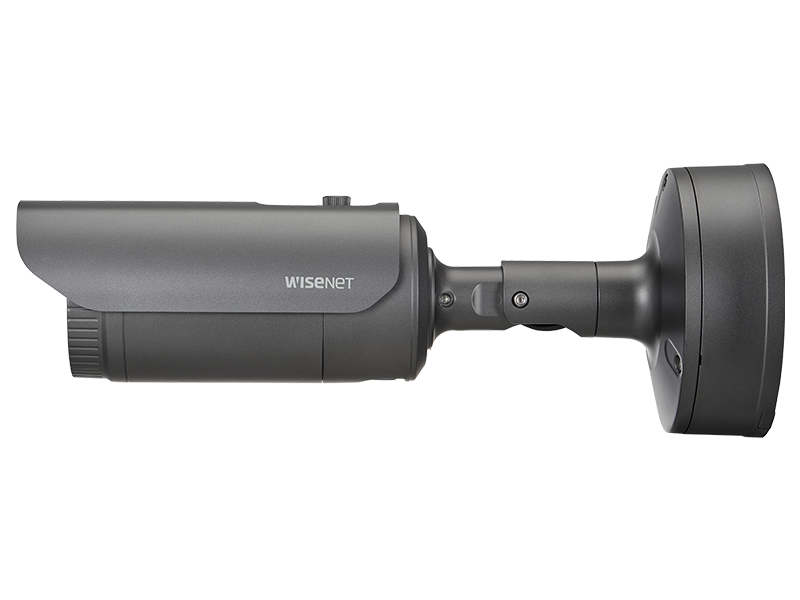

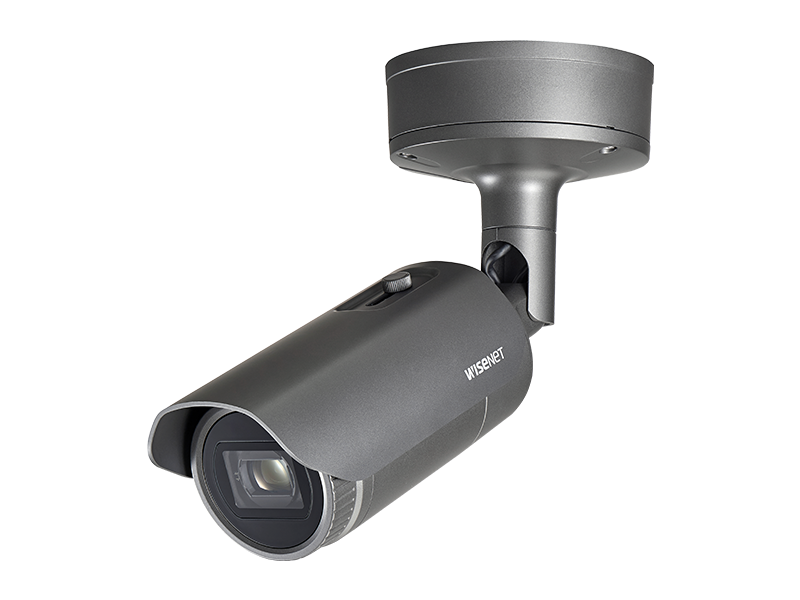

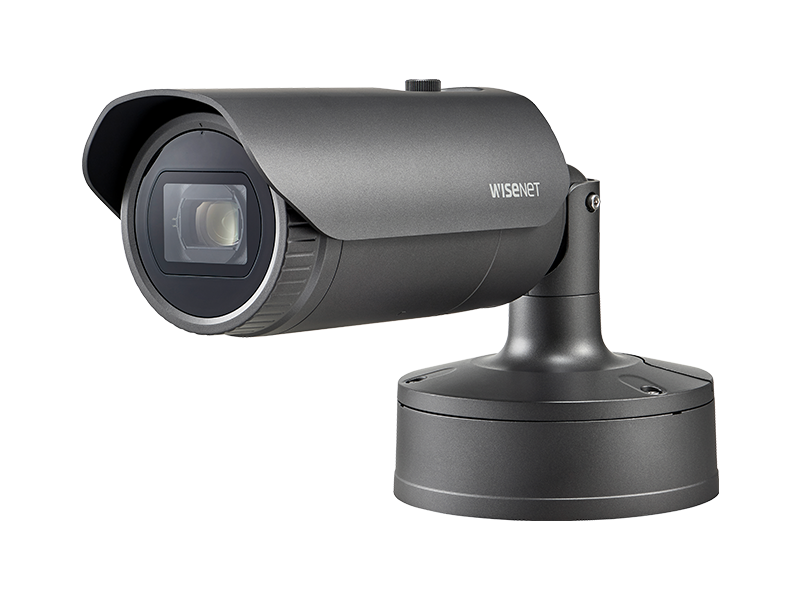

Hanwha - XNO-6120R - Wisenet X powered by Wisenet 5 network IR outdoor bullet camera, 2MP, Full HD(1080p) @60fps, 12X optical zoom lens (5.2mm ~62.4mm) (54.58º ~ 5.30º), triple codec H.265/H.264/MJPEG with WiseStream II technology, 150dB WDR, USB por
Part number:
XNO-6120R
Price:
Wisenet X powered by Wisenet 5 network IR outdoor bullet camera, 2MP, Full HD(1080p) @60fps, 12X optical zoom lens (5.2mm ~62.4mm) (54.58º ~ 5.30º), triple codec H.265/H.264/MJPEG with WiseStream II technology, 150dB WDR, USB port for easy installation, advanced video analytics and sound classification, high powered IR LEDs range of 229', true D/N, dual SD card, hallway view, HLC, defog detection, DIS(Gyro), backbox included, 12VDC/24VAC/PoE, IP67, IK10, Nema 4X, -40°C ~ +55°C (-40°F ~ +131°F)
Features:
- 2 megapixel (1920 x 1080) resolution
- 12X optical zoom (5.2 ~ 62.4mm) (54.58º ~ 5.30º)
- Max. 60fps@all resolutions (H.265/H.264)
- H.265, H.264, MJPEG codec supported, multiple streaming
- Day & Night (ICR), WDR (150dB), Defog
- Loitering, directional detection, fog detection, audio detection, digital auto tracking, sound classification, tampering
- Motion detection, handover
- SD/SDHC/SDXC memory slot (Max. 512GB)
- Hallway view, WiseStream II support
- IR viewable length 70m, IP67/IP66, NEMA 4X, IK10
| Video | |
| Imaging Device | 1/2.8" 2M CMOS |
| Effective Pixels | 1,945(H) x 1,097(V) 2.13M |
| Minimum Illumination | Color : 0.03 Lux (F1.6, 1/30sec), B/W : 0Lux (IR LED on) |
| Video Out | CVBS : 1.0 Vp-p / 75Ω Composite, 720 x 480(N), 720 x 576(P), for Installation USB : Micro USB Type B, 1280 x 720, for Installation |
| Lens |
| Focal Length (Zoom Ratio) | 5.2 ~ 62.4mm (Optical 12X) |
| Maximum Aperture Ratio | F1.6(Wide) ~ F3.0(Tele) |
| Angular Field of View | H : 54.58˚(Wide) ~ 5.30˚(Tele)/ V : 32.19˚(Wide) ~ 3.00˚(Tele)/ D : 61.40˚(Wide) ~ 6.06˚(Tele) |
| Minimum Object Distance | 1.5m (4.92ft) |
| Focus Control | Auto / Manual/ One shot AF |
| Lens Type | DC Auto Iris/ Board-in Type |
| Operational |
| IRViewable Length | 70m (229.66ft) |
| Camera Title | Off / On (Displayed up to 85 Characters) - W/W : English / Numeric / Special Characters - China : English / Numeric / Special/ Chinese Characters - Common : Multi-line (Max. 5), Color (Grey / Green / Red / Blue / Black / White), Transparency, Auto scale by Resolution |
| Day & Night | Auto (ICR)/ Color/ B/W / External / Schedule |
| Backlight Compensation | Off / BLC / HLC / WDR |
| Wide Dynamic Range | 150dB |
| Digital Noise Reduction | SSNRV (2D + 3D Noise lter) (O / On) |
| Digital Image Stabilization | Off / On (Built-in Gyro sensor) |
| Defog | Off / Auto / Manua |
| Motion Detection | Off / On (8ea, 8Point polygonal zones), Handove |
| Privacy Masking | Off / On (32ea, Rectangle zones) - Color : Grey / Green / Red / Blue / Black / White - Mosaic |
| Gain Control | Off / Low / Middle / High |
| White Balance | ATW / AWC / Manual / Indoor/ Outdoor (Included Mercury & Sodium) |
| LDC | Off / On (5 Levels with Min / Max) |
| Electronic Shutter Speed | Minimum / Maximum / Anti Flicker (2 ~ 1/12,000sec) |
| Digital PTZ | 24x |
| Rotate Image | Flip : Off / On , Mirror : Off / On, Hallway : 90°/ 270° |
| Alarm I/O | Input 1ea / Output 1ea |
| Alarm Triggers | Alarm Input, Motion detection, Video & Audio Analytics, Network disconnect |
| Alarm events | File Upload Via FTP, E-mail, Noti cation via e-mail, Local Storage (SD / SDHC / SDXC) or NAS recording at event triggers, External output, Preset |
| Audio In | Selectable (Mic in / Line in), Supply Voltage : 2.5V DC (4mA), Input Impedance : Approx. 2K Ohm |
| Audio Out | Line Out (3.5mm Mono Jack), Max Output Level: 1 Vrms |
