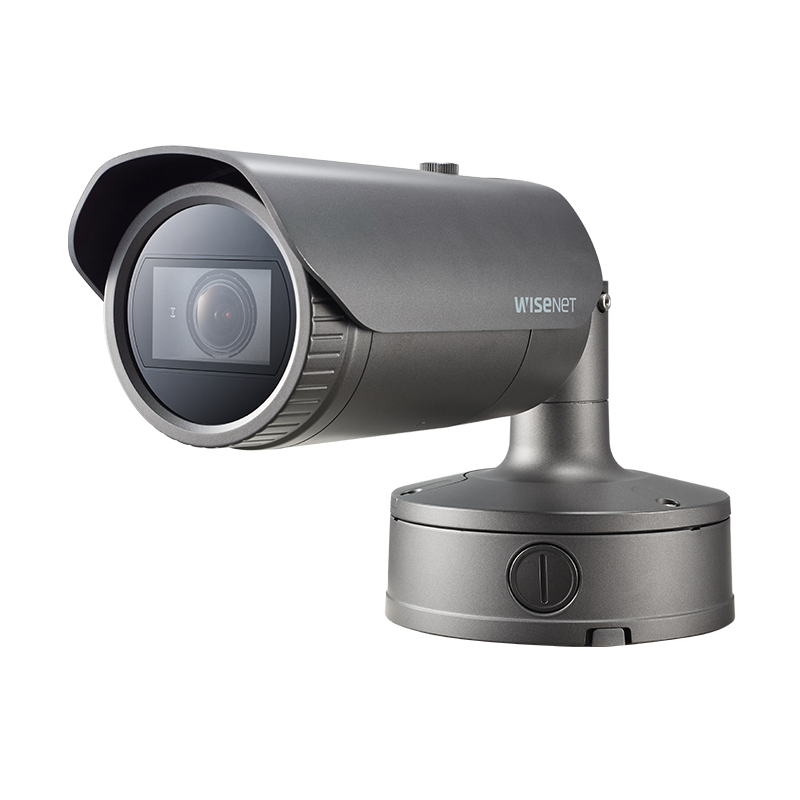

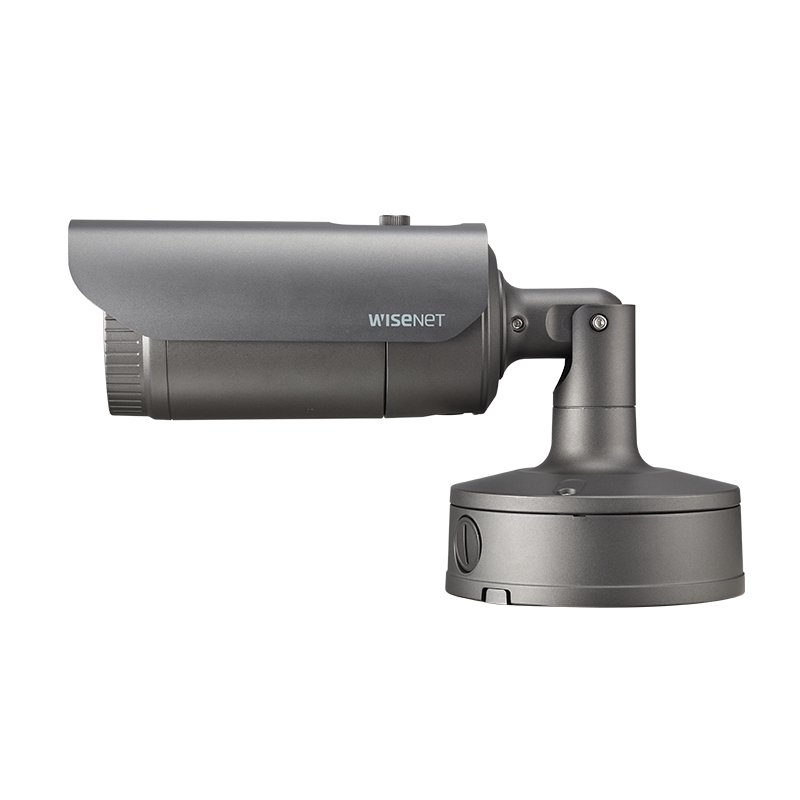

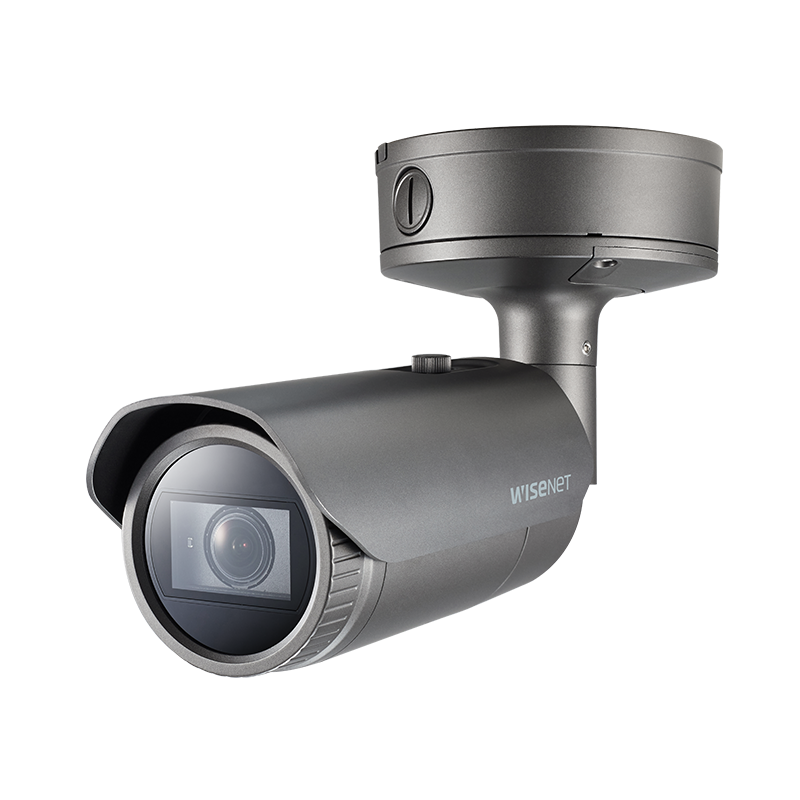

Hanwha - XNO-8080R - 5MP Network IR Bullet Camera
Part number:
XNO-8080R
Price:
Wisenet X powered by Wisenet 5 network IR outdoor bullet camera, Back box, 5MP @30fps WDR off/on, motorized Vari-Focal Lens 2.4x (3.7~9.4mm) (100.2°~38.7°), H.265/H.264/MJPEG, WiseStream II compression technology, 120dB WDR, USB port for easy installation, advanced video analytics and sound classification, high powered IR LEDs range of 164', True D/N, Dual SD card, Hallway view, HLC, Defog detection with simple focus, DIS , 12VDC/24VAC/PoE, IP67, IK10, NEMA 4X, built-in -40°F Heater
Features:
- 5 megapixel (2560 x 1920) resolution
- 3.7 ~ 9.4mm (2.5x) motorized varifocal lens
- 30fps@all resolutions (H.265/H.264)
- H.265, H.264, MJPEG codec supported, multiple streaming
- Day & Night (ICR), WDR (120dB), Defog
- Loitering, directional detection, fog detection, audio detection, digital auto tracking, sound classification, tampering
- Motion detection, Handover
- SD/SDHC/SDXC memory slot (Max. 512GB)
- Hallway view, WiseStream II support
- IR viewable length 50m, IP67/IP66, NEMA 4X, IK10
- LDC support (Lens Distortion Correction)
- PoE / 24V AC, 12V DC, bi-directional audio support
Video
| Imaging Device | 1/1.8" 6M CMOS |
| Effective Pixels | 2,616(H) x 1,976(V) |
| Minimum Illumination | Color : 0.07Lux (F1.2, 1/30sec), B/W : 0Lux (IR LED on) |
| Video Out | CVBS : 1.0 Vpp / 75Ω composite, 720 x 480(N), 720 x 576(P), for installation USB : micro USB type B, 1280 x 720 for installation |
Lens
| Focal Length (Zoom Ratio) | 3.7 ~ 9.4mm (2.5x) motorized varifocal |
| Maximum Aperture Ratio | F1.2 |
| Angular Field of View | H : 100.2˚ ~ 38.7˚/ V : 72.7˚ ~ 29.0˚ / D : 132.0˚ ~ 48.6˚ |
| Minimum Object Distance | 0.5m(1.64ft) |
| Focus Control | Simple focus(Motorized V/F)/ Manual, Remote control via network (Manual, Simple focus) |
| Lens/Mount Type | DC auto iris / Board-in type |
Operational
| IR Viewable Length | 50m(164.04ft) |
| Camera Title | O / On (Displayed up to 85 characters) - W/W : English / Numeric / Special characters - China : English / Numeric / Special / Chinese characters - Common : Multi-line (Max. 5), Color (Grey / Green / Red / Blue / Black / White), Transparency, Auto scale by resolution |
| Day & Night | Auto (ICR)/ Color/ B/W / External / Schedule |
| Backlight Compensation | Off / BLC / HLC (Masking / Dimming), WDR |
| Wide Dynamic Range | 120dB |
| Digital Noise Reduction | SSNRV (2D+3D noise lter) (O / On) |
| Digital Image Stabilization | Off / On |
| Defog | Off / Auto (Input from fog detection)/ Manual |
| Motion Detection | Off / On (8ea, 8point polygonal zones), Handover |
| Privacy Masking | Off / On (32ea, Polygonal) - Color : Grey / Green / Red / Blue / Black / White, Mosaic |
| Gain Control | Off / Low / Middle / High / Manual |
| White Balance | ATW / AWC / Manual/Indoor / Outdoor (Included mercury & Sodium) |
| LDC | Off / On (5 levels with min / max) |
| Electronic Shutter Speed | Minimum / Maximum / Anti icker (2 ~ 1/12,000sec) |
| Digital PTZ | 24x, Digital PTZ (Preset, Group) |
| Video Rotation | Off / On, Hallway view : 90˚/270˚ |
| Alarm I/O | Input 1ea / Output 1ea |
| Alarm Triggers | Alarm input, Motion detection, Video & Audio analytics, Network disconnect |
| Alarm events | File upload via FTP, E-mail, Noti cation via E-mail, Localstorage (SD/SDHC/ SDXC) or NAS recording at event triggers, External output, DPTZ preset |
| Audio In | Selectable (Mic in / Line in), Supply voltage : 2.5V DC (4mA), Input impedance : approx. 2K Ohm |
| AudioOut | Line out, Max output level : 1Vrms |
