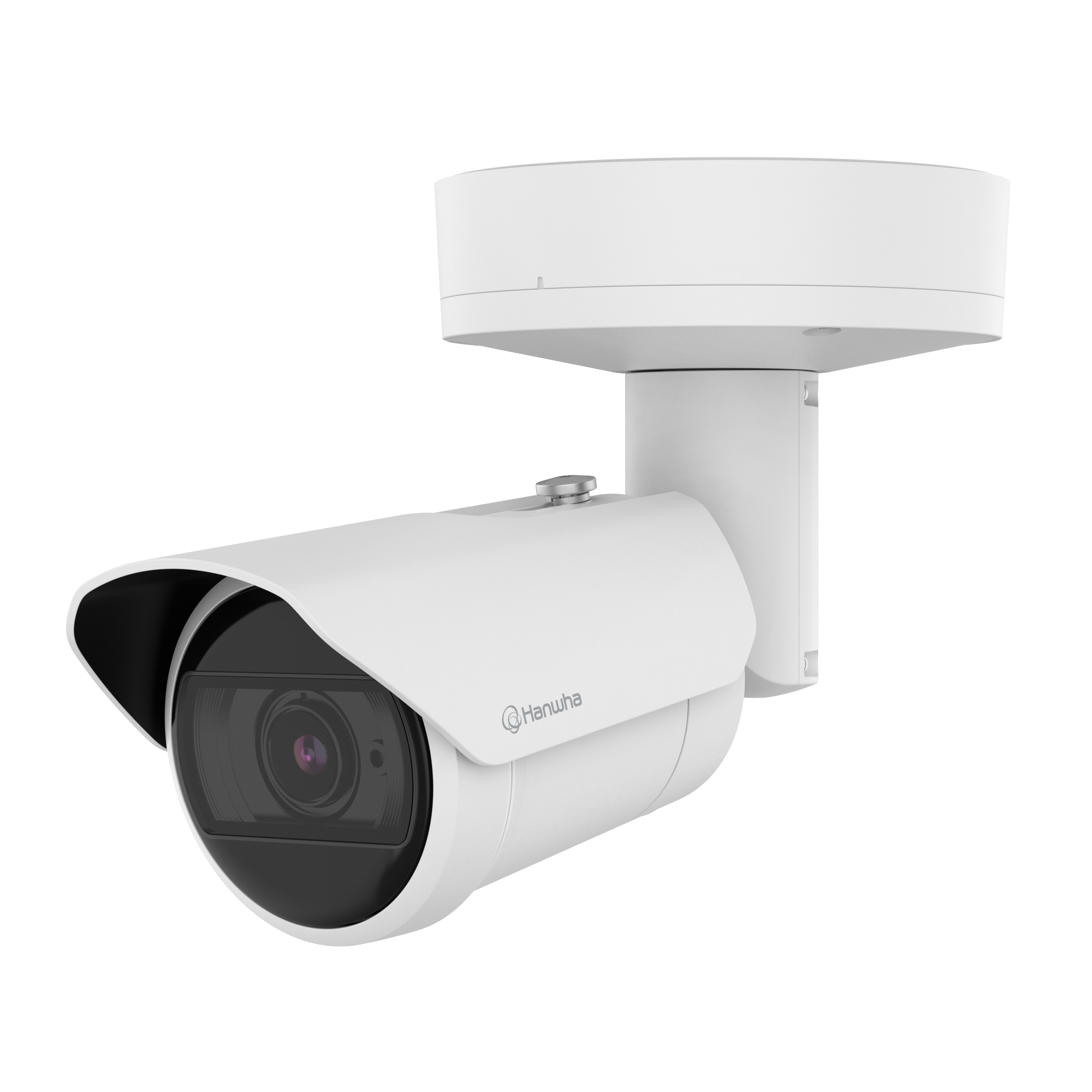

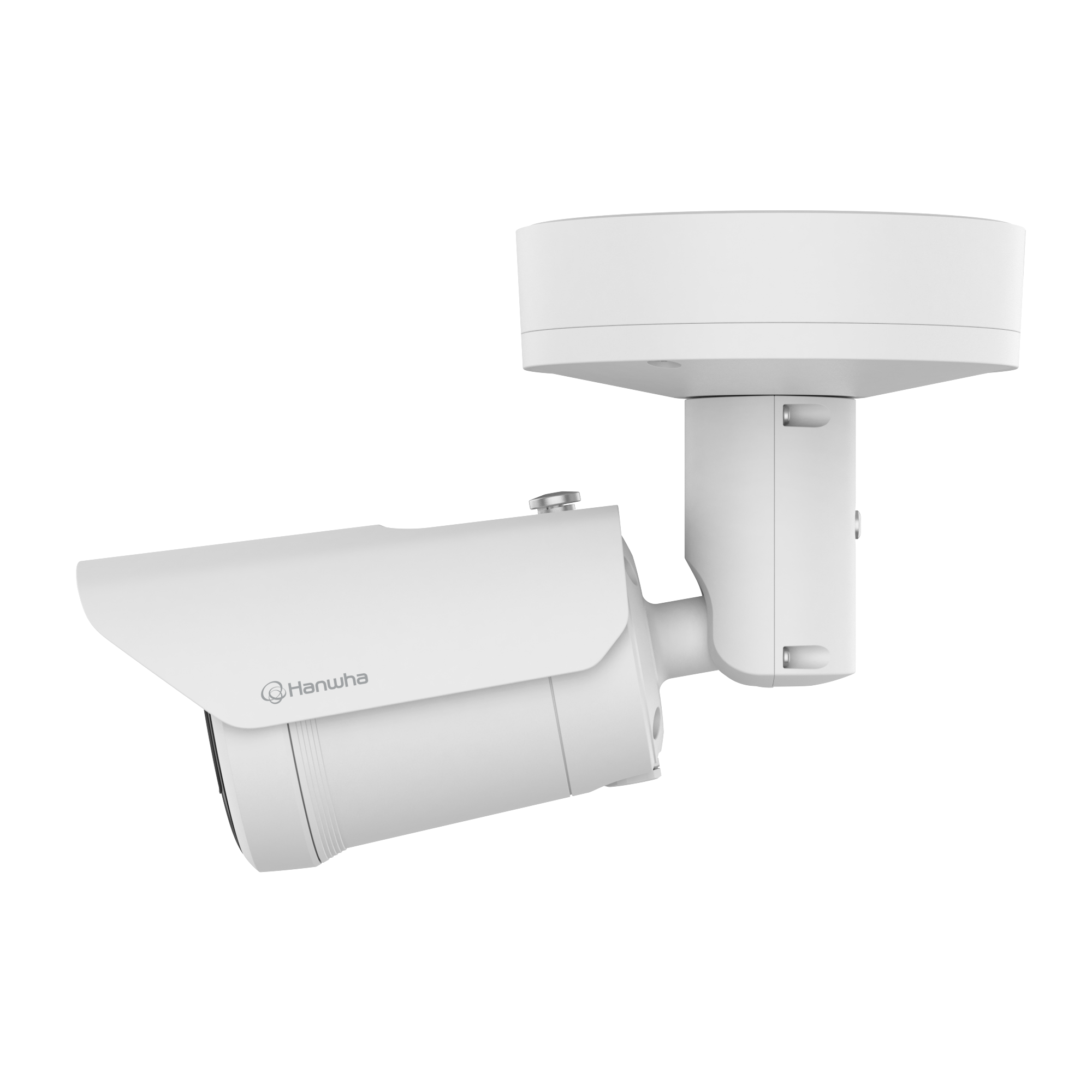

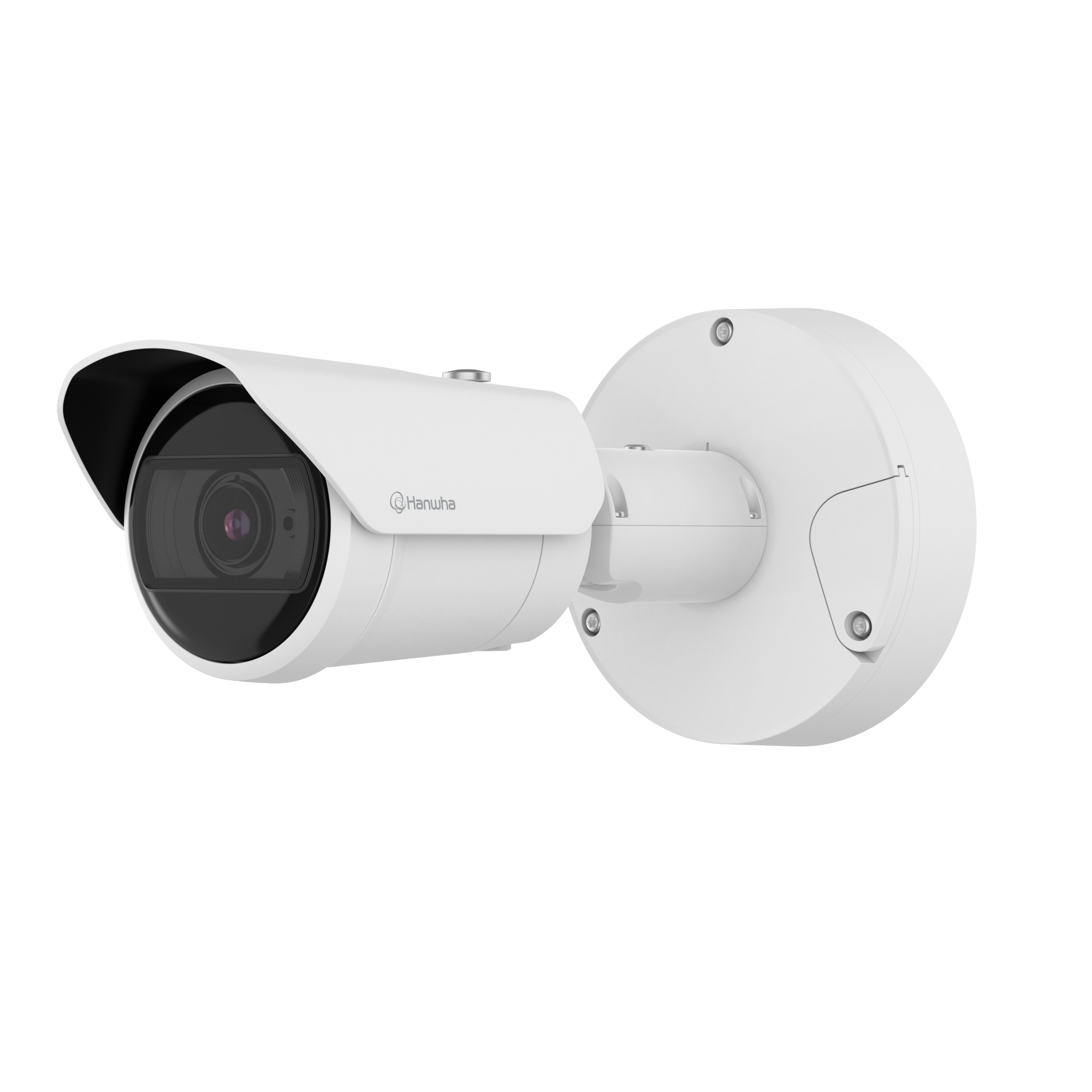

Hanwha - XNO-A6084R - 2MP IR Bullet AI Camera
Part number:
Price:
• 2MP Image Resolution
• 2.8~12mm Focal Length
• 50m IR Length
• IP66, IP67, IK10 Rated
• Dual NPU for AI-based Image Enhancement
• AI-based Analytics and Business Intelligence
• USB-C port for easy installation
• Day & Night (ICR)
• extremeWDR (150dB)
• Hard-coated dome bubble
• DIS with built-in gyro sensor
| Video | |
|---|---|
| Imaging Device Size | 1/2.8" |
| Type | CMOS |
| Resolution | 1920x1080, 1280x960, 1280x720, 1024x768, 800x600, 640x480, 640x360, 320x240, 320x180 |
| Max. Framerate | H.265/H.264: 60fps/50fps (60Hz/50Hz) MJPEG: 30fps |
| Min. Illumination (Lux) | Color (1/30sec, 30IRE): 0.02 BW (1/30sec, 30IRE): 0.002 |
| Video Out | USB: USB Type C. Preview and installation ONLY. Requires WiFi dongle. |
| Lens | |
| Focal Length (mm) | 2.8~12 |
| Zoom Ratio | Optical 4.3x |
| Max Aperture Ratio (F number) | Wide: 1.4 / Tele: 3.6 |
| Angular Field of View | Horizontal: 120°~27° Vertical: 63°~15° Diagonal: 143°~32° |
| Min. Object Distance | 0.5m (1.64ft) |
| Focus Control | Simple focus, Manual |
| Lens Type | P iris (IR corrected) |
| Pan / Tilt / Rotate | |
| Pan / Tilt / Rotate Range | Pan: 0°~350° Tilt: 0°~90° Rotate: 0°~350° |
| Operational | |
| Day & Night | Auto (ICR) |
| Backlight Compensation | BLC, HLC, WDR, SSDR |
| Wide Dynamic Range (dB) | 150 |
| Digital Noise Reduction | WiseNRⅡ (Based on AI engine), SSNRⅤ |
| Digital Image Stabilization | Support |
| Defog | Support |
| Motion Detection | Quantity: 8ea, Shape: 8point Polygonal zones |
| Privacy Masking | Quantity: 32ea, Shape: 8point Polygonal zones Color: Gray, Green, Red, Blue, Black, White, Mosaic, Purple, Yellow |
| Dynamic Privacy Masking Color | Gray, Green, Red, Blue, Black, White, Mosaic, Purple, Yellow |
| Gain Control | Off, Max gain, Manual |
| White Balance | ATW, NarrowATW, AWC, Manual, Indoor, Outdoor |
| LDC | Support (Fill/stretch mode) |
| Electronic Shutter | Mode: Minimum, Maximum, Anti flicker, Prefer shutter control (Based on AI engine) Speed Range: 2~1/40,000 sec |
| Video Rotation | Flip, Mirror, Hallway view (90°/270°) |
| Alarm Interface | In/Out: 2 configurable I/O ports Support extra alarm I/O via optional I/O box |
| Alarm Triggers | Analytics, Network disconnect, Alarm input, Time schedule, MQTT subscription, Day/Night, Storage disruption |
| Alarm Events | File upload (image): e-mail/FTP/SFTP, File upload (video clip): FTP/SFTP, Notification: e-mail, Recording: SD/SDHC/SDXC or NAS recording at event triggers, Alarm output, Handover: PTZ preset, send message by HTTP/HTTPS/TCP, Audio clip playback, MQTT: publication |
| Audio In | Selectable (mic in/line in) |
| Audio Out | Line out |
| Light Type | IR LED |
| Light Viewable Length | IR WiseIR: 50m (164.04ft) |
| IR Wavelength | 850nm |
| Analytics | |
| Classified Object Type | Person, Face, Vehicle, License plate |
| Attributes | Person: Upper/Lower clothes color, Gender, Bag Vehicle: Type (car, bus, truck, motorcycle, bicycle), Color Face: Age, Gender, Face mask, Glasses |
| Thumbnail | BestShot |
| Analytics Events (Based on AI Engine) | Object detection, Virtual line (Crossing/Direction), Motion detection, Face mask detection, Social distancing detection, Slip & fall detection, Virtual area (Loitering/Intrusion/Enter/Exit/Appear/Disappear) |
| Normal Analytics Events | Defocus detection, Tampering, Audio detection, Shock detection |
| Business Intelligence (Based on AI Engine) | People counting, Queue management, Heatmap, Vehicle counting, Crowd counting |
| Network | |
| Ethernet | Metal shielded RJ-45 (10/100BASE-T) |
| Video Compression | H.265/H.264: Main/Baseline/High, MJPEG |
| Audio Compression | G.711(PCM): 8kHz(64kbps), G.726(ADPCM): 8kHz(16/24/32/40kbps), AAC-LC: 16kHz(48kbps), OPUS: 48kHz(64kbps) |
| Smart Codec | WiseStream (Based on AI engine) |
| Bitrate Control | H.265/H.264: CBR or VBR, MJPEG: VBR |
| Streaming | Unicast: Up to 20 users, Multicast: Support |
| Multiple Streaming | Up to 5 profiles, 3 virtual channel support |
| Protocol | IPv4, IPv6, TCP/IP, UDP/IP, RTP(UDP), RTP(TCP), RTCP, RTSP, NTP, HTTP, HTTPS, SSL/TLS, DHCP, FTP, SFTP, ICMP, IGMP, SNMPv1/v2c/v3(MIB-2), ARP, DNS, DDNS, QoS, UPnP, Bonjour, LLDP, CDP, SRTP(TCP, UDP Unicast), MQTT, SMTP(StartTLS), Syslog |
| Application Programming Interface | |
| API | ONVIF S, G, T, M, SUNAPI (HTTP API), Hanwha Vision Open Platform, Direct Cloud Connection Support |
| Security | |
| OS / Firmware Protect | Encrypted firmware, Secure boot, Signed firmware |
| User authentication | Digest authentication, Prevent brute-force attack |
| Network authentication | IEEE 802.1X (EAP-TLS, EAP-LEAP, EAP-PEAP, MSCHAPv2) |
| Secure Communication | HTTPS, WSS (WebSocket Secure), SRTP |
| Access Control | IP-based access control, MAC-based access control, Auto logout |
| Data Protect | Encryption credentials, Encrypt compress for live recording file export |
| Audit | |
| Access / System / Event Log management | |
| Device ID | Device certificate (Hanwha Vision Root CA) |
| Secure Storage | SDcard partition encrypt (AES-256), Secure element |
| Supply Chain Security | SBOM |
| Security Certificate | Secure element (FIPS 140-3 level3, CC EAL6+), Consumer IoT Security Standard (ETSI EN 303 645) |
| General | |
| SoC Type | Wisenet 9 (Dual NPU Support) |
| Memory | RAM: 4GB, Flash: 8GB eMMC |
| Edge Storage | Micro SD/SDHC/SDXC Max. 1TB x 1 slot *Hanwha Vision branded microSD cards have been certified and recommended for OnCloud edge recording. |
| Environmental & Electrical | |
| Operating Condition | Temperature: -40°C~+60°C (-40°F~+140°F) Humidity: 0~100% RH (condensing) +74°C (+165°F) (Max) based on NEMA-TS 2(2.2.7) Start up should be done at above -30°C Humidity control with AIR vent |
| Storage Condition | Temperature: -50°C~+60°C (-58°F~+140°F) Humidity: 0~90% RH (non-condensing) |
| EPA (Effective Projected Area) | 0.02㎡ |
| Input Voltage | PoE (IEEE802.3af, Class3) |
| Power Consumption | PoE: Max. 10.2W, typical 5.0W |
| WisePower | Power monitoring, Eco mode |
| Mechanical | |
| Color | White |
| Material | Aluminum, PC (Polycarbonate), Hard-coated window |
| Material Management Declaration | RoHS (EU RoHS directive 2011/65/EU and IEC/EN 63000:2018), REACH (Regulation (EC) No. 1907/2006), Conflict mineral policy (Section 1502 of US Dodd Frank Act) |
| RAL Code | RAL9003 |
| Product Dimensions | ø93.4 x 276.6mm (3.68 x 10.89") |
| Product Weight | 1,660g (3.66 lb) |
| Compatible Conduit Hole | Support conduit compatibility via optional adaptor |
| Compatible Gang Box | Single, Double, 4" Octagon, Square |
| Certifications & Standards | |
| EMC | FCC 47 CFR 15 Subpart B Class A, ICES-3(A)/NMB-3(A), CE/UKCA - EN55032 Class A, EN 50130-4, EN 61000-3-2, EN 61000-3-3, VCCI CISPR 32 Class A, RCM AS-NZS CISPR 32 Class A, KS C 9832 Class A, KS C 9835 |
| Safety | UL 62368-1, CAN/CSA C22.2 NO. 62368-1, IEC 62471 |
| Environment | IEC/EN 63000, IEC 60529 IP66, IEC 60529 IP67, IEC 62262 IK10, NEMA TS 2-2013 (2.2.7, 2.2.8, 2.2.9), NEMA 250 type 4X, IEC 60068-2-1, IEC 60068-2-2, IEC 60068-2-6, IEC 60068-2-14, IEC 60068-2-27, IEC 60068-2-78 |
| DORI (EN62676-4 standard) | |
| Detect (25PPM / 8PPF) | Wide: 30.0m (98.43ft) / Tele: 138.5m (454.28ft) |
| Observe (63PPM / 19PPF) | Wide: 12.0m (39.37ft) / Tele: 55.4m (181.71ft) |
| Recognize (125PPM / 38PPF) | Wide: 6.0m (19.69ft) / Tele: 27.7m (90.86ft) |
| Identify (250PPM / 76PPF) | Wide: 3.0m (9.84ft) / Tele: 13.8m (45.43ft) |
Name
Description
Size
Downloads
File
Datasheet
0.7mb
File
A&E Specifications
0.1mb
The Hanwha Vision XNO-A6084R is a 2MP IR bullet AI camera powered by the Wisenet 9 platform, featuring a 1/2.8" CMOS sensor delivering 1920x1080 resolution at up to 60fps. It includes a 2.8~12mm 4.3x motorized lens with a 120° to 27° horizontal FOV. WiseIR provides 50m night vision with 0.002 Lux B/W sensitivity. Video enhancements include WiseNR II, 150dB WDR, DIS, and defog. AI analytics include object detection of persons, faces, vehicles, license plates, virtual line and area, face mask and social distancing detection, slip & fall, plus business intelligence of people, vehicles, crowd counting, queue management, and heatmap. The camera is rated IP66, IP67, IK10, NEMA 4X, and NEMA TS-2, operating from -40°C to +60°C. It features a microSD slot up to 1TB, a FIPS 140-3 Level 3 secure element, and is powered by PoE max 10.2W.
