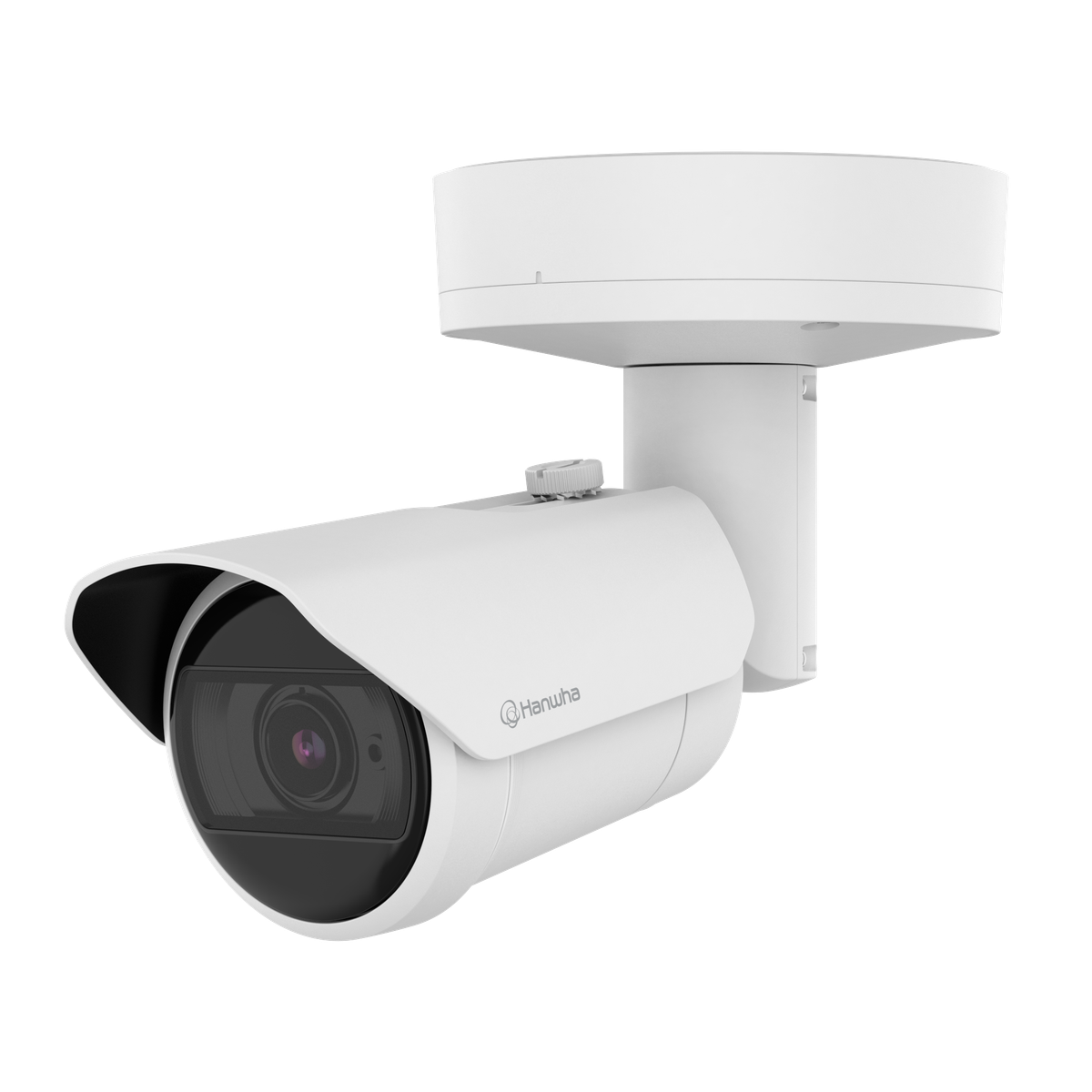

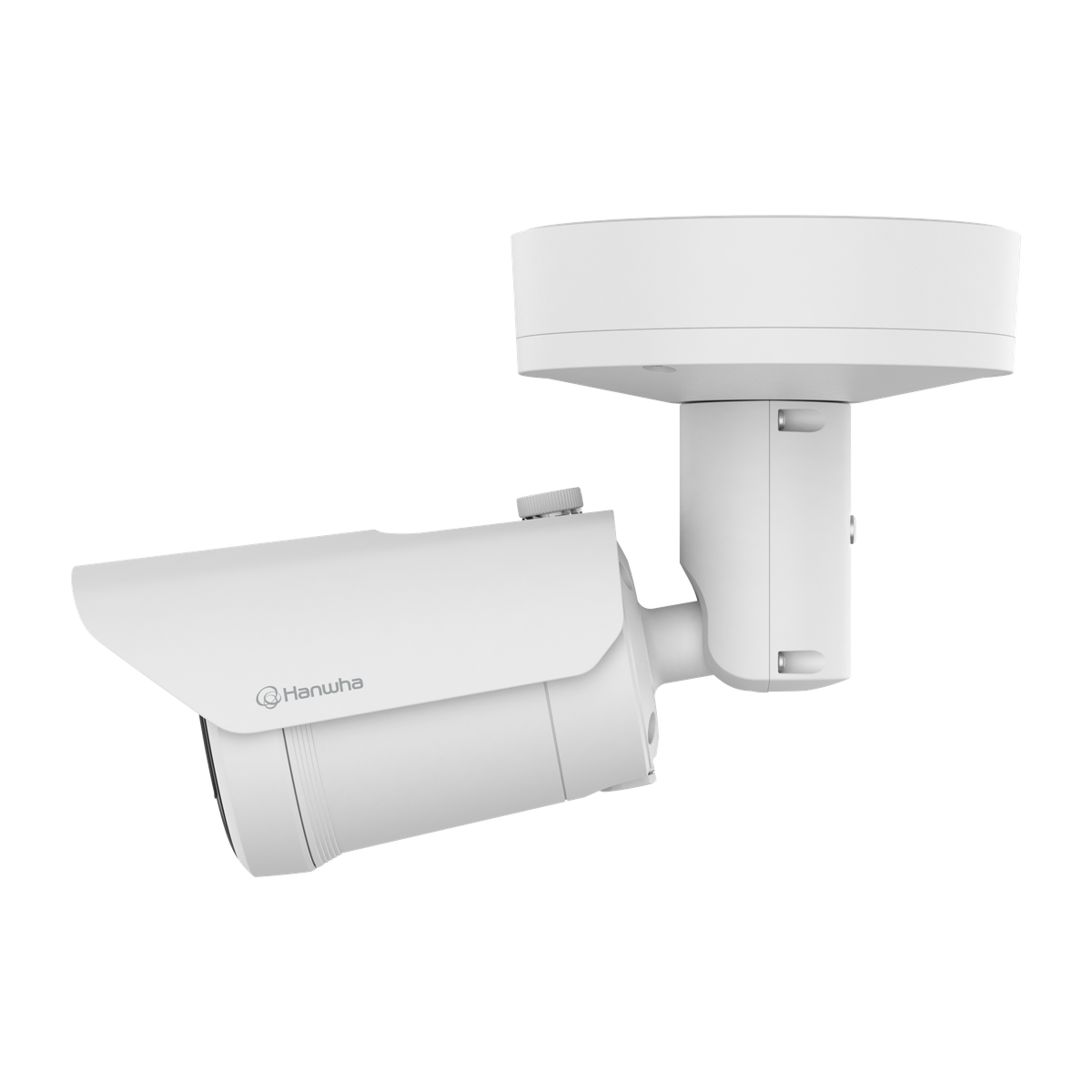

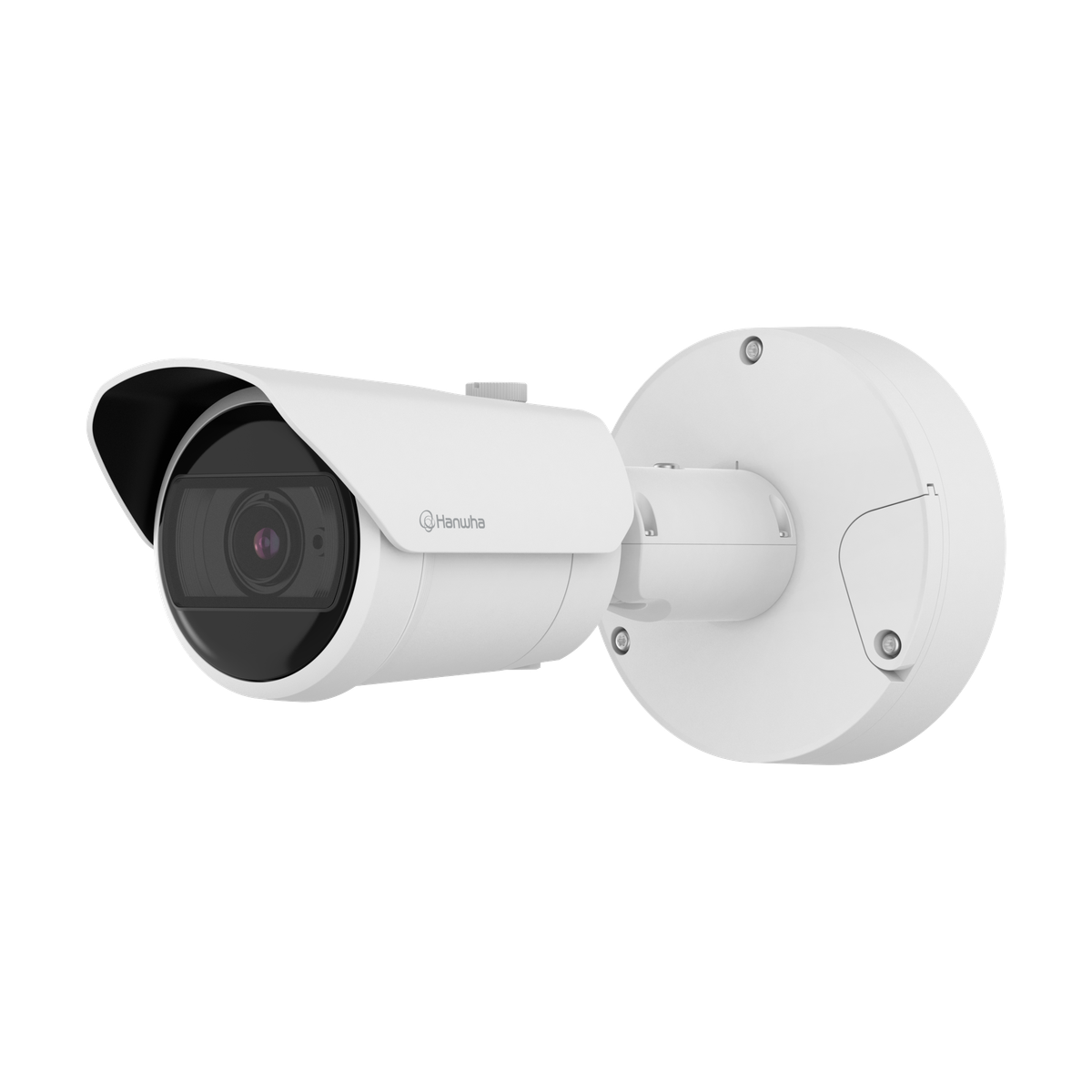

Hanwha - XNO-A9084R - 8MP Outoor Network AI IR Vandal Bullet Camera, 4.4-9.3mm
Part number:
Price:
• 4.4~9.3mm (2.1x) motorized varifocal
• Analytics events based on AI engine: Object detection (Person/Face/Vehicle/License plate), IVA (Virtual line/Area, Enter/Exit, Loitering, Direction, Intrusion), Slip&Fall detection, Face mask detection, Social distancing detection
• Business intelligence based on an AI engine: People/Vehicle/Crowd counting, Queue management, Heatmap
• Support BestShot and full attributes
• Support Dynamic Privacy Masking
• AI-based Image enhancement
• extremeWDR, WiseNRⅡ(Based on AI engine), WiseStream(Based on AI engine)
• WiseIR: IR viewable length 40 m (131.23 ft)
• IP66, IP67, NEMA4X, IK10
• NEMA TS-2 (2.2.7.2-8, 2.2.8, 2.2.9)
• Support Wisepower(Power monitoring, ECO mode)
• Device certificate(Hanwha Vision Root CA), Secure storage (Secure element with FIPS 140-3 level3/CC EAL6+ certified), SBOM
| Video | |
|---|---|
| Imaging Device Size | 1/1.8" |
| Imaging Device Type | CMOS |
| Resolution | 3840x2160, 3328x1872, 3072x1728, 2688x1512, 2592x1944, 2560x1440, 1920x1080, 1600x1200, 1280x960, 1280x720, 1024x768, 800x600, 640x480, 640x360, 320x240, 320x180 |
| Max. Framerate H.265/H.264 | 30fps/25fps(60Hz/50Hz) |
| Max. Framerate MJPEG | 30fps(@8MP Max. 5fps) |
| Min. Illumination (Lux) Color(1/30sec, 30IRE) | 0.04 |
| Min. Illumination (Lux) BW(1/30sec, 30IRE) | 0.004 |
| Video Out | USB: Micro USB Type C |
| Lens | |
| Focal Length (mm) | 4.4~9.3 |
| Zoom Ratio Optical | 2.1x |
| Max Aperture Ratio (F number) Wide | 1.3 |
| Max Aperture Ratio (F number) Tele | 2.15 |
| Angular Field of View Horizontal | 113°~47° |
| Angular Field of View Vertical | 58°~26° |
| Angular Field of View Diagonal | 138°~54° |
| Min. Object Distance | 0.5m(1.64ft) |
| Focus Control | Simple focus, Manual |
| Lens Type | P iris(IR corrected) |
| Pan | 0°~350° |
| Tilt | 0°~90° |
| Rotate Range Rotate | 0°~350° |
| Operational | |
| Day & Night | Auto(ICR) |
| Backlight Compensation | BLC, HLC, WDR, SSDR |
| Wide Dynamic Range (dB) | 120 |
| Digital Noise Reduction | WiseNRⅡ(Based on AI engine), SSNRⅤ |
| Digital Image Stabilization | Support |
| Defog | Support |
| Motion Detection Quantity | 8ea |
| Motion Detection Shape | 8point Polygonal zones |
| Privacy Masking Quantity | 32ea |
| Privacy Masking Shape | 8point Polygonal zones |
| Color / Option | Gray, Green, Red, Blue, Black, White, Mosaic, Purple, Yellow |
| Dynamic Privacy Masking: Color / Option | Gray, Green, Red, Blue, Black, White, Mosaic, Purple, Yellow |
| Gain Control | Off, Max gain, Manual |
| White Balance | ATW, NarrowATW, AWC, Manual, Indoor, Outdoor |
| LDC | Support(Fill/stretch mode) |
| Electronic Shutter Mode | Minimum, Maximum, Anti flicker, Prefer shutter control(Based on AI engine) |
| Electronic Shutter Speed Range | 2~1/30,000sec |
| Video Rotation | Flip, Mirror, Hallway view(90°/270°) |
| Alarm Interface In/Out | 2 configurable I/O ports |
| Others | Support extra alarm I/O via optional I/O box |
| Alarm Triggers | Analytics, Network disconnect, Alarm input, Time schedule, MQTT subscription, Day/Night, Storage disruption |
| Alarm Events When Alarm Trigger Occurred | File upload(image): e-mail/FTP/SFTP, File upload(video clip): FTP/SFTP, Notification: e-mail, Recording: SD/SDHC/SDXC or NAS recording at event triggers, Alarm output, Handover: PTZ preset, send message by HTTP/HTTPS/TCP, Audio clip playback, MQTT: publication |
| Audio In | Selectable(mic in/line in) |
| Audio Out | Line out |
| Light Type | IR LED |
| Light Viewable Length IR | WiseIR 40m(131.23ft) |
| IR Wavelength | 850nm |
| Analytics | |
| Classified Object Type | Person, Face, Vehicle, License plate |
| Attributes Person | Upper/Lower clothes color, Gender, Bag |
| Attributes Vehicle | Type(car, bus, truck, motorcycle, bicycle), Color |
| Attributes Face | Age, Gender, Face mask, Glasses |
| Thumbnail | BestShot |
| Analytics Events Based on AI Engine | Object detection, Virtual line(Crossing/Direction), Motion detection, Face mask detection, Social distancing detection, Slip & fall detection, Virtual area(Loitering/Intrusion/Enter/Exit/Appear/Disappear) |
| Analytics Events Normal | Defocus detection, Tampering, Audio detection, Shock detection |
| Business Intelligence Based on AI Engine | People counting, Queue management, Heatmap, Vehicle counting, Crowd counting |
| Network | |
| Ethernet | Metal shielded RJ-45(10/100BASE-T) |
| Video Compression | H.265/H.264: Main/Baseline/High, MJPEG |
| Audio Compression | G.711(PCM): 8kHz(64kbps), G.726(ADPCM): 8kHz(16/24/32/40kbps), AAC-LC: 16kHz(48kbps), OPUS: 16kHz(64kbps) |
| Smart Codec | WiseStream(Based on AI engine) |
| Bitrate Control | H.265/H.264: CBR or VBR, MJPEG: VBR |
| Streaming Unicast | Up to 20 users |
| Streaming Multicast | Support |
| Multiple Streaming | Up to 5 profiles, 3 virtual channel support |
| Protocol | IPv4, IPv6, TCP/IP, UDP/IP, RTP(UDP), RTP(TCP), RTCP, RTSP, NTP, HTTP, HTTPS, SSL/TLS, DHCP, FTP, SFTP, ICMP, IGMP, SNMPv1/v2c/v3(MIB-2), ARP, DNS, DDNS, QoS, UPnP, Bonjour, LLDP, CDP, SRTP(TCP, UDP Unicast), MQTT, SMTP(StartTLS), Syslog |
| Application Programming Interface ONVIF | S, G, T, M |
| Application Programming Interface Others | SUNAPI(HTTP API), Hanwha Vision Open Platform |
| Direct Cloud Connection | Support |
| Security | |
| OS / Firmware Protect | Encrypted firmware, Secure boot, Signed firmware |
| User authentication | Digest authentication, Prevent brute-force attack |
| Network authentication | IEEE 802.1X(EAP-TLS, EAP-LEAP, EAP-PEAP, MSCHAPv2) |
| Secure Communication | HTTPS, WSS(WebSocket Secure), SRTP |
| Access Control | IP-based access control, MAC-based access control, Auto logout |
| Data Protect | Encryption credentials, Encrypt compress for live recording file export |
| Audit | Access / System / Event Log management |
| Device ID | Device certificate(Hanwha Vision Root CA) |
| Secure Storage | SDcard partition encrypt(AES-256), Secure element |
| Supply Chain Security | SBOM |
| Security Certificate | Secure element(FIPS 140-3 level3, CC EAL6+), Consumer IoT Security Standard (ETSI EN 303 645), Security Built-in Process Certification (IEC 62443-4-1) |
| General | |
| Memory RAM | 4GB |
| Memory Flash | 8GB eMMC |
| Edge Storage Micro SD/SDHC/SDXC | Max. 1TB x 1slot |
| Edge Storage(OnCloud) Micro SD/SDHC/SDXC | Max. 1TB x 1slot *Hanwha Vision branded microSD cards have been certified and recommended for OnCloud edge recording. |
| Environmental & Electrical | |
| Operating Condition Temperature | -40°C~+60°C(-40°F~+140°F) |
| Operating Condition Humidity | 0~100% RH(condensing) |
| Others | +74°C(+165°F)(Max) based on NEMA-TS 2(2.2.7), Start up should be done at above -30°C, Humidity control with AIR vent |
| Storage Condition Temperature | -50°C~+60°C(-58°F~+140°F) |
| Storage Condition Humidity | 0~90% RH(non-condensing) |
| EPA(Effective Projected Area) | 0.02㎡ |
| Input Voltage | PoE(IEEE802.3af, Class3) |
| Power Consumption PoE | Max. 11.2W, typical 8.4W |
| Wisepower | Power monitoring, ECO mode |
| Mechanical | |
| Color | White |
| Material | Aluminum, Hard-coated window |
| Material Management Declaration | RoHS(EU RoHS directive 2011/65/EU and IEC/EN 63000:2018), REACH(Regulation (EC) No. 1907/2006), Conflict mineral policy(Section 1502 of US Dodd Frank Act) |
| RAL Code | RAL9003 |
| Product Dimensions | ø93.4x276.6mm(3.68x10.89") |
| Product Weight | 1,630g(3.59lb) |
| Compatible Conduit Hole | Support conduit compatibility via optional adaptor |
| Compatible Gang Box | Single, Double, 4" Octagon, Square |
| Certifications & Standards | |
| EMC | FCC 47 CFR 15 Subpart B Class A, ICES-3(A)/NMB-3(A), CE/UKCA - EN55032 Class A, EN 50130-4, EN 61000-3-2, EN 61000-3-3, VCCI CISPR 32 Class A, RCM AS-NZS CISPR 32 Class A, KS C 9832 Class A, KS C 9835 |
| Safety | UL 62368-1, CAN/CSA C22.2 NO. 62368-1, IEC 62471 |
| Environment | IEC/EN 63000, IEC 60529 IP66, IEC 60529 IP67, IEC 62262 IK10, NEMA TS 2-2013 (2.2.7, 2.2.8, 2.2.9), NEMA 250 type 4X, IEC 60068-2-1, IEC 60068-2-2, IEC 60068-2-6, IEC 60068-2-14, IEC 60068-2-27, IEC 60068-2-78 |
| DORI (EN62676-4 standard) | |
| Detect (25PPM/ 8PPF) Wide | 50.8m(166.77ft) |
| Detect (25PPM/ 8PPF) Tele | 176.6m(579.49ft) |
| Observe (63PPM/ 19PPF) Wide | 20.3m(66.71ft) |
| Observe (63PPM/ 19PPF) Tele | 70.7m(231.80ft) |
| Recognize (125PPM/ 38PPF) Wide | 10.2m(33.35ft) |
| Recognize (125PPM/ 38PPF) Tele | 35.3m(115.90ft) |
| Identify (250PPM/ 76PPF) Wide | 5.1m(16.68ft) |
| Identify (250PPM/ 76PPF) Tele | 17.7m(57.95ft) |
