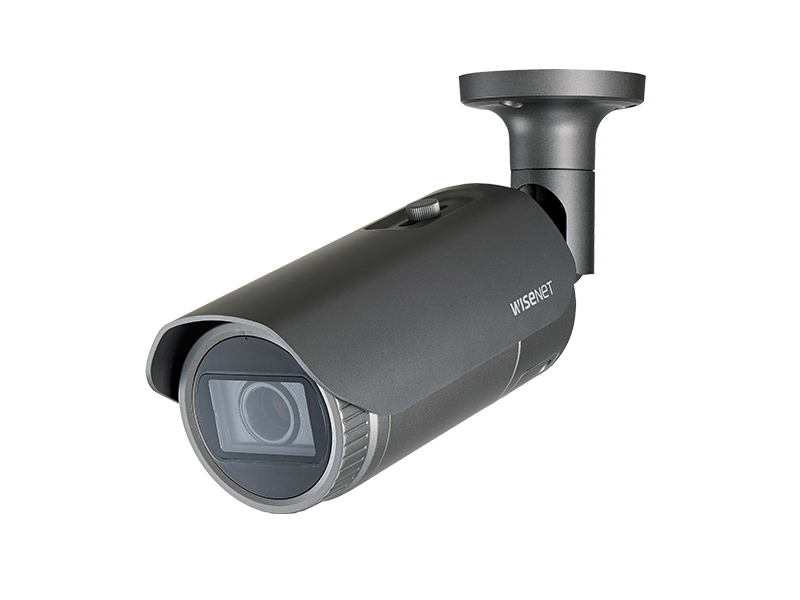

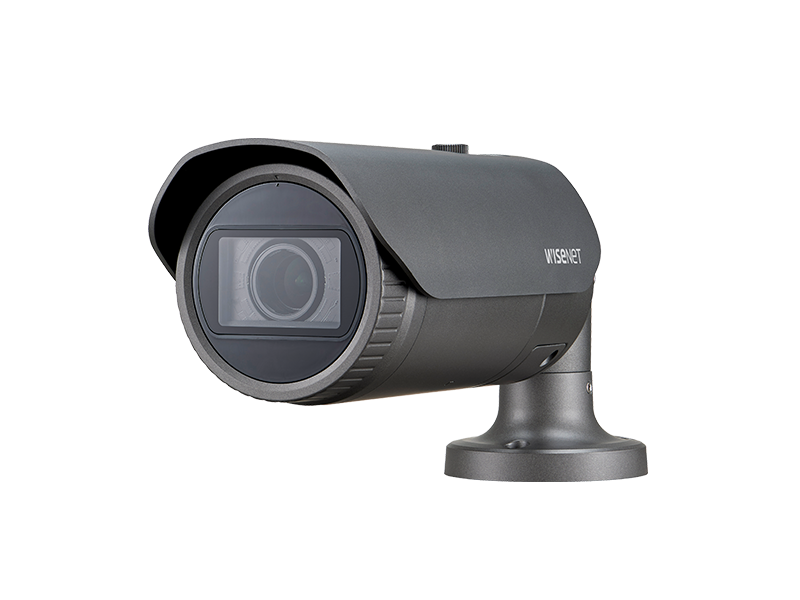

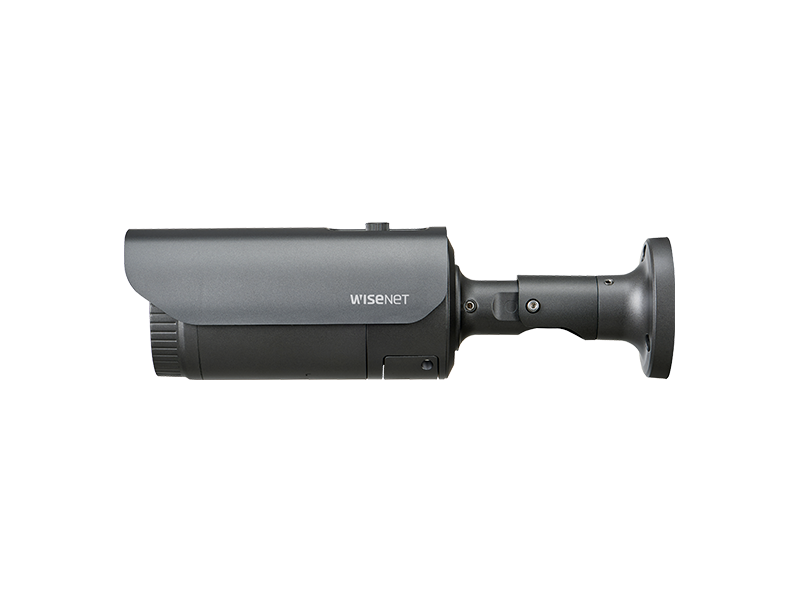

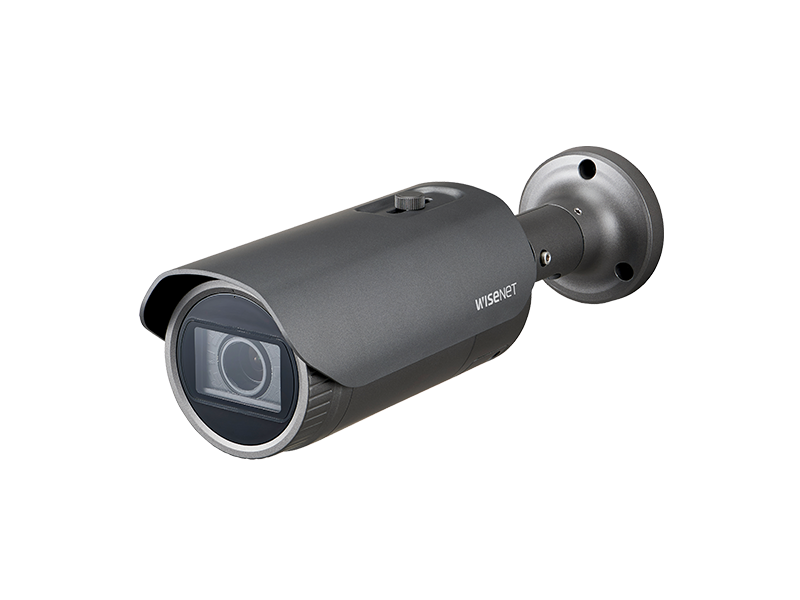

Hanwha - XNO-L6080R - 2MP IR Bullet
Part number:
XNO-L6080R
Price:
Wisenet X powered by Wisenet 5 network IR outdoor bullet camera, 2MP, Full HD(1080p) @60fps, motorized vari-focal lens 3.1x (3.2~10mm) (109°~33.2°), triple codec H.265/H.264/MJPEG with WiseStream II technology, 120dB WDR, USB port for easy installation, high powered IR LEDs range of 98.43', true D/N, single SD card, hallway view, HLC, defog detection, DIS, PoE, IP66, IK10, -40°C ~ +55°C (-40°F ~ +131°F)
Features:
- 2 megapixel (1920 x 1080) resolution
- 3.1 ~ 10mm (3.1x) motorized varifocal lens
- 60fps@all resolutions (H.265 / H.264)
- H.265, H.264, MJPEG codec supported, Multiple streaming
- Day & Night (ICR), WDR (120dB), Defog
- Tampering, Defocus detection
- Motion Detection, Handover
- SD/SDHC/SDXC memory slot (Max. 256GB)
- Hallway view, WiseStream II support
- IR viewable length 30m
- IP66, IK10, PoE support
| Video | |
| Imaging Device | 1/2.8" 2M CMOS |
| Effective Pixels | 1,945(H) x 1,097(V) 2.13M |
| Minimum Illumination | Color : 0.1Lux@F1.6, B/W : 0Lux (IR LED on) |
| Video Out | CVBS : 1.0 Vpp / 75Ω composite, 720 x 480(N), 720 x 576(P), for installation USB : micro USB type B, 1280 x 720 for installation |
| Lens |
| Focal Length (Zoom Ratio) | 3.2~10mm (3.1x) motorized varifocal |
| Maximum Aperture Ratio | F1.6(Wide) ~ F2.9(Tele) |
| Angular Field of View | H : 109.0°(Wide) ~ 33.2°(Tele) / V : 57.4°(Wide) ~ 18.7°(Tele) / D : 132.0°(Wide) ~ 38.0°(Tele) |
| Minimum Object Distance | 0.5m (1.64ft) |
| Focus Control | Simple focus (Motorized V/F) / Manual, Remote control via network (Manual, Simple focus) |
| Lens/Mount Type | DC Auto Iris/ Board-in type |
| Operational |
| IR Viewable Length | 30m (98.43ft) |
| Camera Title | Off / On (Displayed up to 85 characters) - W/W : English / Numeric / Special characters - China : English / Numeric / Special / Chinese characters - Common : Multi-line (Max. 5), Color (Gray / Green / Red / Blue / Black / White), Transparency, Auto scale by resolution |
| Day & Night | Auto (ICR) / Color / B/W / External / Schedule |
| Backlight Compensation | Off / BLC / HLC (Masking / Dimming), WDR |
| Wide Dynamic Range | 120dB |
| Digital Noise Reduction | SSNRV (2D + 3D Noise lter) (O / On) |
| Digital Image Stabilization | Off / On |
| Defog | Off / Auto / Manual |
| Motion Detection | Off / On (8ea, 8point Polygonal zones) |
| Privacy Masking | Off / On (24ea, Rectangle zones) - Color : Gray / Green / Red / Blue / Black / White - Zoom ratio option for mask mode - Mosaic |
| Gain Control | Off / Low / Middle / High |
| White Balance | ATW / AWC / Manual / Indoor / Outdoor (Included mercury & Sodium) |
| Electronic Shutter Speed | Minimum / Maximum / Anti flicker (2 ~ 1/12,000sec) |
| Digital PTZ | 24x, Digital PTZ (Preset, Group) |
| Flip / Mirror | Off / On, Hallway view : 90˚/270˚ |
| Alarm I/O | Input 1ea / Output 1ea |
| Alarm Triggers | Motion detection, Video analytics, Network disconnect |
| Alarm events | File upload via FTP, E-mail, Notification via E-mail, Local storage (SD/SDHC/ SDXC) or NAS recording at event triggers |
| Ethernet | RJ-45 (10/100BASE-T) |
| Resolution | 1920 x 1080, 1280 x 1024, 1280 x 960, 1280 x 720, 1024 x 768, 800 x 600, 800 x 448, 720 x 576, 720 x 480, 640 x 480, 640 x 360, 320 x 240 |
