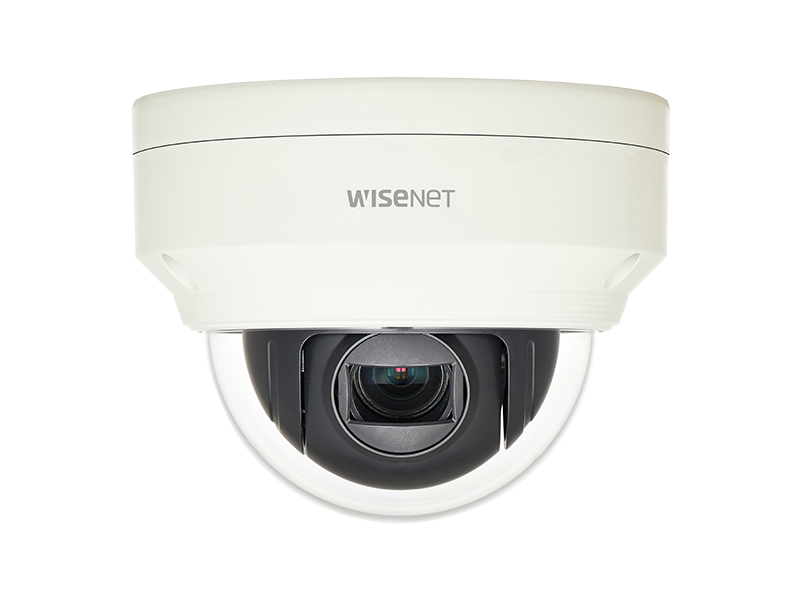

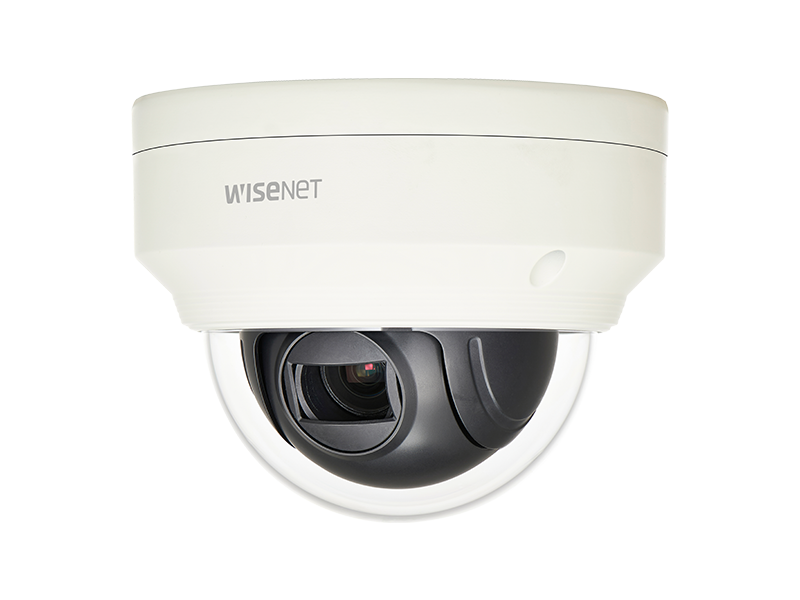

Hanwha - XNP-6040H - 2MP 4.3X PTZ
Part number:
XNP-6040H
Price:
Wisenet X powered by Wisenet 5 network outdoor PTZ camera, 2MP, full HD(1080p) @ 60fps WDR off/on(120dB) or @30fps WDR on(150dB), 4.3x optical zoom lens (2.8mm ~12mm) (119.5º ~ 27.9º), pan: 0°~350°, Tilt: 0°~ 90°, H.265/H.264/MJPEG, WiseStream II compression technology, 150dB WDR, USB port for easy installation, advanced video analytics and sound classification, true D/N, dual SD card, HLC, Defog detection, DIS , 12VDC/PoE, IP66, IK10, -22°F ~ 131°F
Features:
- 2 megapixel (1920 x 1080) resolution
- 4.3X optical zoom (2.8 ~ 12mm) (119.5º ~ 27.9º)
- 60fps@all resolutions (H.265/H.264)
- H.265, H.264, MJPEG codec supported, multiple streaming
- Day & Night (ICR), WDR (150dB), Defog
- Loitering, directional detection, fog detection, audio detection, digital auto tracking, sound classification, tampering
- Motion detection, Handover
- Dual micro SD/SDHC/SDXC memory slots (maximum 256GB each)
- Wisestream II support
- IP66, IK10
Video
| Imaging Device | 1/2.8" 2.16M CMOS |
| Effective Pixels | 1,945(H) x 1,097(V), 2.13M |
| Minimum Illumination | Color : 0.015 Lux (1/30sec, F1.4), B/W : 0.0015 Lux (1/30sec, F1.4) |
| Video Out | CVBS : 1.0 Vpp / 75Ω composite, 720 x 480(N), 720 x 576(P), for Installation USB : Micro USB Type B, 1280 x 720 for Installation |
Lens
| Focal Length (Zoom Ratio) | 2.8~12mm(4.3x) |
| Maximum Aperture Ratio | F1.4 |
| Angular Field of View | H: 119.5°(Wide)~27.9°(Tele) / V: 62.8°(Wide)~15.7°(Tele) / D: 142.1°(Wide)~32.0°(Tele) |
| Minimum Object Distance | 1.5m (4.92ft) (Wide), 2m (6.56ft) (Tele) |
| Focus Control | Auto / Manual/ One Push |
| Lens/Mount Type | DC Auto Iris/ Board-in type |
Operational
| Camera Title | O / On (Displayed up to 85 Characters) - W/W : English / Numeric / Special Characters - China : English / Numeric / Special/ Chinese Characters - Common : Multi-line (Max. 5), Color (Gray / Green / Red / Blue / Black / White), Transparency, Auto scale by Resolution |
| Day & Night | Auto (ICR)/ Color/ B/W |
| Backlight Compensation | Off / BLC / HLC / WDR |
| Wide Dynamic Range | 150dB |
| Digital Noise Reduction | SSNRV (2D + 3D Noise lter) (O / On) |
| Digital Image Stabilization | Off / On (Built-in Gyro sensor) |
| Defog | Off / Auto / Manua |
| Motion Detection | Off / On (8ea, 8point Polygonal zones) |
| Privacy Masking | Off / On (24ea, Rectangle zones) - Color : Gray / Green / Red / Blue / Black / White - Zoom ratio option for mask mode - Mosaic |
| Gain Control | Off / Low / Middle / High |
| White Balance | ATW / AWC / Manual / Indoor/ Outdoor (included Mercury & Sodium) |
| Electronic Shutter Speed | Minimum / Maximum / Anti flicker (2 ~ 1/12,000sec) |
| Alarm I/O | Input 1ea / Output 1ea |
| Alarm Triggers | Motion detection, Tampering, Audio detection, Face detecton, Video analytics, Alarm input, Network disconnection |
| Alarm events | File upload Via FTP, E-Mail, Noti cation Via E-Mail, Localstorage (SD/SDHC/SDXC) or NAS recording at event triggers, External output, preset |
| Audio In | Selectable (Mic in / Line in), Supply Voltage : 2.5V DC (4mA), Input Impedance : Approx. 2K Ohm |
| Audio Out | Line out (3.5mm mono jack), Max output level : 1 Vrms |
