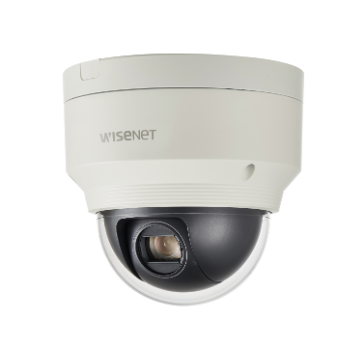

Hanwha - XNP-6120H - 2MP Outdoor Mini PTZ Camera
Part number:
XNP-6120H
Price:
Wisenet X powered by Wisenet 5 network outdoor PTZ camera, 2MP, Full HD(1080p) @ 60fps WDR off/on(120dB) or @30fps WDR on(150dB), 12X optical zoom lens (5.2mm ~62.4mm) (54.58º ~ 5.30º), Pan: 360° Endless. Tilt: -5°~ 185°, H.265/H.264/MJPEG, WiseStream II compression technology, 150dB WDR, USB port for easy installation, advanced video analytics and sound classification, true D/N, dual SD card, HLC, Defog detection, DIS, 12VDC/PoE, IP66, IK10, -22°F ~ 131°F
Features:
- 2 megapixel (1920 x 1080) resolution
- 12X optical zoom (5.2 ~ 62.4mm) (54.58º ~ 5.30º)
- Max. 60fps@all resolutions (H.265/H.264)
- H.265, H.264, MJPEG codec supported, multiple streaming
- Day & Night (ICR), WDR (150dB), Defog
- Loitering, directional detection, fog detection, audio detection, digital auto tracking, sound classification, tampering
- Motion detection, handover
- SD/SDHC/SDXC memory slot (Max. 512GB)
- WiseStream II support
- IP66, IK10
Video
| Imaging Device | 1/2.8" 2.16MP CMOS |
| Min. Illumination | Color: 0.05 Lux (1/30sec, F1.6, 50IRE) |
| B/W: 0.005 Lux (1/30sec, F1.6, 50IRE) | |
| Color: 0.03 Lux (1/30sec, F1.6, 30IRE) | |
| B/W: 0.003 Lux (1/30sec, F1.6, 30IRE) | |
| Video Out | CVBS: 1.0 Vp-p / 75Ω composite, 720x480(N), 720x576(P) for installation |
| USB: Micro USB Type B, 1280x720 for installation |
Lens
| Focal Length (Zoom Ratio) | 5.2~62.4mm(12x) zoom |
| Max. Aperture Ratio | F1.6(Wide)~F3.0(Tele) |
| Angular Field of View | H: 54.58˚(Wide) ~ 5.30˚(Tele) / V: 32.19˚(Wide) ~ 3.00˚(Tele) |
| Min. Object Distance | Wide: 1.5m(4.92ft) / Tele: 2.0m(6.56ft) |
| Focus Control | Auto / Manual / One Shot AF |
| Lens Type | DC auto iris |
Pan / Tilt / Rotate
| Pan Range | 360˚ Endless |
| Pan Speed | Preset: 350˚/sec, Manual: 0.024˚/sec ~ 200˚/sec |
| Tilt Range | 190˚(-5˚ ~ 185˚) |
| Tilt Speed | Preset: 350˚/sec, Manual: 0.024˚/sec ~200˚/sec |
| Sequence | Preset (300 ea), Swing, Group (6 ea), Trace, Tour (1 ea), Auto Run, Schedule |
| Preset Accuracy | ±0.2˚ |
Operational
| Camera Title | Displayed up to 85 characters |
| Day & Night | Auto(ICR) |
| Backlight Compensation | BLC, HLC, WDR |
| Wide Dynamic Range | 150dB |
| Digital Noise Reduction | SSNRⅤ |
| Digital Image Stabilization | Support(built-in gyro sensor) |
| Defog | Support |
| Motion Detection | 8ea, polygonal |
| Privacy Masking | 24ea, rectanglar zones |
| Gain Control | Low / Middle / High |
| White Balance | ATW / AWC / Manual / Indoor / Outdoor |
| Electronic Shutter Speed | Minimum / Maximum / Anti flicker (2~1/12,000sec) |
| Video Rotation | Flip, Mirror |
| Analytics | Tampering, Loitering, Directional Detection, Virtual Line, Enter/Exit, Appear / |
| Disappear, Audio Detection, Sound classification, Auto Tracking, | |
| Fog detection - with Metadata | |
| Serial Interface | RS-485(Samsung-T, Pelco-D/P, Panasonic, Bosch, AD, GE, Vicon, Honeywell) |
| Alarm I/O | Input 1ea / Output 1ea |
| Alarm Triggers | Analytics, Network disconnect, Alarm input |
| Alarm Events | File upload via FTP and e-mail |
| Notification via e-mail | |
| SD/SDHC/SDXC or NAS recording at event triggers | |
| Alarm output | |
| Preset | |
| Audio In | Selectable(mic in/line in) |
| Supply voltage: 2.5VDC(4mA), Input impedance: 2K Ohm | |
| Audio Out | Line out, Max.output level: 1Vrms |
| Coaxial Protocol | Support |
Network
| Ethernet | RJ-45 (10/100BASE-T) |
| Video Compression | H.264 (MPEG-4 Part 10/AVC), H.265, Motion JPEG |
| Smart Codec | Manual(5ea area), WiseStreamⅡ |
| Bitrate Control | H.264/H.265: CBR or VBR |
| MJPEG: VBR | |
| Streaming | Multiple streaming(Up to 10 profiles) |
| Protocol | IPv4, IPv6, TCP/IP, UDP/IP, RTP(UDP), RTP(TCP), RTCP,RTSP, NTP, HTTP, HTTPS, SSL/TLS, DHCP, FTP, SMTP, ICMP, IGMP, SNMPv1/v2c/v3(MIB-2), ARP, DNS, DDNS, QoS, PIM-SM, UPnP, Bonjour |
| Security | HTTPS(SSL) Login Authentication |
| Digest Login Authentication | |
| IP Address Filtering | |
| User access log | |
| 802.1X Authentication(EAP-TLS, EAP-LEAP) | |
| Application Programming Interface | ONVIF Profile S/G |
| SUNAPI 2.0(HTTP API) | |
| Wisenet open platform |
Environmental & Electrical
| Operating Temperature / Humidity | -30°C ~ +55°C (-22°F ~ +131°F) / Less than 90% RH |
| Storage Temperature / Humidity | -30°C~+60°C(-22°F ~ +140°F) / Less than 90% RH |
| Certification | IP66, IK10 |
Mechanical
| Color / Material | Ivory / Aluminum |
| Product dimensions / weight | Ø168 x 161.5mm(6.61 x 6.36"), 1.9kg(4.19 lb) |
