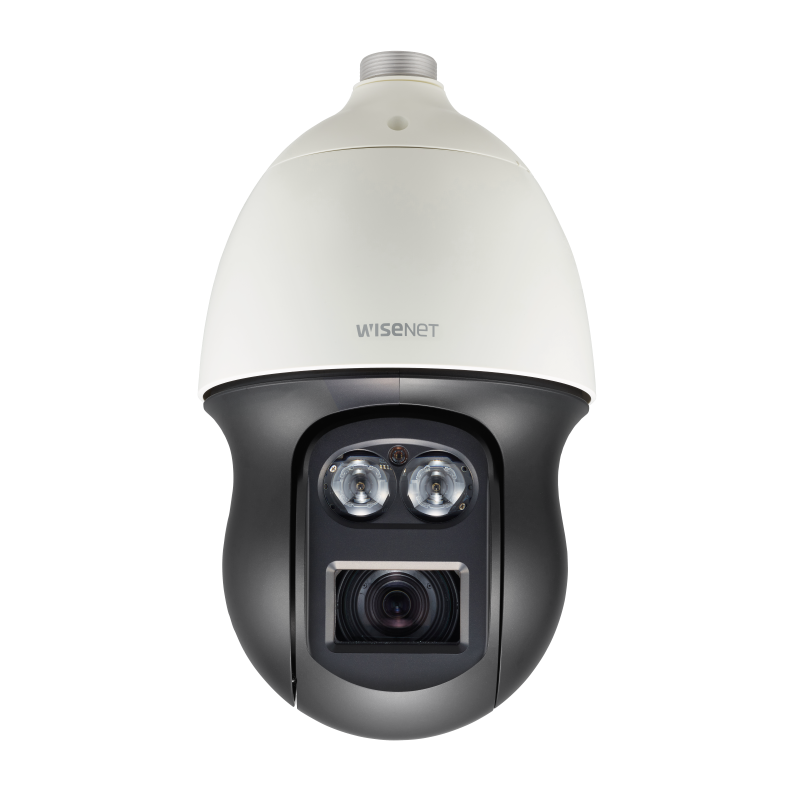

Hanwha - XNP-6320RH - Network Outdoor PTZ camera
Part number:
XNP-6320RH
Price:
The XNP-6320RH from the Wisenet X series features our Wisenet 5 chipset, with 2 MP resolution @ 60fps, 32X optical zoom lens, Pan: 360° endless. Tilt: -15°~ 195°, triple codec H.265/H.264/MJPEG with WiseStream II technology, 150dB WDR, Analog video out for easy installation, advanced video analytics and sound classification, true D/N, dual SD card, HLC, defog detection, DIS(Gyro), 24VAC/PoE+, IP66/IK10, temperature range from -58°F ~ +131°F. The high power IR illuminators allow for monitoring in complete darkness up to 200 meters away in crisp detail with the 32x optical zoom lens.
Features:
- 2 MP (1920 x 1080) resolution
- IR viewable length : 200m (656ft)
- 32X optical zoom lens (4.44mm ~142.6mm) (61.8º ~ 2.19º)
- H.265, H.264, MJPEG codec support
- Multiple streaming, WiseStream II support
- Day & Night (ICR), WDR (150dB)
- DIS with Built-in Gyro sensor
- Azimuth display (Cardinal & intermediate directions)
- Auto tracking, Intelligent video analytics
- Dual Memory slots (Maximum 512GB)
- IP66, IK10
- HPoE IEEE802.3bt, Class7 (Injector included), 24VAC
- Optional fiber optic interface
| Technical Specifications | |
| Video | |
| Imaging Device | 1/2.8" 2MP CMOS |
| Min. Illumination | Color: 0.05Lux(F1.6, 1/30sec) BW: 0Lux(IR LED On) |
| Video Out | CVBS: 1.0 Vp-p / 75Ω composite, 720x480(N), 720x576(P) for installation |
| Lens |
| Focal Length (Zoom Ratio) | 4.44~142.6mm(32x) zoom |
| Max. Aperture Ratio | F1.6(Wide)~F4.4(Tele) |
| Angular Field of View | H: 61.8˚(Wide)~2.19˚(Tele) / V: 36.2˚(Wide)~1.24˚(Tele) |
| Min. Object Distance | Wide: 1.5m(4.92ft), Tele: 2m(6.56ft) |
| Focus Control | Oneshot AF |
| Lens Type | DC auto iris |
| Pan / Tilt / Rotate |
| Pan Range | 360˚ Endless |
| Pan Speed | Preset: 400˚/sec, Manual: 0.024˚/sec~250˚/sec |
| Tilt Range | 95˚(-5˚~90˚) |
| Tilt Speed | Preset: 250˚/sec, Manual: 0.024˚/sec~250˚/sec |
| Sequence | Preset(300ea), Swing, Group(6ea), Trace, Tour, Auto Run, Schedule |
| Preset Accuracy | ±0.2˚ |
| Operational |
| Camera Title | Displayed up to 85 characters |
| Day & Night | Auto(ICR) |
| Backlight Compensation | BLC, HLC, WDR, SSDR |
| Wide Dynamic Range | 150dB |
| Digital Noise Reduction | SSNRⅤ |
| Digital Image Stabilization | Support(built-in gyro sensor) |
| Defog | Support |
| Motion Detection | 8ea, 8point polygonal zones |
| Privacy Masking | 32ea, rectangular Support - Color: Grey/Green/Red/Blue/Black/White - Mosaic |
| Gain Control | Low / Middle / High |
| White Balance | ATW / AWC / Manual / Indoor / Outdoor |
| Electronic Shutter Speed | Minimum / Maximum / Anti flicker (2~1/12,000sec) |
| Video Rotation | Flip, Mirror |
| Analytics | Directional detection, Fog detection, Face detection, Motion detection, Appear/Disappear, Enter/Exit, Loitering, Tampering, Virtual line, Audio detection, Sound classification, Shock detection |
| Serial Interface | RS-485(Samsung-T, Pelco-D/P, Panasonic, Bosch, AD, GE, Vicon, Honeywell) |
| Alarm I/O | Input 4ea / Output 2ea |
| Alarm Triggers | Analytics, Network disconnect, Alarm input |
| Alarm Events | File upload via FTP and e-mail |
| Notification via e-mail | |
| SD/SDHC/SDXC or NAS recording at event triggers | |
| Alarm output | |
| PTZ Preset | |
| Audio In | Selectable(mic in/line in) |
| Supply voltage: 2.5VDC(4mA), Input impedance: 2K Ohm | |
| Audio Out | Line out, Max.output level: 1Vrms |
| IR Viewable Length | 200m(656.17ft) |
| Network |
| Ethernet | RJ-45(10/100BASE-T), SFP(Optional) |
| Video Compression | H.265/H.264,MJPEG |
| Smart Codec | Manual(5ea area), WiseStreamⅡ |
| Bitrate Control | H.264/H.265: CBR or VBR |
| MJPEG: VBR | |
| Streaming | Unicast(20 users) / Multicast (128 user) |
| Multiple streaming(Up to 10 profiles) | |
| Protocol | IPv4, IPv6, TCP/IP, UDP/IP, RTP(UDP), RTP(TCP), RTCP,RTSP, NTP, HTTP, HTTPS, SSL/TLS, DHCP, FTP, SMTP, ICMP, IGMP, SNMPv1/v2c/v3(MIB-2), ARP, DNS, DDNS, QoS, PIM-SM, UPnP, Bonjour,LLDP, SRTP |
| Security | HTTPS(SSL) Login Authentication |
| Digest Login Authentication | |
| IP Address Filtering | |
| User access log | |
| 802.1X Authentication(EAP-TLS, EAP-LEAP) | |
| Application Programming Interface | ONVIF Profile S/G/T |
| SUNAPI(HTTP API) | |
| Wisenet open platform | |
| Environmental & Electrical |
| Operating Temperature / Humidity | 24VAC : -50°C~+55°C (-58°F ~ +131°F) / Less than 90% RH |
| HPoE : -40°C~+55°C (-40°F ~ +131°F) / Less than 90% RH | |
| * Start up should be done at above -35°C | |
| Storage Temperature / Humidity | -50°C~+60°C (-58°F~+140°F) / Less than 90% RH |
| Certification | IP66, IK10 |
| Mechanical |
| Color / Material | Body: Ivory / Plastic, Head: Black / Plastic |
| Product dimensions / weight | Ø236.9x407.7mm(9.33x16.05"), 6.8Kg(14.99 lb) |
