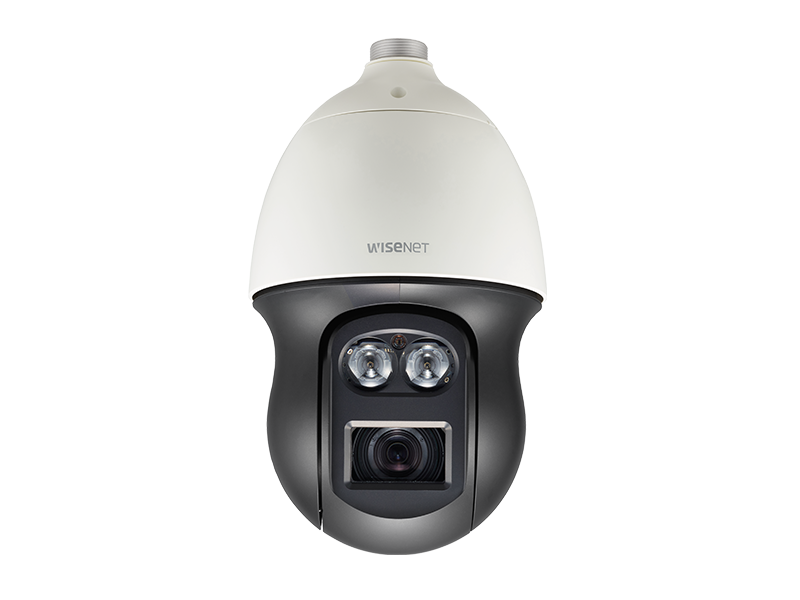

Hanwha - XNP-6550RH - 2MP IR 55x PTZ Camera
Part number:
XNP-6550RH
Price:
The XNP-6550RH camera features the latest technology from Hanwha Techwin. Featuring a massive 55x optical zoom (4.75mm ~ 261.4mm), and IR capable of seeing up to 1,640ft, you can rest assured to be able to cover any area. In addition, the camera features optical defog technology to provide a clear picture in any weather. Rounding out the features is a suite of license-free intelligent video & audio analytics to provide intelligent notifications.
Features:
- 2 megapixel (1920 x 1080) resolution
- 4.75 ~ 261.4mm (Optical 55x) lens
- Day & Night (ICR), WDR (120dB)
- DIS with built-in gyro sensor
- Maximum IR viewable length : 500m (1,640ft)
- H.265, H.264, MJPEG triple codec support
- WiseStream II support
- Intelligent Video / Audio Analytics, Defog (Optical)
- Dual microSD / SDHC / SDXC memory slots (Up to 512 GB)
- IP66, IK10
- AC24 : -50°C ~ +55°C (-58°F ~ +131°F)
- HPoE injector included : -40°C ~ +55°C (-22°F ~ +131°F)
Video
| Imaging Device | 1/2.8" 2MP CMOS |
| Min. Illumination | Color: 0.02Lux(F1.6, 1/30sec) |
| BW: 0Lux(IR LED) | |
| Video Out | CVBS: 1.0 Vp-p / 75Ω composite, 720x480(N), 720x576(P) for installation |
Lens
| Focal Length (Zoom Ratio) | 4.75~261.4mm(55x) zoom |
| Max. Aperture Ratio | F1.6(Wide)~F6.5(Tele) |
| Angular Field of View | H: 58.6°(Wide)~1.23°(Tele) / V: 34.8°(Wide)~0.71°(Tele) |
| Min. Object Distance | 5m(16.40ft) |
| Focus Control | Oneshot AF |
| Lens Type | DC auto iris |
Pan / Tilt / Rotate
| Pan Range | 360˚ Endless |
| Pan Speed | Preset: 400˚/sec, Manual: 0.024˚/sec~250˚/sec |
| Tilt Range | 95˚(-5˚~90˚) |
| Tilt Speed | Preset: 250˚/sec, Manual: 0.024˚/sec~250˚/sec |
| Sequence | Preset(300ea), Swing, Group(6ea), Trace, Tour, Auto Run, Schedule |
| Preset Accuracy | ±0.2˚ |
Operational
| Camera Title | Displayed up to 85 characters |
| Day & Night | Auto(ICR) |
| Backlight Compensation | BLC, HLC, WDR, SSDR |
| Wide Dynamic Range | 120dB |
| Digital Noise Reduction | SSNRⅤ |
| Digital Image Stabilization | Support(built-in gyro sensor) |
| Defog | Support |
| Motion Detection | 8ea, polygonal zones Support |
| Privacy Masking | 24ea, rectangular zones |
| - Color: Grey/Green/Red/Blue/Black/White | |
| - Mosaic | |
| Gain Control | Low / Middle / High |
| White Balance | ATW / AWC / Manual / Indoor / Outdoor |
| Electronic Shutter Speed | Minimum / Maximum / Anti flicker (2~1/12,000sec) |
| Video Rotation | Flip, Mirror |
| Analytics | Defocus detection, Directional detection, Fog detection, Face detection, Motion detection, Digital auto tracking, Appear/Disappear, Enter/Exit, Loitering, Tampering, Virtual line, Audio detection, Sound classification, Shock detection |
| Serial Interface | RS-485(Samsung-T, Pelco-D/P, Panasonic, Bosch, AD, GE, Vicon, Honeywell) |
| Alarm I/O | Input 4ea / Output 2ea |
| Alarm Triggers | Analytics, Network disconnect, Alarm input |
| Alarm Events | File upload via FTP and e-mail |
| Notification via e-mail | |
| SD/SDHC/SDXC or NAS recording at event triggers | |
| Alarm output | |
| PTZ Preset | |
| Audio In | Selectable(mic in/line in) |
| Supply voltage: 2.5VDC(4mA), Input impedance: 2K Ohm | |
| Audio Out | Line out, Max.output level: 1Vrms |
| IR Viewable Length | 500m(1,640.42ft) |
Network
| Ethernet | RJ-45(10/100BASE-T), SFP(Optional) |
| Video Compression | H.265/H.264: Main/Baseline/High, MJPEG |
| Smart Codec | Manual(5ea area), WiseStreamⅡ |
| Bitrate Control | H.264/H.265: CBR or VBR |
| MJPEG: VBR | |
| Streaming | Unicast(20 users) / Multicast |
| Multiple streaming (Up to 10 profiles) | |
| Protocol | IPv4, IPv6, TCP/IP, UDP/IP, RTP(UDP), RTP(TCP), RTCP,RTSP, NTP, HTTP, HTTPS, SSL/TLS, DHCP, FTP, SMTP, ICMP, IGMP, SNMPv1/v2c/v3(MIB-2), ARP, DNS, DDNS, QoS, PIM-SM, UPnP, Bonjour |
| Security | HTTPS(SSL) Login Authentication |
| Digest Login Authentication | |
| IP Address Filtering | |
| User access log | |
| 802.1X Authentication(EAP-TLS, EAP-LEAP) | |
| Application Programming Interface | ONVIF Profile S/G |
| SUNAPI(HTTP API) | |
| Wisenet open platform |
Environmental & Electrical
| Operating Temperature / Humidity | -50°C~+55°C (-122°F~+131°F) / Less than 90% RH |
| * Start up should be done at above -30°C (HPoE Mode) | |
| Storage Temperature / Humidity | -50°C~+60°C (-122°F~+140°F) / Less than 90% RH |
| Certification | IP66, IK10 |
Mechanical
| Color / Material | Body: Ivory / Plastic, Head: Black / Plastic |
| Product dimensions / weight | Ø236.9x407.7mm(9.33x16.05"), 7.1Kg(15.65 lb) |
