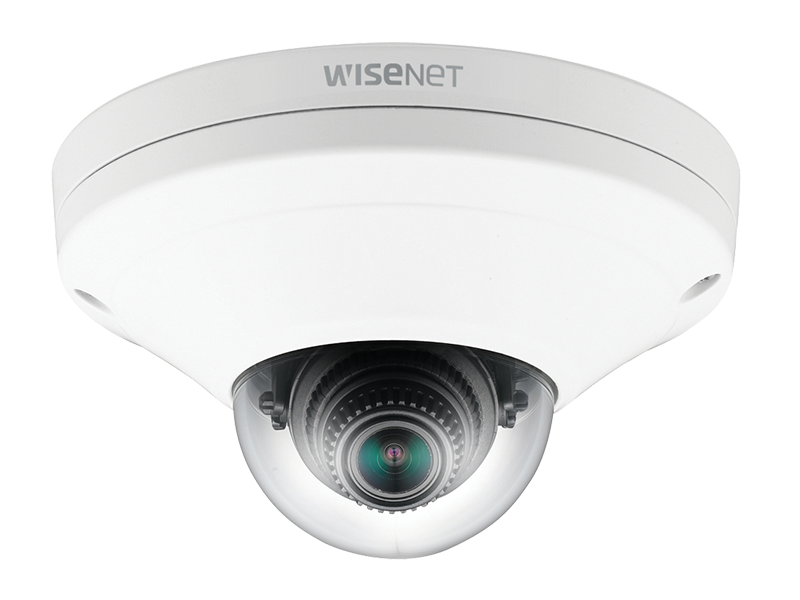

Hanwha - XNV-6011W - X series 2MP Compact Vandal Dome (white)
Part number:
XNV-6011W
Price:
Wisenet X powered by Wisenet 5 network outdoor compact vandal dome camera (white color), 2MP, Full HD(1080p) @60fps, 2.8mm fixed lens (112°), triple codec H.265/H.264/MJPEG with WiseStream II technology, 150dB WDR, USB port for easy installation, advanced video analytics and business analytics, single SD card, hallway view, HLC, defog detection, DIS, PoE, IP66,Nema 4X, IK10, white color
Features:
- 2MP @ 60fps
- Triple codecH.265/H.264/MJPEG
- 2.8mm fixed lens
- Wide Dynamic Range 150dB
- On-board analytics
- Digital Image Stabilization
- IK10/IP66
- Built-in retail business intelligence analytics
- USB for easy installation
- White case color
| Video | |
| Imaging Device | 1/2.8" 2M CMOS |
| Total Pixels | 1,945(H) x 1,109(V) 2.16M |
| Effective Pixels | 1,945(H) x 1,097(V) 2.13M |
| Scanning System | Progressive Scan |
| Min. Illumination | Color : 0.055 Lux (F2.0, 1/30sec) B/W : 0.055 Lux (F2.0, 1/30sec) |
| S / N Ratio | 50dB |
| Video Output | CVBS : 1.0 Vp-p / 75Ω composite, 720 x 480(N), 720 x 576(P), for installation USB : Micro USB type B, 1280 x 720, for installation |
| Lens |
| Focal Length (Zoom Ratio) | 2.8mm fixed |
| Max. Aperture Ratio | F2.0 |
| Angular Field of View | H : 112˚, V : 62˚, D : 130˚ |
| Min. Object Distance | 0.2m (0.66ft) |
| Focus Control | Manual |
| Lens Type | Fixed |
| PAN / TILT / ROTATE |
| Pan / Tilt / Rotate Range | Pan : 0° ~ +353° / Tilt : 0° ~ +59° / Rotate : 0° ~ +353 |
| Operational |
| Camera Title | Off / On (Displayed up to 85 characters) - W/W : English / Numeric / Special Characters - China : English / Numeric / Special / Chinese Characters - Common : Multi-line (Max 5), Color (Grey / Green / Red / Blue / Black / White), Transparency, Auto Scale by Resolution |
| Day & Night | Auto (Electrical) / Color / B/W |
| Backlight Compensation | Off / BLC / HLC (Masking / Dimming), WDR |
| Wide Dynamic Range | 150dB |
| Contrast Enhancement | SSDR (Off / On) |
| Digital Noise Reduction | SSNRⅤ (2D + 3D Noise Filter) (Off / On) |
| Digital Image Stabilization | Off / On |
| Defog | Auto (input from fog detection) / Manual / Off |
| Motion Detection | Off / On (8ea, 8point polygonal zones), Handover |
| Privacy Masking | Off / On (32ea, polygonal zones) - Color : Grey / Green / Red / Blue / Black / White - Mosaic |
| Gain Control | Off / Low / Middle / High |
| White Balance | ATW / AWC / Manual / Indoor / Outdoor (Included Mercury & Sodium) |
| Contrast | Level Adjustment |
| LDC | Off / On (5 levels with Min / Max) |
| Electronic Shutter Speed | Minimum / Maximum / Anti flicker (2 ~ 1/12,000sec) |
| Digital PTZ | 24X, Digital PTZ (Preset, Group) |
| Flip / Mirror | Flip : Off / On, Mirror : Off / On, Hallway View : 90˚ / 270˚ |
| Video Analytics | Tampering, Loitering, Directional Detection, Defocus Detection, Fog Detection, Virtual Line, Enter / Exit, (Dis) Appear, Face Detection, Motion Detection, Digital Auto Tracking, People Counting, Heatmap, Queue management |
| Alarm Triggers | Motion Detection, Video Analytics, Network Disconnect |
| Alarm Events | File upload via FTP, E-Mail Notification via E-Mail Local Storage (SD / SDHC / SDXC) or NAS Recording at Event Triggers |
| Pixel Counter | Support |
| NETWORK |
| Ethernet | RJ-45 (10/100 BASE-T) |
| Video Compression Format | H.265 / H.264 (MPEG-4 Part 10 / AVC) : Main / Baseline / High, Motion JPEG |
| Resolution | 1920 x 1080, 1280 x 1024, 1280 x 960, 1280 x 720, 1024 x 768, 800 x 600, 800 x 448, 720 x 576, 720 x 480, 640 x 480, 640 x 360, 320 x 240 |
| Max. Framerate | H.265 / H.264 : Max. 60fps at all resolutions, Motion JPEG : Max. 30fps |
| Smart Codec | Manual Mode (area-based : 5EA) |
| WiseStreamⅡ | Support |
| Video Quality Adjustment | H.264 / H.265 : Target bitrate Level Control, MJPEG : Target bitrate Level Control |
| Bitrate Control Method | H.264 / H.265 : CBR or VBR, MJPEG : VBR |
| Streaming Capability | Multiple Streaming (Up to 10 Profiles) |
| IP | IPv4, IPv6 |
| Protocol | TCP / IP, UDP / IP, RTP (UDP), RTP (TCP), RTCP,RTSP, NTP, HTTP, HTTPS, SSL / TLS, DHCP, PPPoE, FTP, SMTP, ICMP, IGMP, SNMP v1 / v2c / v3 (MIB-2), ARP, DNS, DDNS, QoS, PIM-SM, UPnP, Bonjour |
| Security | HTTPS (SSL) Login Authentication, Digest Login Authentication IP Address Filtering, User access Log, 802.1X Authentication (EAP-TLS, EAP-LEAP |
| Streaming Method | Unicast / Multicast |
| Max. User Access | 20 users at Unicast Mode |
| Edge Storage | SD / SDHC / SDXC (256GB) - Motion Images recorded in the SD / SDHC / SDXC memory card can be downloaded. NAS (Network Attached Storage), Local PC for Instant Recording |
| Application Programming Interface | e ONVIF Profile S/G, SUNAPI (HTTP API), Open Platform |
| Webpage Language | English, Korean, Chinese, French, Italian, Spanish, German, Japanese, Russian, Swedish, Portuguese, Czech, Polish, Turkish, Dutch, Hungarian, Greek |
| Web Viewer | Supported OS : Windows 7, 8.1, 10, Mac OS X 10.10, 10.11, 10.12 Non-plugin WebViewer - Supported Browser : Google Chrome 54, MS Edge 38, Mozilla Firefox 49 (Window 64bit only), Apple Safari 10 (Mac OS X only) Plug-in WebViewer - Supported Browser : MS Explore 11, Apple Safari 9 (Mac OS X only) |
| Central Management Software | SmartViewer, SSM |
| ENVIRONMENTAL |
| Operating Temperature / Humidit | -30°C ~ +55°C (-22°F ~ +131°F) / Less than 90% RH *Start up should be done at above -20˚C |
| Storage Temperature / Humidity | 30°C ~ +60°C (-22°F ~ +140°F) / Less than 90% RH |
| Ingress Protection | IP66 |
| Vandal Resistance | IK10, NEMA4X |
| ELECTRICAL |
| Input Voltage / Current | PoE (IEEE802.3af, Class3) |
| Power Consumption | Max 6.5W |
| MECHANICAL |
| Color / Material | White / Metal |
| Dimensions (WxH) | Ø112.8 x 63.7mm (Ø4.44" x 2.51") |
| Weight | 420g (0.93 lb) |
