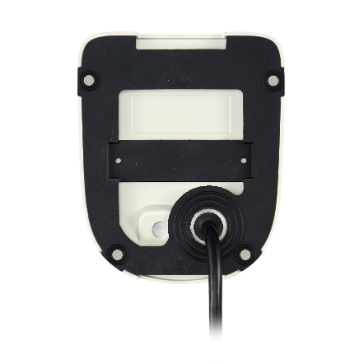

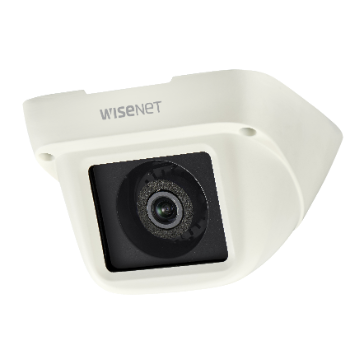

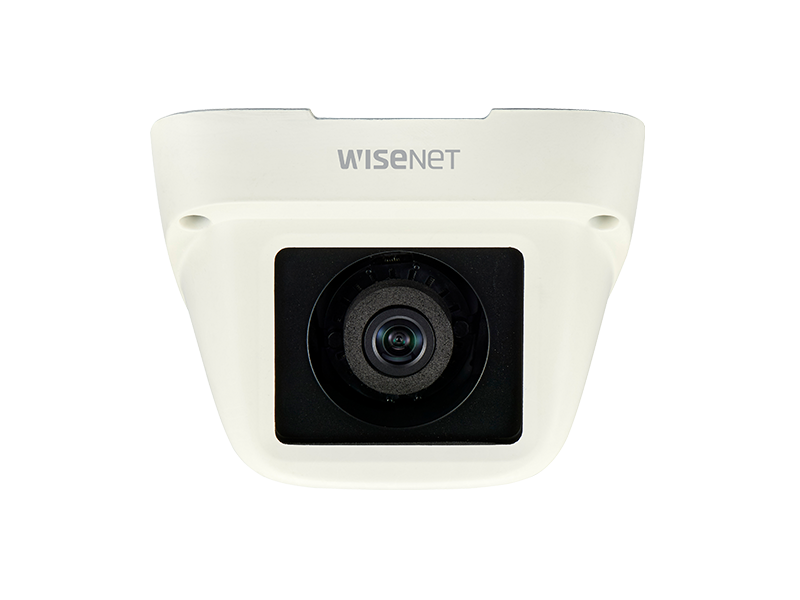

Hanwha - XNV-6013M - 2MP Mobile Vandal Dome
Part number:
XNV-6013M
Price:
Wisenet X powered by Wisenet 5 network outdoor vandal dome camera, 2MP, Full HD(1080p) @60fps, 2.8mm fixed lens (107.4°), triple codec H.265/H.264/MJPEG with WiseStream II technology, 150dB WDR, USB port for easy installation, advanced video analytics and sound classification, electrical D/N, single SD card, hallway view, HLC, defog detection, DIS, PoE, IP6K9K,, IP67, IK10 NEMA 4X, -40°C ~ +60°C (-40°F ~ +140°F) This camera is designed to withstand being mounted outside of the vehicle, M12 connector (M12 to RJ45 is not included)
Features:
- 2 Megapixel (1920 x 1080) resolution
- 60fps@all resolutions (H.265 / H.264)
- 0.04Lux@F2.0 (Color), 0.04Lux@F2.0 (B/W)
- Built-in 2.8mm fixed lens
- H.265, H.264, MJPEG codec supported, Multiple streaming
- Day & Night, WDR (150dB)
- Tampering, Loitering, Directional detection, Defocus detection, Fog detection, Virtual line, Enter/Exit, (Dis)Appear, Audio detection, Face detection, Digital auto tracking, Sound classification
- Motion detection, Handover
- SD/SDHC/SDCX memory slot (Max. 256GB)
- IP67, IP6K9K, IK10, NEMA4X
- Hallway view, PoE, LDC, M12 connector support
Video
| Imaging Device | 1/2.8" 2MP CMOS |
| Min. Illumination | Color: 0.04Lux(F2.0, 1/30sec) |
| BW: 0.04Lux(F2.0, 1/30sec) | |
| Video Out | USB: Micro USB Type B, 1280x720 for installation |
Lens
| Focal Length (Zoom Ratio) | 2.8mm fixed focal |
| Max. Aperture Ratio | F2.0 |
| Angular Field of View | H: 107.4˚ / V: 62.2˚ / D: 122˚ |
| Focus Control | Manual |
Pan / Tilt / Rotate
| Pan / Tilt / Rotate Range | ±5° / ±10° / ±90° |
Operational
| Camera Title | Displayed up to 85 characters |
| Day & Night | Auto(Electrical) |
| Backlight Compensation | BLC, HLC, WDR |
| Wide Dynamic Range | 150dB |
| Digital Noise Reduction | SSNRV |
| Digital Image Stabilization | Support(built-in gyro sensor) |
| Defog | Support(built-in optical filter) |
| Motion Detection | 8ea, 8point polygonal zones |
| Privacy Masking | 32ea, polygonal zones |
| - Color: Grey/Green/Red/Blue/Black/White | |
| - Mosaic | |
| Gain Control | Low / Middle / High |
| White Balance | ATW / AWC / Manual / Indoor / Outdoor |
| LDC | Support |
| Electronic Shutter Speed | Minimum / Maximum / Anti flicker (2~1/12,000sec) |
| Video Rotation | Flip, Mirror, Hallway view(90˚/270˚) |
| Analytics | Defocus detection, Directional detection, Fog detection, Face detection, Motion detection, Digital auto tracking, Appear/Disappear, Enter/Exit, Loitering, Tampering, Virtual line, Audio detection, Sound classification |
| Alarm Triggers | Analytics, Network disconnect |
| Alarm Events | File upload via FTP and e-mail |
| Notification via e-mail | |
| SD/SDHC/SDXC or NAS recording at event triggers | |
| Audio In | Selectable(mic in/line in) |
| Supply voltage: 2.5VDC(4mA), Input impedance: 2K Ohm | |
| Audio Out | Line out, Max.output level: 1Vrms |
Network
| Ethernet | M12 |
| Video Compression | H.265/H.264: Main/Baseline/High, MJPEG |
| Smart Codec | Manual(5ea area), WiseStreamⅡ |
| Bitrate Control | H.264/H.265: CBR or VBR |
| MJPEG: VBR | |
| Streaming | Unicast(20 users) / Multicast |
| Multiple streaming(Up to 10 profiles) | |
| Protocol | IPv4, IPv6, TCP/IP, UDP/IP, RTP(UDP), RTP(TCP), RTCP, RTSP, NTP, HTTP, HTTPS, SSL/TLS, DHCP, PPPoE, FTP, SMTP, ICMP, IGMP, SNMPv1/v2c/v3(MIB-2), ARP, DNS, DDNS, QoS, PIM-SM, UPnP, Bonjour |
| Security | HTTPS(SSL) Login Authentication |
| Digest Login Authentication | |
| IP Address Filtering | |
| User access Log | |
| 802.1X Authentication(EAP-TLS, EAP-LEAP) | |
| Application Programming Interface | ONVIF Profile S/G |
| SUNAPI(HTTP API) | |
| Wisenet open platform |
Environmental & Electrical
| Operating Temperature / Humidity | -40°C ~ +60°C(-40°F ~ +140°F) / Less than 90% RH |
| Storage Temperature / Humidity | -50°C ~ +60°C(-58°F ~ +140°F) / Less than 90% RH |
| Certification | IP67/IP6K9K, IK10, NEMA4X |
| EN55011:2009+A1:2010, EN50581:2012,EN50121-3-2:2015, EN61000-4-2:2009, | |
| EN61000-4-3:2006+A2:2010, EN61000-4-4:2012, EN61000-4-5:2014 | |
| EN61000-4-6:2009, EN50155:2007 |
Mechanical
| Color / Material | Ivory / Aluminum |
| Product dimensions / weight | 103.7x72.3x126.8mm(4.08x2.85x4.99"), 478g(1.04 lb) |
