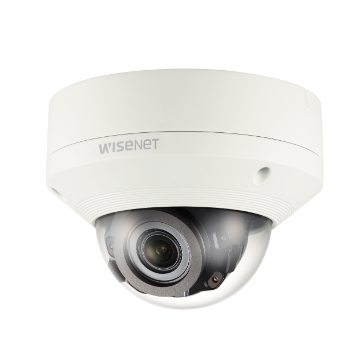

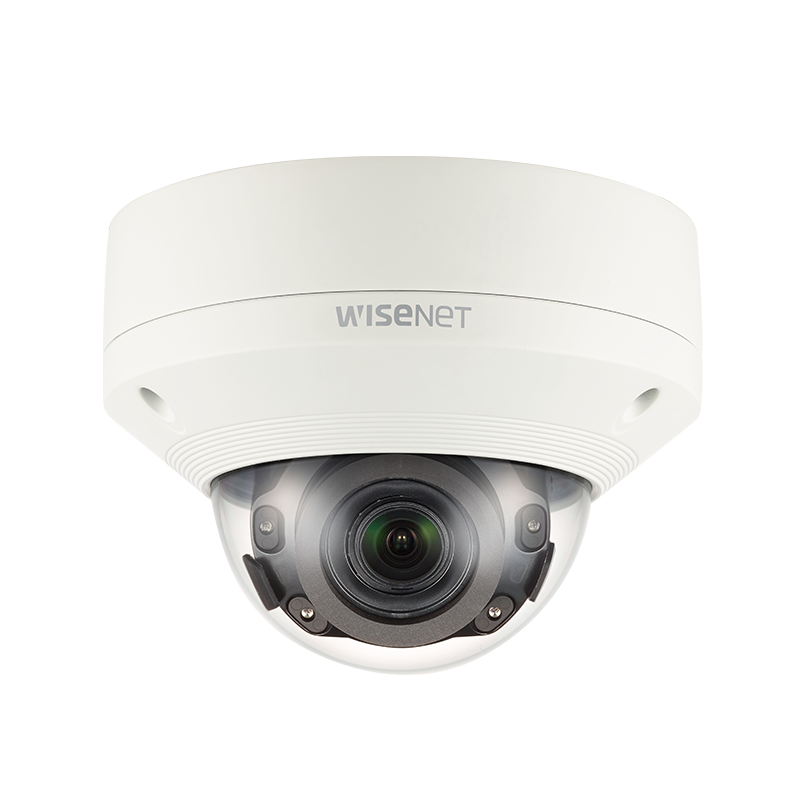

Hanwha - XNV-8080R - 5MP Vandal IR Dome Camera
Part number:
XNV-8080R
Price:
Wisenet X powered by Wisenet 5 network IR outdoor vandal dome camera, 5MP @30fps WDR off/on, Motorized Vari-Focal Lens 2.4x (3.9~9.4mm) (92.1°~38.7°), H.265/H.264/MJPEG, WiseStream II compression technology, 120dB WDR, USB port for easy installation, Advanced video analytics and sound classification, High powered IR LEDs range of 164', True D/N, Dual SD card, Hallway view, HLC, Defog detection with simple focus, DIS , 12VDC/24VAC/PoE, IP67, IK10, NEMA 4X, Built-in -40°F Heater
Features:
- 5 megapixel (2560 x 1920) resolution
- 3.9 ~ 9.4mm (2.4x) motorized varifocal lens
- 30fps@all resolutions (H.265/H.264)
- H.265, H.264, MJPEG codec supported, multiple streaming
- Day & Night (ICR), WDR (120dB), Defog
- Loitering, directional detection, fog detection, audio detection, digital auto tracking, sound classification, tampering
- Motion detection, Handover
- SD/SDHC/SDXC memory slot (Max. 512GB)
- Hallway view, WiseStream II support
- IR viewable length 50m, IP67/IP66, NEMA 4X, IK10
- LDC support (Lens Distortion Correction)
- PoE / 24V AC, 12V DC, Bi-directional audio support
Video
| Imaging Device | 1/1.8" 5MP CMOS |
| Min. Illumination | Color: 0.07Lux(F1.3, 1/30sec) |
| B/W: 0Lux(IR LED on) | |
| Video Out | CVBS: 1.0 Vp-p / 75Ω composite, 720x480(N), 720x576(P), for installation |
| USB: Micro USB Type B, 1280x720, for installation |
Lens
| Focal Length (Zoom Ratio) | 3.9~9.4mm(2.4x) motorized varifocal |
| Max. Aperture Ratio | F1.3 |
| Angular Field of View | H: 92.1°(Wide)~38.7°(Tele), V: 67.2°(Wide)~29.0°(Tele), T: 119.9°(Wide)~48.6°(Tele) |
| Min. Object Distance | 0.5m(1.64ft) |
| Focus Control | Simple focus |
| Lens Type | DC auto iris, P iris |
Pan / Tilt / Rotate
| Pan / Tilt / Rotate Range | 0˚~354˚ / 0˚~67˚ / 0˚~355˚ |
Operational
| Camera Title | Displayed up to 85 characters |
| Day & Night | Auto(ICR) |
| Backlight Compensation | BLC, HLC, WDR, DWDR, SSDR |
| Wide Dynamic Range | 120dB |
| Digital Noise Reduction | SSNRⅤ |
| Digital Image Stabilization | Support |
| Defog | Support |
| Motion Detection | 8ea, 8point polygonal zones |
| Privacy Masking | 32ea, polygonal zones |
| - Color: Grey/Green/Red/Blue/Black/White | |
| - Mosaic | |
| Gain Control | Low / Middle / High |
| White Balance | ATW / AWC / Manual / Indoor / Outdoor |
| LDC | Support |
| Electronic Shutter Speed | Minimum / Maximum / Anti flicker (2~1/12,000sec) |
| Video Rotation | Flip, Mirror, Hallway view(90˚/270˚) |
| Analytics | Defocus detection, Directional detection, Fog detection, Face detection, Motion detection, Digital auto tracking, Appear/Disappear, Enter/Exit, Loitering, Tampering, Virtual line, Audio detection, Sound classification |
| Alarm I/O | Input 1ea / Output 1ea |
| Alarm Triggers | Analytics, Network disconnect, Alarm input |
| Alarm Events | File upload via FTP and E-Mail |
| Notification via E-Mail | |
| SD/SDHC/SDXC or NAS recording at Event Triggers | |
| Alarm output | |
| Handover | |
| Audio In | Selectable(Mic in/Line in), |
| Supply voltage: 2.5VDC(4mA), Input impedance: 2K Ohm | |
| Audio Out | Line out, Max. output level: 1Vrms |
| IR Viewable Length | 50m(164.04ft) |
Network
| Ethernet | RJ-45(10/100BASE-T) |
| Video Compression | H.265/H.264: Main/Baseline/High, MJPEG |
| Smart Codec | Manual(5ea area) |
| WiseStreamⅡ | |
| Bitrate Control | H.264/H.265: CBR or VBR |
| MJPEG: VBR | |
| Streaming | Unicast(20 users) / Multicast |
| Multiple streaming(Up to 10 profiles) | |
| Protocol | IPv4, IPv6, TCP/IP, UDP/IP, RTP(UDP), RTP(TCP), RTCP,RTSP, NTP, HTTP, HTTPS, SSL/TLS, DHCP, FTP, SMTP, ICMP, IGMP, SNMPv1/v2c/v3(MIB-2), ARP, DNS, DDNS, QoS, PIM-SM, UPnP, Bonjour , LLDP, SRTP |
| Security | HTTPS(SSL) Login Authentication |
| Digest Login Authentication | |
| IP Address Filtering | |
| User access Log | |
| 802.1X Authentication(EAP-TLS, EAP-LEAP) | |
| Application Programming Interface | ONVIF Profile S/G/T |
| SUNAPI(HTTP API) | |
| Wisenet open platform |
Environmental & Electrical
| Operating Temperature / Humidity | -40°C ~ +55°C(-40°F ~ +131°F) / Less than 90% RH |
| Storage Temperature / Humidity | -50°C ~ +60°C(-58°F ~ +140°F) / Less than 90% RH |
| Certification | IP67/IP66/NEMA4X, IK10 |
Mechanical
| Color / Material | Ivory / Aluminum |
| Product dimensions / weight | Ø160xH118.5mm (Ø6.3x4.67"), 1010g(2.23 lb) |
