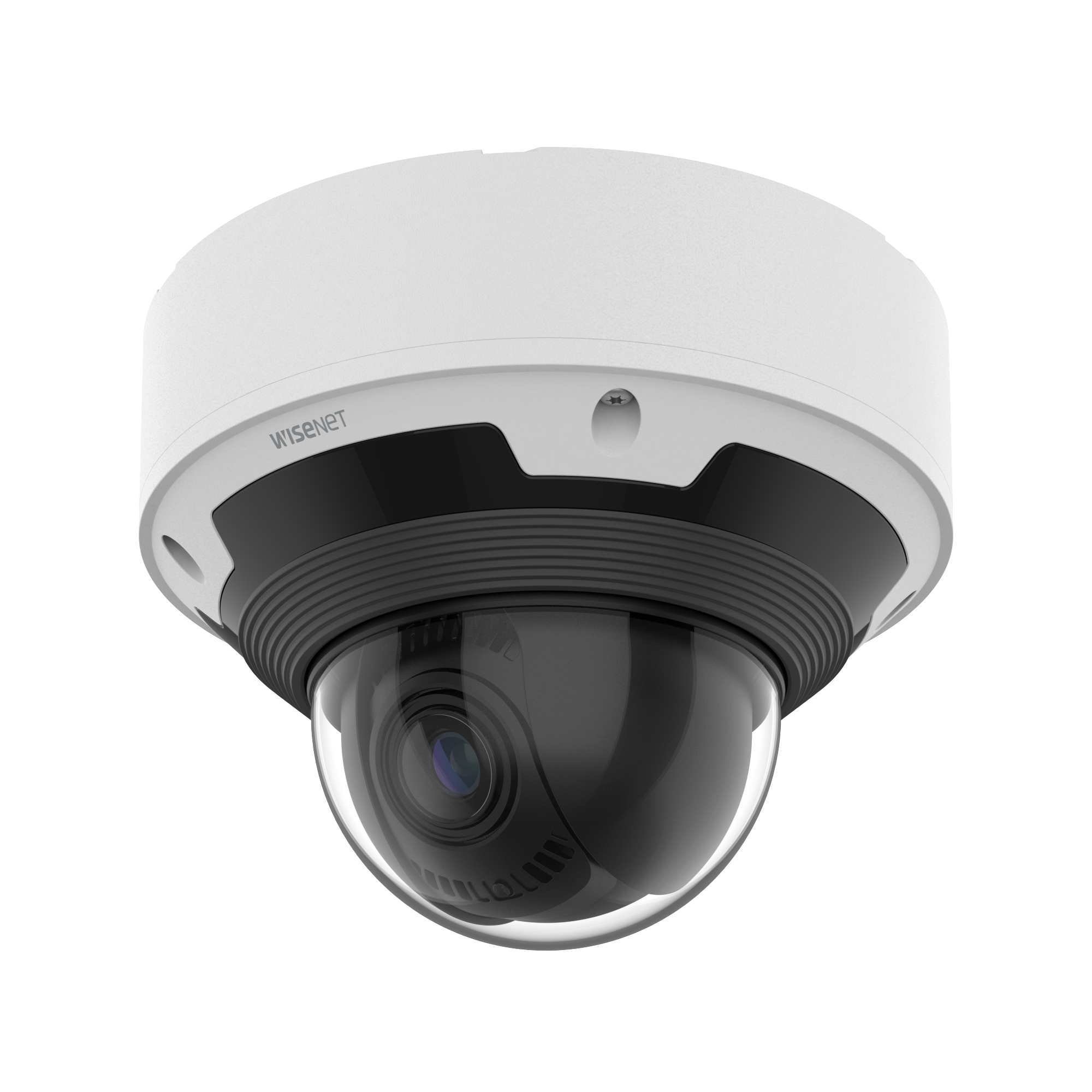

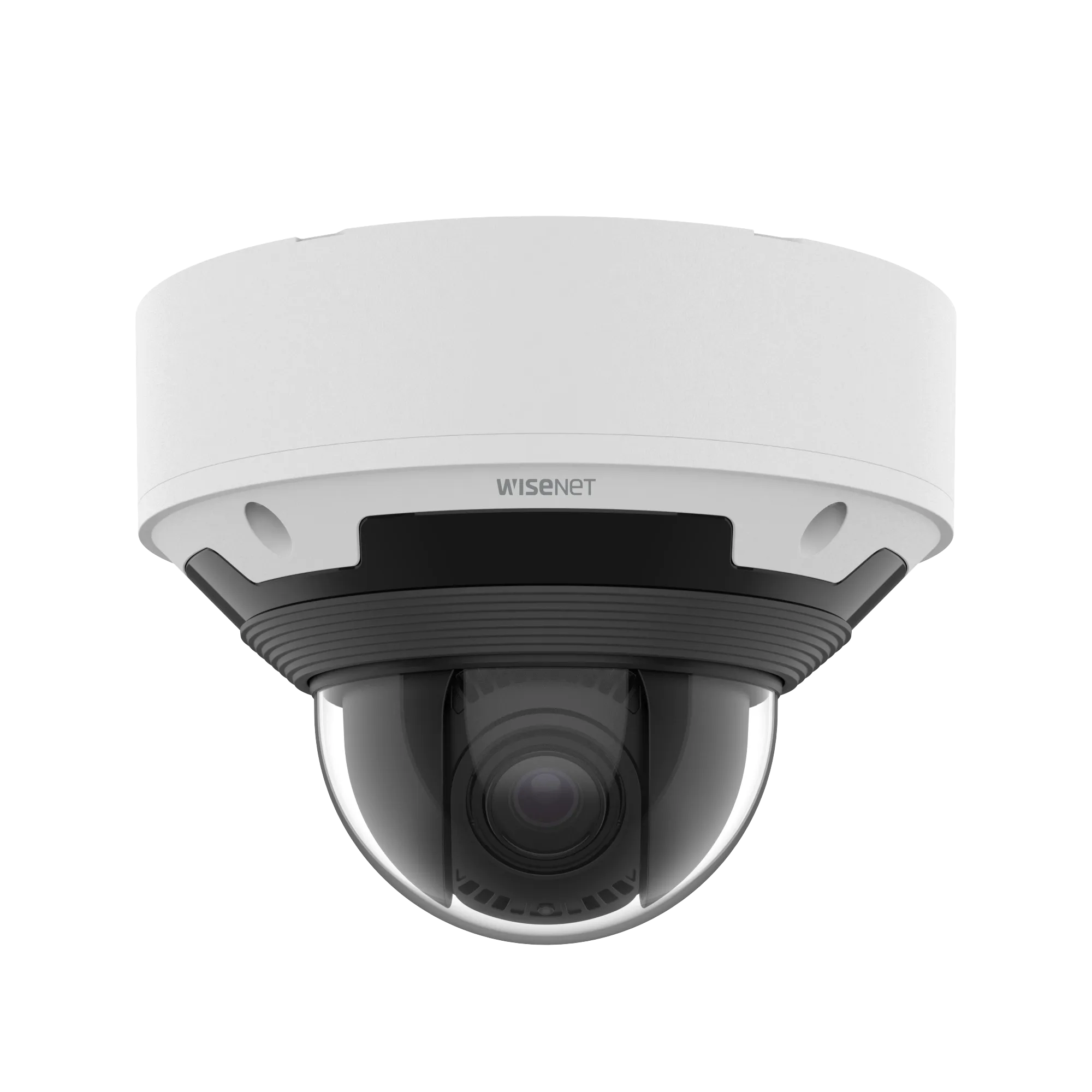

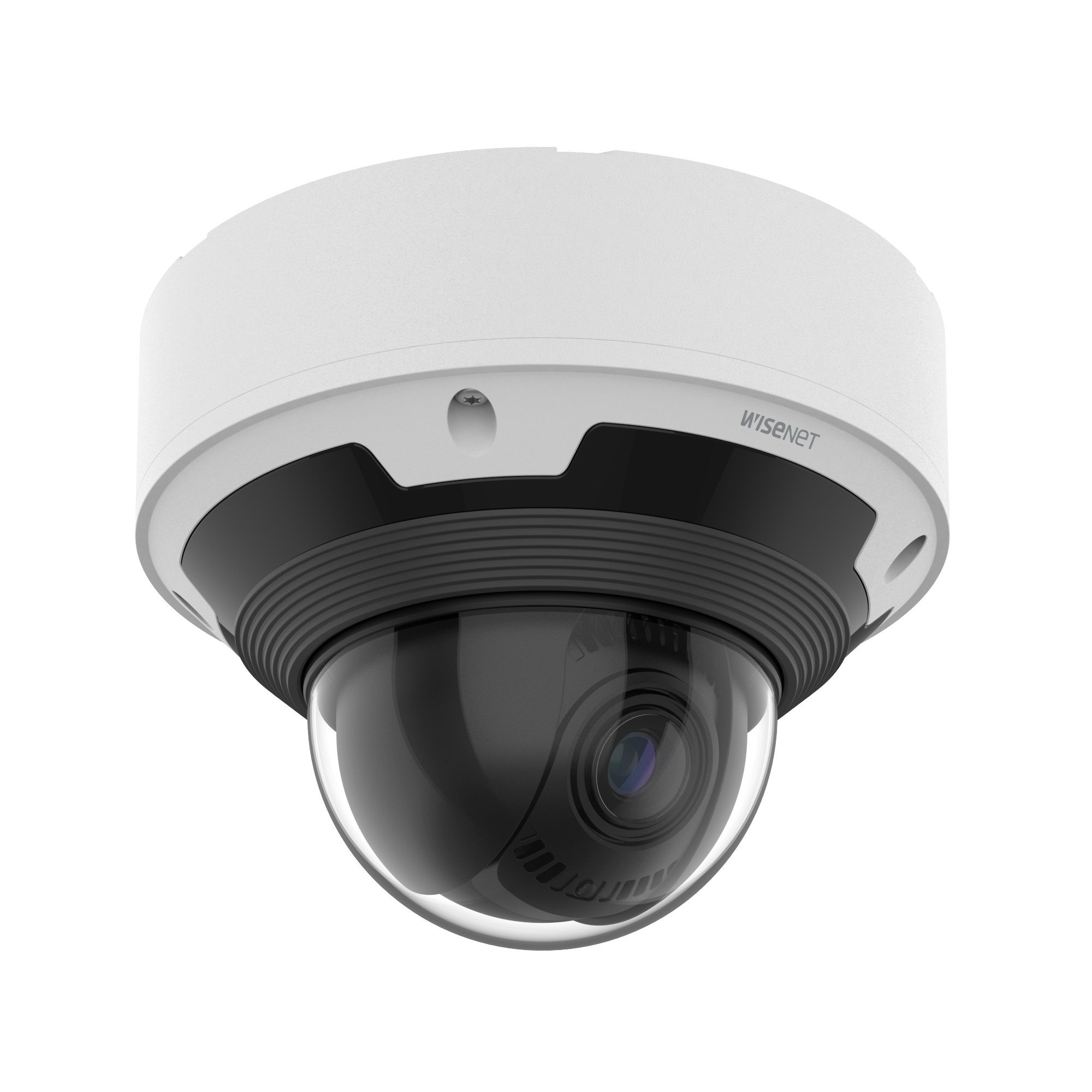

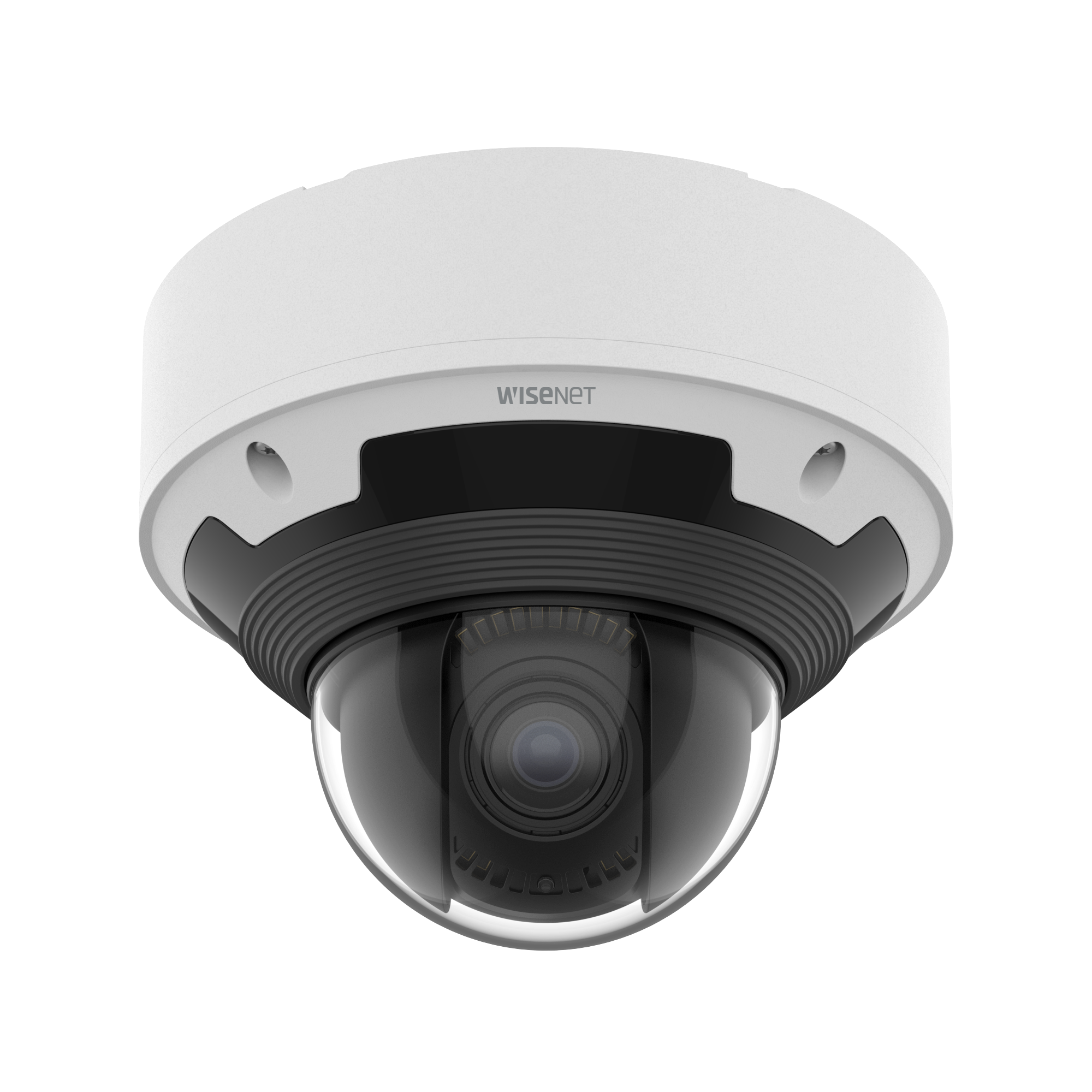

4K AI IR PTRZ Vandal Dome
Features:
- 4K resolution
- 4.4~9.3mm (2.1x) motorized varifocal
- Remote lens adjustment with PTRZ
- Color: 0.04 Lux (F1.3, 1/30sec, 30IRE), 0 Lux (IR LED on)
- Maximum 30 fps (H.265/H.264)
- IR viewable length: 15m (49.21ft), 30m(98.43ft) based on scene
- Day & Night (ICR), extremeWDR (120 dB)
- Hard-coated dome bubble
- WiseNR(Based on AI engine), WiseStream III(Based on AI engine)
- Analytics events based on AI engine (NPU) : Object detection (Person/Face/Vehicle - car, truck, bus, bicycle, motorcycle/License plate)
- IVA (Virtual line/Area, Enter/Exit, Loitering, Direction, Intrusion)
- Analytics events : Defocus detection, Motion detection, Tampering, Fog detection
- Audio detection, Sound classification, Shock detection, Appear/Disappear
- IP66/IP67/IP6K9K, NEMA4X, IK10+, FIPS 140-2
- Operating temperature: -50°C~+55°C(-58°F ~ +131°F)
- Power: PoE+/12VDC, Metal shielded RJ-45
| Video | |
| Imaging Device | 1/1.8" progressive CMOS |
| Resolution | 3840x2160, 3328x1872, 3072x1728, 2592x1944, 2688x1520, 1920x1080, 1600x1200, 1280x1024, 1280x960, 1280x720, 1024x768, 800x600, 800x448, 720x576, 720x480, 640x480, 640x360, 320x240 |
| Max. Framerate | H.265/H.264: Max. 30fps/25fps(60Hz/50Hz)MJPEG: Max. 15fps/12fps(60Hz/50Hz) |
| Min. Illumination | Color: 0.03Lux(F1.3, 1/30sec, 30IRE)BW: 0.003Lux(F1.3, 1/30sec, 30IRE), 0Lux(IR LED on) |
| Lens | |
| Focal Length (Zoom Ratio) | 4.4~9.3mm(2.1x) motorized varifocal |
| Max. Aperture Ratio | F1.3(Wide) ~ F2.15(Tele) |
| Angular Field of View | H: 113°(Wide)~47°(Tele)V: 58°(Wide)~26°(Tele)D: 138°(Wide)~54°(Tele) |
| Min. Object Distance | 0.5m(1.64ft) |
| Focus Control | Simple focus, Manual |
| Lens Type | P-iris(IR corrected) |
| Pan / Tilt / Rotate | |
| Pan / Tilt / Rotate Range | Remote adjustment(Max. 200cycles)0°~350° / 0°~85° / 0°~340° |
| Operational | |
| Camera Title | Displayed up to 85 characters |
| Day & Night | Auto(ICR) |
| Backlight Compensation | BLC, HLC, WDR, SSDR |
| Wide Dynamic Range | extremeWDR (120dB) |
| Digital Noise Reduction | WiseNRⅡ(Based on AI engine), SSNRⅤ |
| Digital Image Stabilization | Support |
| Defog | Support |
| Motion Detection | 8ea, 8point Polygonal zones |
| Privacy Masking | 32ea, 4point Quadrangle zones- Color : Gray, Green, Red, Blue, Black, White- Mosaic |
| Gain Control | Off / Max Gain / Manual |
| White Balance | ATW / Narrow ATW / AWC / Manual / Indoor / Outdoor |
| LDC | Support (Fill/stretch mode) |
| Electronic Shutter Speed | Minimum / Maximum / Prefer / Anti flicker (2~1/12,000sec)Auto Prefer shutter control(Based on AIengine) |
| Analytics | Classified object type : Person/Face/Vehicle/License plateAttributes : Vehicle(Type:car/bus/truck/motorcycle/bicycle)Support DetectionShotAnalytics events based on AI engine - Object detection, Virtual line(Crossing/Direction), Virtual area(Loitering/Intrusion/Enter/Exit)Analytics events - Defocus detection, Motion detection, Tampering, Fog detection, Virtual area(Appear/Disappear)* Audio detection, Sound classification(with NW I/O box SPM-4210) |
| Alarm Events | When alarm trigger occurred - File upload(image) : e-mail/FTP - Notification : e-mail\n Recording : SD/SDHC/SDXC or NAS recording at event triggers - Alarm output(with NW I/O box SPM-4210) - Handover(PTZ preset, Send message by HTTP/HTTPS/TCP) |
| IR Viewable Length | 15m(49.21ft)30m(98.43ft) based on scene |
| Network | |
| Ethernet | Metal shielded RJ-45(10/100/1000BASE-T) |
| Video Compression | H.265/H.264: Main/High, MJPEG |
| Smart Codec | Manual(5ea area), WiseStreamⅡ, WiseStreamⅢ(Based on AI engine) |
| Bitrate Control | H.264/H.265: CBR or VBRMJPEG: VBR |
| Streaming | Unicast(20 users) / Multicast\nMultiple streaming(Up to 10 profiles, 3 virtual channel support) |
| Protocol | IPv4, IPv6, TCP/IP, UDP/IP, RTP(UDP), RTP(TCP), RTCP,RTSP, NTP, HTTP, HTTPS, SSL/TLS, DHCP, FTP, SMTP,ICMP, IGMP, SNMPv1/v2c/v3(MIB-2), ARP, DNS, DDNS, QoS, UPnP, Bonjour, LLDP, SRTP (TCP, UDP Unicast) |
| Security | TPM 2.0 (FIPS 140-2 level 2)HTTPS(SSL) Login Authentication\nDigest Login Authentication, IP Address Filtering ,User access log,802.1X Authentication(EAP-TLS, EAP-LEAP, EAP-PEAPMSCHAPv2), Device Certificate(Hanwha Techwin Root CA, pre-installed), Secure by defaultcertificate,Secure OS/Boot/Storage, Verify firmware forgery |
| Application Programming Interface | ONVIF Profile S/G/T/M, SUNAPI(HTTP API), Wisenet open platform |
| General | |
| Webpage Language | English, Korean, Chinese, French, Italian, Spanish, German, Japanese, Russian, Portuguese, Czech, Polish, Turkish, Dutch, Greek, Hungarian |
| Edge Storage | Micro SD/SDHC/SDXC 2slot Max. 1TB (512GB * 2) |
| Memory | 4GB RAM, 512MB Flash |
| Environmental & Electrical | |
| Operating Temperature / Humidity | -50°C~+55°C(-58°F ~ +131°F) * Start up should be done at above -30°C\n0~95%RH(noncondensing) Humidity control /w AIR vent |
| Storage Temperature / Humidity | -50°C ~ +60°C(-58°F ~ +140°F) / Less than 90% RH |
| Certification | IP66/IP67/IP6K9K, NEMA4X, IK10+ |
| Input Voltage | PoE+(IEEE802.3at type 2, Class4) |
| Power Consumption | PoE+: Max 22.5W, typical 12.1W |
| Mechanical | |
| Color / Material | White / Aluminum, Hard-coated dome bubble |
| RAL Code | RAL9003 |
| Product Dimensions / Weight | Ø180x135mm(7.09x5.31"), 2000g(4.41 lb) |
| Compatible Conduit hole / Gangbox | 19.1mm(3/4")(M25), single, double, 4" octagon, 4" square |
| Hanging Mount (Dome) | SBP-187HMW |
| Certifications & Standards | |
| EMC | EN 50121-4, FCC 47 CFR 15 Subpart B Class A, ICES-3(A)/NMB-3(A), CE/UKCA - EN 55032 Class A,EN 50130-4, EN 61000-3-2, EN 61000-3-3, VCCI CISPR 32 Class A, RCM AS/NZS CISPR 32 Class A, KS C 9832 Class A , KS C 9835 |
| Safety | UL 62368-1, CAN/CSA C22.2 NO. 62368-1, IEC 62471 |
| Environment | EN IEC 63000, IEC 60529 IP66/IP67, ISO 20653 IP6K9K, IEC 62262 IK10+, NEMA 250 type 4X |
| DORI (EN62676-4 standard) | |
| Detect (25PPM/ 8PPF) | Wide: 51.7m(166.77ft) / Tele: 176.6m(579.49ft) |
| Observe (63PPM/ 19PPF) | Wide: 20.3m(66.71ft) / Tele: 70.7m(231.80ft) |
| Recognize (125PPM/ 38PPF) | Wide: 10.2m(33.35ft) / Tele: 35.3m(115.90ft) |
| Identify (250PPM/ 76PPF) | Wide: 5.1m(16.68ft) / Tele: 17.7m(57.95ft) |
