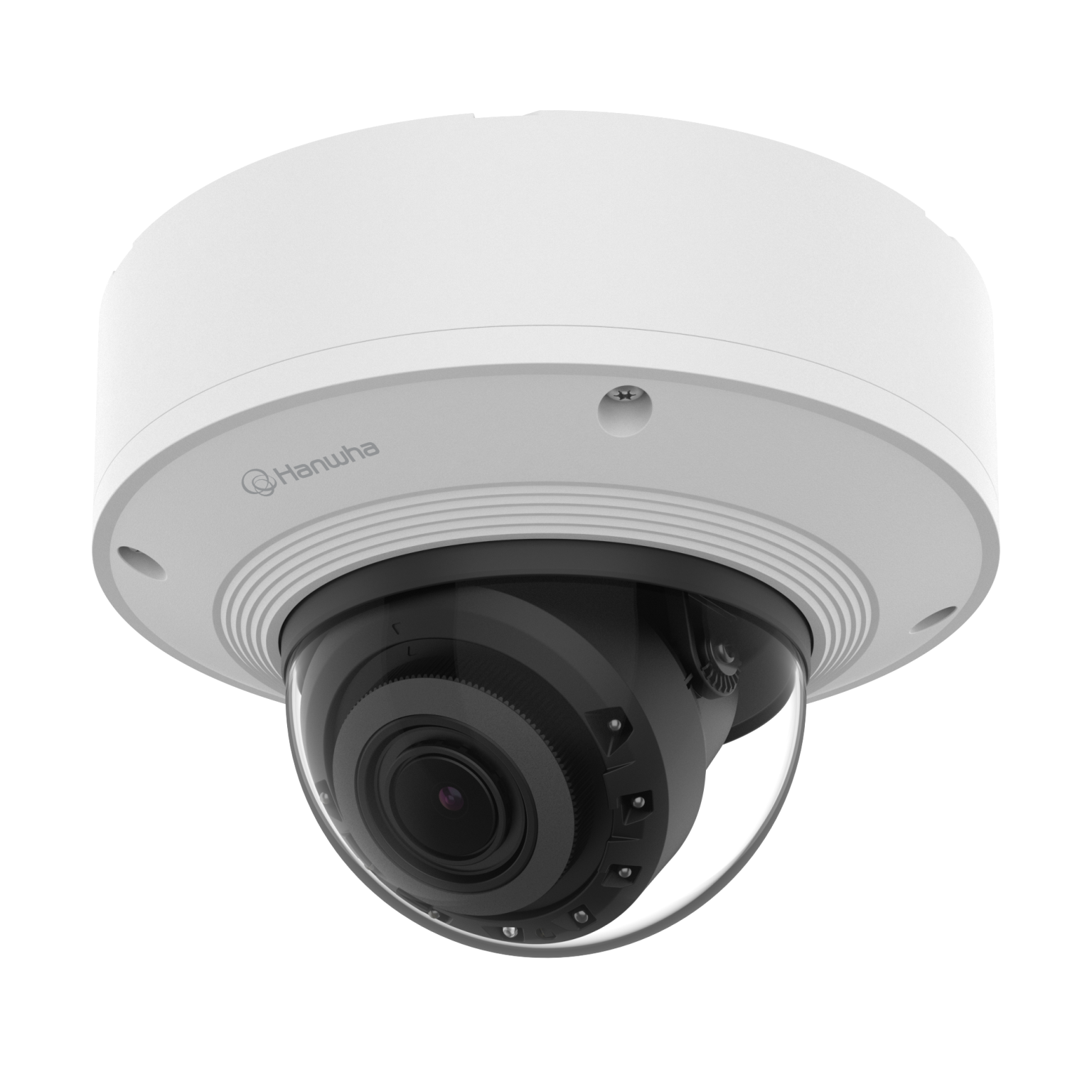

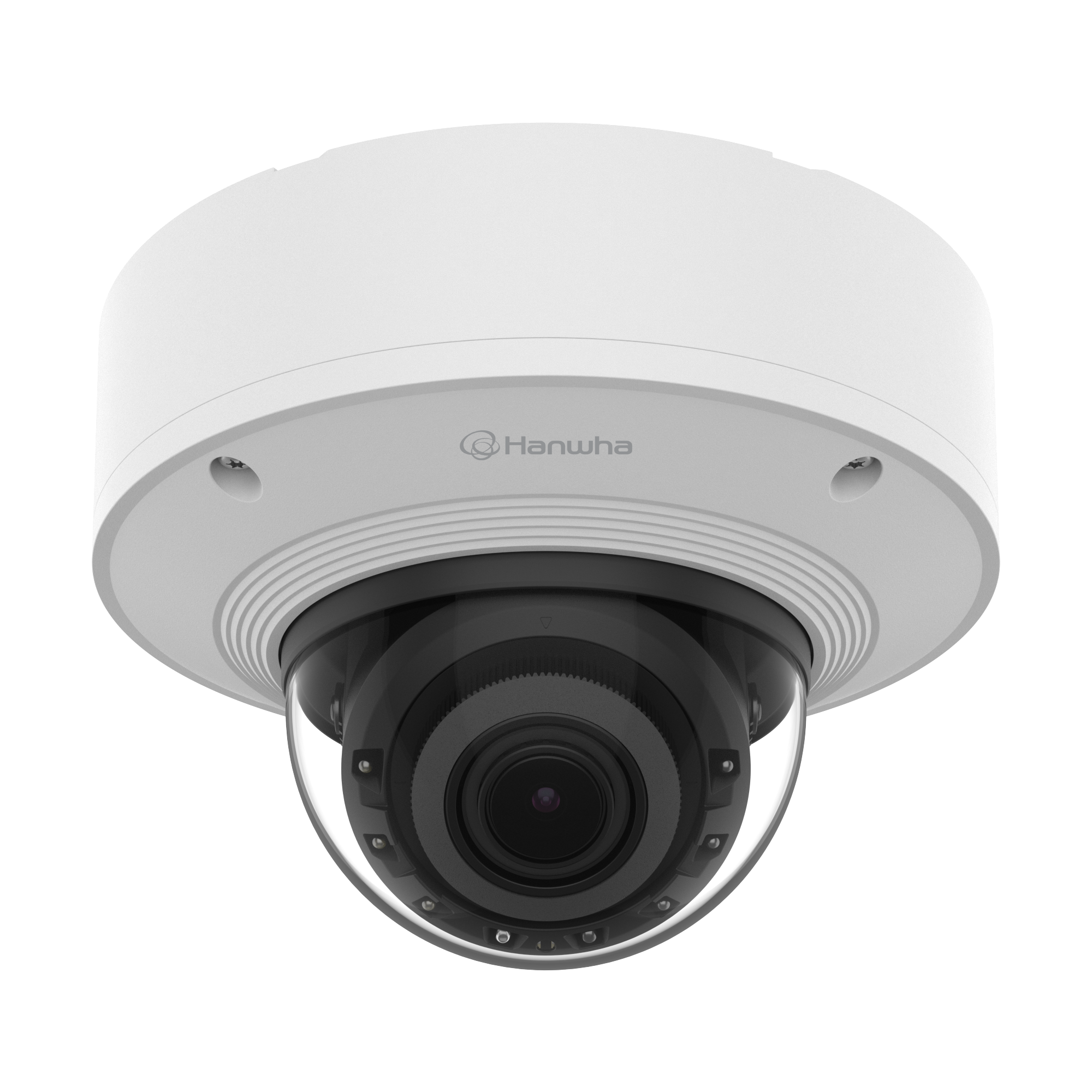

Hanwha - XNV-A8085R - 5MP IR Outdoor Vandal Dome AI Camera
Part number:
Price:
• 5MP resolution (1/2.8” sensor)
• 3.3~9.3mm (2.8x) motorized varifocal
• Analytics events based on an AI engine
• Support BestShot and full attributes
• Support Dynamic Privacy Masking
• extremeWDR, WiseNRⅡ, WiseStream (Based on AI engine)
• Support Wisepower (Power monitoring) and Multiple power modes PoE+, PoE, DC12V
• 2 SD slots edge storage
• IP66/IP67/IP6K9K, NEMA4X, IK11, NEMA-TS 2(2.2.7.2-8, 2.2.8, 2.2.9)
| Video | |
|---|---|
| Imaging Device Size | 1/2.8" |
| Type | CMOS |
| Resolution | 2560x1920, 2560x1440, 1920x1080, 1600x1200, 1280x960, 1280x720, 1024x768, 800x600, 640x480, 640x360, 320x240, 320x180 |
| Max. Framerate | H.265/H.264: 30fps/25fps (60Hz/50Hz) MJPEG: 30fps (@5MP Max. 5fps) |
| Min. Illumination (Lux) | Color (1/30sec, 30IRE): 0.04 BW (1/30sec, 30IRE): 0.004 |
| Video Out | USB: USB Type C. Preview and installation ONLY. Requires WiFi dongle. |
| Lens | |
| Focal Length (mm) | 3.3~9.3 |
| Zoom Ratio | Optical 2.8x |
| Max Aperture Ratio (F number) | Wide: 1.3 / Tele: 2.3 |
| Angular Field of View | Horizontal: 99°~31° Vertical: 71°~23° Diagonal: 133°~39° |
| Min. Object Distance | 0.5m (1.64ft) |
| Focus Control | Simple focus, Manual |
| Lens Type | P iris (IR corrected) |
| Pan / Tilt / Rotate | |
| Pan / Tilt / Rotate Range | Pan: 0°~360° Tilt: -45°~85° Rotate: 0°~355° |
| Operational | |
| Day & Night | Auto (ICR) |
| Backlight Compensation | BLC, HLC, WDR, SSDR |
| Wide Dynamic Range (dB) | 120 |
| Digital Noise Reduction | WiseNRⅡ (Based on AI engine), SSNRⅤ |
| Digital Image Stabilization | Support (built-in gyro sensor) |
| Defog | Support |
| Motion Detection | Quantity: 8ea, Shape: 8point Polygonal zones |
| Privacy Masking | Quantity: 32ea, Shape: 8point Polygonal zones Color: Gray, Green, Red, Blue, Black, White, Mosaic, Purple, Yellow |
| Dynamic Privacy Masking Color | Gray, Green, Red, Blue, Black, White, Mosaic, Purple, Yellow |
| Gain Control | Off, Max gain, Manual |
| White Balance | ATW, NarrowATW, AWC, Manual, Indoor, Outdoor |
| LDC | Support (Fill/stretch mode) |
| Electronic Shutter | Mode: Minimum, Maximum, Anti flicker, Prefer shutter control (Based on AI engine) Speed Range: 2~1/30,000 sec |
| Video Rotation | Flip, Mirror, Hallway view (90°/270°) |
| Alarm Interface | In/Out: 2 configurable I/O ports 12VDC output, Support extra alarm I/O via optional I/O box |
| Alarm Triggers | Analytics, Network disconnect, Alarm input, Time schedule, MQTT subscription, Case tampering, Day/Night, Storage disruption |
| Alarm Events | File upload (image): e-mail/FTP/SFTP, File upload (video clip): FTP/SFTP, Notification: e-mail, Recording: SD/SDHC/SDXC or NAS recording at event triggers, Alarm output, Handover: PTZ preset, send message by HTTP/HTTPS/TCP, Audio clip playback, MQTT: publication |
| Audio In | Selectable (mic in/line in) |
| Audio Out | Line out |
| Light Type | IR LED |
| Light Viewable Length | IR WiseIR PoE+: 50m (164.04ft) / PoE: 30m (98.43ft) |
| IR Wavelength | 850nm |
| Analytics | |
| Classified Object Type | Person, Face, Vehicle, License plate |
| Attributes | Person: Upper/Lower clothes color, Gender, Bag Vehicle: Type (car, bus, truck, motorcycle, bicycle), Color Face: Age, Gender, Face mask, Glasses |
| Thumbnail | BestShot |
| Analytics Events (Based on AI Engine) | Object detection, Virtual line (Crossing/Direction), Motion detection, Face mask detection, Social distancing detection, Slip & fall detection, Virtual area (Loitering/Intrusion/Enter/Exit/Appear/Disappear) |
| Normal Analytics Events | Defocus detection, Tampering, Audio detection, Shock detection |
| Business Intelligence (Based on AI Engine) | People counting, Queue management, Heatmap, Vehicle counting, Crowd counting |
| Network | |
| Ethernet | Metal shielded RJ-45 (10/100/1000BASE-T) |
| Video Compression | H.265/H.264: Main/Baseline/High, MJPEG |
| Audio Compression | G.711(PCM): 8kHz(64kbps), G.726(ADPCM): 8kHz(16/24/32/40kbps), AAC-LC: 16kHz(48kbps), OPUS: 48kHz(64kbps) |
| Smart Codec | WiseStream (Based on AI engine) |
| Bitrate Control | H.265/H.264: CBR or VBR, MJPEG: VBR |
| Streaming | Unicast: Up to 20 users, Multicast: Support |
| Multiple Streaming | Up to 5 profiles, 3 virtual channel support |
| Protocol | IPv4, IPv6, TCP/IP, UDP/IP, RTP(UDP), RTP(TCP), RTCP, RTSP, NTP, HTTP, HTTPS, SSL/TLS, DHCP, FTP, SFTP, ICMP, IGMP, SNMPv1/v2c/v3(MIB-2), ARP, DNS, DDNS, QoS, UPnP, Bonjour, LLDP, CDP, SRTP(TCP, UDP Unicast), MQTT, SMTP(StartTLS), Syslog |
| Application Programming Interface | |
| API | ONVIF S, G, T, M, SUNAPI (HTTP API), Hanwha Vision Open Platform, Direct Cloud Connection Support |
| Security | |
| OS / Firmware Protect | Encrypted firmware, Secure boot, Signed firmware |
| User authentication | Digest authentication, Prevent brute-force attack |
| Network authentication | IEEE 802.1X (EAP-TLS, EAP-LEAP, EAP-PEAP, MSCHAPv2) |
| Secure Communication | HTTPS, WSS (WebSocket Secure), SRTP |
| Access Control | IP-based access control, MAC-based access control, Auto logout |
| Data Protect | Encryption credentials, Encrypt compress for live recording file export |
| Audit | Access / System / Event Log management |
| Device ID | Device certificate (Hanwha Vision Root CA) |
| Secure Storage | SDcard partition encrypt (AES-256), Secure element |
| Supply Chain Security | SBOM |
| Security Certificate | Secure element (FIPS 140-3 level3, CC EAL6+), Consumer IoT Security Standard (ETSI EN 303 645) |
| General | |
| SoC Type | Wisenet 9 (Dual NPU Support) |
| Memory | RAM: 4GB, Flash: 8GB eMMC |
| Edge Storage | Micro SD/SDHC/SDXC Max. 1TB x 2 slots (Total 2TB) *Hanwha Vision branded microSD cards have been certified and recommended for OnCloud edge recording. |
| Environmental & Electrical | |
| Operating Condition | Temperature: -50°C~+60°C (-58°F~+140°F) Humidity: 0~100% RH (condensing) +74°C (+165°F) (Max) based on NEMA-TS 2(2.2.7) Start up should be done at above -30°C Humidity control with AIR vent |
| Storage Condition | Temperature: -50°C~+60°C (-58°F~+140°F) Humidity: 0~90% RH (non-condensing) |
| EPA (Effective Projected Area) | 0.017㎡ |
| Input Voltage | PoE (IEEE802.3af, Class3), PoE+ (IEEE802.3at, Class4), 12VDC |
| Power Consumption | PoE+: Max. 14.2W, typical 9.4W PoE: Max. 12.9W, typical 8.3W 12VDC: Max. 14.5W, typical 9.5W |
| WisePower | Power monitoring |
| Mechanical | |
| Color | White |
| Material | Aluminum, Hard-coated dome |
| Material Management Declaration | RoHS (EU RoHS directive 2011/65/EU and IEC/EN 63000:2018), REACH (Regulation (EC) No. 1907/2006), Conflict mineral policy (Section 1502 of US Dodd Frank Act) |
| RAL Code | RAL9003 |
| Product Dimensions | ø180x125mm (ø7.09x4.92") |
| Product Weight | 1,860g (4.10 lb) |
| Compatible Conduit Hole | 19.1mm (3/4") (M25) |
| Compatible Gang Box | Single, Double, 4" Octagon, Square |
| Certifications & Standards | |
| EMC | FCC 47 CFR 15 Subpart B Class A, ICES-3(A)/NMB-3(A), CE/UKCA - EN55032 Class A, EN 50130-4, EN 61000-3-2, EN 61000-3-3, VCCI CISPR 32 Class A, RCM AS-NZS CISPR 32 Class A, KS C 9832 Class A, KS C 9835 |
| Safety | UL 62368-1, CAN/CSA C22.2 NO. 62368-1, IEC 62471 |
| Environment | IEC/EN 63000, IEC 60529 IP66, IEC 60529 IP67, IEC 62262 IK10, NEMA TS 2-2013 (2.2.7, 2.2.8, 2.2.9), NEMA 250 type 4X, IEC 60068-2-1, IEC 60068-2-2, IEC 60068-2-6, IEC 60068-2-14, IEC 60068-2-27, IEC 60068-2-78 |
| DORI (EN62676-4 standard) | |
| Detect (25PPM / 8PPF) | Wide: 43.7m (143.47ft) / Tele: 184.6m (605.71ft) |
| Observe (63PPM / 19PPF) | Wide: 17.5m (57.39ft) / Tele: 73.8m (242.29ft) |
| Recognize (125PPM / 38PPF) | Wide: 8.7m (28.69ft) / Tele: 36.9m (121.14ft) |
| Identify (250PPM / 76PPF) | Wide: 4.4m (14.35ft) / Tele: 18.5m (60.57ft) |
Name
Description
Size
Downloads
File
Datasheet
0.9mb
File
CAD Common
0.5mb
File
Installation Guide Sheet
0.2mb
The Hanwha Vision XNV-A8085R is a 5MP outdoor vandal dome AI camera powered by the Wisenet 9 platform, featuring a 1/2.8" CMOS sensor delivering 2560 x 1920 resolution at 30fps. It includes a 3.3~9.3mm motorized varifocal lens with a 99° to 31° horizontal FOV. The WiseIR offers up to 50 metres of night vision with PoE+ and a sensitivity of 0.004 lux in black and white. Video enhancements include WiseNR II, SSNR V, 120dB WDR, DIS with gyro sensor, and defog. AI analytics include object detection of people, faces, vehicles and licence plates, as well as virtual lines, areas and face masks. Social distancing detection, slip and fall detection, and business intelligence are also included, as well as people and vehicle counting, queue management and heatmaps. The camera is rated IP66, IP67, IK10, NEMA 4X, and NEMA TS-2, operating from -50°C to +60°C. It features dual microSD slots up to 2TB total, a FIPS 140-3 Level 3 secure element, and is powered by PoE/PoE+ or 12VDC.
