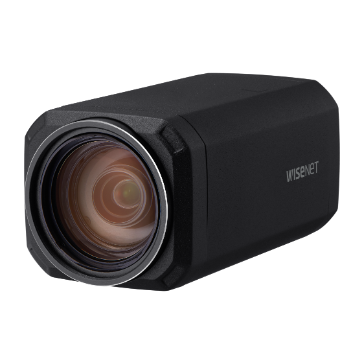

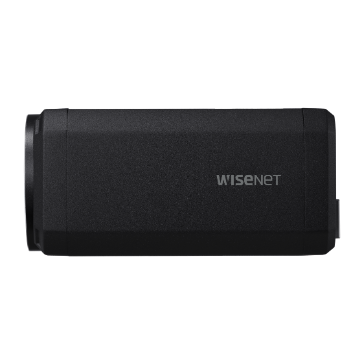

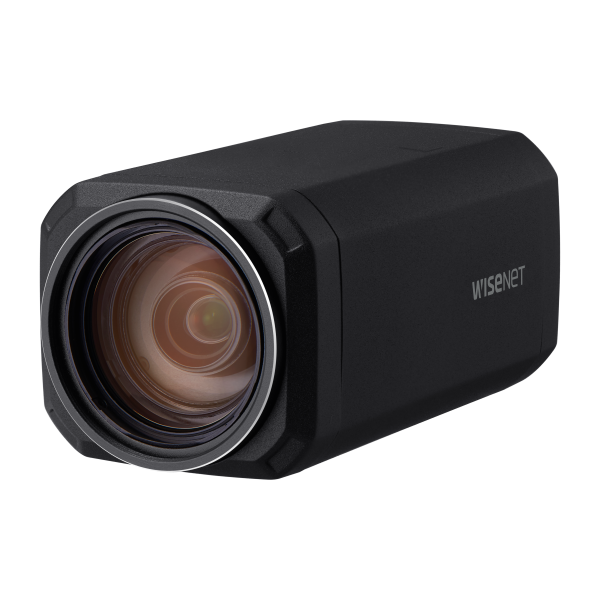

Hanwha - XNZ-L6320 - 2MP 32x Zoom Box
Part number:
XNZ-L6320
Price:
Wisenet X powered by Wisenet 5 network zoom box camera, 2MP, Full HD(1080p) @60fps, 32X optical zoom lens (4.44mm ~ 142.6mm) (61.8º ~ 2.19º), triple codec H.265/H.264/MJPEG with WiseStream II technology, 120dB WDR, advanced video analytics and sound classification, true D/N, built-in SD card slot, HLC, defog detection, 12VDC/PoE
Features:
- 2 Megapixel (1920 x 1080) resolution
- 4.44 ~ 142.6mm Optical 32x zoom, Digital 32x zoom
- 60fps@all resolutions (H.265 / H.264)
- H.265, H.264, MJPEG Codec, Multiple streaming
- Day & Night (ICR), WDR (120dB), Defog
- Video & Audio Analytics
- PoE, SD/SDHC/SDXC memory slot
| Technical Specifications | |
| Video | |
| Imaging Device | 1/2.8" 2MP CMOS |
| Min. Illumination | Color: 0.05 lux(F1.6, 1/30sec) B/W: 0.005 lux(F1.6, 1/30sec) |
| Video Out | CVBS: 1.0 Vp-p / 75Ω composite, 720x480(N), 720x576(P), for installation |
| Lens | |
| Focal Length (Zoom Ratio) | 4.44~142.6mm(32x) motorized varifocal |
| Max. Aperture Ratio | F1.6(Wide) ~ F4.4(Tele) |
| Angular Field of View | H: 61.8°(Wide)~2.19°(Tele), V: 36.2°(Wide)~1.24°(Tele) |
| Min. Object Distance | 1.5m(4.92ft) |
| Focus Control | Auto, One shot AF |
| Lens Type | DC auto iris |
| Operational |
| Camera Title | Displayed up to 85 characters |
| Day & Night | Auto(ICR) |
| Backlight Compensation | BLC, HLC, WDR, SSDR |
| Wide Dynamic Range | 120dB |
| Digital Noise Reduction | SSNRⅤ |
| Digital Image Stabilization | Support |
| Defog | Support |
| Motion Detection | 8ea, 8point polygonal zones |
| Privacy Masking | 32ea, polygonal zones - Color: Grey/Green/Red/Blue/Black/White - Mosaic |
| Gain Control | Low / Middle / High |
| White Balance | ATW / AWC / Manual / Indoor / Outdoor |
| LDC | Support |
| Electronic Shutter Speed | Minimum / Maximum / Anti flicker (2~1/12,000sec) |
| Video Rotation | Flip, Mirror |
| Analytics | Defocus detection, Directional detection, Fog detection, Face detection, Motion detection, Digital auto tracking, Appear/Disappear, Enter/Exit, Loitering, Tampering, Virtual line, Audio detection, Sound classification |

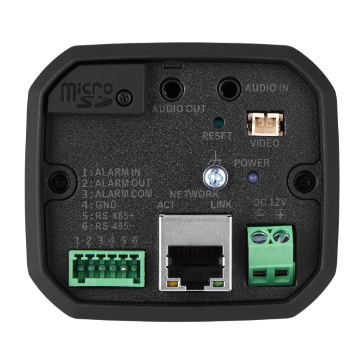

| Alarm I/O | Input 1ea / Output 1ea |
| Alarm Triggers | Analytics, Network disconnect, Alarm input |
| Alarm Events | File upload via FTP and E-Mail |
| Notification via E-Mail | |
| SD/SDHC/SDXC or NAS recording at Event Triggers | |
| Alarm output | |
| Handover | |
| Audio In | Selectable(Mic in/Line in), |
| Supply voltage: 2.5VDC(4mA), Input impedance: 2K Ohm | |
| Audio Out | Line out, Max. output level: 1Vrms |
| Network |
| Ethernet | RJ-45(10/100BASE-T) |
| Video Compression | H.265/H.264: Main/Baseline/High, MJPEG |
| Smart Codec | Manual(5ea area) |
| WiseStreamⅡ | |
| Bitrate Control | H.264/H.265: CBR or VBR |
| MJPEG: VBR | |
| Streaming | Unicast(20 users) / Multicast |
| Multiple streaming(Up to 10 profiles) | |
| Protocol | IPv4, IPv6, TCP/IP, UDP/IP, RTP(UDP), RTP(TCP), RTCP,RTSP, NTP, HTTP, HTTPS, SSL/TLS, DHCP, FTP, SMTP, ICMP, IGMP, SNMPv1/v2c/v3(MIB-2), ARP, DNS, DDNS, QoS, PIM-SM, UPnP, Bonjour, LLDP, SRTP |
| Security | HTTPS(SSL) Login Authentication |
| Digest Login Authentication | |
| IP Address Filtering | |
| User access Log | |
| 802.1X Authentication(EAP-TLS, EAP-LEAP) | |
| Application Programming Interface | ONVIF Profile S/G/T |
| SUNAPI(HTTP API) | |
| Wisenet open platform | |
| Environmental & Electrical |
| Operating Temperature / Humidity | -10°C ~ +55°C(-14°F ~ +131°F) / Less than 90% RH |
| Storage Temperature / Humidity | -50°C ~ +60°C(-58°F ~ +140°F) / Less than 90% RH |
| Mechanical |
| Color / Material | Black / Metal |
| Product dimensions / weight | 72x63.9x135.4mm(2.83x2.52x5.33"), 480g(1.06 lb) |
| DORI |
| Detect (25PPM/ 8PPF) | Wide: 64.2m(210.62ft) / Tele: 2009.0m(6592.2ft) |
| Observe (63PPM/ 19PPF) | Wide: 25.7m(84.32ft) / Tele: 803.6m(11.30ft) |
| Recognize (125PPM/ 38PPF) | Wide: 12.8m(2.24ft) / Tele: 401.8m(2636.48ft) |
| Identify (250PPM/ 76PPF) | Wide: 6.4m(21.0ft) / Tele: 200.9m(659.12ft) |
