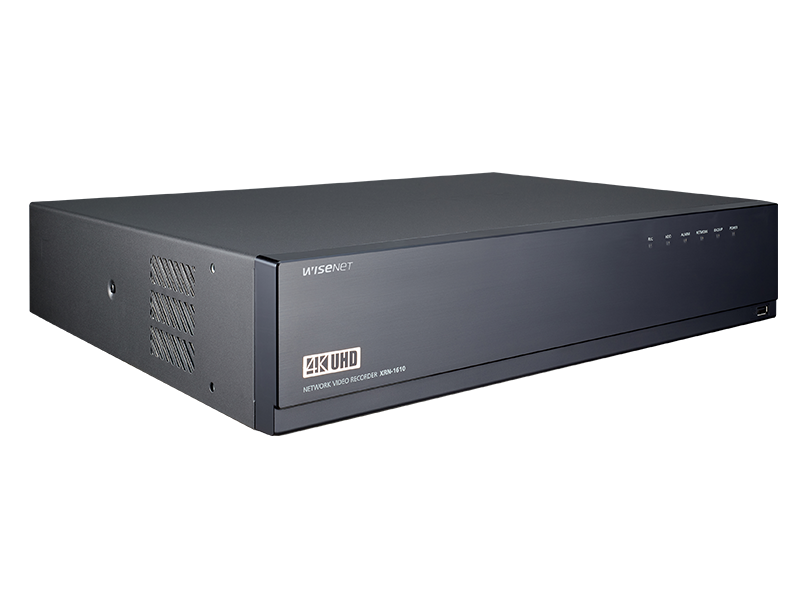

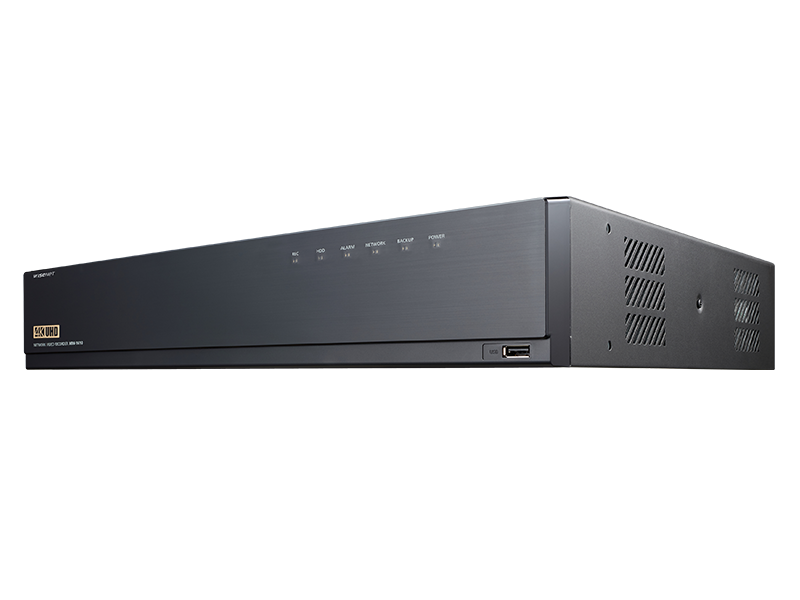

The XRN-1610 network video recorder supports 4K UHD resolution and up to 16 channels of video, additional features include 12MP IP camera recording/display, H.265/H.264/MJPEG streaming, auto-recovery backup, 8 fixed internal SATA HDDs (48TB max.), e-SATA/iSCSI storage, WiseStream compression technology, dual monitor output, hallway view support and fisheye dewarping on web and CMS, the XRN-1610 is ideal for small to medium size applications that require high-resolution recording, and the bandwidth reducing efficiency of H.265 compression and WiseStream technology.
- Up to 16CH @12MP Each
- Supports H.265/H.264/MJPEG
- Max 8 HDDs
- HDMI/VGA Local dual monitor
- HDMI up to UHD (4K) resolution
- ONVIF camera compliant
|
Display |
Inputs / Resolution |
Up to 16CH / CIF ~ 12MP |
|
|
Video |
|||
|
Protocols |
Wisnet, ONVIF, RTSP |
||
|
|
|||
|
|
Local Display |
1x HDMI, 1x VGA dual monitor |
|
|
|
Multi Screen Display |
[Local monitor] 1 / 2V / 3V / 4 / 6 / 8 / 9 / 13 / 16 / Auto sequence, |
|
|
Live |
[Web] 1 / 4 / 9 / 16 / Auto sequence |
||
|
|
|||
|
|
[Local monitor] 12MP (30fps), 8MP (120fps), 5MP (180fps), 3MP (240fps), |
||
|
|
Performance |
||
|
|
2MP (480fps), 720p (480fps), D1 (480fps) |
||
|
Performance |
[Web] 5MP (30fps), 3MP (60fps), 2MP (120fps), 720p (240fps), D1 (480fps) |
||
|
|
|||
|
Operating System Embedded |
Linux |
||
|
|
Compression |
H.265, H.264, MJPEG, WiseStream (H.265, H.264) |
|
|
|
Recording Bandwidth |
180Mbps |
|
|
|
Resolution |
CIF ~ 12MP |
|
|
Recording |
Mode |
Manual, Schedule (Continuous / Event), Event (Pre / Post) |
|
|
|
Alarm input (8), Video loss, Camera event (Sensor, MD, Video analytics), |
||
|
|
Event Trigger |
||
|
|
VA event (Tampering, Enter / Exit, Passing, Virtual- line, (Dis)Appear, |
||
|
|
Event Action |
Face detection, Audio Detection), Defocus camera event |
|
|
|
E-mail, PTZ preset, Alarm out, Buzzer, Monitor out |
||
|
|
Playback Bandwidth |
32Mbps (16CH simultaneously) |
|
|
|
Performance |
Max. 4 users (Set 1, Remote 3) |
|
|
Search & |
Mode |
Date & Time (Calendar) / Event log list / Text search (POS, ANPR) |
|
|
Simultaneous Playback |
Max. 16CH (Local monitor, Network) |
||
|
Playback |
|||
|
Resolution |
CIF ~ 12MP |
||
|
|
|||
|
|
Fish-eye Dewarping |
Processed on Web / CMS |
|
|
|
Playback Control |
Fast/Slow Forward/Backward, Move one step up/down |
|
|
Storage |
Default Built-in |
0TB ~ 8TB |
|
|
Internal / External |
8 SATA (Max. 64TB) / 1 e-SATA, iSCSI (Max. 384TB * PROMISE VESSRAID R2600) |
||
|
|
|||
|
Backup |
File Backup |
BU/EXE (GUI), JPG/AVI (Network) |
|
|
Function |
Max. 16CH play, Date-time/title display |
||
|
|
|||
|
Sensor |
Input / Output |
8 / 4 (NO/NC selectable) |
|
|
Audio |
input / compression |
16CH (Network) / G.711, G.726, AAC (16/48KHz) |
|
|
Network |
audio communication 2-way (Pass-through between camera and client software) |
||
|
|
TCP/IP, UDP/IP, RTP (UDP), RTP (TCP), RTSP, NTP, HTTP, DHCP (Server, |
||
|
Protocol Support |
|||
|
Client), PPPoE, SMTP, ICMP, IGMP, ARP, DNS, DDNS, uPnP, HTTPS, SNMP, |
|||
|
DDNS |
|
ONVIF (Profile-S), SUNAPI (Server, Client) |
|
|
|
Hanwha DDNS, 3rd party DDNS |
||
|
Transmission Bandwidth |
Max. 256Mbps (iSCSI off ) (128Mbps, iSCSI on) |
||
|
Max. Remote Users |
Search 3 / Live unicast 10 / Live multicast 20 |
||
|
IP |
|
IPv4 / IPv6 |
|
|
Security |
|
IP address filtering, User access log, 802.1x authentication, |
|
|
|
Encryption (ID/PW, Recording, Transmission, Backup) |
||
|
|
|
||
|
Language |
GUI / Web |
English, French, German, Italian, Spanish, Russian, Turkish, Polish, Dutch, |
|
|
Swedish, Czech, Portuguese, Danish, Rumanian, Serbian, Croatian, |
|||
|
OS |
|
Hungarian, Greek, Norwegian, Finnish, Korean, Chinese, Japanese, Thai (GUI) |
|
|
|
Supported OS : Window XP (Service pack 2 or above), Vista, 7, 8, 10, Mac OS X (10.7 or above) |
||
|
|
|
Plug-in free Webviewer |
|
|
Web Browser |
|
- Supported Browser : Google Chrome 47, MS Edge 20, Mozilla Firefox |
|
|
|
- WMF : 1CH live (800 x 600), Setup |
||
|
|
|
Plug-in Webviewer |
|
|
Viewer |
Type |
- Supported Browser : MS Explorer 11, Apple Safari 9 * Mac OS X only Wisenet WAVE, |
|
|
SSM, Webviewer, SmartViewer, Wisenet Mobile viewer |
|||
|
Software |
CMS Support |
SDK / CGI (SUNAPI) |
|
|
Functions |
Register |
Auto mode, Manual mode |
|
|
|
|||
|
|
|
1) IP address, Add profile edit, Bitrate, Compression, GOP, Quality |
|
|
Camera Setup Setup Items |
2) Camera event setup - MD, VA : Tampering, Enter / Exit, |
||
|
Passing (Virtual- line), (Dis)Appear, Face detection, Audio detection) |
|||
|
|
|
3) Video setup (Simple focus, Brightness / Contrast, Flip / Mirror, IRIS, |
|
|
|
|
WDR, D&N, SSNR, Shutter, SSDR, DIS) |
|
|
Easy Configuration |
4) Fisheye dewarping, Hallway view setup, Camera webpage |
||
|
Setup Wizard (Language Date/Time, Network, Auto camera configuration) |
|||
|
ARB (Auto Recovery Backup) |
Yes |
||
|
PTZ |
Control / Preset |
Via GUI, Webviewer, SPC-2000 (USB) / 255 presets |
|
|
|
OS |
Android, iOS |
|
|
|
Protocol Support |
RTP, RTSP, HTTP, CGI (SUNAPI) |
|
|
Smart Phone |
|||
|
Control |
Live (16CH) : Multi-profile support, Playback |
||
|
|
Max. Remote Users |
Search 3 / Live unicast 10 / Live multicast 20 |
|
|
|
|||
|
system control |
Mouse, IR Remote, Web, SPC-2000 (USB) |
||
|

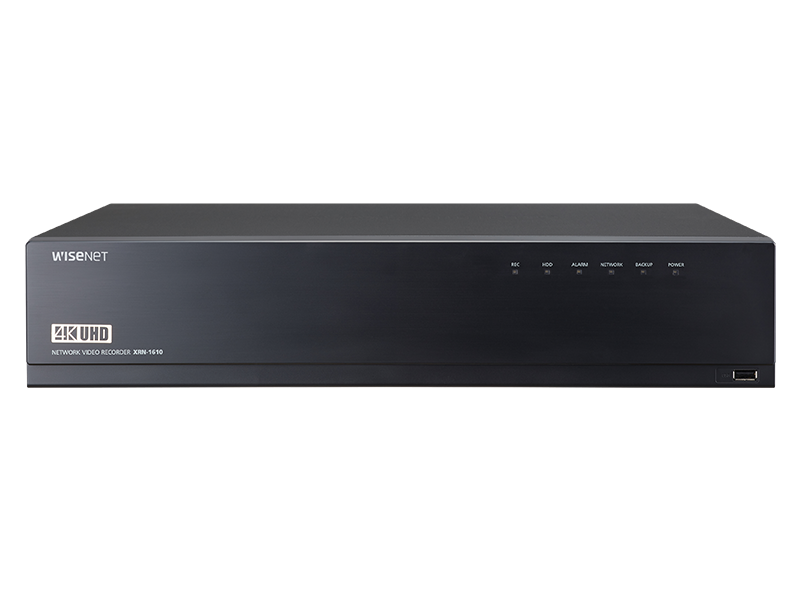

inDicaToR / inTeRface |
Power status LED 1ea, HDD action LED 1ea, Alarm status LED 1ea |
||
|
Front |
Indicator |
||
|
Record status LED 1ea, Network action LED 1ea, Backup LED 1ea |
|||
|
USB |
|||
|
|
2ea (Front 1ea / Rear 1ea) |
||
|
|
HDMI |
1ea (Supports Live / Playback / Setup) |
|
|
|
Support up to 4K (3840 x 2160, Single monitor mode) |
||
|
|
VGA |
||
|
|
1ea (Supports Playback, Setup, Live screen up to 16 division mode) |
||
|
Connections |
Audio / Serial |
Out 1ea (RCA, Line) / 1ea for UPS (Plan to support as project basis) |
|
|
|
Ethernet |
2ea (LAN/WAN, 1Gbps) - LAN : Uploink to camera switch |
|
|
|
- WAN : Uplink to CMS/LAN |
||
|
|
Alarm |
||
|
|
In 8ea (Terminal block) / Out 4ea (Terminal block) Yes |
||
|
System |
Reset / Power Cord |
(Factory reset, Alarm reset) / Included |
|
|
|
|
||
|
Log |
Log List |
Max. 20,000 (System log, Event log each) |
|
|
General |
Input Voltage / Current |
100 ~ 240V AC |
|
|
Electrical |
|||
|
Power Consumption |
Max. 76.3W (8 HDDs) |
||
|
|
|||
|
Environmental |
Operating Temperature |
+0°C ~ +40°C (+32°F ~ +104°F) |
|
|
Operating Humidity |
20% ~ 85% RH |
||
|
|
Color / Material |
Black / Metal |
|
|
Mechanical |
Dimensions (WxHxD) |
440.0 x 88.0 x 384.8mm (17.32" x 3.46" x 15.15") (2U) |
|
|
|
Weight |
5.44Kg (11.99 lb) |
|
