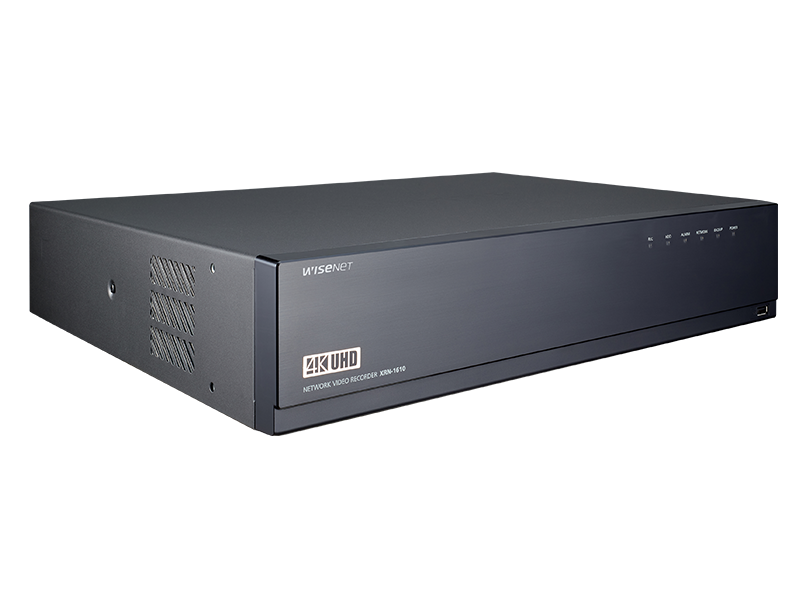

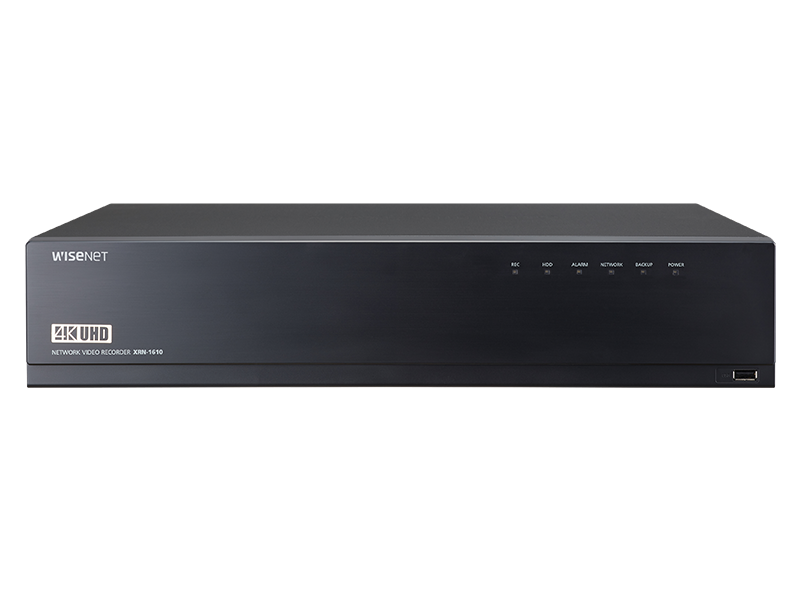

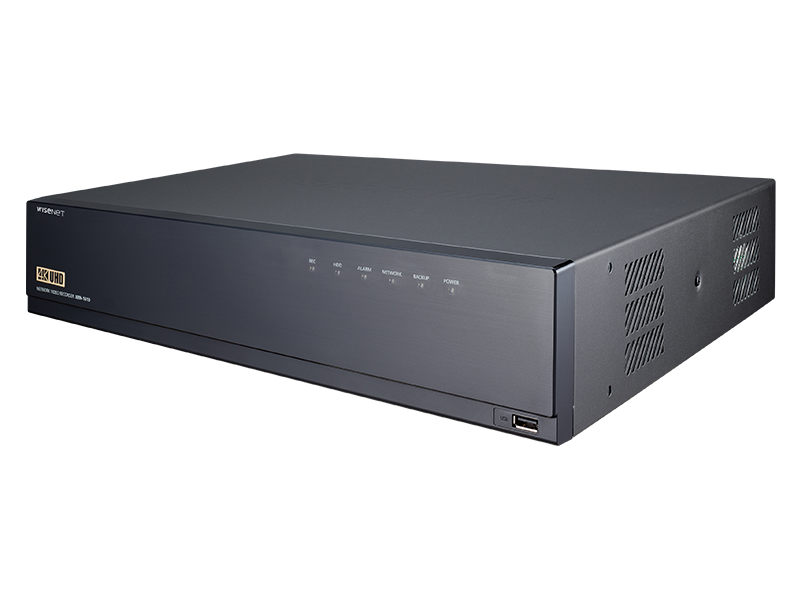

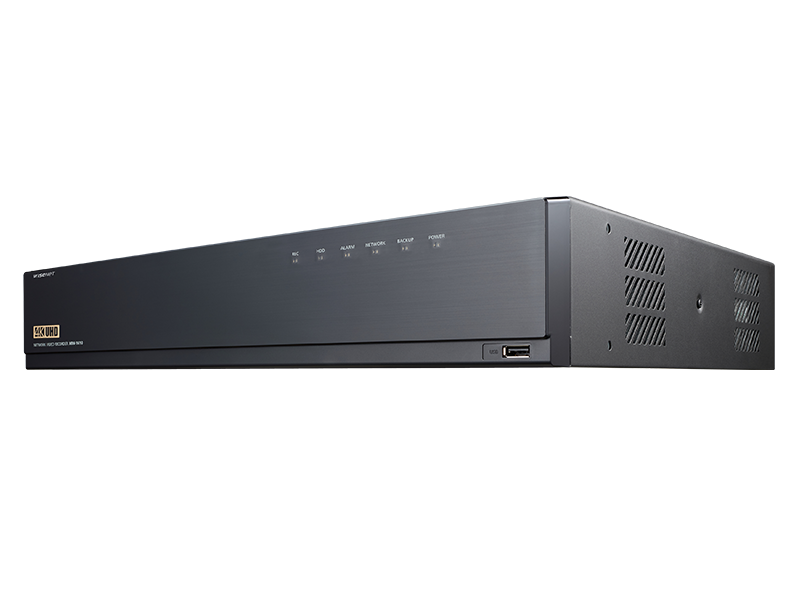

Hanwha - XRN-1610 - 16CH 4K 180Mbps NVR
The XRN-1610 network video recorder supports 4K UHD resolution and up to 16 channels of video, additional features include 12MP IP camera recording/display, H.265/H.264/MJPEG streaming, auto-recovery backup, 8 fixed internal SATA HDDs (48TB max.), e-SATA/iSCSI storage, WiseStream compression technology, dual monitor output, hallway view support and fisheye dewarping on web and CMS, the XRN-1610 is ideal for small to medium size applications that require high-resolution recording, and the bandwidth reducing efficiency of H.265 compression and WiseStream technology.
Part number:
XRN-1610
Price:
- Up to 16CH @12MP Each
- Supports H.265/H.264/MJPEG
- Max 8 HDDs
- HDMI/VGA Local dual monitor
- HDMI up to UHD (4K) resolution
- ONVIF camera compliant
| Display | Inputs / Resolution | Up to 16CH / CIF ~ 12MP | |
| Video | |||
| Protocols | Wisnet, ONVIF, RTSP | ||
| Local Display | 1x HDMI, 1x VGA dual monitor | ||
| Multi Screen Display | [Local monitor] 1 / 2V / 3V / 4 / 6 / 8 / 9 / 13 / 16 / Auto sequence, | ||
| Live | [Web] 1 / 4 / 9 / 16 / Auto sequence | ||
| [Local monitor] 12MP (30fps), 8MP (120fps), 5MP (180fps), 3MP (240fps), | |||
| Performance | |||
| 2MP (480fps), 720p (480fps), D1 (480fps) | |||
| Performance | [Web] 5MP (30fps), 3MP (60fps), 2MP (120fps), 720p (240fps), D1 (480fps) | ||
| Operating System Embedded | Linux | ||
| Compression | H.265, H.264, MJPEG, WiseStream (H.265, H.264) | ||
| Recording Bandwidth | 180Mbps | ||
| Resolution | CIF ~ 12MP | ||
| Recording | Mode | Manual, Schedule (Continuous / Event), Event (Pre / Post) | |
| Alarm input (8), Video loss, Camera event (Sensor, MD, Video analytics), | |||
| Event Trigger | |||
| VA event (Tampering, Enter / Exit, Passing, Virtual- line, (Dis)Appear, | |||
| Event Action | Face detection, Audio Detection), Defocus camera event | ||
| E-mail, PTZ preset, Alarm out, Buzzer, Monitor out | |||
| Playback Bandwidth | 32Mbps (16CH simultaneously) | ||
| Performance | Max. 4 users (Set 1, Remote 3) | ||
| Search & | Mode | Date & Time (Calendar) / Event log list / Text search (POS, ANPR) | |
| Simultaneous Playback | Max. 16CH (Local monitor, Network) | ||
| Playback | |||
| Resolution | CIF ~ 12MP | ||
| Fish-eye Dewarping | Processed on Web / CMS | ||
| Playback Control | Fast/Slow Forward/Backward, Move one step up/down | ||
| Storage | Default Built-in | 0TB ~ 8TB | |
| Internal / External | 8 SATA (Max. 64TB) / 1 e-SATA, iSCSI (Max. 384TB * PROMISE VESSRAID R2600) | ||
| Backup | File Backup | BU/EXE (GUI), JPG/AVI (Network) | |
| Function | Max. 16CH play, Date-time/title display | ||
| Sensor | Input / Output | 8 / 4 (NO/NC selectable) | |
| Audio | input / compression | 16CH (Network) / G.711, G.726, AAC (16/48KHz) | |
| Network | audio communication 2-way (Pass-through between camera and client software) | ||
| TCP/IP, UDP/IP, RTP (UDP), RTP (TCP), RTSP, NTP, HTTP, DHCP (Server, | |||
| Protocol Support | |||
| Client), PPPoE, SMTP, ICMP, IGMP, ARP, DNS, DDNS, uPnP, HTTPS, SNMP, | |||
| DDNS | ONVIF (Profile-S), SUNAPI (Server, Client) | ||
| Hanwha DDNS, 3rd party DDNS | |||
| Transmission Bandwidth | Max. 256Mbps (iSCSI off ) (128Mbps, iSCSI on) | ||
| Max. Remote Users | Search 3 / Live unicast 10 / Live multicast 20 | ||
| IP | IPv4 / IPv6 | ||
| Security | IP address filtering, User access log, 802.1x authentication, | ||
| Encryption (ID/PW, Recording, Transmission, Backup) | |||
| Language | GUI / Web | English, French, German, Italian, Spanish, Russian, Turkish, Polish, Dutch, | |
| Swedish, Czech, Portuguese, Danish, Rumanian, Serbian, Croatian, | |||
| OS | Hungarian, Greek, Norwegian, Finnish, Korean, Chinese, Japanese, Thai (GUI) | ||
| Supported OS : Window XP (Service pack 2 or above), Vista, 7, 8, 10, Mac OS X (10.7 or above) | |||
| Plug-in free Webviewer | |||
| Web Browser | - Supported Browser : Google Chrome 47, MS Edge 20, Mozilla Firefox | ||
| - WMF : 1CH live (800 x 600), Setup | |||
| Plug-in Webviewer | |||
| Viewer | Type | - Supported Browser : MS Explorer 11, Apple Safari 9 * Mac OS X only Wisenet WAVE, | |
| SSM, Webviewer, SmartViewer, Wisenet Mobile viewer | |||
| Software | CMS Support | SDK / CGI (SUNAPI) | |
| Functions | Register | Auto mode, Manual mode | |
| 1) IP address, Add profile edit, Bitrate, Compression, GOP, Quality | |||
| Camera Setup Setup Items | 2) Camera event setup - MD, VA : Tampering, Enter / Exit, | ||
| Passing (Virtual- line), (Dis)Appear, Face detection, Audio detection) | |||
| 3) Video setup (Simple focus, Brightness / Contrast, Flip / Mirror, IRIS, | |||
| WDR, D&N, SSNR, Shutter, SSDR, DIS) | |||
| Easy Configuration | 4) Fisheye dewarping, Hallway view setup, Camera webpage | ||
| Setup Wizard (Language Date/Time, Network, Auto camera configuration) | |||
| ARB (Auto Recovery Backup) | Yes | ||
| PTZ | Control / Preset | Via GUI, Webviewer, SPC-2000 (USB) / 255 presets | |
| OS | Android, iOS | ||
| Protocol Support | RTP, RTSP, HTTP, CGI (SUNAPI) | ||
| Smart Phone | |||
| Control | Live (16CH) : Multi-profile support, Playback | ||
| Max. Remote Users | Search 3 / Live unicast 10 / Live multicast 20 | ||
| system control | Mouse, IR Remote, Web, SPC-2000 (USB) | ||
| inDicaToR / inTeRface | Power status LED 1ea, HDD action LED 1ea, Alarm status LED 1ea | ||
| Front | Indicator | ||
| Record status LED 1ea, Network action LED 1ea, Backup LED 1ea | |||
| USB | |||
| 2ea (Front 1ea / Rear 1ea) | |||
| HDMI | 1ea (Supports Live / Playback / Setup) | ||
| Support up to 4K (3840 x 2160, Single monitor mode) | |||
| VGA | |||
| 1ea (Supports Playback, Setup, Live screen up to 16 division mode) | |||
| Connections | Audio / Serial | Out 1ea (RCA, Line) / 1ea for UPS (Plan to support as project basis) | |
| Ethernet | 2ea (LAN/WAN, 1Gbps) - LAN : Uploink to camera switch | ||
| - WAN : Uplink to CMS/LAN | |||
| Alarm | |||
| In 8ea (Terminal block) / Out 4ea (Terminal block) Yes | |||
| System | Reset / Power Cord | (Factory reset, Alarm reset) / Included | |
| Log | Log List | Max. 20,000 (System log, Event log each) | |
| General | Input Voltage / Current | 100 ~ 240V AC | |
| Electrical | |||
| Power Consumption | Max. 76.3W (8 HDDs) | ||
| Environmental | Operating Temperature | +0°C ~ +40°C (+32°F ~ +104°F) | |
| Operating Humidity | 20% ~ 85% RH | ||
| Color / Material | Black / Metal | ||
| Mechanical | Dimensions (WxHxD) | 440.0 x 88.0 x 384.8mm (17.32" x 3.46" x 15.15") (2U) | |
| Weight | 5.44Kg (11.99 lb) | ||
