Name: Samsung - XRN-1610S - 16CH 4K 180Mbps PoE+ NVR
Brand: Hanwha Vision
SKU: XRN-1610S

Home — Brands — Hanwha Vision — Recording Solutions — 16 Channel NVR —

Samsung - XRN-1610S - 16CH 4K 180Mbps PoE+ NVR

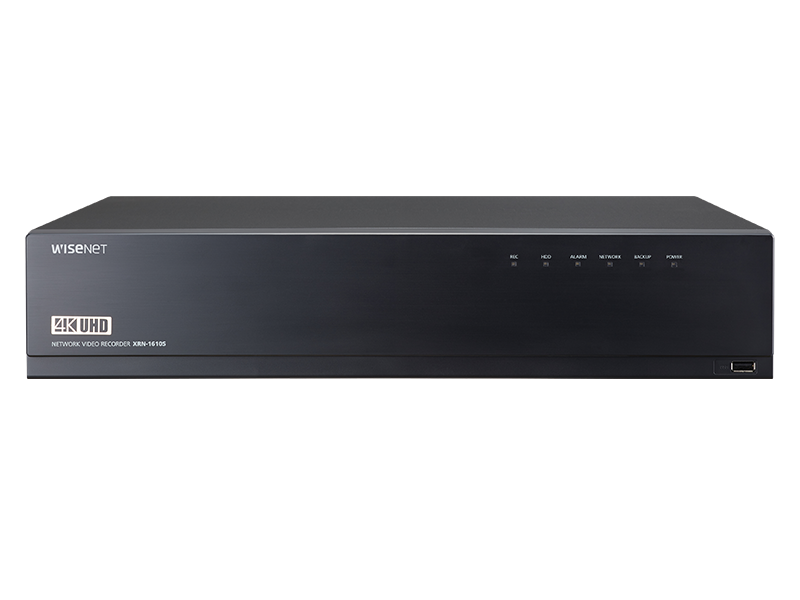

The XRN-1610S network video recorder supports 4K UHD resolution and up to 16 channels of video, additional features include 12MP IP camera recording/display, 16 PoE/PoE+ ports, H.265/H.264/MJPEG streaming, auto-recovery backup, 4 fixed internal SATA HDDs (24TB max.), e-SATA/iSCSI storage, WiseStream compression technology, dual monitor output, hallway view support and fisheye dewarping on web and CMS, the XRN-1610S is ideal for small to medium size applications that require high resolution recording, and the bandwidth reducing efficiency of H.265 compression and WiseStream technology.

Up to 16CH @12MP each
Supports H.265/H.264/MJPEG
Max 4 HDDs
HDMI/VGA local dual monitor
HDMI up to UHD (4K) resolution

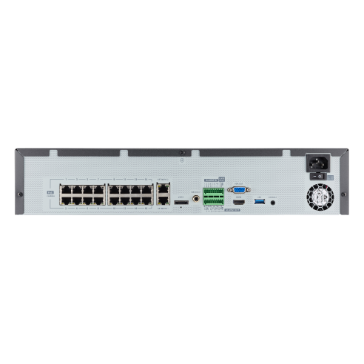

16 PoE/PoE+ ports
ONVIF camera compliant

Part number:

XRN-1610S

Price:

Dealers only

Add to Quote/Project Registration

Specifications

DISPLAY

Network
Camera

Inputs: Up to 16CH / CIF ~ 12MP

Protocols: Wisenet, ONVIF (Profile-S), RTSP

Live

Local Display: 1x HDMI / 1x VGA

Multi-Channel Display: [Local monitor] 1 / 2V / 3V / 4 / 6 / 8 / 9 / 13 / 16 / Auto sequence,
[Web] 1 / 4 / 9 / 16 / Auto sequence

PERFORMANCE

Operating System E	Embedded: Linux
Record	Compression: H.265, H.264, MJPEG Recording Bandwidth: 180Mbps Resolution: CIF ~ 12MP Mode: Manual, Schedule (Continuous / Event), Event (Pre / Post) Event Trigger: Alarm input (8), Video loss, Camera event (Sensor, MD, Video analytics), VA event (Tampering, Enter / Exit, Passing, Virtual- line, (Dis)Appear, Face Detection, Audio detection), Defocus camera event Event Action: e-Mail, PTZ Preset, Buzzer, Monitor Out
Storage	Default Built-In: 0TB ~ 8TB Internal : 4 SATA (Max. 36TB) / 1 e-SATA, iSCSI (Max. 384TB * PROMISE VESSRAID R2600)
Audio	Input/Output: 8 / 4 (NO/NC selectable Input / Compression : 16CH (Network) / G.711, G.726, AAC (16/48KHz) Audio Communication: 2-Way

NETWORK

Protocol	TCP/IP, UDP/IP, RTP (UDP), RTP (TCP), RTSP, NTP, HTTP, DHCP (Server, Client), PPPoE, SMTP, ICMP, IGMP, ARP, DNS, DDNS, uPnP, HTTPS, SNMP, ONVIF (Profile-S), SUNAPI (Server, Client)
DDNS	Hanwha DDNS, 3rd party DDNS
Security	IP address filtering, User access log, 802.1x authentication, Encryption (ID/PW, Recording, Transmission, Backup)
Viewer Software	Type: Wisenet WAVE, SSM, Webviewer, SmartViewer, Wisenet Mobile viewer CMS Support: SDK / CGI (SUNAPI)
