Hanwha - XRN-1610SA-24TB - WiseNet X Series 16-Channel 12MP PoE+ NVR with 24TB HDD
• Up to 16CH @12MP each
• 180Mbps recording throughput
• Supports H.265/H.264/MJPEG
• Maximum 4 HDDs
• HDMI/VGA local dual monitor
• HDMI up to UHD (4K) resolution
• 16 PoE/PoE+ ports with 220W Budget
• ONVIF camera compliant
• QR code
• P2P Service for easy access with Wisenet Mobile App
| Camera | |
| Inputs | Up to 16CH / CIF ~ 12MP |
| Protocols | Wisenet, ONVIF (Profile-S), RTSP |
| Live | |
| Local Display | 1x HDMI / 1x VGA |
| Multi-Channel Display | [Local monitor] 1 / 2V / 3V / 4 / 6 / 8 / 9 / 13 / 16 / Auto sequence, [Web] 1 / 4 / 9 / 16 / Auto sequence |
| PERFORMANCE | |
| Operating System | Embedded: Linux |
| Record | |
| Compression | H.265, H.264, MJPEG |
| Recording Bandwidth | 180Mbps |
| Resolution | CIF ~ 12MP |
| Mode | Manual, Schedule (Continuous / Event), Event (Pre / Post) |
| Event Trigger | Alarm input (8), Video loss, Camera event (Sensor, MD, Video analytics), VA event (Tampering, Enter / Exit, Passing, Virtual-line, (Dis)Appear, Face Detection, Audio detection), Defocus camera event |
| Event Action | e-Mail, PTZ Preset, Buzzer, Monitor Out |
| Storage | |
| Default Built-In | 0TB ~ 8TB |
| Internal | 4 SATA (Max. 32TB) / 1 e-SATA, iSCSI (Max. 384TB * PROMISE VESSRAID R2600) |
| Audio | |
| Input/Output | 16CH (Network) |
| Compression | G.711, G.726, AAC (16 / 48KHz) |
| Audio Communication | 2-Way |
| Network | |
| Protocol | TCP/IP, UDP/IP, RTP (UDP), RTP (TCP), RTSP, NTP, HTTP, DHCP (Server, Client), PPPoE, SMTP, ICMP, IGMP, ARP, DNS, DDNS, uPnP, HTTPS, SNMP, ONVIF (Profile-S), SUNAPI (Server, Client) |
| DDNS | Hanwha DDNS, 3rd party DDNS |
| Security | IP address filtering, User access log, 802.1x Authentication, Encryption (ID/PW, Recording, Transmission, Backup) |
| Viewer Software | |
| Type | Wisenet WAVE, SSM, Webviewer, SmartViewer, Wisenet Mobile viewer |
| CMS Support | SDK / CGI (SUNAPI) |

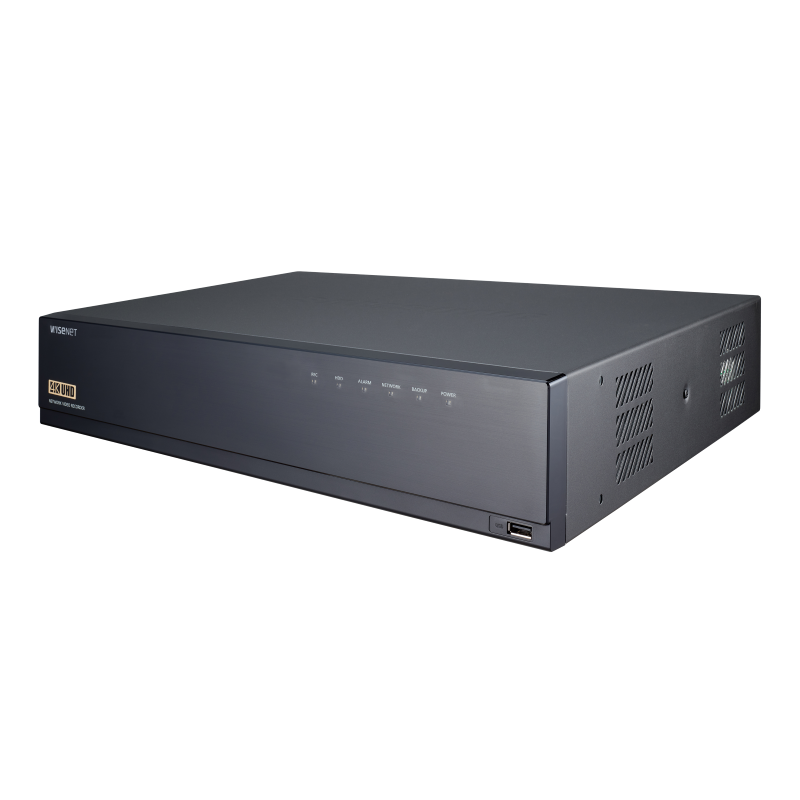

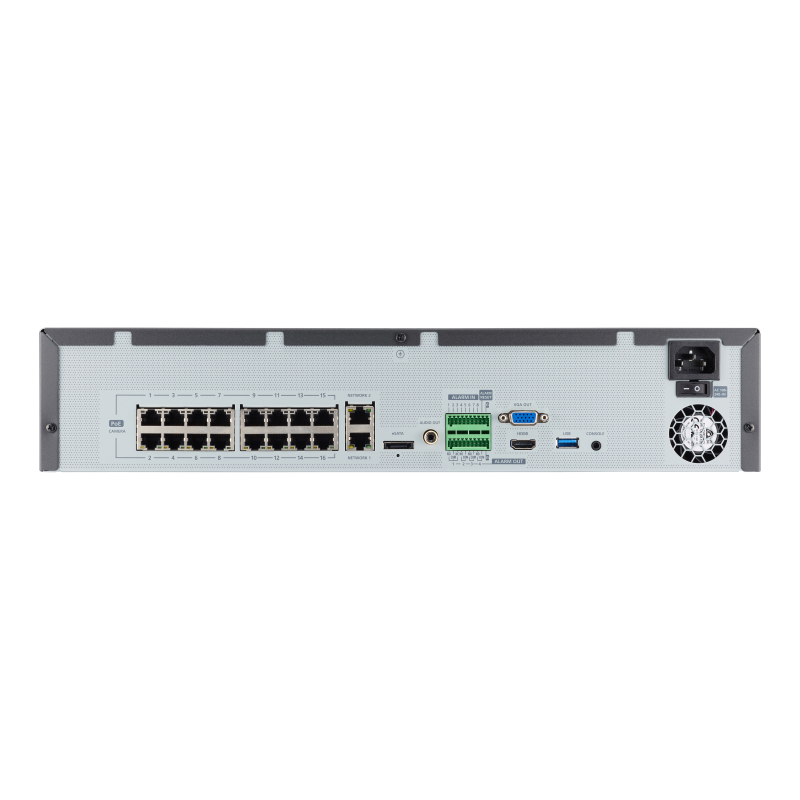

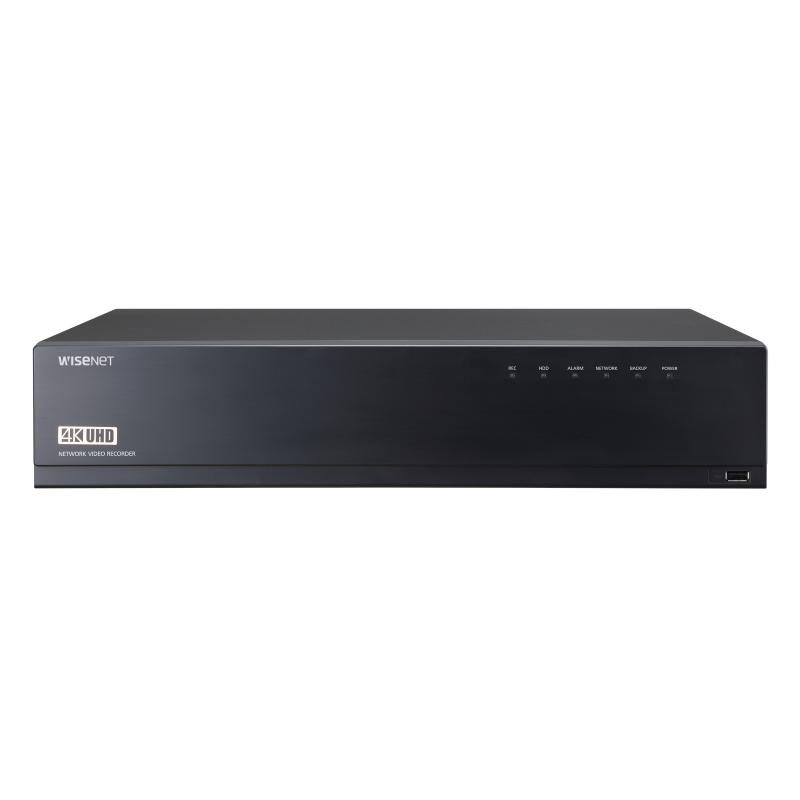

The XRN-1610SA network video recorder supports 4K UHD resolution and up to 16 channels of video. Additional features include 12MP IP camera recording/display, 16 PoE/PoE+ ports, H.265/H.264/MJPEG streaming, auto-recovery backup, 4 fixed internal SATA HDDs (24TB max.), e-SATA/iSCSI storage, WiseStream compression technology, dual monitor output, hallway view support and fisheye dewarping on web and CMS, the XRN-1610SA is ideal for small to medium size applications that require high resolution recording, and the bandwidth reducing efficiency of H.265 compression and WiseStream technology. QR code/P2P Service for easy access with Wisenet Mobile App
