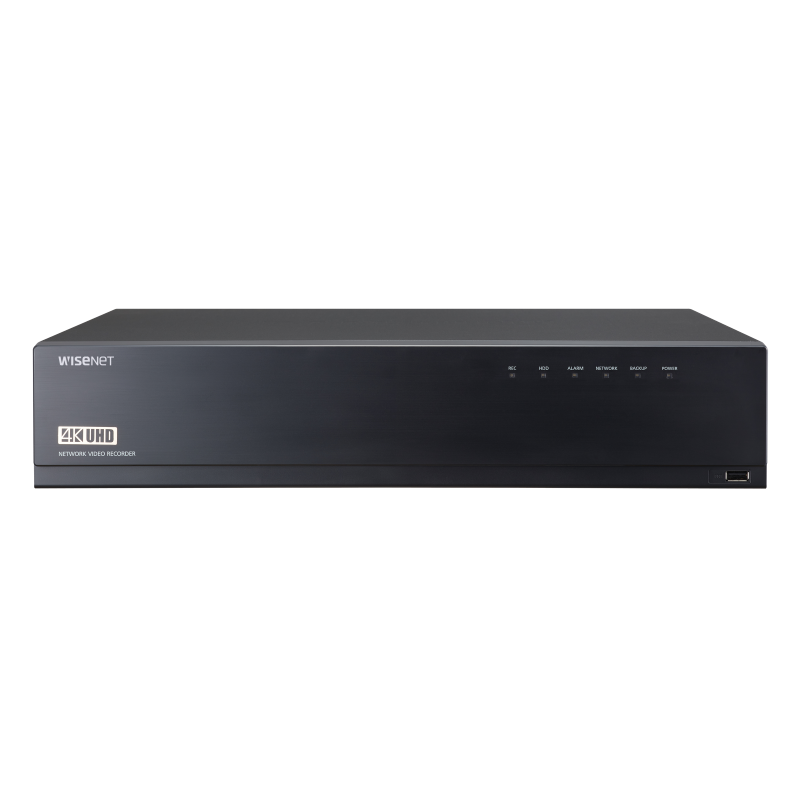

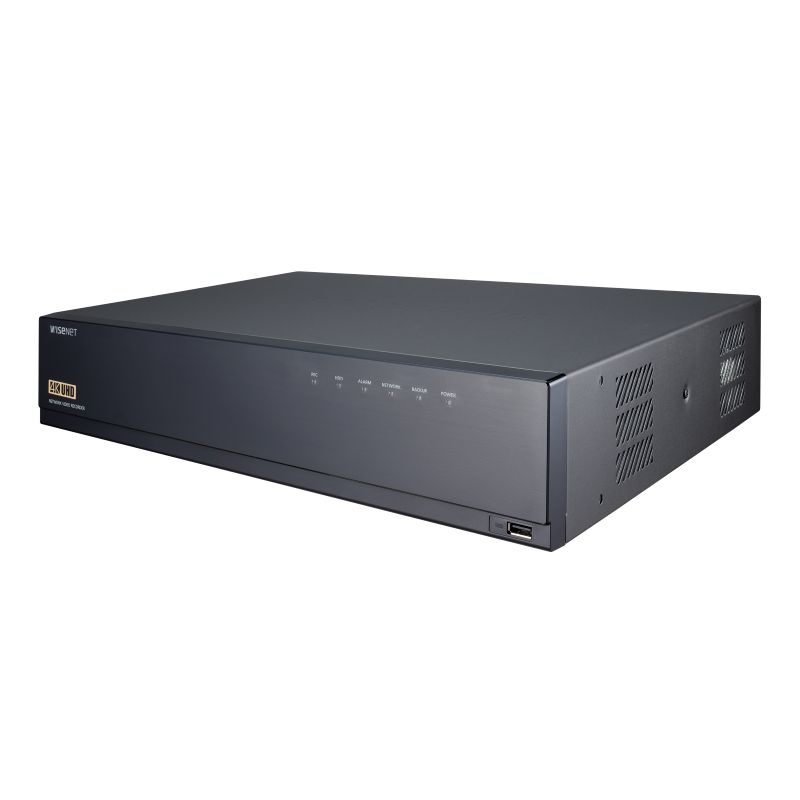

The XRN-1610SA network video recorder supports 4K UHD resolution and up to 16 channels of video. Additional features include 12MP IP camera recording/display, 16 PoE/PoE+ ports, H.265/H.264/MJPEG streaming, auto-recovery backup, 4 fixed internal SATA HDDs (24TB max.), e-SATA/iSCSI storage, WiseStream compression technology, dual monitor output, hallway view support and fisheye dewarping on web and CMS, the XRN-1610SA is ideal for small to medium size applications that require high resolution recording, and the bandwidth reducing efficiency of H.265 compression and WiseStream technology. QR code/P2P Service for easy access with Wisenet Mobile App
Features:
- Up to 16CH @12MP each
- 180Mbps recording throughput
- Supports H.265/H.264/MJPEG
- Maximum 4 HDDs
- HDMI/VGA local dual monitor
- HDMI up to UHD (4K) resolution
- 16 PoE/PoE+ ports with 220W Budget
- ONVIF camera compliant
- QR code/P2P Service for easy access with Wisenet Mobile App
| Technical Specifications | |
| DISPLAY | |
| Network Camera | Inputs: Up to 16CH / CIF ~ 12MP Protocols: Wisenet, ONVIF (Profile-S), RTSP |
| Live | Local Display: 1x HDMI / 1x VGA Multi-Channel Display: [Local monitor] 1 / 2V / 3V / 4 / 6 / 8 / 9 / 13 / 16 / Auto sequence, |
| PERFORMANCE | |
| Operating System E | Embedded: Linux |
| Record |
Compression: H.265, H.264, MJPEG Recording Bandwidth: 180Mbps Resolution: CIF ~ 12MP Mode: Manual, Schedule (Continuous / Event), Event (Pre / Post) Event Trigger: Alarm input (8), Video loss, Camera event (Sensor, MD, Video analytics), Event Action: e-Mail, PTZ Preset, Buzzer, Monitor Out |
| Storage | Default Built-In: 0TB ~ 8TB Internal : 4 SATA (Max. 32TB) / 1 e-SATA, iSCSI (Max. 384TB * PROMISE VESSRAID R2600) |
| Audio | Input/Output: 16CH (Network) Compression: G.711, G.726, AAC (16 / 48KHz) Audio Communication: 2-Way |
| NETWORK |
| Protocol | TCP/IP, UDP/IP, RTP (UDP), RTP (TCP), RTSP, NTP, HTTP, DHCP (Server, Client), PPPoE, SMTP, ICMP, IGMP, ARP, DNS, DDNS, uPnP, HTTPS, SNMP, ONVIF (Profile-S), SUNAPI (Server, Client) |
| DDNS | Hanwha DDNS, 3rd party DDNS |
| Security | IP address filtering, User access log, 802.1x Authentication, Encryption (ID/PW, Recording, Transmission, Backup) |
| Viewer Software | Type: Wisenet WAVE, SSM, Webviewer, SmartViewer, Wisenet Mobile viewer CMS Support: SDK / CGI (SUNAPI) |
