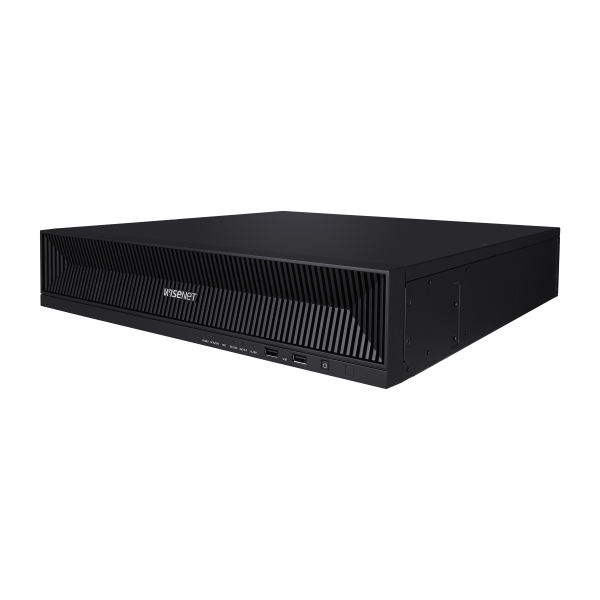

8K NVR (Intel based), 8TB RAW, 16 channels, H265,H264, MJPEG, 8 fixed internal SATA HDDs (10TB max per HDD), ARB (Automatic Recovery Backup), 140 Mbps recording / up to 32 Mbps playback, Dual stream recording, WiseStream technology, HDMI/VGA dual display, max. resolution of 32MP recording/display and fisheye dewarping on web and CMS, web UI 2.0 (no plugins required), AI search (Wisenet AI cameras only), QR Code
Features :
- Up to 16 channels, Supports up to 32 megapixel camera resolution
- 140Mbps network camera recording
- Support 4K video out on HDMI monitor
- Support dual monitor HDMI/VGA video out
- H.265, H.264, MJPEG compression
- WiseStream support
- Maximum 8 internal HDDs (80TB)
- ARB & failover (N+1), dynamic event, Wisenet AI metadata search support
| Display | ||
| Network camera | Inputs | Maximum 16 Channels |
| Resolution | 32MP ~ CIF | |
| Protocols | SUNAPI, ONVIF | |
| Decoding | Local Display | FHD : HDMI & VGA Dual monitor UHD : HDMI Single monitor |
| Multi Screen Display | [Local Monitor] 1/ 2V/ 2H/ 3V/ 4/ 6/ 8/ 9/ 13/ 16/ Sequence [Web] 1/ 2H/ 2V/ 3V/ 4/ 6/ 8/ 9 | |
| Resolution | [Local Monitior] FHD Clone mode : 32MP(15fps, H.265 Only), 12MP(30fps, H.265 Only), 8.3MP(50fps), 1080p(240fps), D1(480fps) UHD Single mode : 32MP(15fps, H.265 Only), 12MP(30fps, H.265 Only), 8.3MP(50fps), 1080p(240fps), D1(270fps) FHD Expand mode: 32MP(12fps, H.265 Only), 12MP(25fps, H.265 Only), 8.3MP(30fps), 1080p(90fps), D1(200fps) Clone/Single mode : Maximum 15fps when displaying more than 10 channels Expand mode : Up to 9 divisions, Maximum 15fps when displaying more than 8 channels | |
| Performance | ||
| Operating System | Embedded | Linux |
| Record | Compression | H.265, H.264, MJPEG |
| Recording Bandwidth | Maximum 140Mbps | |
| Resolution | 32MP ~ CIF | |
| Mode | Normal, Dual Stream, Schedule(Continuous/Event), Event (Pre/Post), Bookmark | |
| Event Trigger | Alarm Input, Video Loss, Camera Event(Sensor, MD, Video Analytics, Defocus, Audio), Dynamic Event | |
| Event Action | e-Mail, Event Push, PTZ Preset, Alarm Out, Buzzer, Monitor Out | |
| Search & Play | Playback Bandwidth | Maximum 32Mbps |
| User | Maximum 4 Users (Local 1, Remote 3) | |
| Simultaneous playback | Maximum 64 Channels (Local 16 Channels, Remote 16 Channels per user) | |
Fisheye Dewarping | CMS | |
| Mode | Date & Time(Calendar), Event list, Text Search, Smart Search | |
| Resolution | CIF ~ 32MP (Up to H.264 8.3MP, H.265 32MP) | |
| Playback Control | Fast/Slow Forward / Backward, Move one step Up / Down | |
| Storage | Supported HDD | Up to 10TB |
| HDD Slot | SATA 8ea(Max. 80TB) | |
| Backup | File backup | BU/Exe(GUI), JPG/AVI(Network) |
| Function | Multi channel(Up to 16 Channels) Play, Date-Time/Title display | |
| Network | ||
| Protocol | IPv4, IPv6, TCP/IP, UDP/IP, RTP (UDP), RTP (TCP), RTSP, NTP, HTTP, DHCP (Server, Client), SMTP, ICMP, IGMP, ARP, DNS, DDNS, uPnP, HTTPS, SNMP, ONVIF (Profile-S), SUNAPI(Server, Client) | |
| DDNS | Hanwha DDNS | |
| Transmission Bandwidth | Maximum 140Mbps | |
| Audio Input/Output | 16 Channels (network) | |
| Compression | G.711, G.726, AAC(16/48KHz) | |
Audio Communication | 2-Way | |
| Max Remote Users | Search(3), Live Unicast(10), Multicast(20) | |
| Security | IP address filtering, User access Log, 802.1x, Encryption Device certificate(Hanwha Techwin Root CA), Signed firmware | |
| Web viewer | Supported OS | Windows 10, macOS 10.13 |
| Supported browser | Google Chrome, Microsoft Edge, Mac Safari, Firefox | |
| Viewer Software | WAVE, SSM, Webviewer, Smart Viewer, Wisenet mobile Support SDK/CGI(SUNAPI) for integration to 3rd party VMS | |
| Functions | ||
| Camera Setup | Register | Auto, Manual |
| Item | IP address, Add profile edit, Bitrate, Compression, GOP, Quality, Camera MD setup (4, 8 point polygon) Camera video setup (Simple focus, Brightness/Contrast, Flip/Mirror, IRIS, WDR, D&N, SSNR, Shutter, SSDR, DIS), Fisheye Dewarping Mode, Hallway View Setup, Camera Webpage | |
| PTZ | Control | Via GUI, Webviewer, SPC-2000 |
| Preset | 300 Presets | |
| Smart phone | Support Model | iOS, Android |
| Protocol Support | RTP, RTSP, HTTP, CGI(SUNAPI) | |
| Control | Live 16 Channels (Multi-Profile Support), Playback 4 Channels | |
| Max. Remote Users | Search(3), Live Unicast(10) | |
| Redundancy | Failover | N+1 |
| ARB | Support | |
| Easy configuration | P2P(QR code) | |

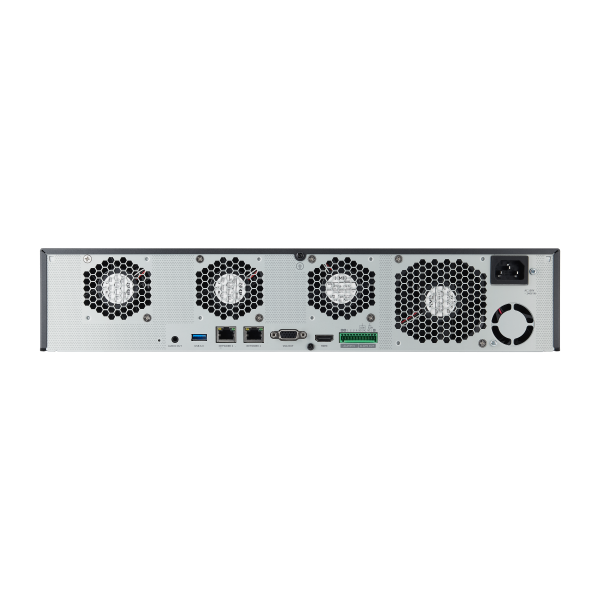

| Interface | ||

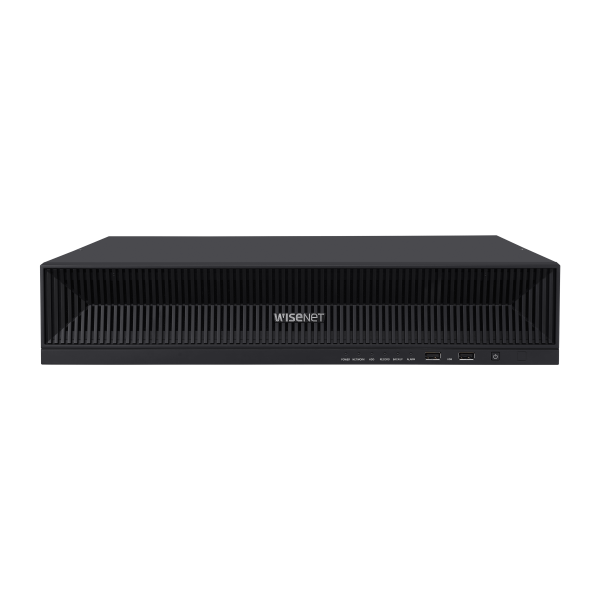

| Front Indicator | HDD, Alarm, Power, Record, Backup, Network | |
| Storage | OK | |
| HDMI | 1EA 3840x2160 30Hz | |
| VGA | 1EA 1920x1080 60Hz | |
| Audio | Out 1EA | |
| Ethernet | RJ-45 2EA (LAN/WAN, 1Gbps) | |
| Alarm | In 4EA, Out 2EA | |
| USB | 3EA(Front 2 x USB 2.0, Rear 1 x USB 3.0) | |
| Power inlet | AC 1EA | |
| System | ||
| Log Log List | Maximum 100,000 (System Log, Event Log each) | |
| System Control | Mouse, Web, Controller (SPC-2000) | |
| Language | English, French, German, Italian, Spanish, Russian, Turkish, Polish, Dutch, Swedish, Czech, Portuguese, Danish, Rumanian, Serbian, Croatian, Hungarian, Greek, Norwegian, Finnish, Korean, Chinese, Japanese, Thai, Vietnamese | |
| Environmental | ||
| Operating Temperature | 0°C to +40°C(32℉ to 104℉) | |
| Operating Humidity | 20% ~ 85% RH | |
| Electrical | ||
| Power Input | 100 ~ 240 VAC ±10%; 50/60 Hz | |
| Power Consumption | 130W | |
| Mechanical | ||
| Color / Material | Black | |
| Dimension (WxHxD) | 440 x 89.8 x 428.4 mm | |
| Weight | 5.71Kg | |
| Intelligent Analysis | ||
| AI Search Object Attribute | Compatible for Wisenet AI Camera | |
