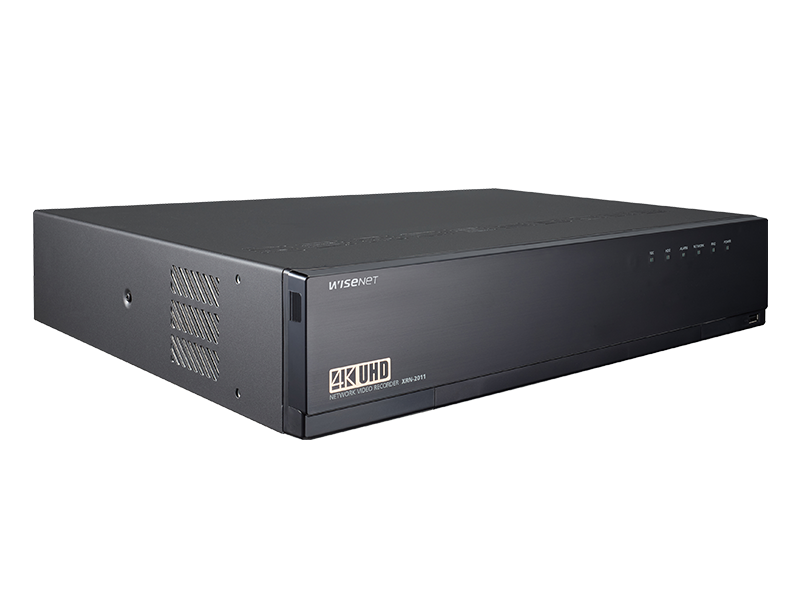

The XRN-2011 is a 4K network video recorder that supports up to 32 channels, H.265/H.264/MJPEG, ARB & failover (N+1), 8 front hot swappable SATA HDDs (with a maximum internal storage capacity of 48TB), e-SATA/iSCSI storage, RAID-5, WiseStream compression technology, dual monitor video out, supports camera resolution up to 12MP recording/display and fisheye dewarping on web and CMS.
- Up to 32CH @12MP each
- Supports H.265/H.264/MJPEG
- Max 8 Hot-Swap HDDs (RAID 5)
- HDMI/VGA local dual monitor
- HDMI up to UHD (4K) resolution
- iSCSI storage supported
- ONVIF camera compliant
|
Display |
|
|
|
|
Video |
Inputs |
Up to 32CH |
|
|
Resolution |
CIF ~ 12MP |
||
|
|
Protocols |
Wisenet, ONVIF, RTSP |
|
|
|
Local Display |
1x HDMI, 1x VGA dual monitor |
|
|
|
Multi Screen Display |
[Local monitor] 1 / 2V / 3V / 4 / 9 / 16 / 25 / 36 / Sequence, |
|
|
Live |
[Web] 1 / 4 / 9 / 16 / 25 / 36 / Sequence |
||
|
|
|||
|
|
Performance |
[Local monitor] 12MP (30fps), 8.3MP (120fps), 1080p (480fps), |
|
|
|
720P (960fps), D1 (960fps) |
||
|
Performance |
|
||
|
Operating System |
Embedded |
Linux |
|
|
|
Compression |
H.265, H.264, MJPEG, WiseStream (H.265, H.264) |
|
|
|
Recording Bandwidth |
Max. 256Mbps, Max. 100Mbps (RAID 5 mode) |
|
|
Recording |
Resolution |
CIF ~ 12MP |
|
|
Mode |
Normal, Schedule (Continuous / Event), Event (Pre / Post) |
||
|
|
|||
|
|
Event Trigger |
Alarm input, Video loss, Camera event (Sensor, MD, Video analytics) |
|
|
|
Event Action |
E-mail, PTZ preset, Alarm out, Buzzer, Monitor out |
|
|
|
Playback Bandwidth |
32Mbps (16CH simultaneously) |
|
|
|
Performance |
Max. 4 users (Local 1, Remote 3) |
|
|
Search & |
Mode |
Date & Time (Calendar) / Event log list / Text search |
|
|
Simultaneous Playback |
Max. 16CH (Local monitor, CMS) |
||
|
Playback |
|||
|
Resolution |
CIF ~ 12MP |
||
|
|
|||
|
|
Fisheye Dewarping |
WEB / CMS |
|
|
|
Playback Control |
Fast/Slow Forward/Backward, Move one step up/down |
|
|
Storage |
Built-in / Internal HDD |
0TB ~ 8TB / 8 (Hot swap) - Max. 64TB (Non-RAID), Max. 48TB (RAID 5) |
|
|
External |
iSCSI storage (Max. 384TB), Promise VessRaid R2600 |
||
|
|
RAID |
RAID 5 (Array size : 4 HDD x 2 array) |
|
|
Backup |
File Backup (Via Web) |
BU/Exe (GUI), JPG/AVI (Network) |
|
|
Function |
Multi channel (Up to 16CH) play, Date-time/title display |
||
|
|
|||
|
Sensor |
Input / Output |
8 / 4 (NO/NC selectable) |
|
|
Audio |
Input |
32CH (Network) |
|
|
Compression |
G.711, G.726, AAC (16/48KHz) |
||
|
|
Audio Communication |
2-way |
|
|
Network |
|
|
|
|
Interface |
|
RJ-45, Gigabit ethernet x 2 |
|
|
Protocol Support |
TCP/IP, UDP/IP, RTP (UDP), RTP (TCP), RTSP, NTP, HTTP, DHCP (Server, |
||
|
Client), PPPoE, SMTP, ICMP, IGMP, ARP, DNS, DDNS, uPnP, HTTPS, SNMP, |
|||
|
|
|
ONVIF (Profile-S), SUNAPI (Server, Client) |
|
|
DDNS |
|
Wisenet DDNS, 3rd party DDNS |
|
|
Transmission Bandwidth |
512Mbps (iSCSI off ), 256Mbps (iSCSI on) |
||
|
Max. Remote Users |
Search 3 / Live unicast 10 / Live multicast 20 |
||
|
IP |
|
IPv4 / IPv6 |
|
|
Security |
|
IP address filtering, User access log, 802.1x authentication, Encryption |
|
|
Language |
|
English, French, German, Italian, Spanish, Russian, Turkish, Polish, Dutch, |
|
|
|
Swedish, Czech, Portuguese, Danish, Rumanian, Serbian, Croatian, |
||
|
|
|
Hungarian, Greek, Norwegian, Finnish, Korean, Chinese, Japanese, Thai |
|
|
OS |
|
Window 7, 8, 10, Mac OS X (10.8 or above) |
|
|
Web Browser |
|
MS IE, Google Chrome, Mac Safari, Firefox |
|
|
Viewer |
Type |
Wisenet WAVE, SSM, Webviewer, SmartViewer, Wiseent Mobile viewer |
|
|
Software |
CMS Support |
SDK / CGI (SUNAPI) |
|
|
FuncTIons |
|
|
|
|
|
Register |
Auto, Manual |
|
|
Camera Setup |
|
IP address, Add profile edit, Bitrate, Compression, GOP, Quality, |
|
|
Setup Items |
Camera MD setup, Camera video setup (Simple focus, Brightness/ |
||
|
|
|
Contrast, Flip/Mirror, IRIS, WDR, D&N, SSNR, Shutter, SSDR, DIS), |
|
|
|
|
Fisheye dewarping mode, Hallway view setup, Camera webpage |
|
|
PTZ |
Control / Preset |
Via GUI, Webviewer, SPC-2000 / 255 presets |
|
|
|
OS |
Android, iOS |
|
|
Smart Phone |
Protocol Support |
RTP, RTSP, HTTP, CGI (SUNAPI) |
|
|
|
Control |
Live (16CH) : Multi-profile support, Playback |
|
|
|
Max. Remote Users |
Search 3 / Live unicast 10 |
|
|
Redundancy |
Failover / ARB |
N + 1 / Yes |
|
|
System Control |
Mouse, Web, SPC-2000 (Controller) |
||
|
IndICATor / Interface |
|
||
|
Front |
Indicator |
LED (Status indicator) : 6ea |
|
|
HDD action 1, Alarm 1, Power 1, Record 1, RAID 1, Network1 Main : 1ea |
|||
|
|
|
||
|
|
HDMI |
(Both support Live / Playback / Setup) |
|
|
|
Support up to 4K (3840 x 2160, Single monitor mode) Sub : 1ea |
||
|
|
|
||
|
|
VGA |
(Support live screen up to 16 div. mode), Playback, Setup |
|
|
|
Audio |
Out 1ea (RCA, Line) |
|
|
Connections |
Ethernet |
RJ-45 2ea (LAN/WAN, 1Gbps) |
|
|
Alarm |
In 8ea (Terminal block), Alarm reset 1ea |
||
|
|
|
Out 4ea (Terminal block) - Relay out1(NO/NC/COM) - Relay out 2 ~ 4 (NO/COM) |
|
|
|
USB |
2ea (Front 1, Rear 1) |
|
|
|
Storage |
1 e-SATA |
|
|
|
Serial / Reset |
RS-232C / Switch 1ea |
|
|
|
Power Cord |
1ea AC Inlet |
|
|
System |
|
|
|
|
Log |
Log List |
Max. 20,000 (System log, Event log each) |
|
|
General |
|
|
|
|
Electrical |
Input Voltage / Current |
100 ~ 240V AC ±10%, 50/60Hz / 4 ~ 1.5A |
|
|
Power Consumption |
Max. 99W (338BTU, 8TB HDD x 8ea) |
||
|
|
|||
|
Environmental |
Operating Temperature |
+0°C ~ +40°C (+32°F ~ +104°F) |
|
|
Operating Humidity |
20% ~ 85% RH |
||
|
|
|||
|
Mechanical |
Color / Material |
Black / Metal |
|
