- Up to 32CH @12MP each
- Supports H.265/H.264/MJPEG

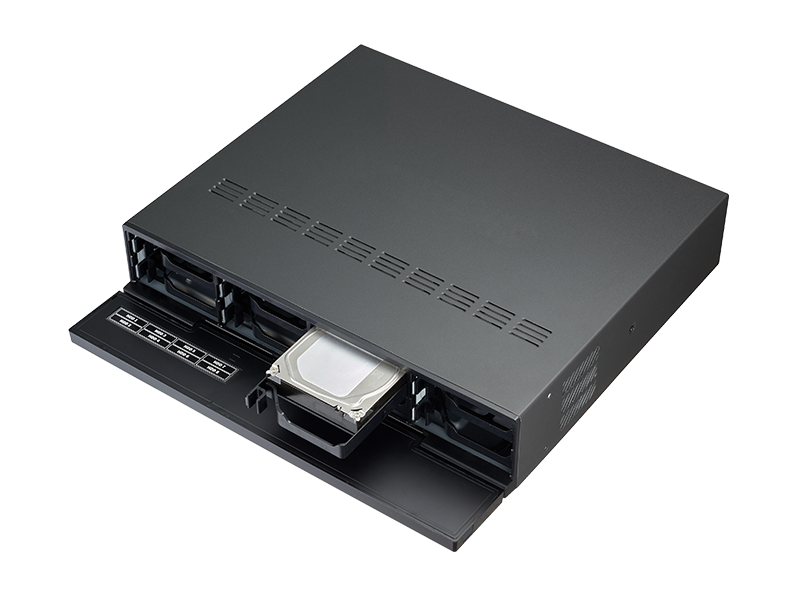

- Max 8 Hot-Swap HDDs (RAID 5)
- HDMI/VGA local dual monitor
- HDMI up to UHD (4K) resolution
- iSCSI storage supported
- ONVIF camera compliant
- QR code for easy mobile app access

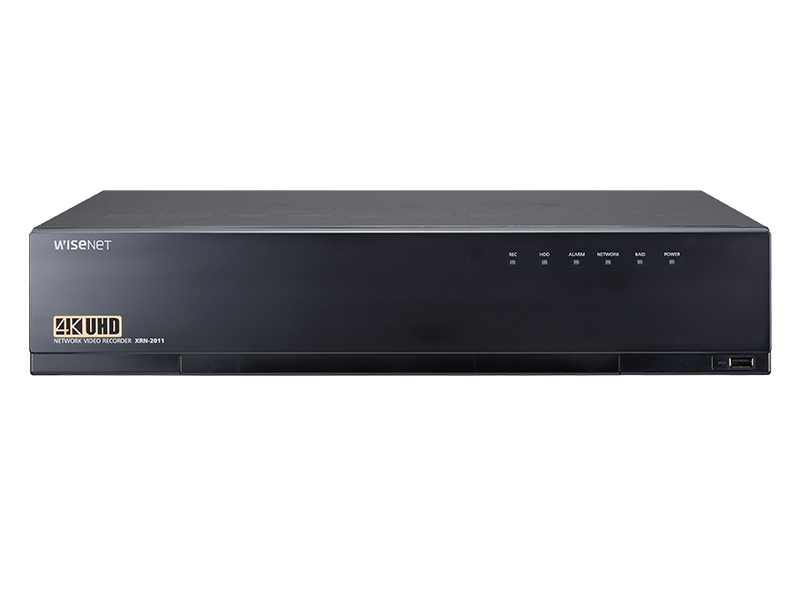

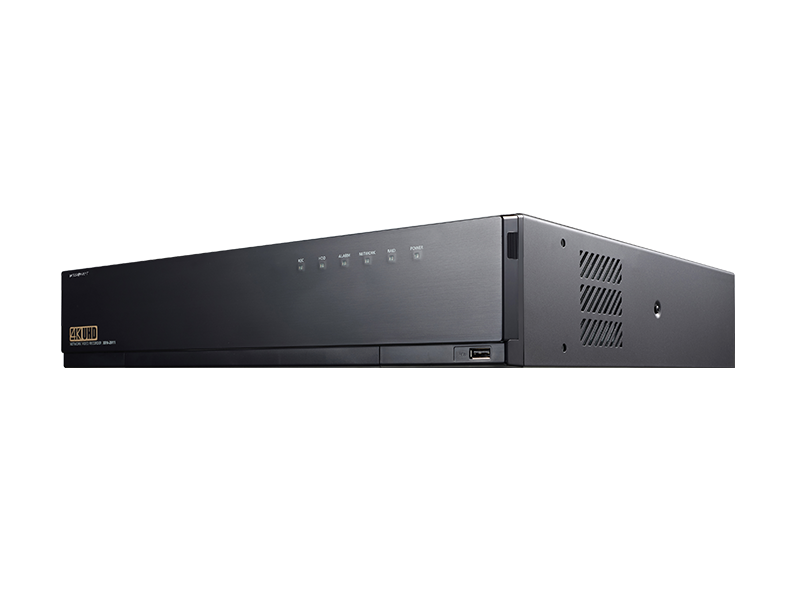

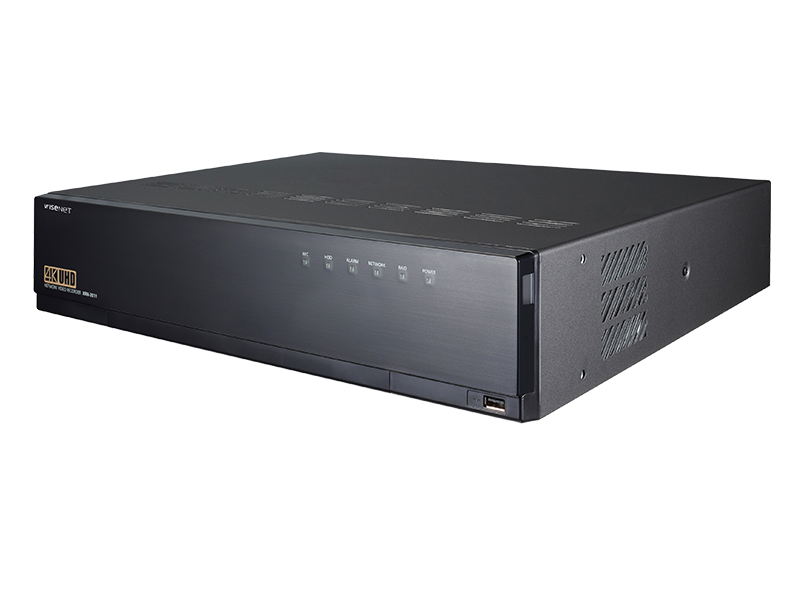

The XRN-2011A is a 4K network video recorder that supports up to 32 channels, H.265/H.264/MJPEG, ARB & failover (N+1), 8 front hot swappable SATA HDDs (with a maximum internal storage capacity of 48TB), e-SATA/iSCSI storage, RAID-5, WiseStream compression technology, dual monitor video out, supports camera resolution up to 12MP recording/display and fisheye dewarping on web and CMS. Includes QR code for easy mobile app access.
DISPLAY
| Network Camera |
Inputs/Resolution: Max. 32ch/CIF ~ 12 MP Protocols: Wisenet, ONVIF (Profile-S), RTSP |
| Live |
Local Display: 1x HDMI / 1x VGA Multi-Channel Display: [Local monitor] 1 / 2V / 3V / 4 / 9 / 16 / 25 / 36 / Sequence, |
PERFORMANCE
| Operating System E |
Embedded: Linux |
| Record |
Compression: H.265, H.264, MJPEG Recording Bandwidth: 128Mbps Resolution: CIF ~ 12MP Mode: Normal, Schedule (Continuous / Event), Event (Pre / Post) Event Trigger: Alarm input, Video loss, Camera event (Sensor, MD, Video analytics) Event Action: e-Mail, PTZ Preset, Buzzer, Monitor Out |
| Storage |
Default Built-In: 0TB ~ 8TB Internal : 8 (Hot swap) - Max. 64TB (Non-RAID), Max. 48TB (RAID 5) |
| Audio |
Input: 32 ch (network) Compression : G.711, G.726, AAC (16/48KHz) Audio Communication: 2-Way |
NETWORK
| Protocol | TCP/IP, UDP/IP, RTP (UDP), RTP (TCP), RTSP, NTP, HTTP, DHCP (Server, Client), PPPoE, SMTP, ICMP, IGMP, ARP, DNS, DDNS, UPnP, HTTPS, SNMP,ONVIF (Profile-S), SUNAPI (Server, Client), P2P/QR Code |
| DDNS | Hanwha DDNS, 3rd party DDNS |
| Security | IP address filtering, User access log, 802.1x authentication, Encryption |
| Viewer Software |
Type: Wisenet WAVE, SSM, Webviewer, SmartViewer, Wisenet Mobile viewer CMS Support: SDK / CGI (SUNAPI) |
