Samsung - XRN-3010A-8TB - 64CH 4K 300Mbps H.265 NVR
Samsung - XRN-3010A-8TB - 64CH 4K 300Mbps H.265 NVR
  • Up to 64 Channels, Maximum 12 megapixel camera supported
  • Maximum 300Mbps network camera recording
  • Support 4K video out on HDMI monitor
  • Support dual monitor video out
  • Support H.265, H.264, MJPEG compression
  • WiseStream support
  • Maximum 8 internal HDDs (64TB), e-SATA storage support
  • ARB & failover (N+1) support
  • QR code for easy mobile app access
Part number:
XRN-3010A-8TB
Price:
Dealers only
Add to Quote/Project Registration
Description Specifications Downloads

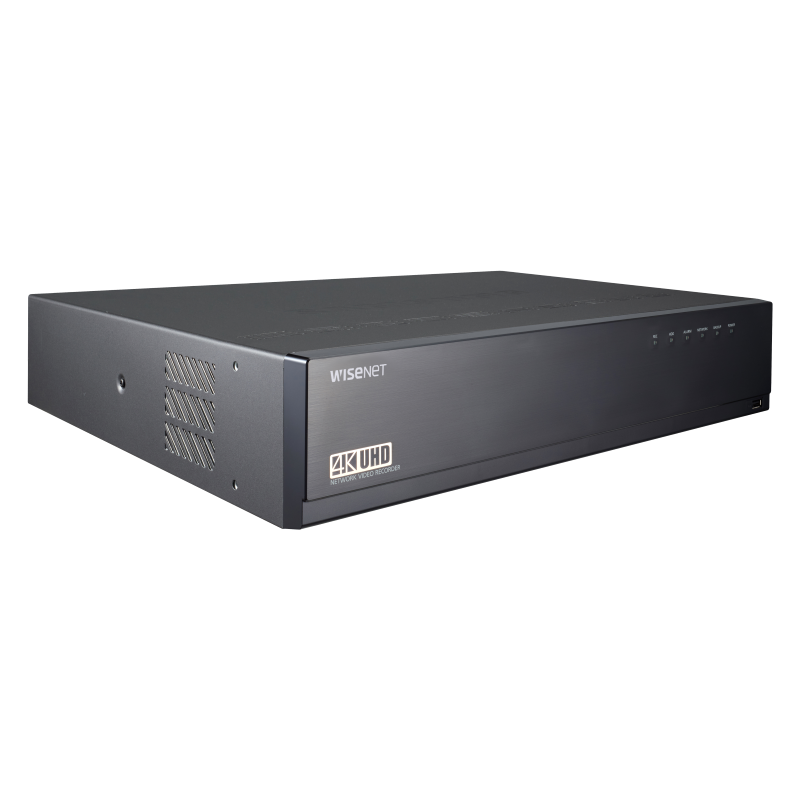

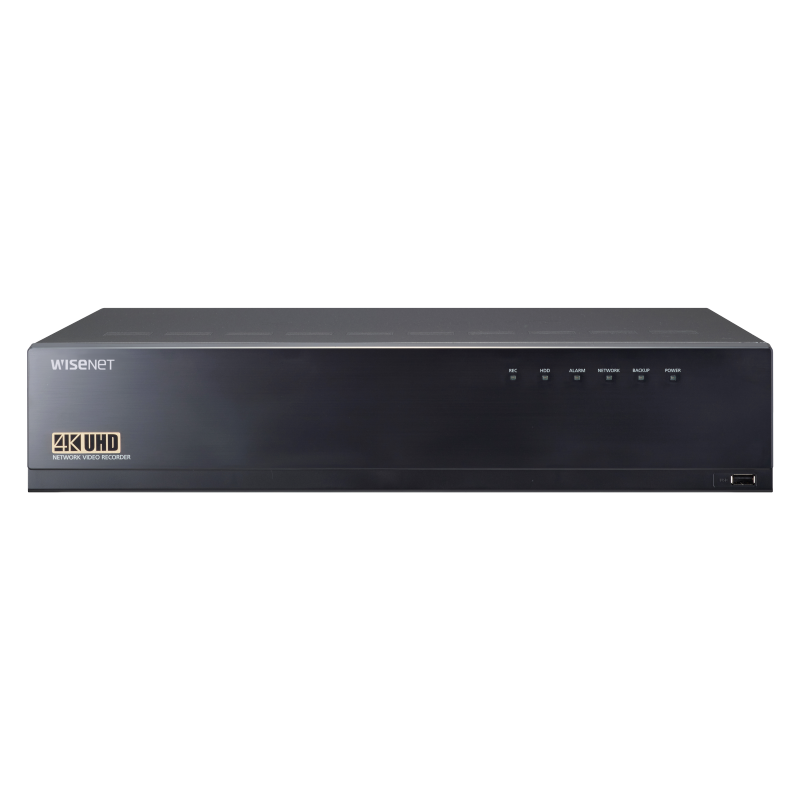

Hanwha’s XRN-3010 is a 64 channel network video recorder that will allow the connection of up to 64 cameras with up to 12 MP resolution each, triple codec recording and playback H.265/H.264/MJPEG, dual monitor output, 4K HDMI output, up to 8 internal HDDs. It also supports ARB & failover (N+1), e-SATA external storage, and WiseStream compression technology. Includes QR code for easy mobile app access.

DISPLAY

Video
Inputs Up to 64 channels
Resolution CIF ~ 12 MP
Protocols Wisenet, ONVIF, RTSP
Live
Local Display

1x HDMI, 1x VGA dual monitor
Multi Screen Display [Local monitor] 1 / 2V / 3V / 4 / 9 / 16 / 25 / 36 / Sequence, [Web] 1 / 4 / 9 / 16 / 25 / 36 / Sequence
Performance [Local monitor] 12 MP (30fps), 8.3 MP (120fps), 1080p (480fps), 720P (960fps), D1 (1560fps)

PERFORMANCE

Operating System
Embedded Linux
Recording
Compression H.265, H.264, MJPEG, WiseStream (H.265, H.264)
Recording Bandwidth Maximum 300Mbps
Resolution CIF ~ 12 MP
Mode Normal, Schedule (Continuous / Event), Event (Pre / Post)
Event Trigger Alarm input (8), Video loss, Camera event (Sensor, MD, Video analytics, Defocus)
Event Action E-mail, PTZ preset, Alarm out, Buzzer, Monitor out
Search & Playback
Playback Bandwidth 32Mbps (16 channels simultaneously)
Performance Max. 4 users (Local 1, Remote 3)
Mode Date & Time (Calendar) / Event log list / Text search (POS, ANPR) /
ARB search / Smart search (Virtual line w/direction, Enter / Exit)
Simultaneous Playback Maximum 16 channels (Local monitor, CMS)
Resolution CIF ~ 12 MP
Fish-eye Dewarping WEB / CMS
Playback Control Fast/Slow Forward/Backward, Move one step up/down
Storage
Default Built-In 0TB ~ 8TB
Internal HDD 8 (Maximum 64TB)
Backup
File Backup (Via Web) BU/Exe (GUI), JPG/AVI (Network)
Function Multi channel (Up to 16 channel) play, Date-time/title display
Sensor
Input / Output 8 / 4 (NO/NC selectable)
Audio
Input 64 channels with camera inputs (Network)
Compression G.711, G.726, AAC (16/48KHz)
Audio Communication 2-way
Name
Description
Size
Downloads
File
Quick Guide
12.3mb
File
Specifications
0.6mb
File
Manual
3.3mb
