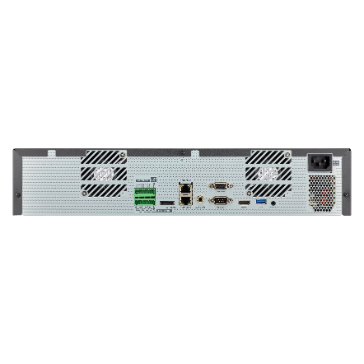

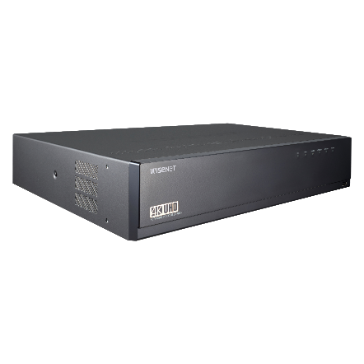

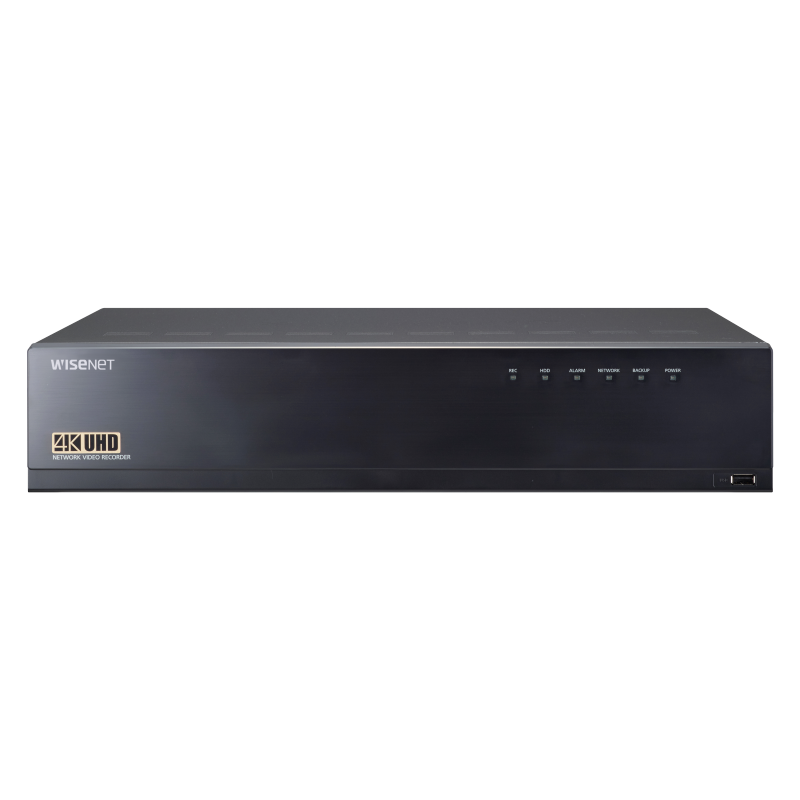

Samsung - XRN-3010A - 64CH 4K 300Mbps H.265 NVR

Name: Samsung - XRN-3010A - 64CH 4K 300Mbps H.265 NVR
Brand: Hanwha Vision
SKU: XRN-3010A

Up to 64 Channels, Maximum 12 megapixel camera supported
Maximum 300Mbps network camera recording
Support 4K video out on HDMI monitor
Support dual monitor video out
Support H.265, H.264, MJPEG compression
WiseStream support
Maximum 8 internal HDDs (64TB), e-SATA storage support
ARB & failover (N+1) support
QR code for easy mobile app access

Part number:

XRN-3010A

Price:

Dealers only

Add to Quote/Project Registration

Description Specifications

Hanwha’s XRN-3010 is a 64 channel network video recorder that will allow the connection of up to 64 cameras with up to 12 MP resolution each, triple codec recording and playback H.265/H.264/MJPEG, dual monitor output, 4K HDMI output, up to 8 internal HDDs. It also supports ARB & failover (N+1), e-SATA external storage, and WiseStream compression technology. Includes QR code for easy mobile app access.

DISPLAY

Video

Inputs	Up to 64 channels
Resolution	CIF ~ 12 MP
Protocols	Wisenet, ONVIF, RTSP

Live

Local Display	1x HDMI, 1x VGA dual monitor
Multi Screen Display	[Local monitor] 1 / 2V / 3V / 4 / 9 / 16 / 25 / 36 / Sequence, [Web] 1 / 4 / 9 / 16 / 25 / 36 / Sequence
Performance	[Local monitor] 12 MP (30fps), 8.3 MP (120fps), 1080p (480fps), 720P (960fps), D1 (1560fps)

PERFORMANCE

Operating System

Embedded

Linux

Recording

Compression	H.265, H.264, MJPEG, WiseStream (H.265, H.264)
Recording Bandwidth	Maximum 300Mbps
Resolution	CIF ~ 12 MP
Mode	Normal, Schedule (Continuous / Event), Event (Pre / Post)
Event Trigger	Alarm input (8), Video loss, Camera event (Sensor, MD, Video analytics, Defocus)
Event Action	E-mail, PTZ preset, Alarm out, Buzzer, Monitor out

Search & Playback

Playback Bandwidth	32Mbps (16 channels simultaneously)
Performance	Max. 4 users (Local 1, Remote 3)
Mode	Date & Time (Calendar) / Event log list / Text search (POS, ANPR) / ARB search / Smart search (Virtual line w/direction, Enter / Exit)
Simultaneous Playback	Maximum 16 channels (Local monitor, CMS)
Resolution	CIF ~ 12 MP
Fish-eye Dewarping	WEB / CMS
Playback Control	Fast/Slow Forward/Backward, Move one step up/down

Storage

Default Built-In	0TB ~ 8TB
Internal HDD	8 (Maximum 64TB)

Backup

File Backup (Via Web)	BU/Exe (GUI), JPG/AVI (Network)
Function	Multi channel (Up to 16 channel) play, Date-time/title display

Sensor

Input / Output

8 / 4 (NO/NC selectable)

Audio

Input	64 channels with camera inputs (Network)
Compression	G.711, G.726, AAC (16/48KHz)
Audio Communication	2-way
