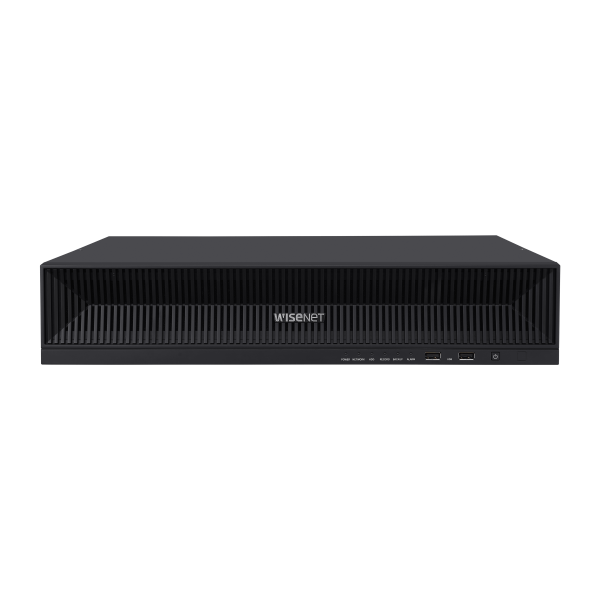

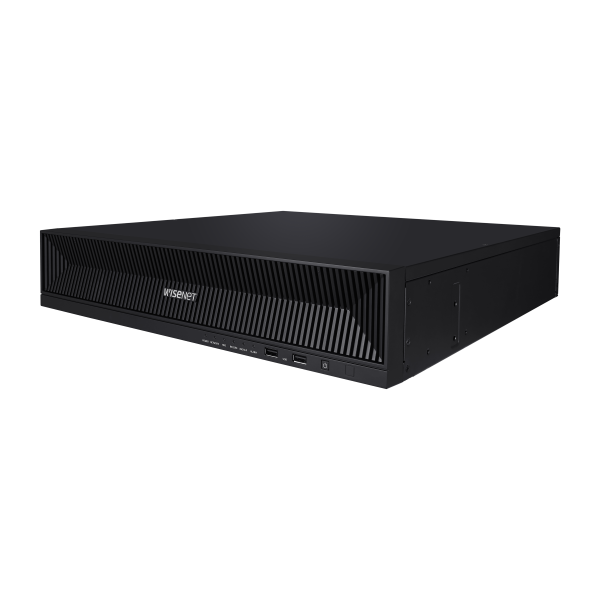

Hanwha - XRN-6410B2 - 64 Channel Network Video Recorder, 8 Fixed Internal SATA HDDs

Product Overview

The Hanwha XRN-6410B2 is an 8K Intel-based network video recorder (NVR) that supports up to 64 camera channels with up to 32MP recording and display resolution. It features 8 fixed internal SATA HDD bays supporting up to 10TB per drive for a maximum storage capacity of 80TB (HDDs not included). Video processing is managed via H.265, H.264, and MJPEG compression codecs, delivering a recording bandwidth of 400 Mbps and a playback bandwidth of 32 Mbps while supporting dual-stream recording.

Key Configuration

• • Channels: up to 64 IP camera inputs; resolution support: 32MP to CIF
• • HDD bays: 8 × fixed internal SATA, up to 10TB per HDD (max 80TB); no HDD included
• • Recording bandwidth: 400 Mbps; playback bandwidth: 32 Mbps
• • Video outputs: HDMI1 (4K/3840×2160 @30Hz) and HDMI2 (1920×1080 @60Hz) dual display
• • Dimensions: 438 × 86 × 434.9 mm; weight: 7.5 kg (16.5 lb without HDD)

Key Features

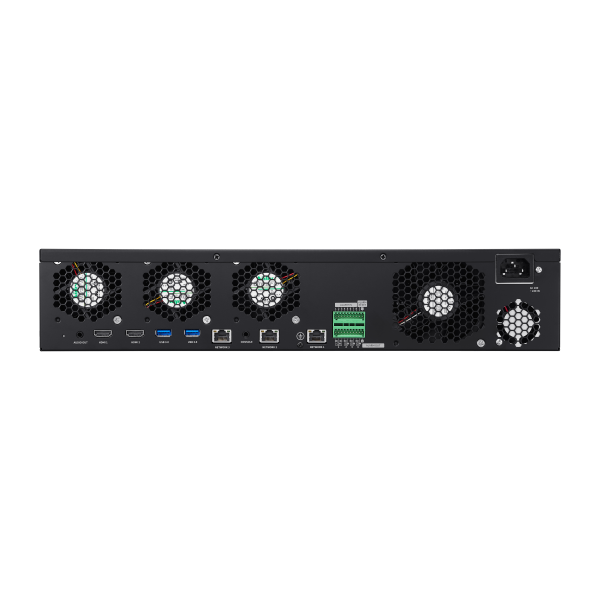

Decoding matches 32MP at 15 fps (H.265) or 1080p at 480 fps across 64 local live divisions. Playback supports 112 simultaneous channels (64 local, 16 remote) via smart and calendar search. Features 64-channel network audio, CMS fisheye dewarping, and a plugin-free Web UI 2.0. Reliability includes iSCSI storage, ARB, and N+1 failover. I/O features 3 Gigabit ports, 4 USB ports, 8 alarm inputs, and 4 outputs. Analytics, video loss, or alarm inputs trigger email, push notifications, PTZ presets, alarm/monitor outputs, and buzzer alerts.

Technical Context

Running on embedded Linux, this NVR features security protections including IP filtering, user access logs, 802.1x, encryption, signed firmware, and Hanwha Techwin Root CA device certificates. It supports standard networking protocols alongside ONVIF Profile S and SUNAPI (server/client) compatibility. Web viewing is supported on Windows 10 and macOS 10.13+ via Chrome, Edge, and Safari. The unit operates on a 100–240 VAC (±10%, 50/60 Hz, 1.5A) power input, with a maximum consumption of 138W with 8 HDDs installed.

Installation Notes

Measuring 438 × 86 × 434.9 mm and weighing 7.5 kg, this black metal NVR features 8 fixed, non-hot-swappable SATA bays supporting up to 10TB per drive (HDDs not included). It operates from 0°C to 40°C under 20–85% RH and provides dual 4K/1080p HDMI outputs. System capabilities include a plugin-free Web UI 2.0, iSCSI external storage, ARB, and N+1 failover redundancy. It features a P2P QR code for mobile pairing and provides AI search functions exclusively when paired with Wisenet AI cameras.
