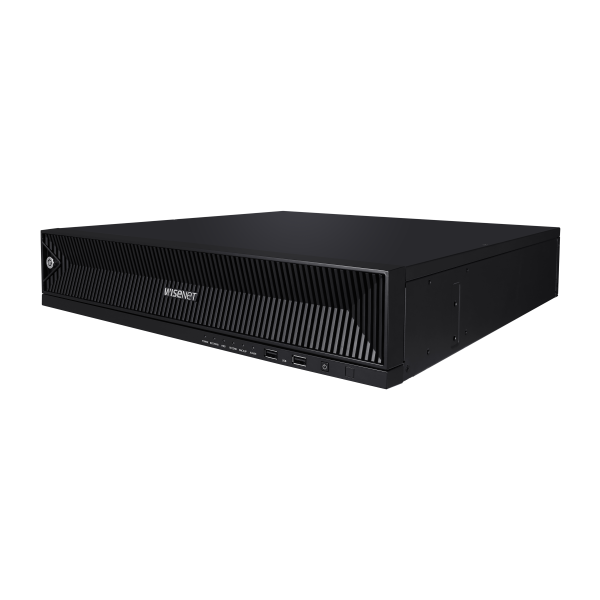

Hanwha - XRN-6410RB2-24TB - 64 Channel 32MP NVR with 24TB HDD
Part number:
XRN-6410RB2-24TB
Price:
8K NVR (Intel based), 24TB RAW, 64 channels, H265,H264, MJPEG, 8 fixed internal SATA HDDs (10TB max per HDD), RAID 5 & 6, ARB (Automatic Recovery Backup), 400 Mbps recording / up to 32 Mbps playback, Dual stream recording, WiseStream technology, HDMI/VGA dual display, max. resolution of 32MP recording/display and fisheye dewarping on web and CMS, web UI 2.0 (no plugins required), AI search (Wisenet AI cameras only), QR Code. HDD Hot Swapping is available when RAID Mode is configure.
Features:
- Up to 64 channels, Supports up to 32 megapixel camera resolution
- 400Mbps network camera recording
- Support 4K video out on HDMI monitor
- Support dual monitor video out
- H.265, H.264, MJPEG compression
- WiseStream support
- Maximum 8 internal HDDs
- Support RAID 5/6
- ARB & failover(N+1), dynamic event, AI metadata search support
| Display | ||
| Network camera | ||
| Inputs | Max. 64CH | |
| Resolution | 32MP ~ CIF | |
| Protocols | SUNAPI, ONVIF | |
| Decoding | ||
| Local Display | [Dual Display] | |
| HDMI 1: 3840 x 2160 (30Hz) | ||
| HDMI 2: 1920x1080 (60Hz) | ||
| Multi Screen Display | [Local Monitor] | |
| - Dynamic layout, Virtual channel view | ||
| - Clone Mode : Up to 64 Division | ||
| - Expand Mode : HDMI1 up to 36 Div. HDMI2 up to 16 Div. | ||
| [Web] 1/ 2H/ 2V/ 3V/ 4/ 6/ 8/ 9 | ||
| Resolution | 32M(15fps, H.265 Only), 12M(30fps, H.265 Only), 8.3M(120fps), 1080p(480fps), 720P(960fps), D1(1920fps) | |
| Performance | ||
| Operating System | ||
| Embedded | Linux | |
| Record | ||
| Compression | H.265, H.264, MJPEG | |
| Recording Bandwidth | Distributed mode : Up to 400 Mbps | |
| Normal mode : Up to 150 Mbps | ||
| {RAID mode} | ||
| Normal : Up to 400 Mbps | ||
| Degrade/ Rebuild : Up to 320 Mbps | ||
| Resolution | 32MP ~ CIF | |
| Mode | Normal, Dual Stream, Schedule(Continuous/Event), Event (Pre/Post), Bookmark | |
| Event Trigger | Alarm Input, Video Loss, Camera Event(Sensor, MD, Video Analytics, Defocus, Audio), Dynamic Event, User Event | |
| Event Action | e-Mail, Event Push, PTZ Preset, Alarm Out, Buzzer, Monitor Out, FTP, | |
| SUNAPI Command, Shotdown | ||
| Search & Play | ||
| Playback Bandwidth | RAID Mode : Max. 64Mbps(64CH simultaneously) | |
| Non-RAID Mode : Max. 32Mbps | ||
| User | Max. 4 Users (Local 1, Remote 3) | |
| Simultaneous playback | Max. 112CH(Local 64CH, Remote 16CH per user) | |
| Fisheye Dewarping | Support (Local 1CH), CMS | |
| Mode | Date & Time(Calendar), Event list, Text Search, Smart Search | |
| Resolution | CIF ~ 32MP (Up to H.264 9MP, H.265 32MP) | |
| Playback Control | Fast/Slow Forward / Backward, Move one step Up / Down | |
| Storage | ||
| Supported HDD | Up to 10TB | |
| HDD Slot | SATA 8ea(Max. 80TB, Non-RAID mode) | |
| External | iSCSI storage | |
| RAID | RAID-5/6(Single, 1 Array) | |
| Backup | ||
| File backup | BU/Exe/AVI(GUI), JPG/AVI(Network) | |
| Function | Multi channel(Up to 16CH) Play, Date-Time/Title display | |
| Network | ||
| Protocol | IPv4, IPv6, TCP/IP, UDP/IP, RTP (UDP), RTP (TCP), RTSP, NTP, HTTP, DHCP (Server, Client), SMTP, ICMP, IGMP, ARP, DNS, DDNS, uPnP, HTTPS, SNMP, ONVIF (Profile-S), SUNAPI(Server, Client) | |
| DDNS | Hanwha DDNS | |
| Transmission Bandwidth | Max. 400Mbps | |
| Audio | ||
| Input/Output | 64 CH(network) | |
| Compression | G.711, G.726, AAC(16/48KHz) | |
| Audio Communication | 2-Way | |
| Max Remote Users | Search(3), Live Unicast(10), Multicast(20) | |
| Security | IP address filtering, User access Log, 802.1x, Encryption | |
| Device certificate(Hanwha Techwin Root CA), Signed firmware | ||
| Web viewer | ||
| Supported OS | Windows 10, macOS 10.13 | |
| Supported browser | Google Chrome, Microsoft Edge, Mac Safari | |
| Viewer Software | WAVE, SSM, Webviewer, Smart Viewer, Wisenet mobile | |
| Support CGI(SUNAPI) for integration to 3'rd party VMS | ||
| Functions | ||
| Camera Setup | ||
| Register | Auto, Manual | |
| Item | IP address, Add profile edit, Bitrate, Compression, GOP, Quality, Camera MD setup (4, 8 point polygon) | |
| Camera video setup (Simple focus, Brightness/Contrast, Flip/Mirror, IRIS, WDR, D&N, SSNR, Shutter, SSDR, DIS), Fisheye Dewarping Mode, Hallway View Setup, Camera Webpage | ||
| PTZ | ||
| Control | Via GUI, Webviewer, SPC-2000 | |
| Preset | 300 Presets | |
| Smart phone | ||
| Support Model | iOS, Android | |
| Protocol Support | RTP, RTSP, HTTP, CGI(SUNAPI) | |
| Control | Live 16CH(Multi-Profile Support), Playback 4CH | |
| Max. Remote Users | Search(3), Live Unicast(10) | |
| Redundancy | ||
| Failover | N+1 | |
| ARB | Support | |
| Easy configuration | P2P(QR code) | |
| Interface | ||

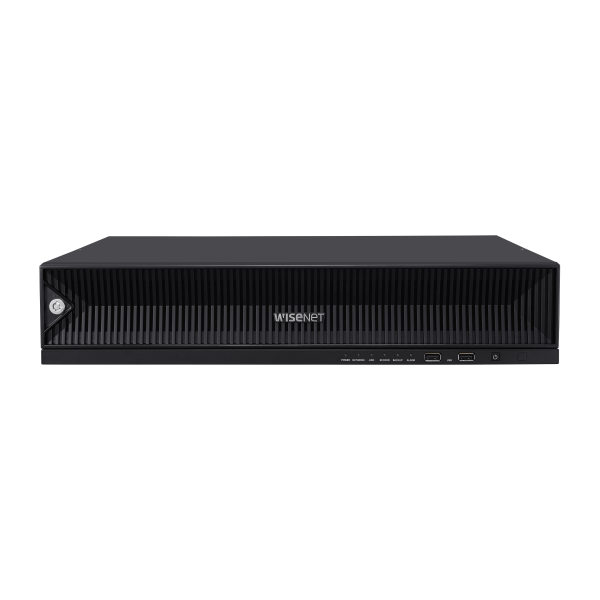

| Front | ||
| Indicator | HDD, Alarm, Power, Record, Backup, Network, RAID | |
| Storage | OK | |
| Reset | OK | |
| HDD Key Lock | OK | |
| HDMI | 2EA ( Playback/Setup → HDMI1) | |
| HDMI1 : 3840x2160 30Hz | ||
| HDMI2 : 1920x1080 60Hz | ||
| Audio | Out 1EA(3.5mm Audio Jack) | |
| Ethernet | RJ-45 3EA (LAN/WAN, 1Gbps) | |
| Alarm | In 8EA, Out 4EA | |
| USB | 4EA(Front 2 x USB 2.0, Rear 2 x USB 3.0) | |
| Power inlet | AC 1EA | |
| System | ||
| Log | ||
| Log List | Max. 100,000 (System Log, Event Log each) | |
| System Control | Mouse, Keyboard, Web, Controller (SPC-2000) | |
| Language | English, French, German, Italian, Spanish, Russian, Turkish, Polish, Dutch, Czech, Portuguese, Danish, Rumanian, Serbian, Croatian, Hungarian, Greek, Norwegian, Finnish, Korean, Chinese, Japanese, Thai, Vietnamese | |
| Environmental | ||
| Operating Temperature | 0°C to +40°C(32℉ to 104℉) | |
| Operating Humidity | 20% ~ 85% RH | |
| Electrical | ||
| Power Input | 100 ~ 240 VAC ±10%; 50/60 Hz, 1.7A (Single SMPS) | |
| Power Consumption | Max. 160W (with 10TB HDD 8EA) | |
| Mechanical | ||
| Color / Material | Black / Metal | |
| Dimension (WxHxD) | 438 x 86 x 434.9 mm | |
| Weight | 9.1Kg (20.1 lb, Except HDD) | |
| Intelligent Analysis | ||
| AI Search | ||
| Object Attribute | Compatible for Wisenet AI Camera | |
