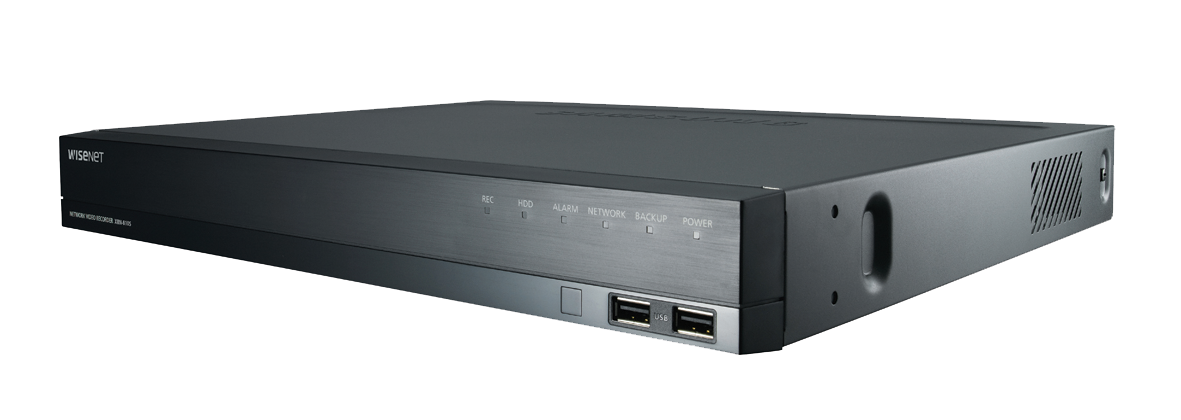

Hanwha - XRN-810S - WiseNet X 8-Channel 8MP PoE NVR No HDD
Part number:
XRN-810S
Price:
The XRN-810S network video recorder supports 4K UHD resolution and up to 8 channels of video, additional features include 8MP IP camera recording/display, 8 PoE/PoE+ ports, H.265/H.264/MJPEG streaming, auto-recovery backup, 2 fixed internal SATA HDD (12TB max.), WiseStream compression technology, hallway view support and fisheye dewarping on CMS, the XRN-810S is ideal for small size applications that require high resolution recording, and the bandwidth reducing efficiency of H.265 compression and WiseStream technology.
Features:
- Up to 8CH @8MP Each
- Supports H.265/H.264/MJPEG
- Max 2 HDDs
- HDMI/VGA local
- HDMI up to UHD (4K) resolution
- 8 PoE/PoE+ ports
- ONVIF camera compliant
| Technical Specifications | ||
| Display | ||
| Network camera | Inputs | Max. 8CH |
| Resolution | 8MP ~ CIF | |
| Protocols | Wisenet, ONVIF | |
| Decoding | Local Display | [Clone Display] HDMI: 3840 x 2160, 1920x1080, 1280x720 VGA: 1920x1080, 1280x720 |
| Resolution | 8MP(60fps), 5MP(90fps), 3MP(120fps), 2MP(240fps), 720p(240fps), D1(240fps) | |
| Performance | ||
| Record | Compression | H.265, H.264, MJPEG |
| Recording Bandwidth | Max. 100Mbps | |
| Resolution | 8MP ~ CIF | |
| Mode | Normal, Schedule(Continuous/Event), Event (Pre/Post) | |
| Event Trigger | Alarm Input, Video Loss, Camera Event(Alarm, MD, Video Analytics, Defocus) | |
| Event Action | e-Mail, PTZ Preset, Alarm Out, Buzzer, Monitor Out | |
| Search & Play | Playback Bandwidth | Max. 32Mbps(8CH simultaneously) |
| User | Max. 4 Users (Local 1, Remote 3) | |
| Simultaneous playback | Max. 8CH(Local Monitor, Network) | |
| Fisheye Dewarping | WEB / CMS | |
| Storage | Supported HDD | Up to 6TB |
| HDD Slot | SATA 2ea(Max. 12TB) | |
| Backup | File backup | BU/Exe(GUI), JPG/AVI(Network) |
| Function | Multi channel(Upto 8CH) Play, Date-Time/Title display | |
| Network | ||
| Protocol | IPv4, IPv6, TCP/IP, UDP/IP, RTP (UDP), RTP (TCP), RTSP, NTP, HTTP, DHCP (Server, Client), PPPoE, SMTP, ICMP, IGMP, ARP, DNS, DDNS, uPnP, HTTPS, SNMP, ONVIF (Profile-S), SUNAPI(Server, Client) | |
| DDNS | Wisenet DDNS | |
| Transmission Bandwidth | Max. 128Mbps | |
| Audio | GUI | 8 CH(network) |
| Web | G.711, G.726, AAC(16/48KHz) | |
| Audio Communication | 2-Way | |
| Max Remote Users | Search(3), Live Unicast(10), Multicast(20) | |
| Security | IP address filtering, User access Log, 802.1x, Encryption | |
| Web viewer | Supported OS | Windows 7, 8, 10, Mac OS X 10.9. 10.10. 10.11 |
| Supported browser | Plug-in free web viewer - Supported Browser: Google Chrome 47, MS Edge 20 Plug-in Webviewer - Supported MS Explore 11, Apple Safari 9 * Mac OS X only | |
| Viewer Software | SSM, Webviewer, Smart Viewer, Wisenet mobile Support SDK/CGI(SUNAPI) for integration to 3'rd party VMS | |
| Functions | ||
| Camera Setup | Item | IP address, Add profile edit, Bitrate, Compression, GOP, Quality, Camera MD setup Camera video setup (Simple focus, Brightness/Contrast, Flip/Mirror, IRIS, WDR, D&N, SSNR, Shutter, SSDR, DIS), Fisheye Dewarping Mode, Hallway View Setup, Camera Webpage |
| PTZ | Control | Via GUI, Webviewer, SPC-2000 |
| Smart phone | Support Model | iOS, Android |
| Protocol Support | RTP, RTSP, HTTP, CGI(SUNAPI) | |
| Control | Live(Multi-Profile Support), Playback | |
| Max. Remote Users | Search(3), Live Unicast(10) | |
| Redundancy | ARB | Support |
| Easy configuration | P2P(QR code) | |
| Interface | ||
| HDMI | 1EA | |
| VGA | 1EA | |
| e-SATA | 1EA | |
| Audio | Out(1EA, RCA, Line) | |
| Ethernet | RJ-45(10/100/1000BASE-T) x 1 RJ-45(PoE+) x 8 | |
| Alarm | In 4EA, Out 3EA | |
| USB | 3EA(Front 2, Rear 1) | |
| Power inlet | AC 1EA | |
| System | ||
| System Control | Mouse, IR remocon, Web, Controller (SPC-2000) | |
| Language | English, French, German, Italian, Spanish, Russian, Turkish, Polish, Dutch, Swedish, Czech, Portuguese, Danish, Rumanian, Serbian, Croatian, Hungarian, Greek, Norwegian, Finnish, Korean, Chinese, Japanese, Thai | |
| Environmental | ||
| Operating Temperature | 0°C to +40°C(32℉ to 104℉) | |
| Operating Humidity | 20% ~ 85% RH | |
| Electrical | ||
| Power Input | 100~240VAC±10% | |
| Power Consumption | MAX. 19W (64BTU, 2TB HDD x 1ea) | |
| PoE Budget | Max. 100W | |
| Mechanical | ||
| Color / Material | Black / Metal | |
| Dimension (WxHxD) | W370 x H44 x D320mm (14.57”X1.73”X12.6”) (1U) | |
| Weight | 3.356kg | |
